Basic Info.

Product Description

• Power: 28W-150W
• Rated Voltage: 100-277V
• Color Temperature: 3000k/4000k/5000k/6000k
• Rendering Index: Ra>80
• Dimming: NON/1-10V/DALI/3CCT
• Beam Angle: 30°/60°/90°/Single/Double Asymmetric

Features of 28W-150W Array Dimmable Linkable LED Linear Lights led shop light

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

For special applications where require high accuracy of color, such as in museum, jewelry store, printing factory and so on, the CRI 95 linear series is highly recommended.

Technical Data

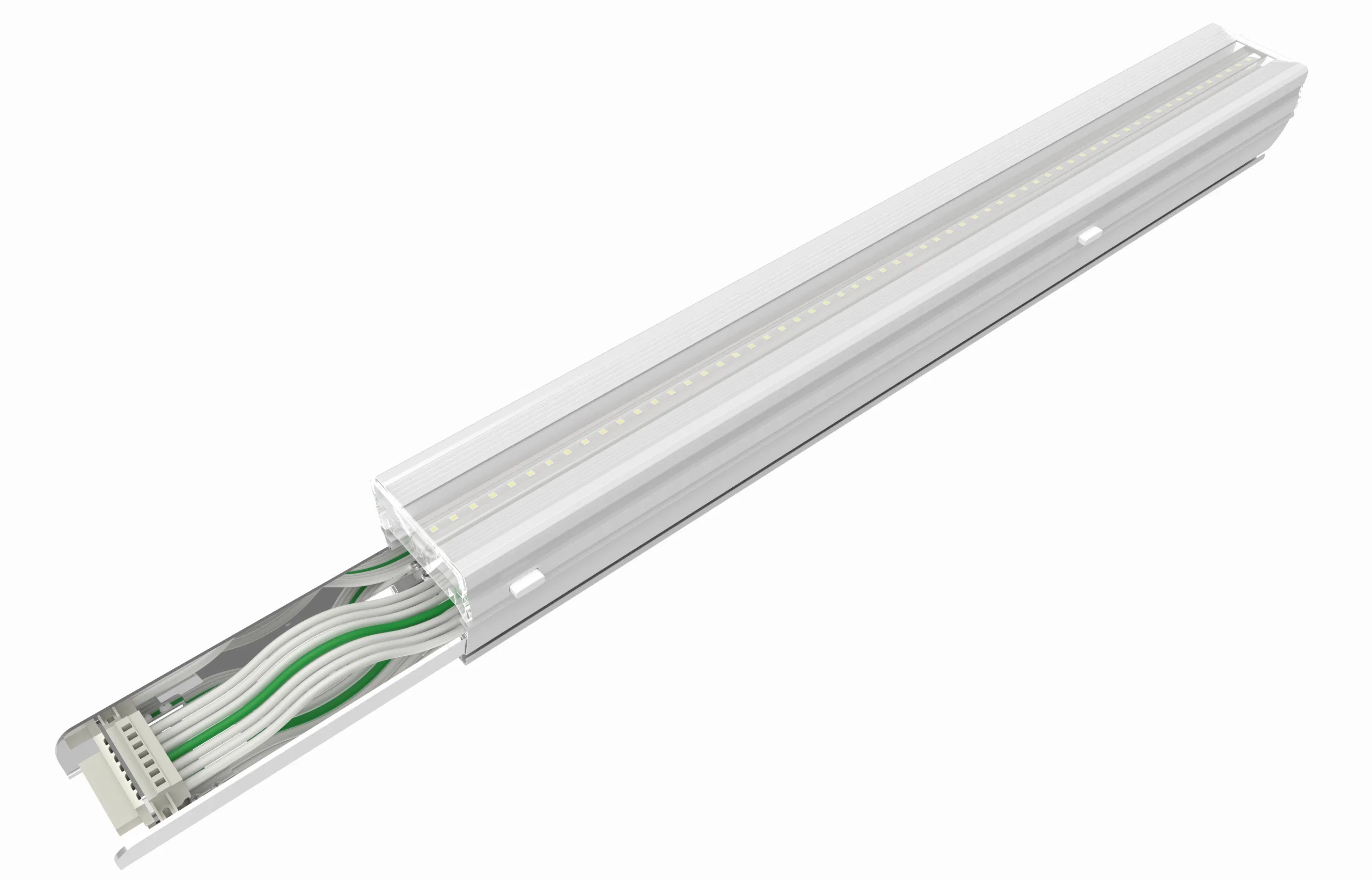

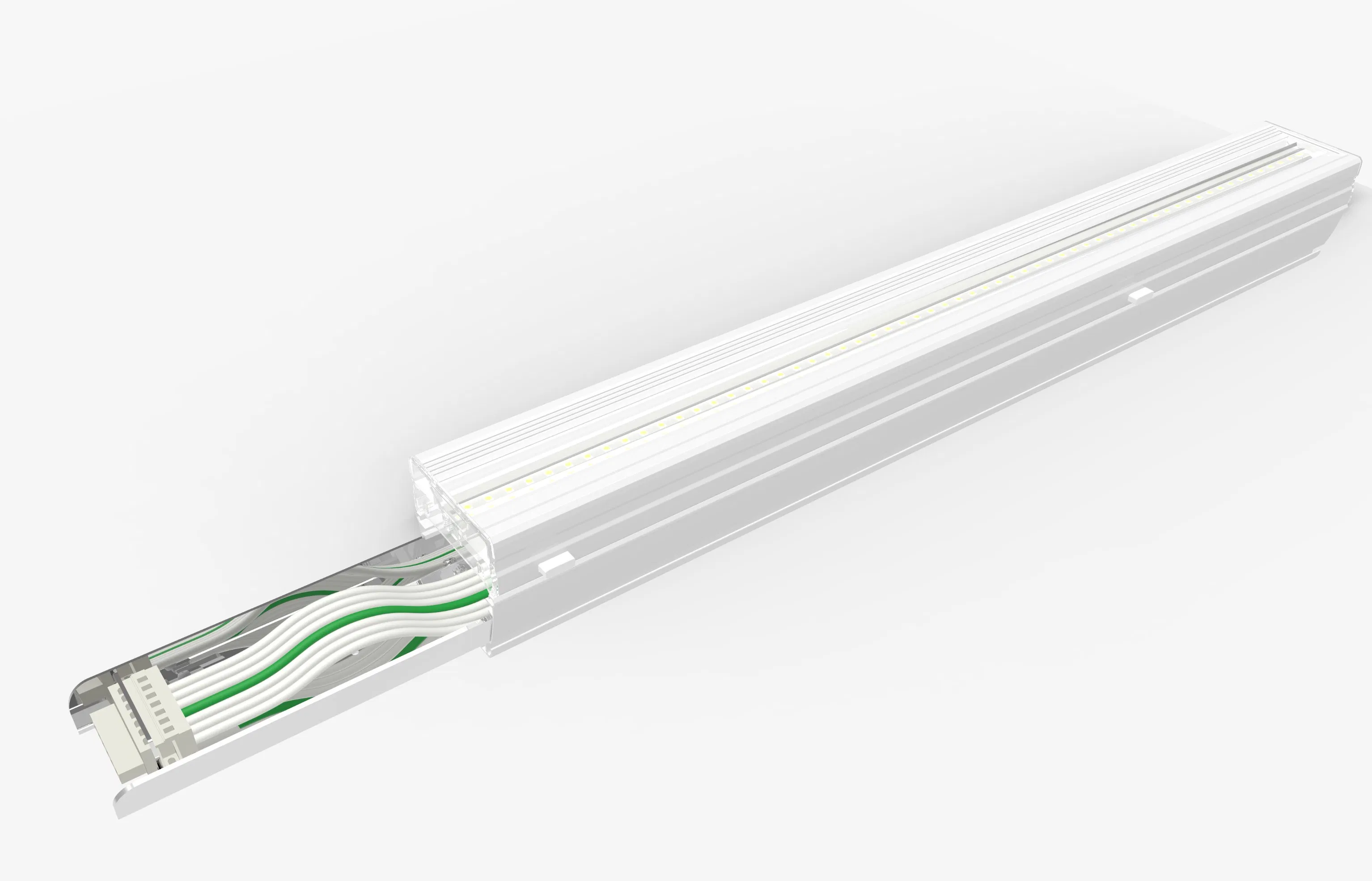

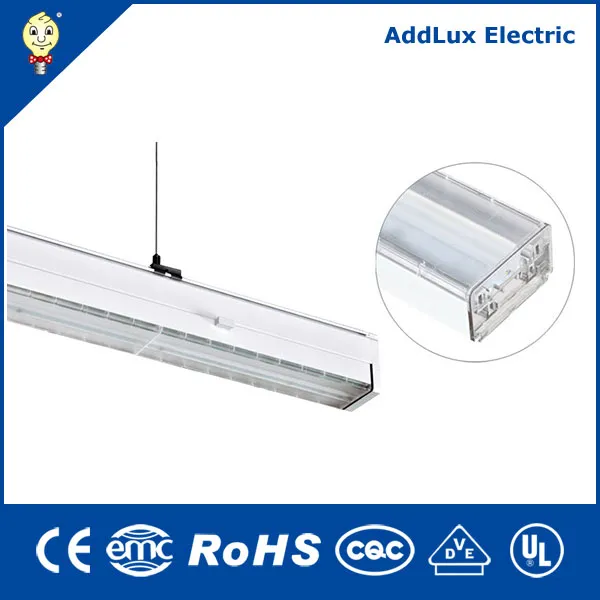

LED Linear Lighting System shop light

The LED linear lighting system is an energy-efficient, low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations. Due to its low installation cost, everything in one box and installation is tool-less. It saves both time and costs when installing lighting systems. Also the LED linear lighting system is really good in terms of the low maintenance. That's typical for LED lighting and this also keep costs low.

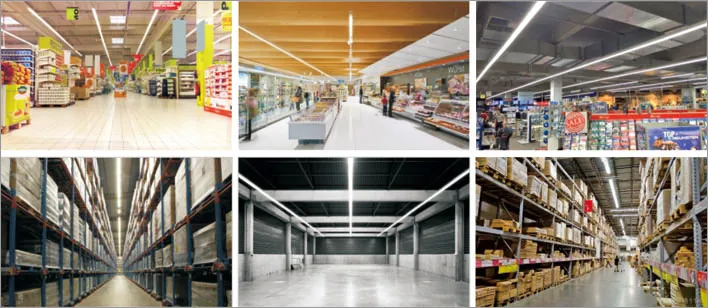

Application of array dimmable linkable LED linear lights

• Warehouse
• Supermarket
• Underground parking garages
• Wet indoor area
• Production workshop
• Railway station
• Museum
• Laboratories

One of LED lights always meet your requirements of widely application for home lighting or business lighting.

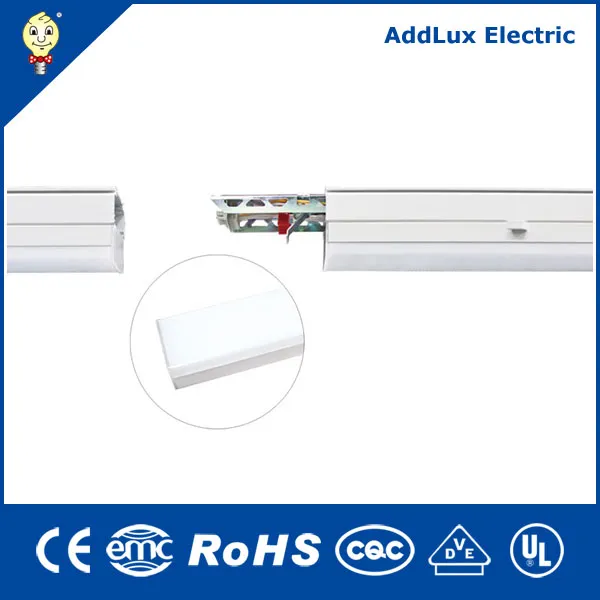

Trunking Rail

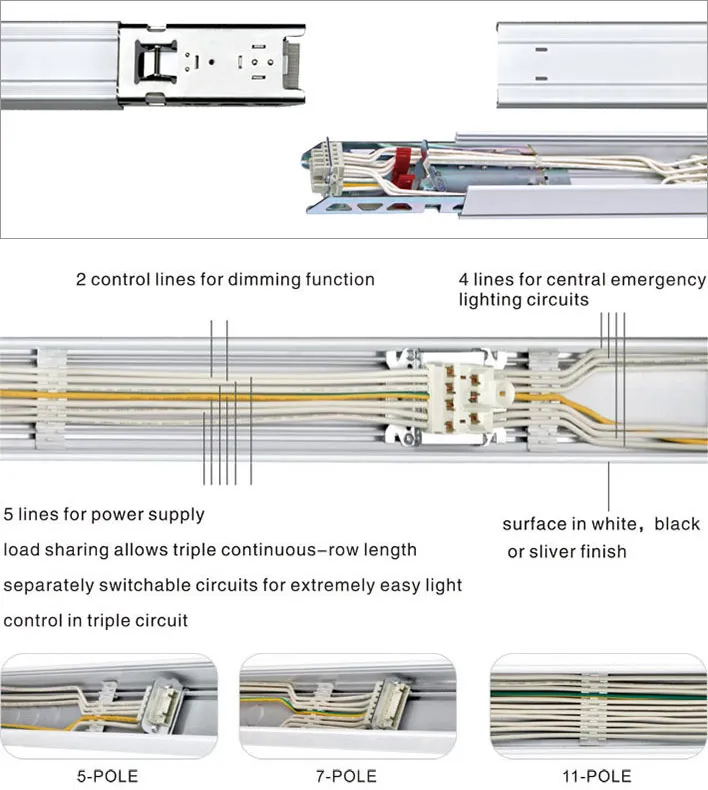

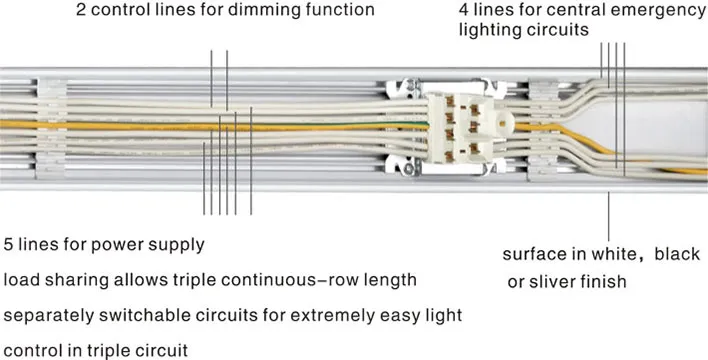

The flexible trunking system for lighting demands in all applications, with a fully compatible modular kit, adapts individually to complex lighting tasks. It has an 11-pole current conducting section built into its trunking. This means that the system comes ready equipped to meet tomorrow's needs. All functions such as power supply, lighting control and connection to emergency lighting are seamlessly integrated into this multifunctional trunking. Luminaires can be positioned flexibly and the system can be adapted to suit structural alterations at any time.

The trunking rail is simply a matter of replacing or adding lighting modules, light sources or optics as required.

• A pre-wired 3-phases & 2.5 mm² power supply.
• Phase conversion function with connector.
• Allows Max 16A and 200 meters trunking length in a 3-phases power supply system.
• Endless combination with diversified modules.
• Tool-free installation.
• Node connectors enable the system to be connected in different directions.
• Dimming, self-battery emergency or central emergency function as options.
• Supports surface ceiling mounting and suspension.

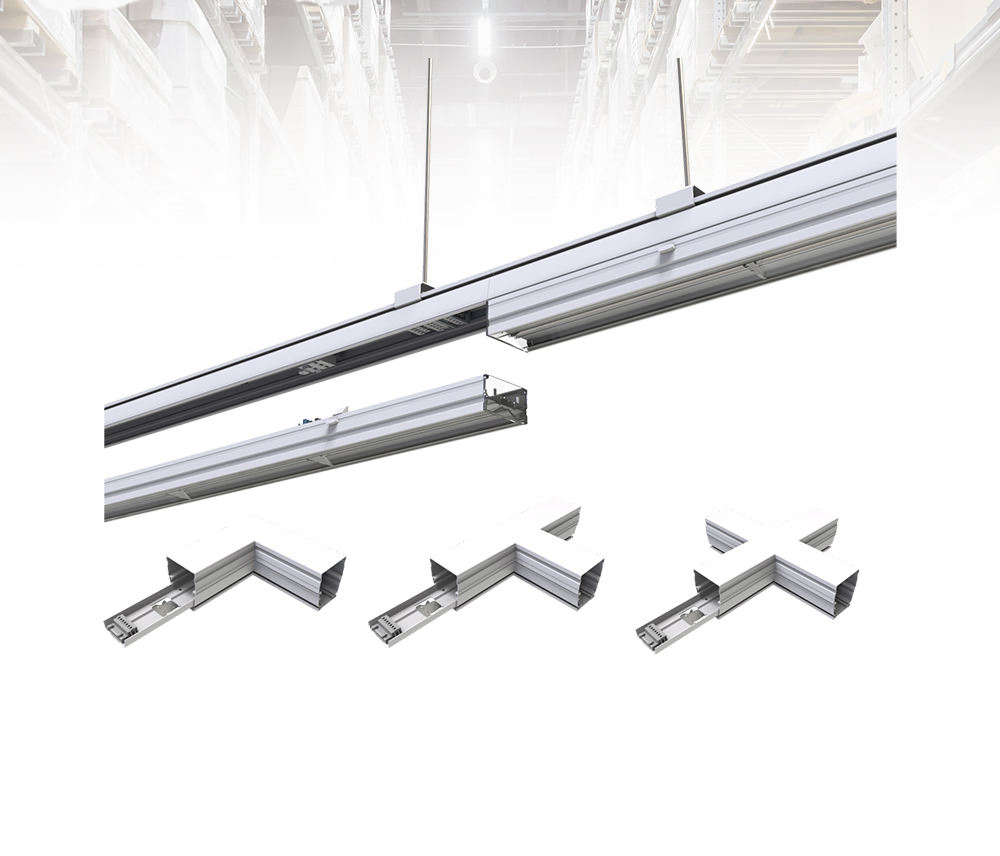

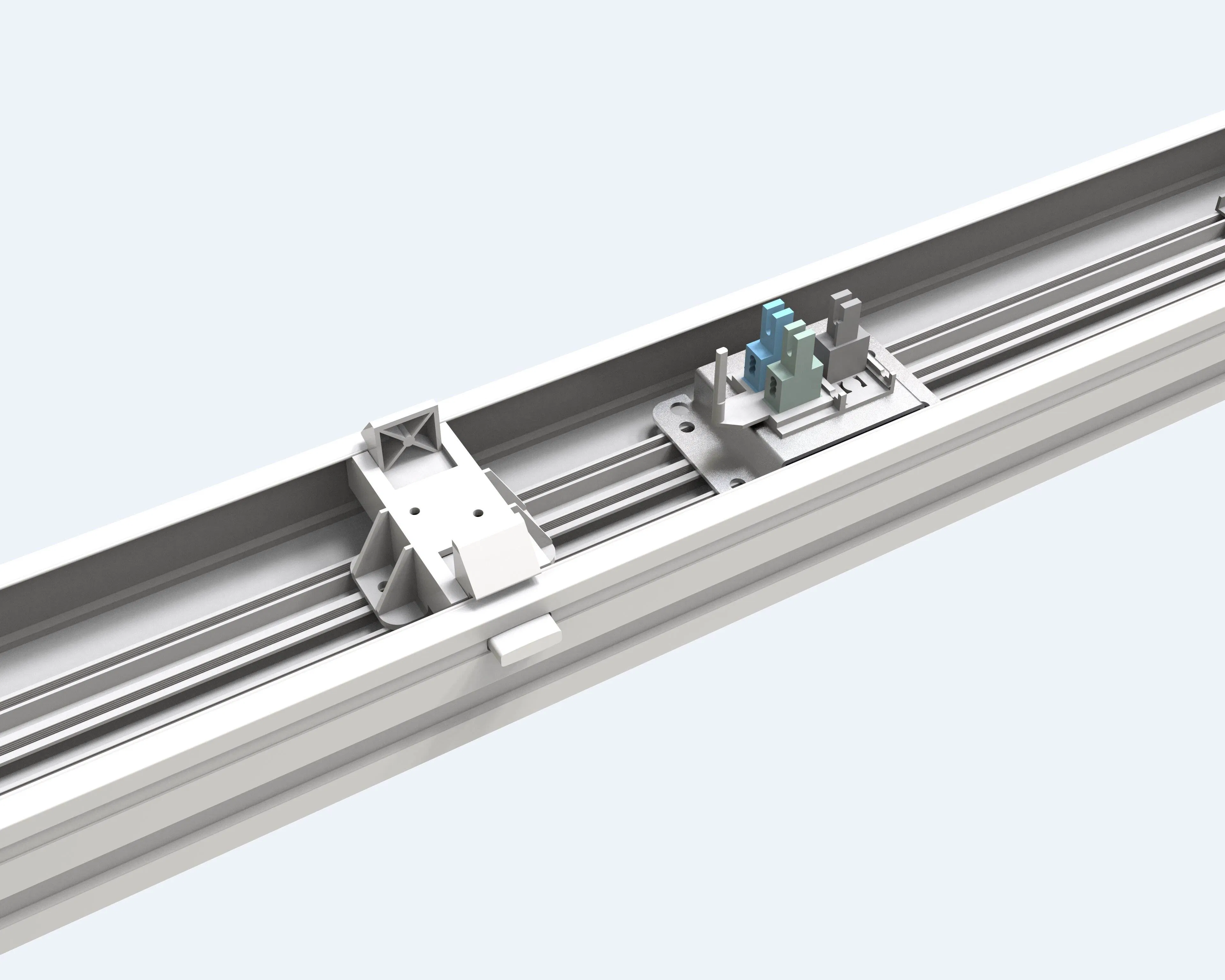

Node Connector

All system components can be combined without tools. L, T and X connectors expand the system's application range.

• Each node connector has a diversity of electrical feed-in and feed-out options.
• The node connector is not only for connecting the cross trunking, but also for connecting the wires inside the trunking. The node connector itself can even be the electricity feed-in point.

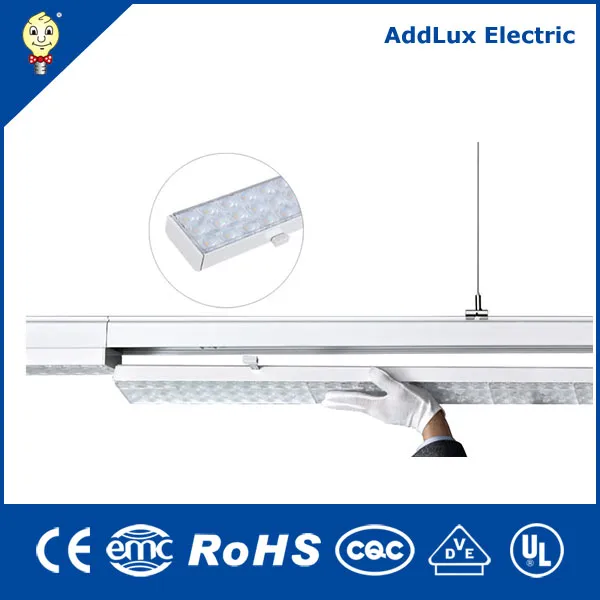

Beam Angle

Different diffusers for different distribution options.

Optics: A wide range of optics from sharp to wide distribution, as well as asymmetric.

• Sharp distribution: 30 degree
• Narrow distribution: 60 degree
• Wide distribution: 90 degree
• Flat distribution: 120 degree
• Asymmetric distribution: left or right
• Double asymmetric distribution: asymmetric

DALI and Dimming System

Efficient tools for lighting are the basis for solutions with low operating overheads and high quality of light. Supplemented with suitable light control, savings potential can be further significantly increased. The right type of light management depends decisively on the specific building conditions and usage of the area. With a wide variety of dimming light control systems with suitable sensor technology, and thanks to open, non-proprietary standards, such solutions can be simply integrated into common building management systems.

Dimming systems are suitable for complex applications for controlling rooms and storeys, for daylight-dependent control and dynamic light control. 3 types of dimming are available:

• DALI dimming
• 1-10V dimming
• DIM switch

Emergency Lighting

Emergency lighting systems ensure optimum lighting and orientation, even in the event of a power failure. General lighting and emergency lighting are combined in a single highly functional, integrative lighting solution.

• A wide variety of emergency modes is available.
• Central battery systems / generator.
• EL1 EN1 & EL2 EN2 mode selection.
• Self-contained battery.
• Under this mode, the luminaires can be 12W or 6W, working for 1.5 hours or 3 hours (depending on the demand selected in advance).
• The Ni-MH battery we use is high-temperature resistant to ensure its lifetime is longer than others.

A small spotlight is available on the 600mm module as an extra version featuring a rotating lighting head for emergency use of 5W.

Multi-Sensor System

Multi-sensor systems combine energy saving with high convenience for the user. Most energy can be saved by integrating motion and daylight sensors.

• Group control sensor or broadcast control sensor is available under a defined period of time.
• Protects against solid objects such as wires and protects against dust ingress.
• Protected against splashing water from any direction.

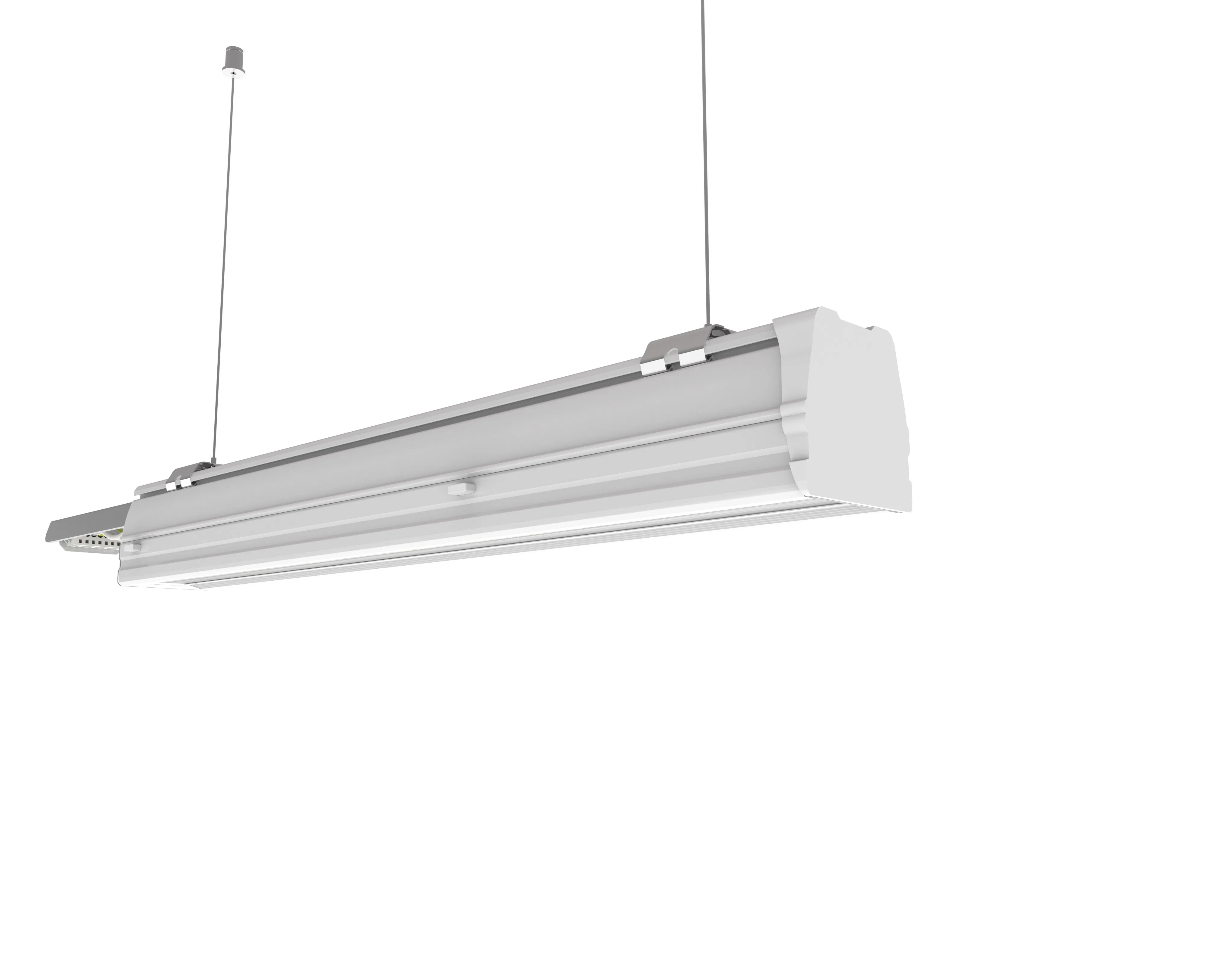

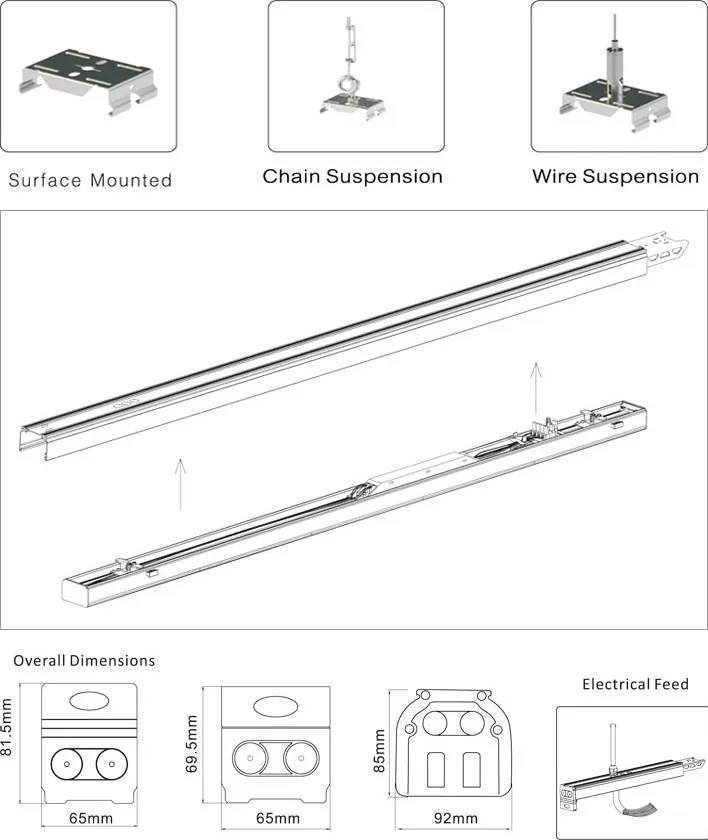

Installation

A maximum suspension span of 3m ensures quick and easy installation with fewer suspension points.

• Ceiling mounted, wall mounted and pendant mounted are all available.
• Surface mounted, chain suspension and wire suspension are all available.
