COB TRACK LIGHT SERIES Product Name: LC8301N, LC8302N, LC8303N
Specifications & Features:
• High efficacy CREE LEDs.
• Saves up to 80% energy.
• Black and silver white housing are optional.
• Narrow and medium beam angle are optional.
• No UV and IR radiations.
• Almost no heat emission; prevents delicate jewelry items (gemstones and agate stones) from losing their natural sheen or becoming fragile.
Model
LC8301N
LC8302N
LC8303N
Dimension
Φ73*L95mm
Φ88*L115mm
Φ100*L130mm
Installation
Trackway Mounting
Trackway Mounting
Trackway Mounting
Power
10W
20W
30W
Beam Angle
15°/24°/36°
15°/24°/36°
15°/24°/36°
CCT
3000-6000K
3000-6000K
3000-6000K
Luminous Flux
600-700lm
1000-1400lm
1500-2100lm
Color Rendering Index
Ra>80
Ra>80
Ra>80
Surface Color
White/Black
White/Black
White/Black
Input Parameter
AC100-240V
AC100-240V
AC100-240V
Product & Production Gallery

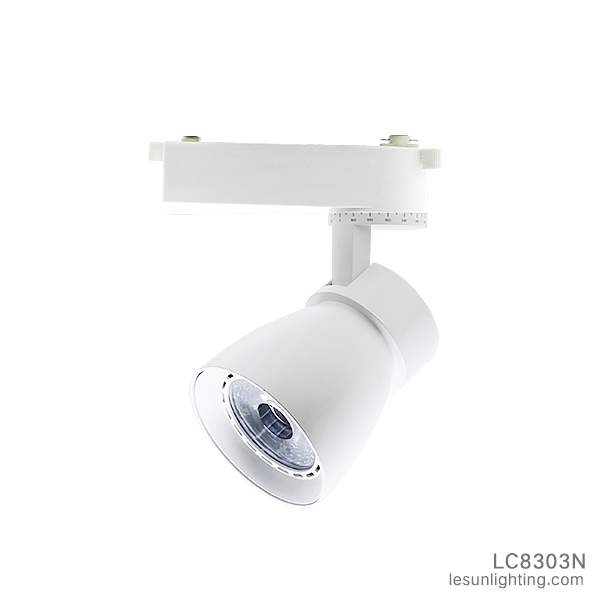

LED Track Light Series Line

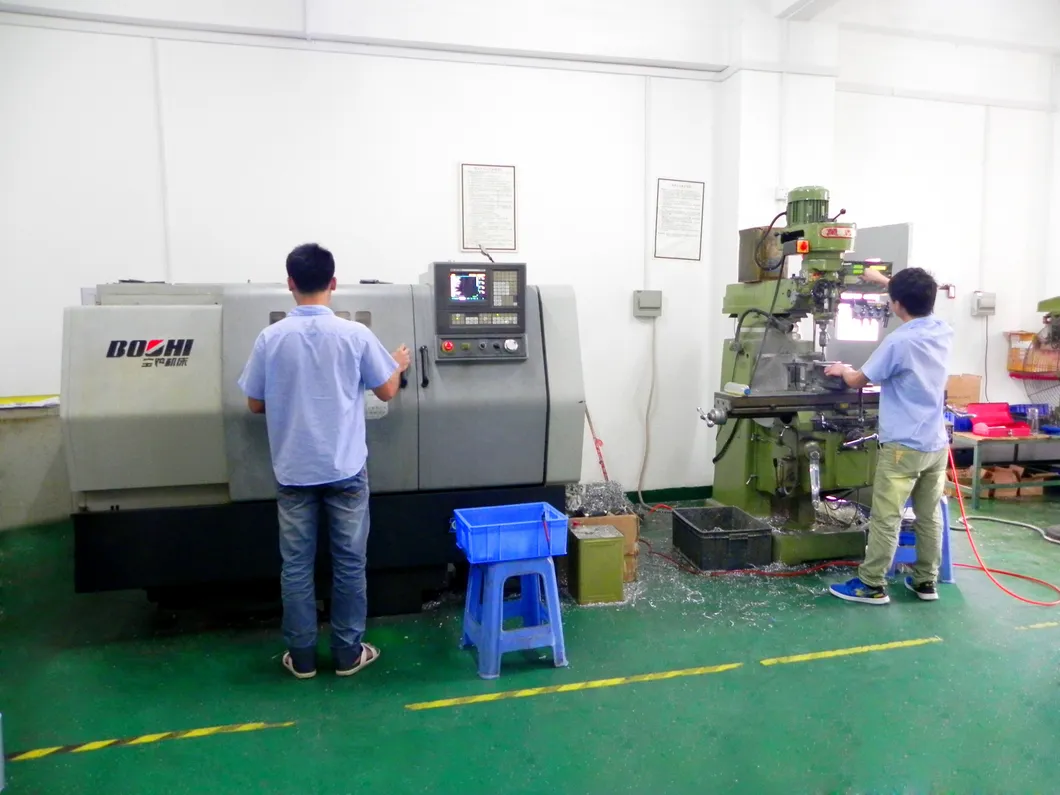

Production Environment

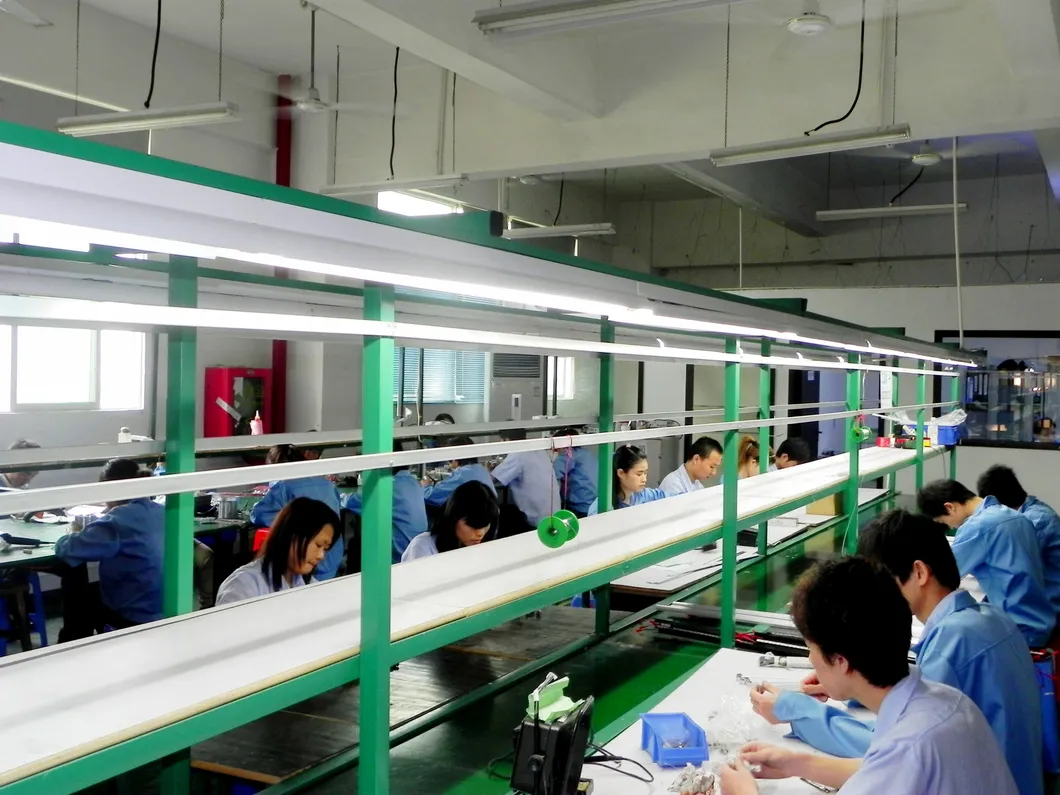

Lathe and Washing Equipment

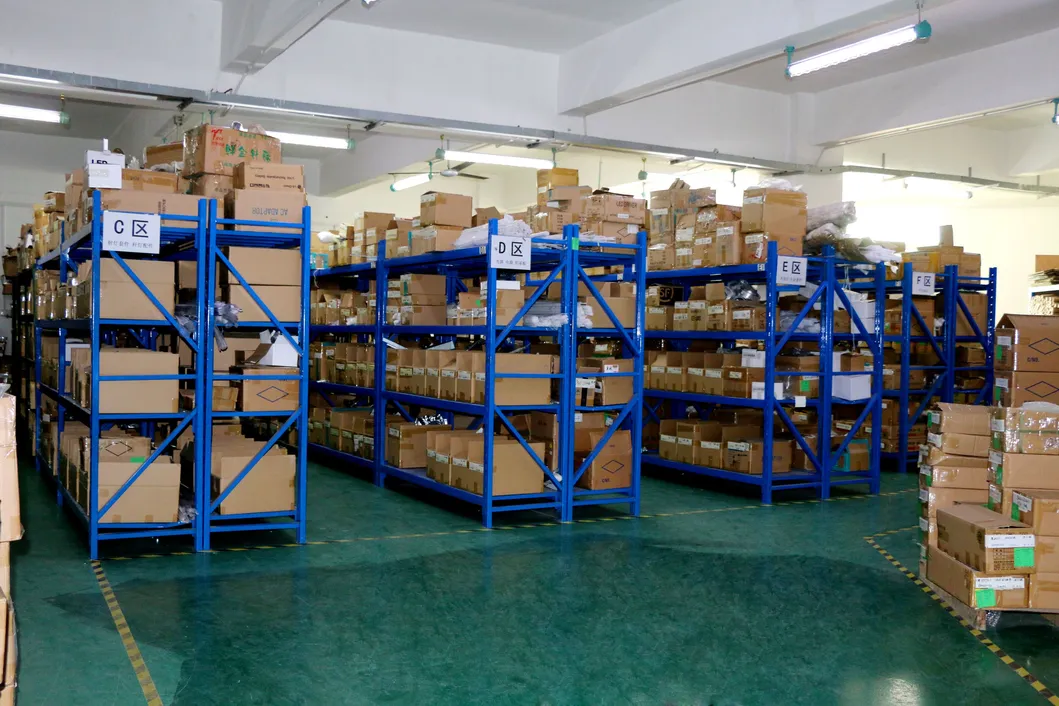

Production Assembly Line & Storeroom
Quality Certificates
Compliant with national and international standards: CE, CCC, FCC, GMC, ISO9001, RoHS, SGS.
Applications
Show windows, jewelry stores, jewelry counters, and display counters.
Display cases, watch stores, exhibition halls, showrooms, and museums.
Department stores, commercial plazas, cafes, western restaurants, high-class sculptures, and crafts projection.
Clothing stores and art galleries.
Color Temperature Selection Guide
Warm White (3000K - 3500K)
Ideal for golden jewelry lighting, creating a rich and warm ambiance.
Day White (4500K - 5500K)
Perfect for precious stones, jade, watches, handbags, and footwear displays.
Cool White (6000K - 8500K)
Excellent for diamond, platinum, and crystal display showcases.
Key Advantages
Energy Efficient
Saves up to 80% energy. Under identical lighting effects, a 3W LED bulb can replace a 60W incandescent bulb.
Eco-Friendly & Safe
No UV or infrared radiation, mercury-free, low heat output, and zero secondary pollution.
Extra Long Lifespan
Operational life of 50,000 to 60,000 hours, eliminating maintenance and replacement costs.
Silent & Flicker-Free
Instant start with no ballast or starter required, ensuring silent operation and zero flicker.
Durable & Rugged
Solid-state light source with excellent anti-vibration properties, highly resistant to impact and pressure.
Low Voltage Safety
Low DC voltage input makes the system exceptionally safe and easy to operate.
Usage Cautions
Use within the rated voltage range (AC110V-240V). Prolonged exposure to excessively high or low voltage may affect lifespan and performance.
Always cut off the power supply before installation or replacement to ensure safety.
These LED lights are not compatible with standard dimming systems.
Avoid looking directly at the light beam through optical instruments (Grade: 1M).
Packaging & Delivery
• Packaging Details: Neutral packing.
• Delivery Time: 5-7 working days after receipt of payment.
• Shipping Options: Express (FedEx, DHL, UPS, TNT, EMS), Air Freight (economical for orders over 100kg), Sea Transportation, or client-designated shipping agents.
Our Services
All inquiries will be answered within 24 hours.
Well-trained and experienced staff to answer your questions in fluent English.
OEM & ODM support, helping you design and implement customized lighting solutions.
In-house research and development using premium quality materials.
Frequently Asked Questions
What wattages and models are available in this COB track light series?
This series includes three models: LC8301N (10W), LC8302N (20W), and LC8303N (30W), allowing you to choose the ideal power output based on your specific lighting requirements.
How do I select the right color temperature for my retail store?
We recommend Warm White (3000K-3500K) for gold jewelry displays; Day White (4500K-5500K) for gemstones, jade, watches, and handbags; and Cool White (6000K-8500K) for diamonds, platinum, and crystal showcases.
Are these track lights safe for illuminating delicate gemstones and jewelry?
Yes. Because these lights emit almost no heat and produce no UV or IR radiation, they prevent delicate gemstones (like agate and other precious stones) from losing their natural luster or becoming brittle.
What are the energy-saving benefits of using these LED track lights?
These high-efficiency CREE LED lights can save up to 80% energy compared to traditional incandescent lighting. For instance, a 3W LED bulb can deliver equivalent lighting effects to a 60W incandescent bulb.
What is the expected lifespan of these track lights?
Under normal operating conditions, these LED track lights have an exceptional lifespan of 50,000 to 60,000 hours, requiring virtually no maintenance, which saves both labor and material costs.
