Home > Tri-proof Led Light > Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting
Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting
Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting
Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting
Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting
Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting
1 / 5
Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting
Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting
Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting
Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting
Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting

Linkable LED Tri-Proof Light IP65 Waterproof LED Batten Tube Lights Fixture for Indoor Outdoor Lighting

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.

Model NO.
SL106PL
Feature
Anti-corrosion, Dust-Proof, Waterproof
Material
Plastic
IP Class
65
Watt
40W
Ra
80
Lm
80lm/W
LED Type
SMD2835
Voltage
220-240V
Size
1200*80*64mm
Specification
24w, 40w, 55w
Capacity
20,000PCS/Month

Product Description

IP65 IK08 LED Tri-proof Lightings for industrial building use High lumens and CRI with CB UKCA
Opal diffuser, stainless steel clips

Opal diffuser, stainless steel clips

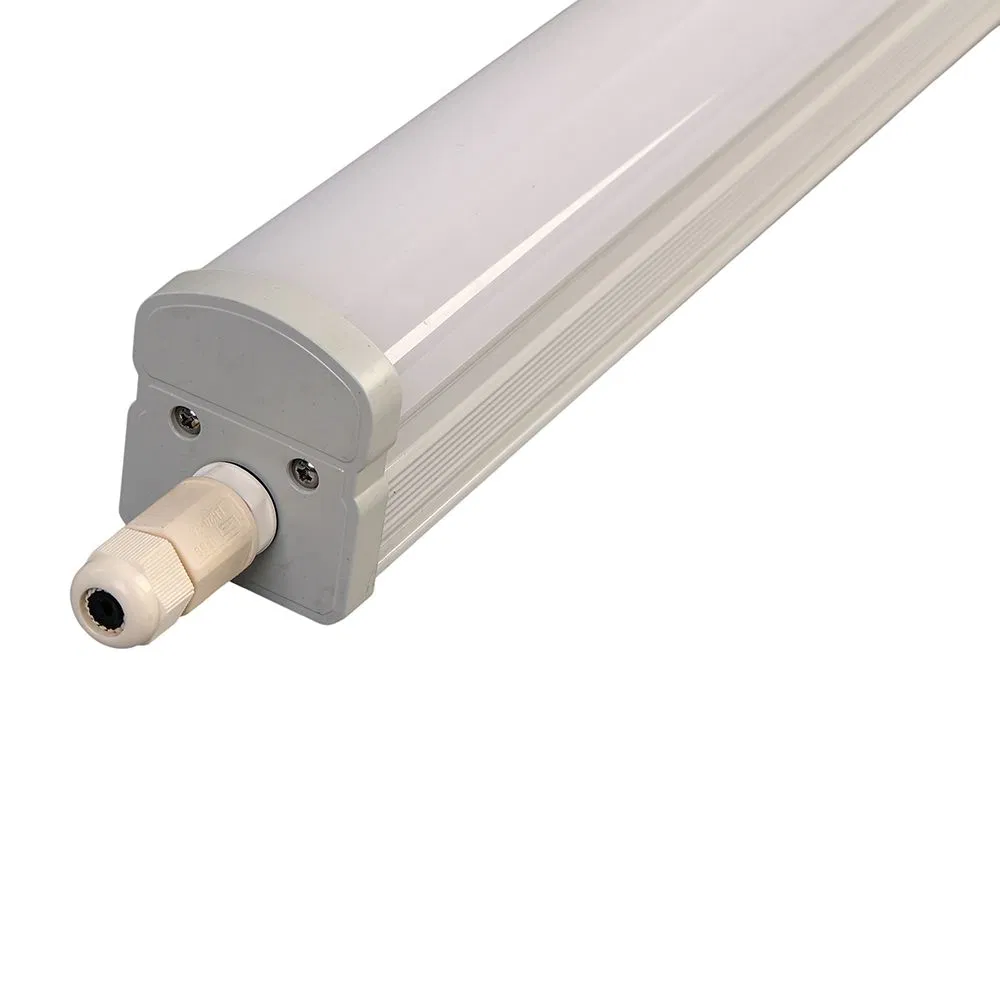

Gray base with IP65 waterproof cable gland

Gray base with IP65 waterproof cable gland

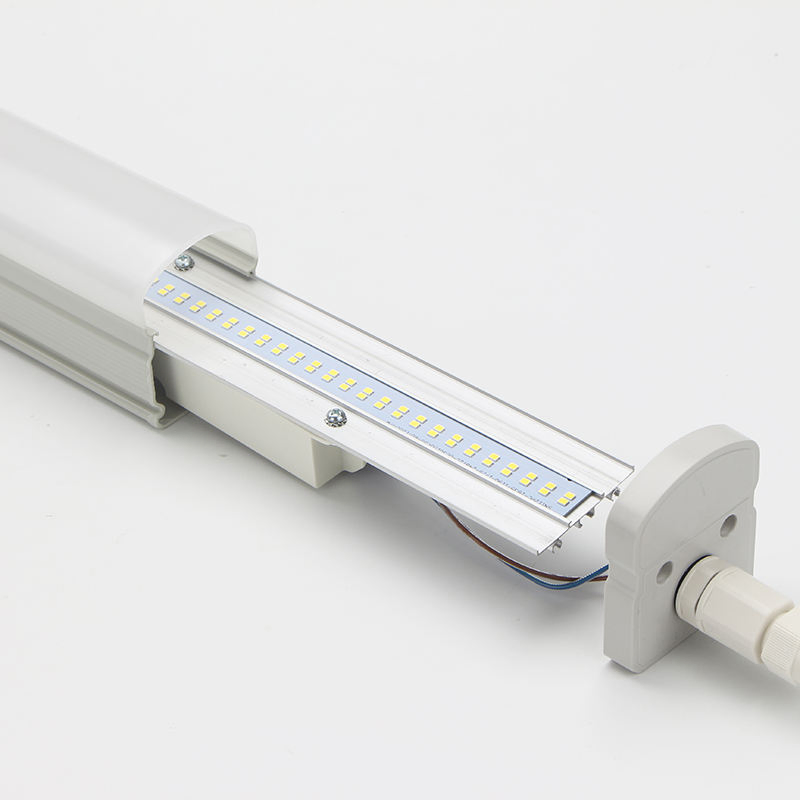

reflector + diffuser together, easy install

Reflector + diffuser together, easy install

Detailed view 1
Detailed view 2
Detailed view 3
Watts
40W
Input Voltage
220-240v 50/60hz
Beam Angle
120 Degree
Light Source
SMD2835
Lumen
100lm/w
CCT
2700-6500k
LED Quantity
116pcs
Certification
CB CE SAA

Key Features

  • Driver: Linear driver with high stability.
  • Reflector: MCPCB or high temperature resistant PCB for option.
  • Durability: Body and diffuser meet IK08 and 850 degree glow wire test requirement.
  • Energy Saving: Save up to 60% in electricity consumption compared to fluorescent fixtures.
  • Longevity: Lifetime: 50,000hrs, Warranty: 2 years.
  • Versatility: Supports sensor (turn on/off, dim sensor) and emergency kit.
  • Application: Perfect for supermarket, underground parking, warehouse, and wet locations.

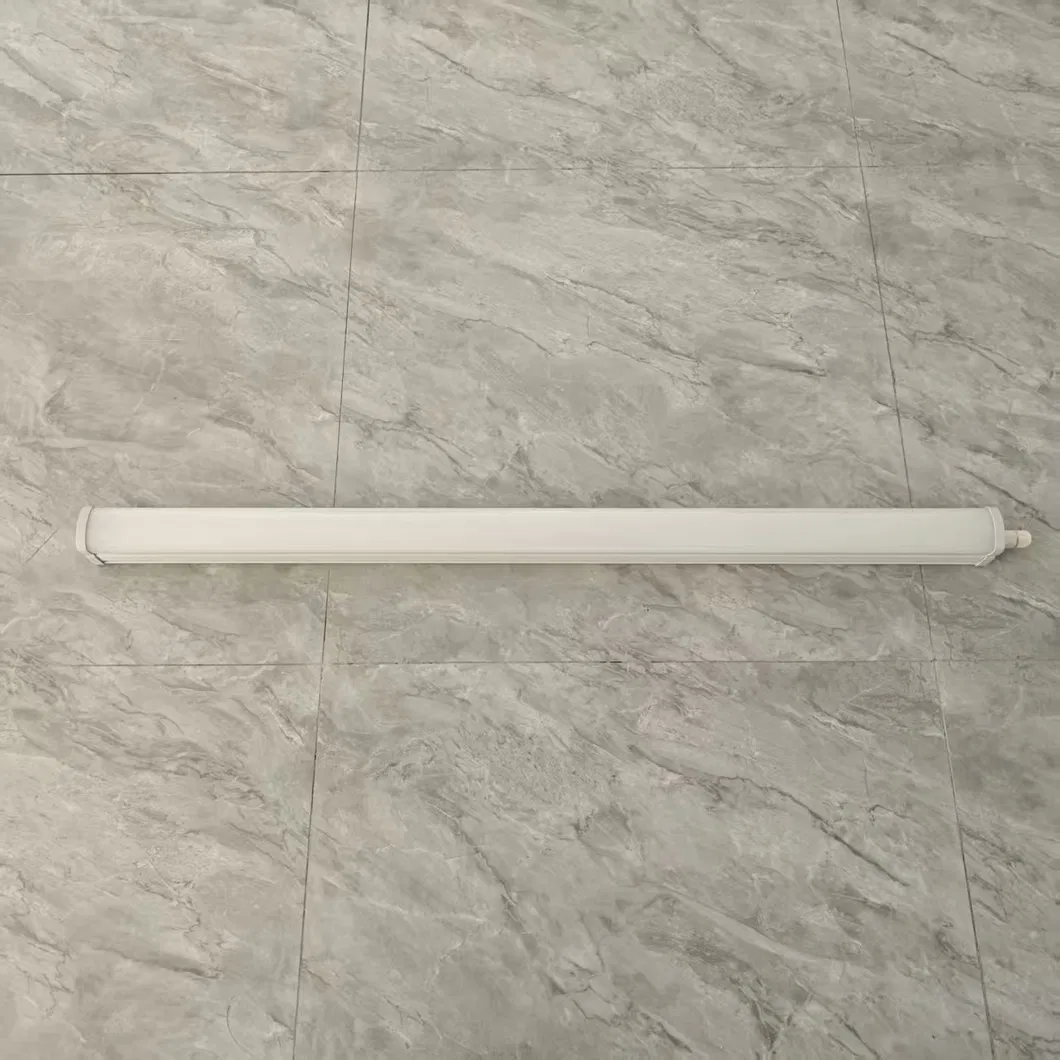

Dimension diagram

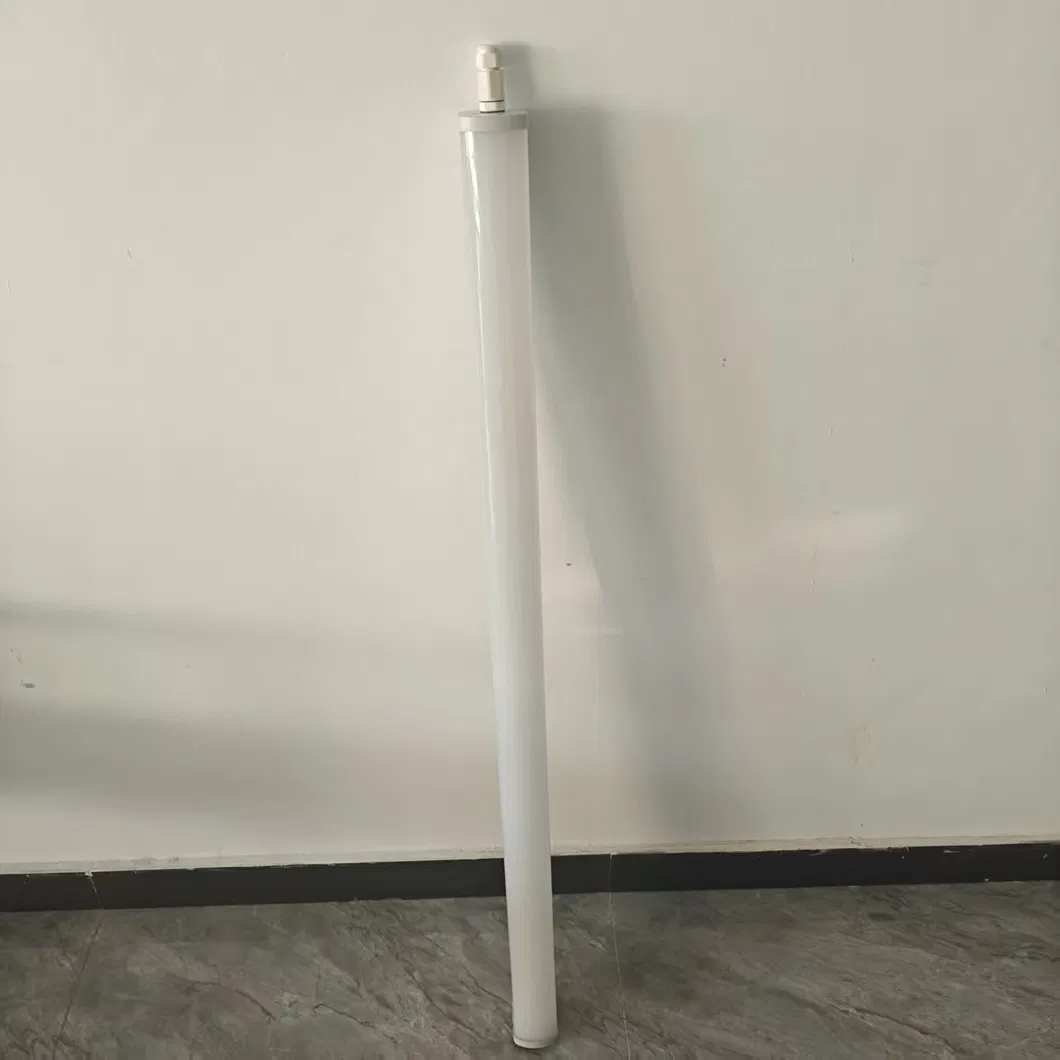

Mounting details

Technical Specifications

Model Voltage/Freq Lamp Power Material LED QTY/LEDs CRI Lumens CCT Angle Lifespan IP Rating Net Size(mm)
SLWP0620H 220-240V/50Hz 24W PC+PC SMD2835 58pcs 80 2000LM 2700-6500K 120° 50000 65 600*80*64
SLWP1240H 220-240V/50Hz 40W PC+PC SMD2835 116pcs 80 4000LM 2700-6500K 120° 50000 65 1200*80*64
SLWP1560H 220-240V/50Hz 60W PC+PC SMD2835 174pcs 80 6000LM 2700-6500K 120° 50000 65 1500*80*64

Frequently Asked Questions

What does "Tri-proof" specifically mean for this lighting fixture?
Tri-proof stands for waterproof, dustproof, and anti-corrosion. Our SL106PL series is designed to withstand harsh environments, making it ideal for industrial use.
Is the fixture durable against physical impacts?
Yes, the body and diffuser meet the IK08 impact protection rating and have passed the 850-degree glow wire test for fire safety and durability.
Can this be used as a replacement for traditional T8 fluorescent lights?
Absolutely. It is a perfect replacement for the whole set of T8 fluorescent luminaires, saving up to 60% in electricity consumption.
What are the available installation options?
The fixture features an integrated reflector and diffuser design for easy installation. It is suitable for surface mounting in parking lots, warehouses, and factories.
Does this light support smart sensors?
Yes, it can be customized to include turn on/off sensors, dimming sensors, and emergency power kits based on your project requirements.
What is the expected lifespan of the LED Tri-proof light?
The fixture is designed with a lifetime of 50,000 hours and comes with a 2-year warranty for industrial applications.
