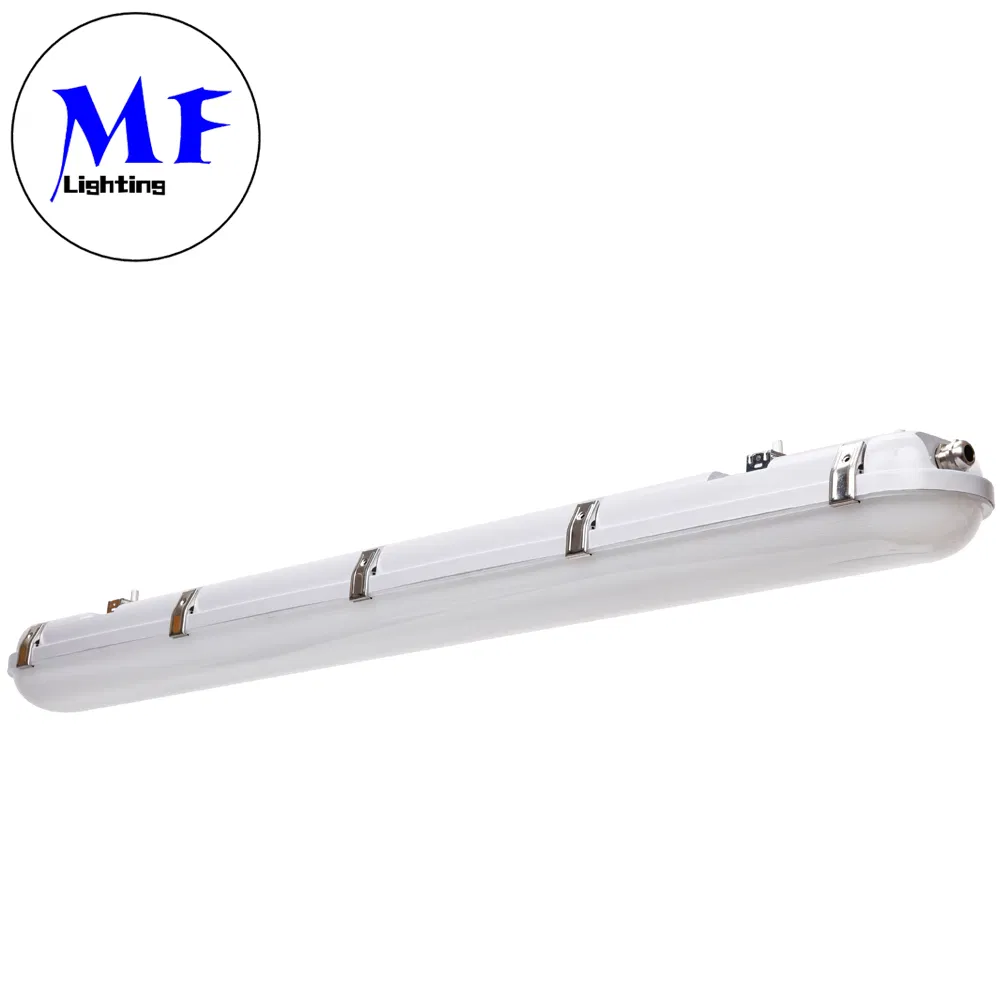

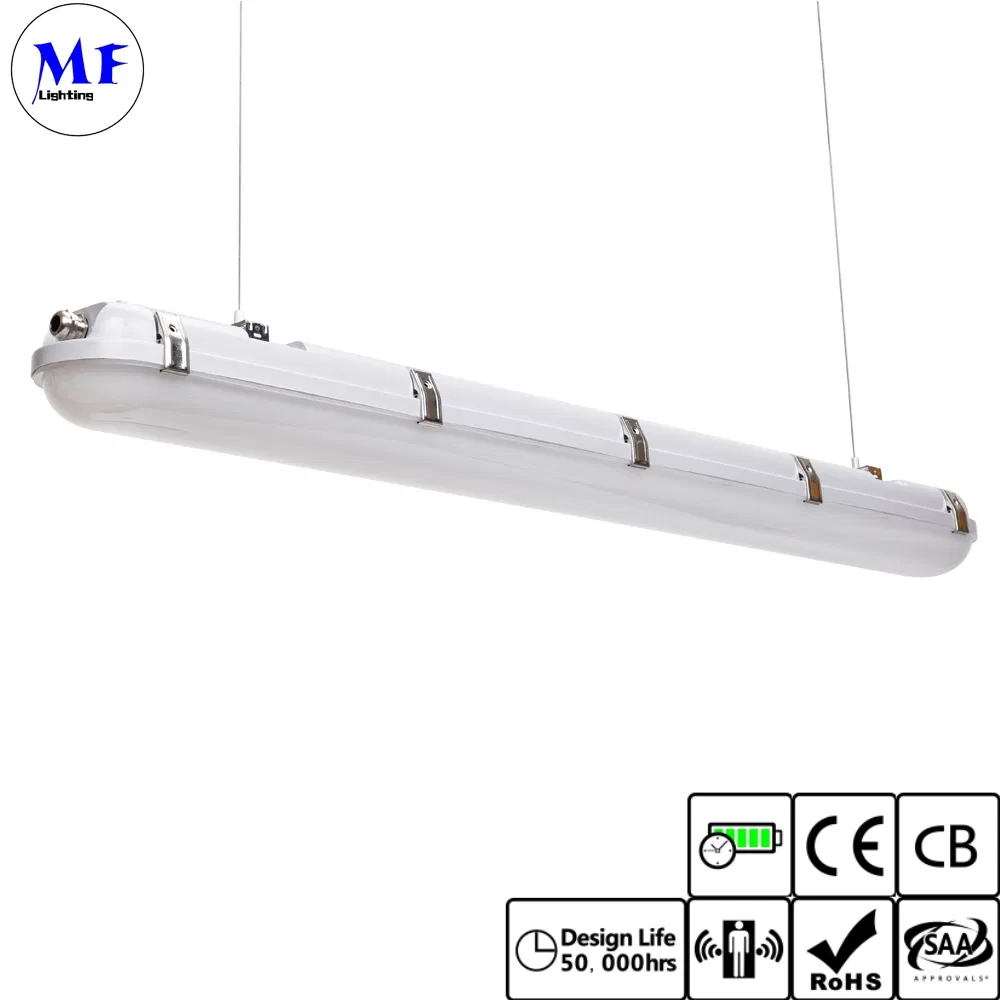

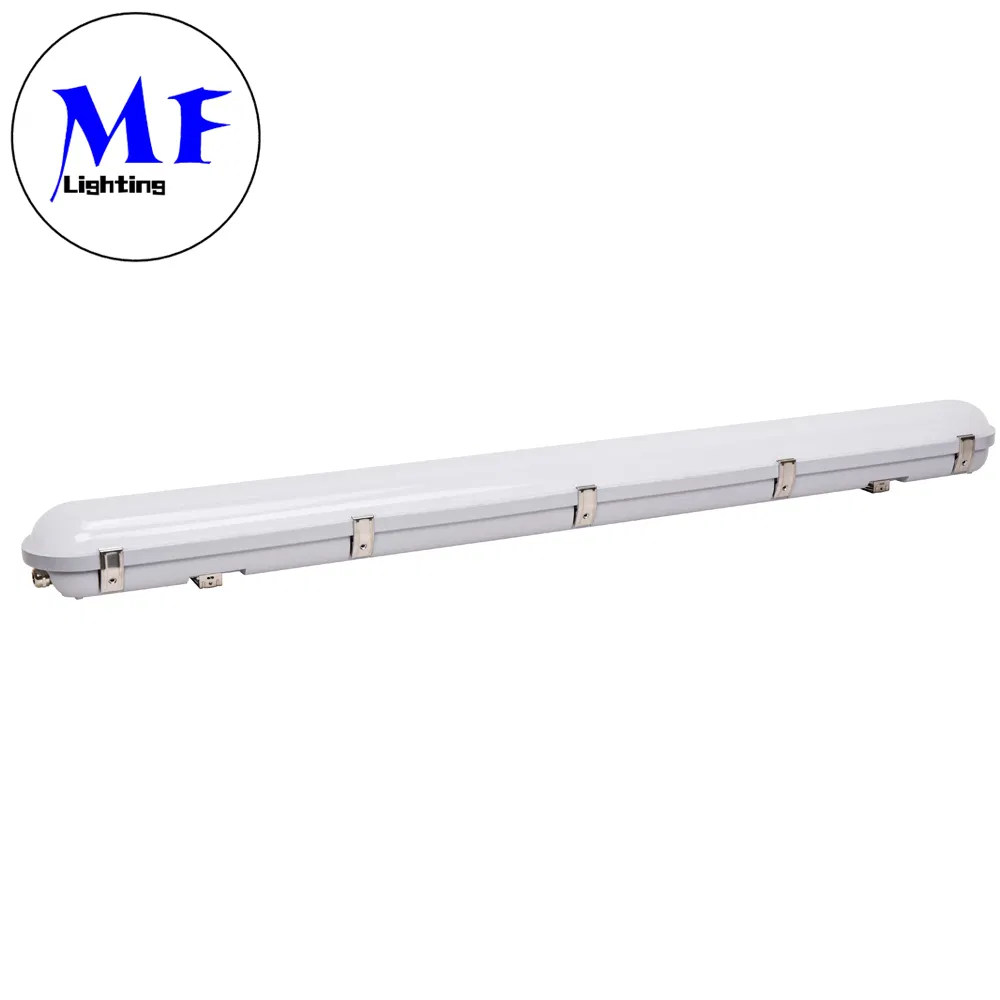

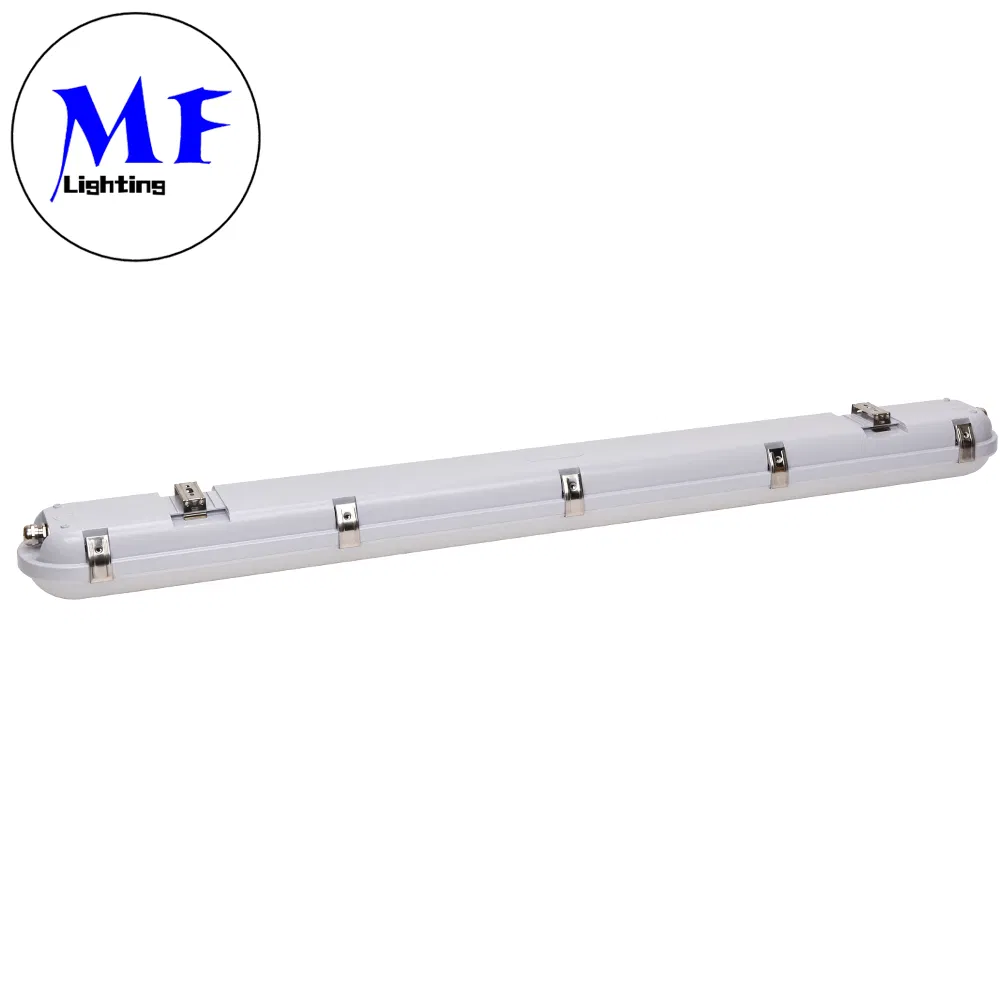

Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train
Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train
Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train
Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train
Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train
1 / 5
Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train
Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train
Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train
Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train
Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train

Factory Price 2FT 4FT 5FT IP66 Waterproof 20-60W Linkable Motion Sensor LED Tri-Proof Tube Light Tunnel Light Vapor Tight Light for Tunnel Railway Train

Send Inquiry

Product Description

LED Tunnel Lighting - Quick Detail

  • 1. IP66 Tri-proof LED Light Fixture
  • 2. Input: AC 100-277V, 50/60Hz
  • 3. Luminous Flux: 140lm/w±10%
  • 4. CRI: >85
  • 5. PF: >0.95
  • 6. Lifespan: >=50000Hrs
  • 7. IP rate: IP66
  • 8. IK rate: IK08
  • 9. Sensor: Motion Sensor
  • 10. Emergency Time: 90min
LED Tri-Proof Tube Light

Technical Specifications

Parameter Details
Model NoMF-T218/MF-T236/MF-T258/MF-T270
Input voltageAC100-277Vac 50hz/60hz
Power(watt)20W/40W/60W/80W
Product size(mm)2ft(600mm)/4ft(1200mm)/5ft(1500mm)/6ft(1800mm)
Color temperature3000K-4500K / 5000K-5500K / 6000K-6500K
RGBRGB Optional
LED ChipSAMSUNG
Luminous Flux140LM/W±10%
CRI(Ra)>85
Lifespan≥50000hrs
Beam Angle120°
MaterialAluminum + PC
IP / IK RateIP66 / IK08
Emergency Time≥90min
Warranty5 Years
Linkable Motion Sensor LED

Product Detailed Photos

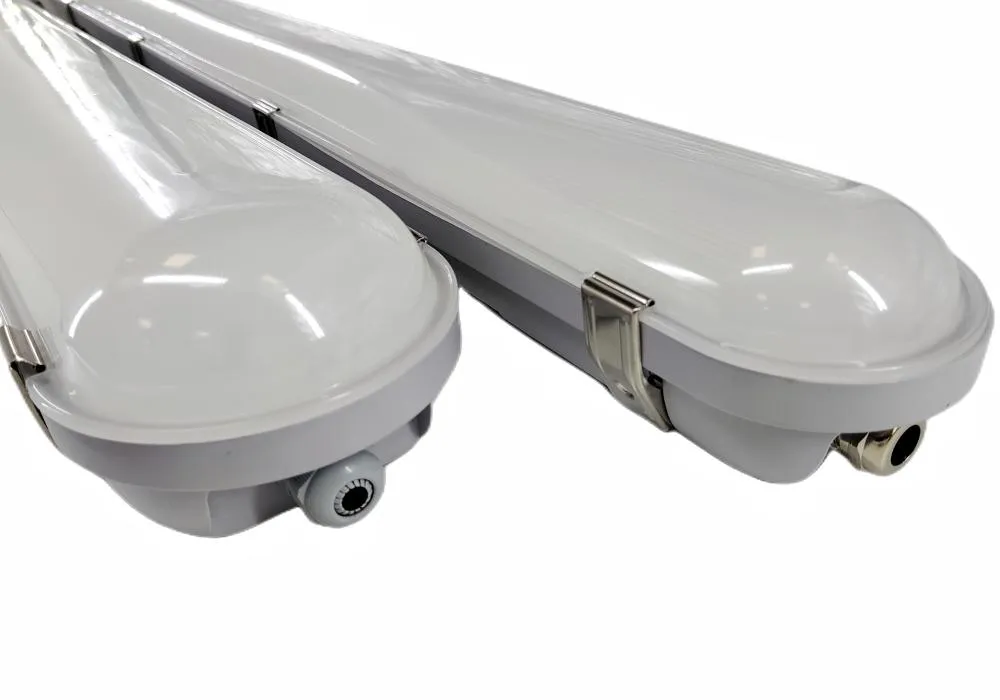

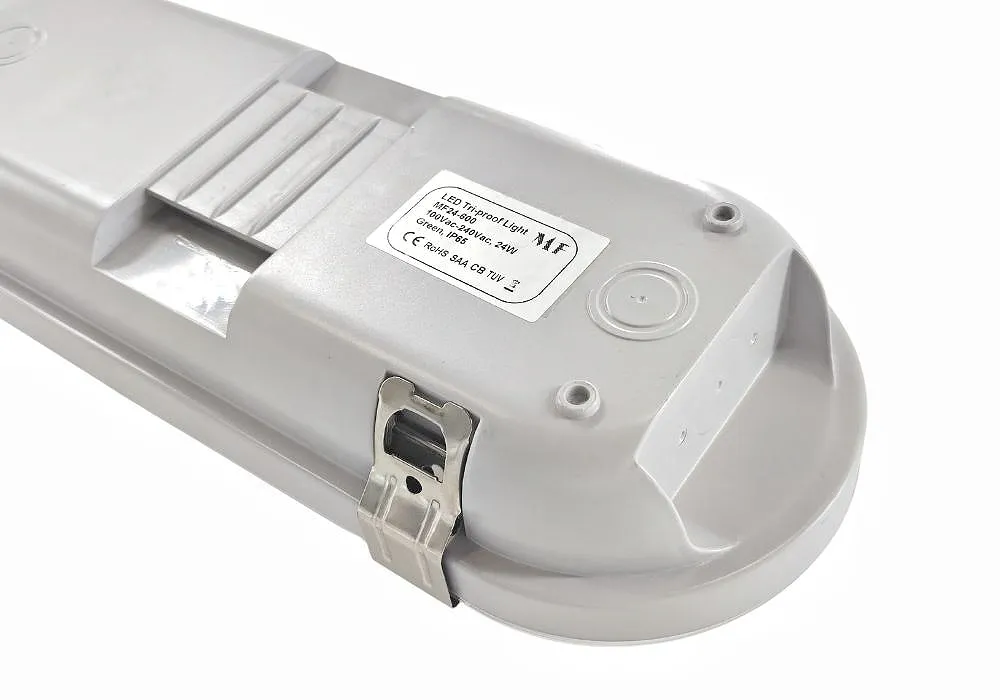

Detailed View 1 Detailed View 2 Detailed View 3

Clasp Type & Components

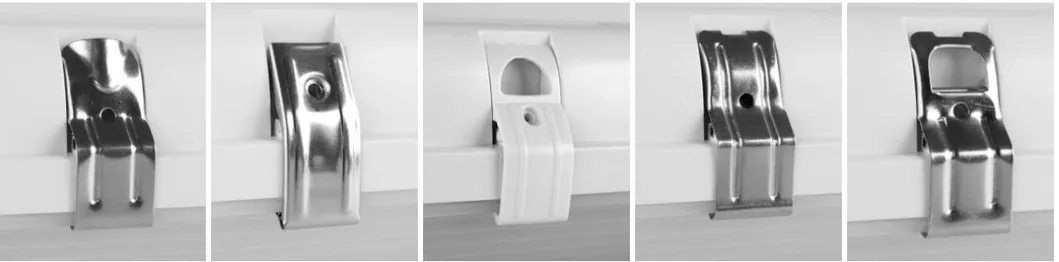

Clasp Type

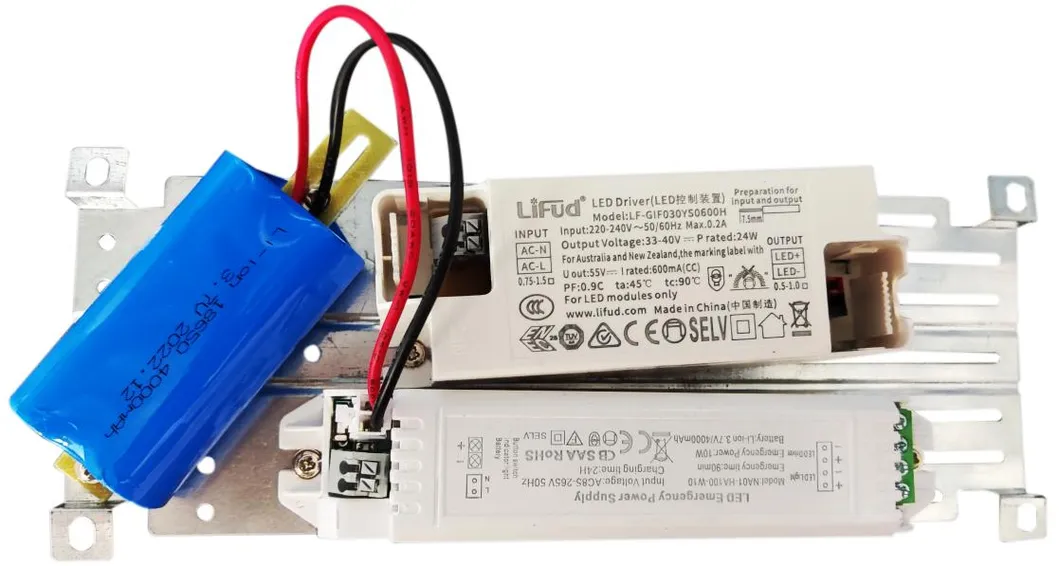

M20 Connector Emergency Kit Motion Sensor

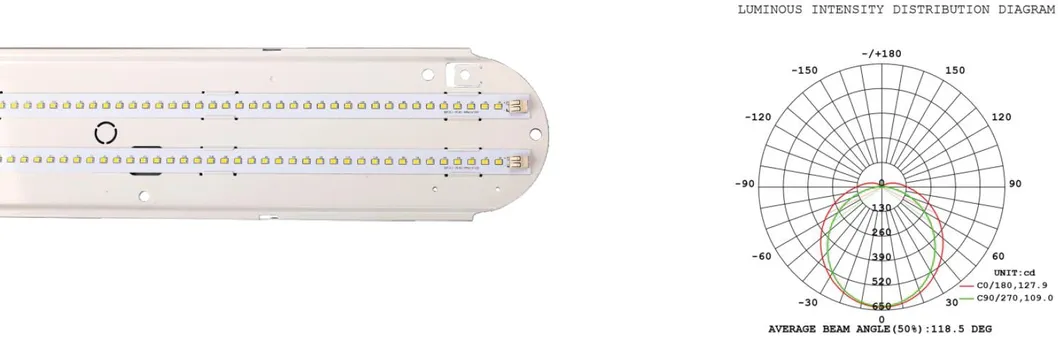

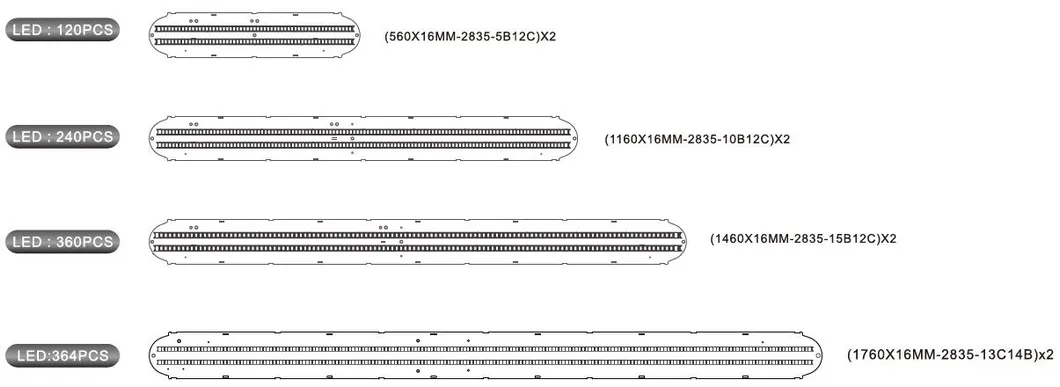

SMD2835 Strip Beam Angle

RGB Optional Display

RGB Option 1 RGB Option 2

Product Dimensions

Product Code Dimensions(LxWxH) Q'ty/ctn Clips Outer Box(mm) G.W./CTN
MF-T218600x125x8866680*280*3108.5kg
MF-T2361200x125x886101280*280*31014.6kg
MF-T2581500x125x886121580*280*31017kg
MF-T2701800x125x884161880*280*21014kg

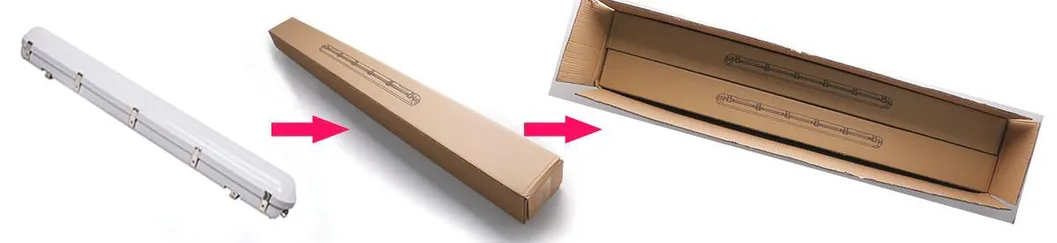

Dimension Line Side View Installation

Wide Applications

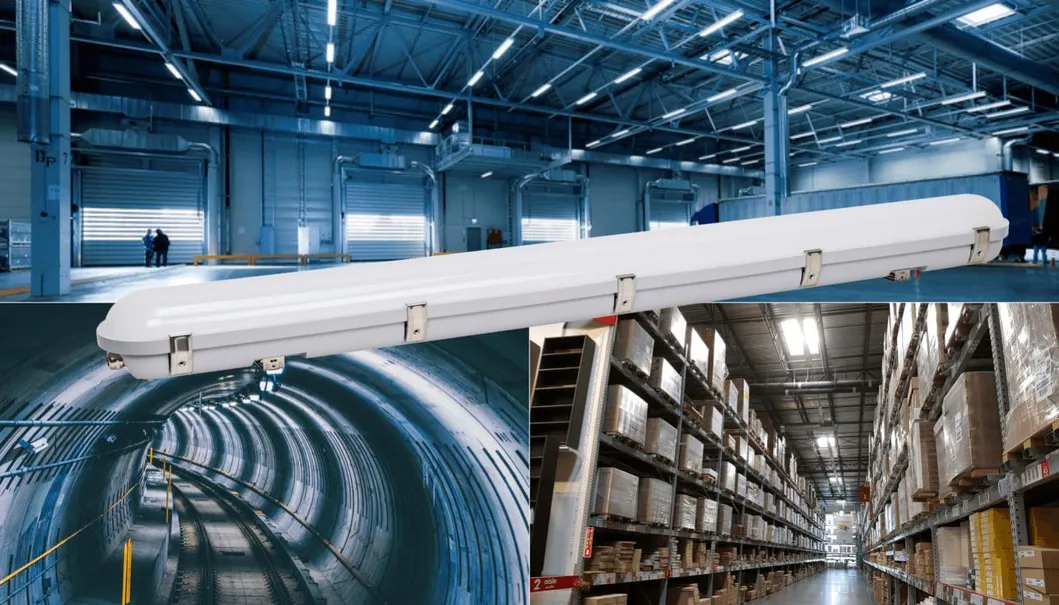

Application Scenario
Industrial Lighting Commonly used in warehouses, factories, and production facilities to enhance visibility and safety.
Outdoor Lighting Suitable for car parks, walkways, and building perimeters, designed for harsh weather.
Commercial Lighting Ideal for supermarkets and shopping malls to provide optimal lighting for displays.
Public Lighting Used in airports, train stations, and bus terminals for commuter safety.
Agricultural Lighting Suitable for greenhouses and livestock farms, aiding plant growth and husbandry.
Application View Installation Details Mounting Guide

Frequently Asked Questions

Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience in high-performance LED lighting solutions including IP67 and Tri-proof lights.
What are your main products?
Our core range includes LED Triproof lights, High Bay lights, Flood lights, Explosion Proof lights, and specialized underwater/garden lighting.
What is the Minimum Order Quantity (MOQ)?
For standard models, we are flexible. For customized models, we offer free customization if the order quantity exceeds 1000 pieces.
What payment terms do you accept?
We accept T/T, Western Union, and PayPal. Standard terms are 50% advance and 50% balance before shipment. Shipping terms include EXW, FOB, CIF, and DDP.
What is the typical delivery time?
Samples are delivered within 5-7 working days. Mass production typically takes 20-30 working days depending on the specific order volume.
Why should we choose your lighting products?
We provide comprehensive OEM/ODM services, have a dedicated in-house design team, and our sales staff has over 12 years of industry experience.
