📊 Basic Info.
Model NO.WS-LI12H36W-9PR
IP RatingIP66
FinishedWhite
Length60/120/150cm
Power18/36/50W(or Other)
Lumen Options130/150/180 Lm/W
Input Voltage200-240VAC 50/60Hz
Dim0-10V/Dali Optional
DriverBrand Flicker-Free Driver
PF≥0.9
CRI≥80
Power Efficiency≥0.9
Beam Angle110°
Warranty5 Years
Operating Temp-20~+40 ℃
Storage Temp-40~+80 ℃
PackageExport Neutral Carton
Transport Package12PCS/Carton
Specification120CM
TrademarkWINSTAR/or OEM
OriginChina
HS Code9405429000
Production Capacity10000PCS/Month
📦 Packaging & Delivery
Package Size132.00cm * 33.00cm * 25.00cm
Package Gross Weight14.520kg
Product Description

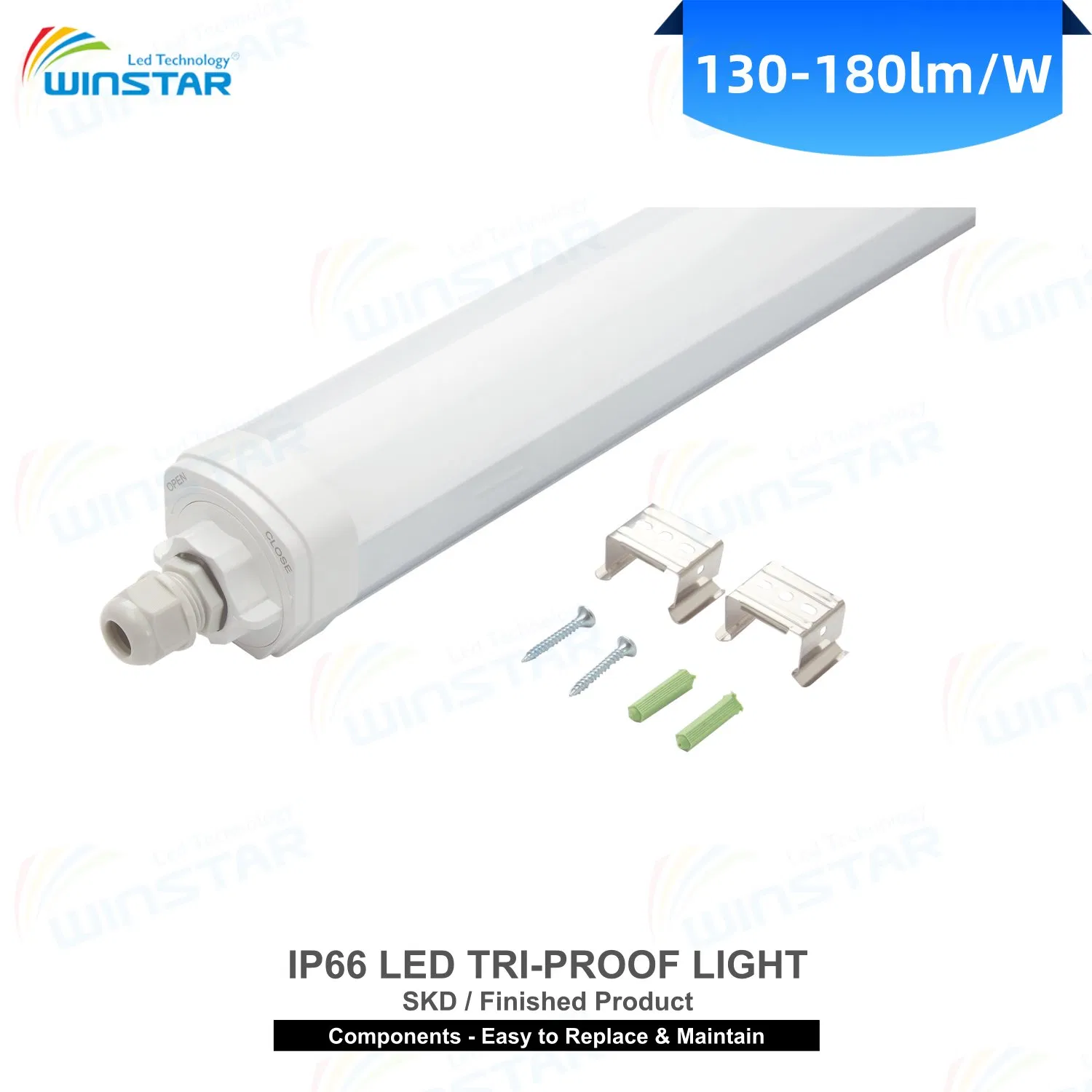

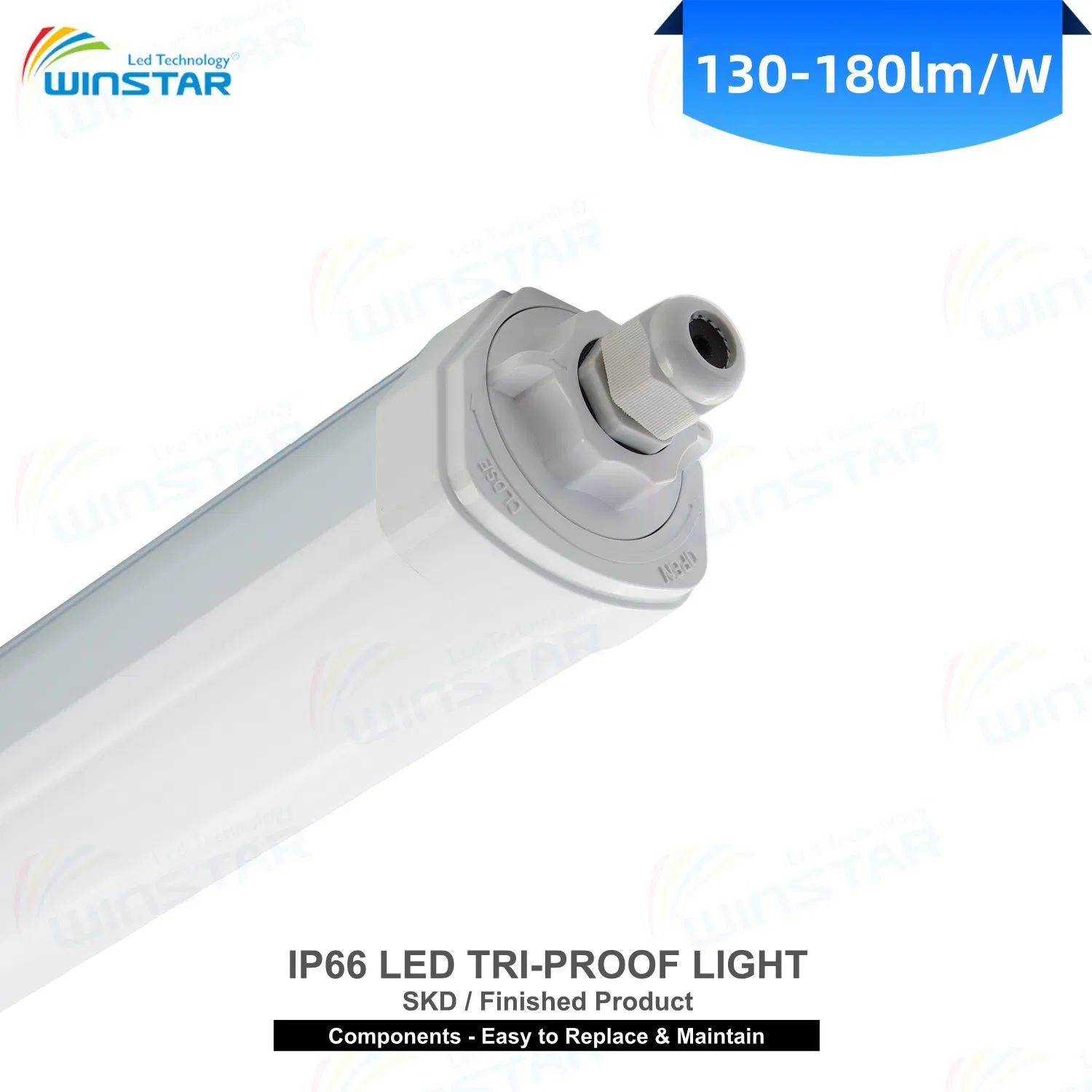

IP66 LED Tri-proof Light Batten 60/120/150cm Custom Size LED Linear Light
for OEM ODM Project Engineering Lighting CE RoHS 5-Year Warranty
--------Core Selling Points--------
Patented & Modular Design | Replaceable PCB & Driver | SKD/Finished Dual Supply
IP65 IK08, 5-Year Warranty | CE ROHS
💡 Product Key Features

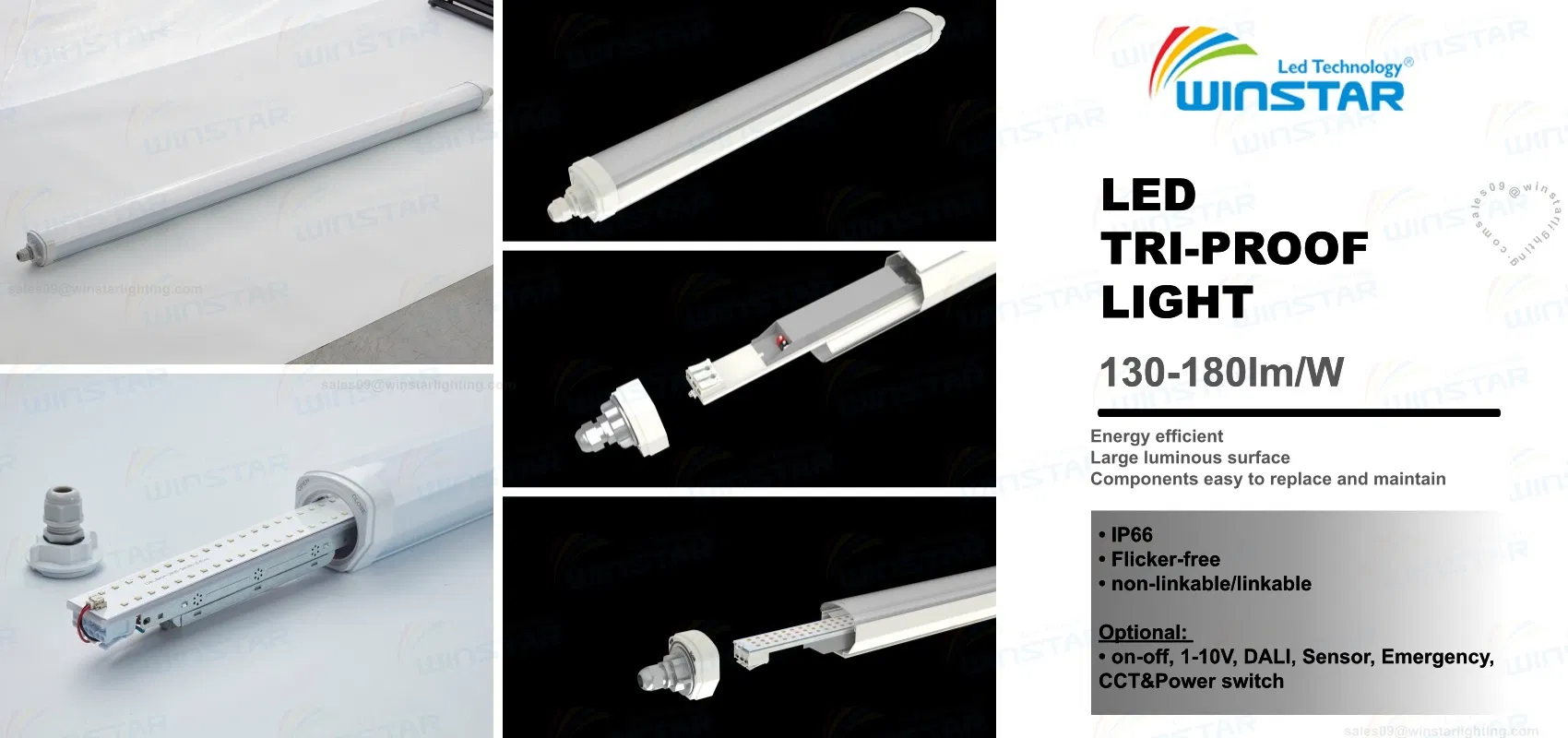

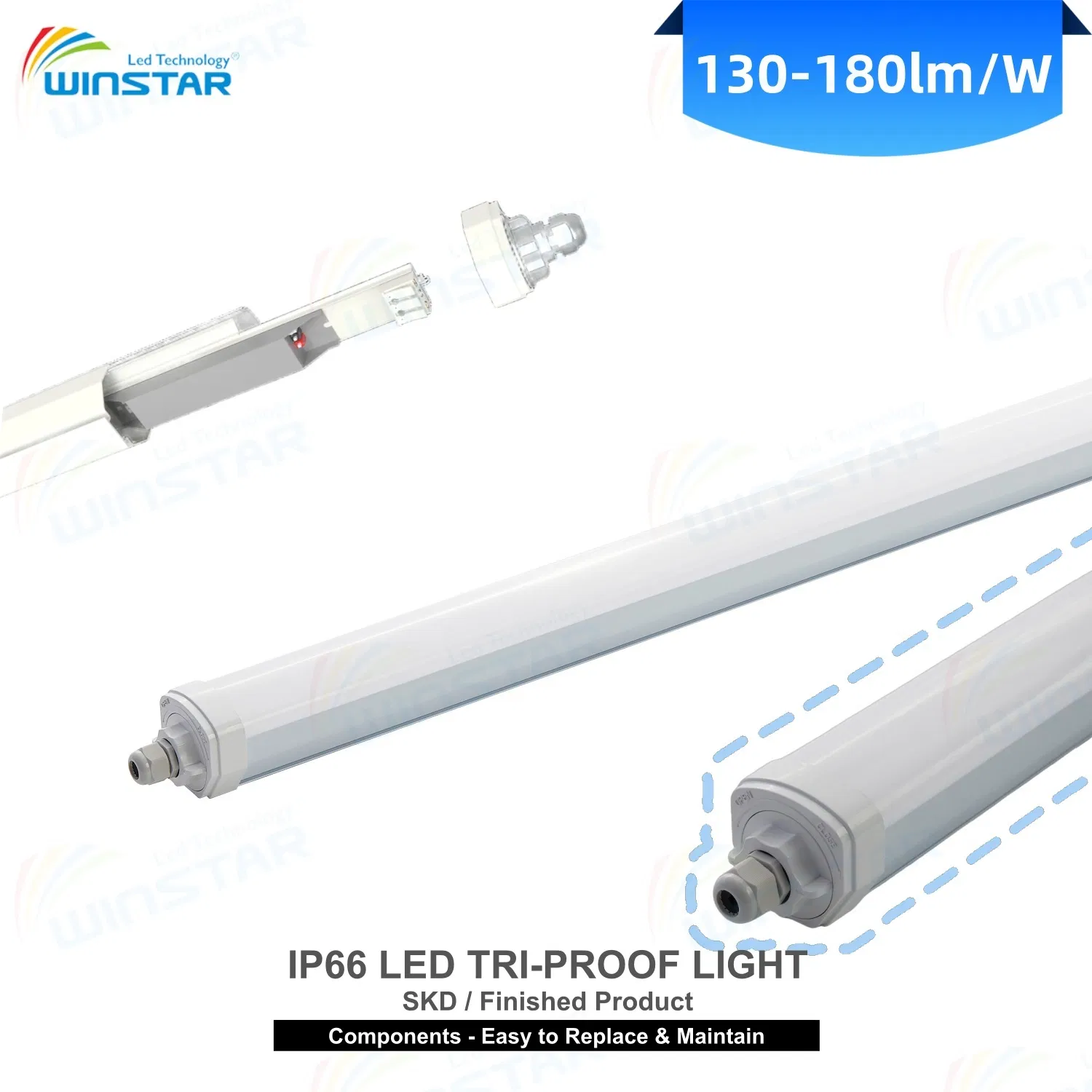

LED Linear Tri-proof Light - Finished & SKD Available

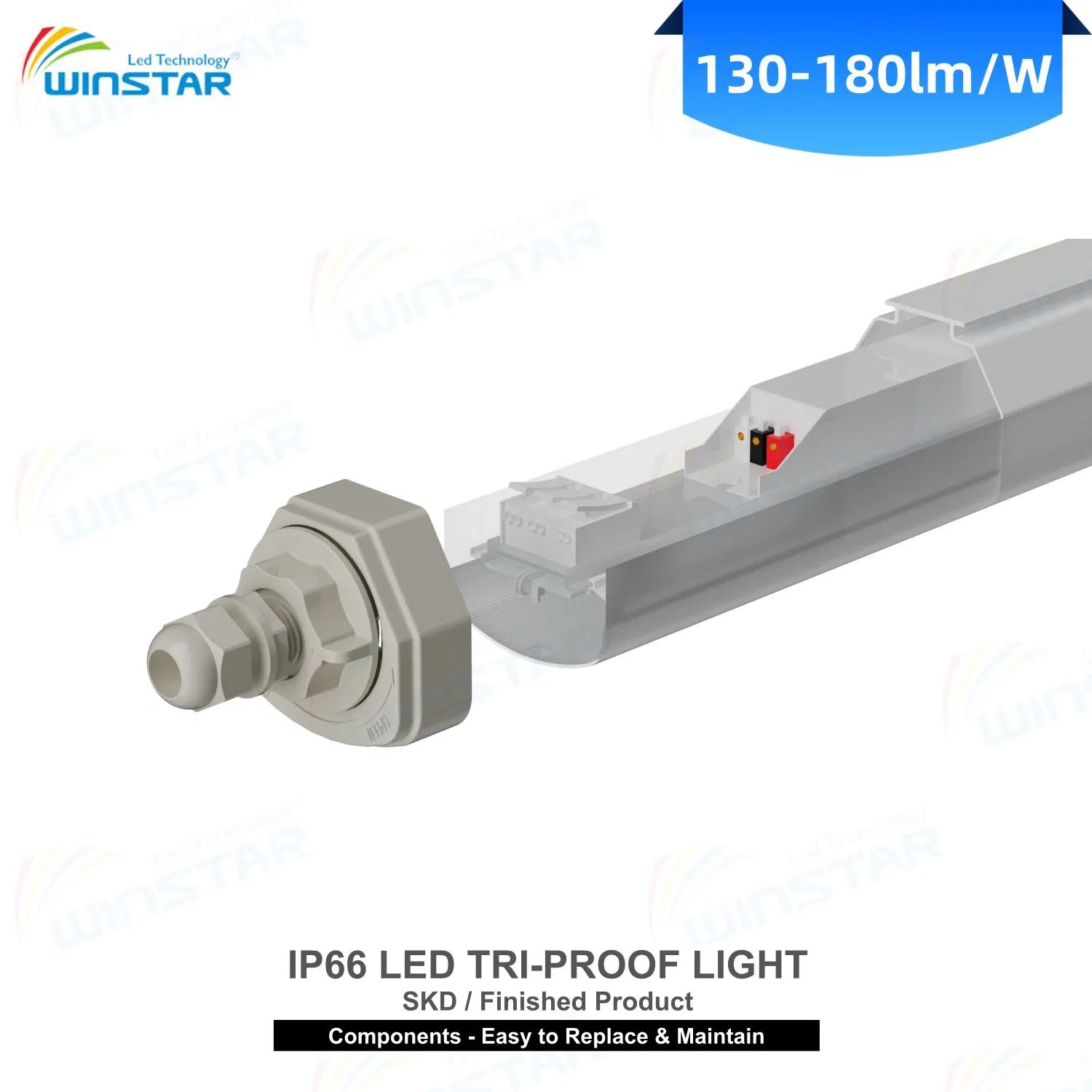

- 1) Patented Design: Exclusive patented structure,

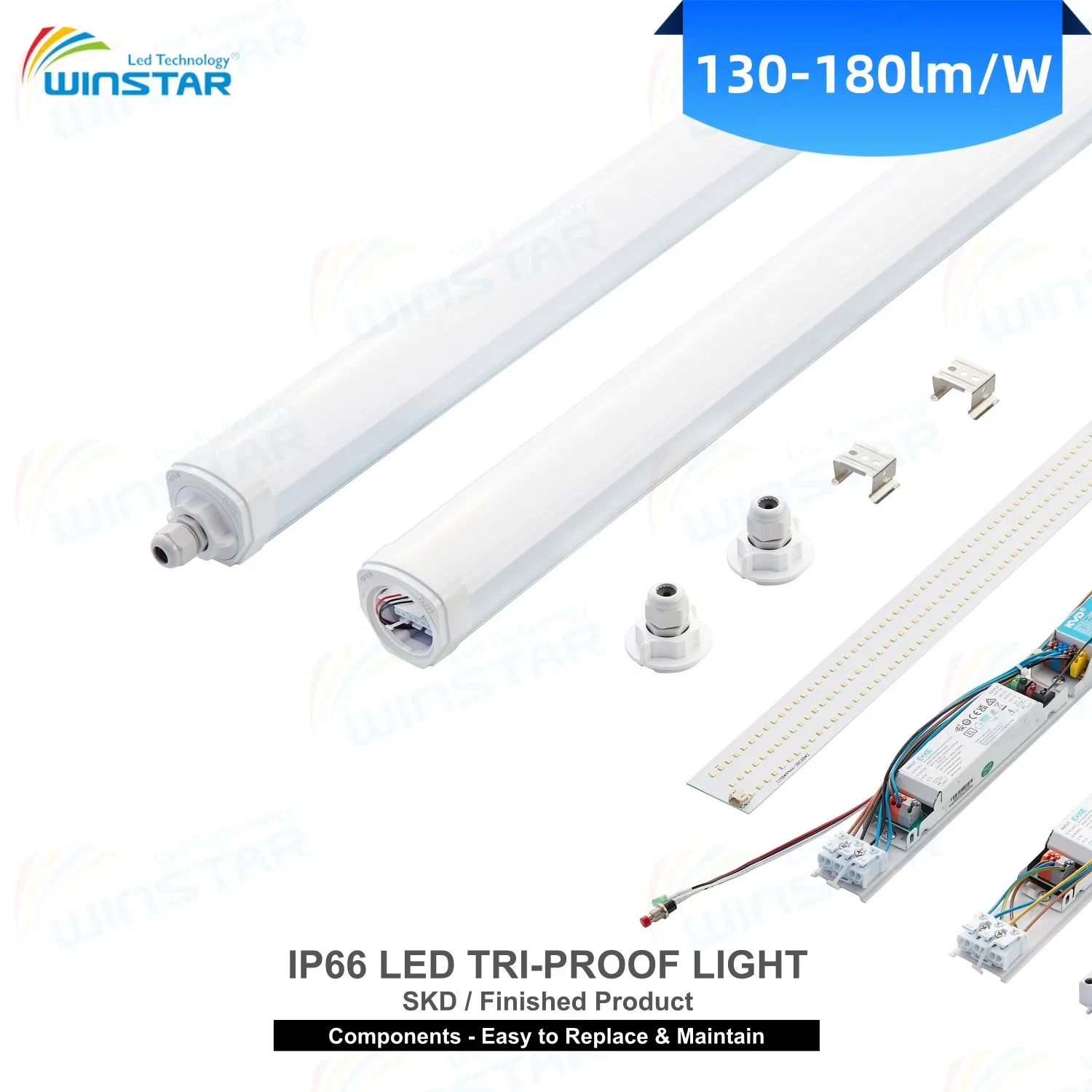

- 2) Easy installation & maintenance, easy replacement of PCB and driver, eco-friendly, convenient inventory, direct component replacement for quick repair.
- 3) Premium Performance: 6063 aviation aluminum for heat dissipation, smaller light decay, imported fireproof PC housing, safer & reliable.
- 4) Flicker-free Brand driver, PF>0.9, LIFUD, BOKE, OS-RAM
- -- Optional function: on-off/0-10V/DALI/Sensor/Emergency kit/CCT & Power switchable
- 5) Flexible Supply: Linkable/non-linkable options, support finished product or SKD import.

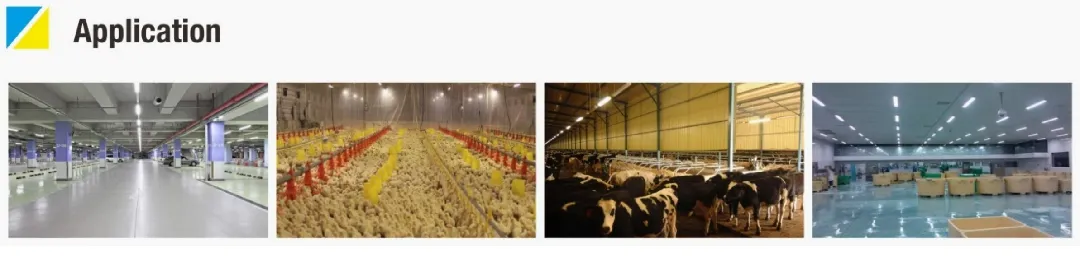

- 6) Wide Application: Ideal for warehouse, garage, supermarket, factory, residential & harsh environments.
- 7) Certified & Durable: CE, EMC, LVD, RoHS approved, IP65/IK08 rated, 5-year warranty.

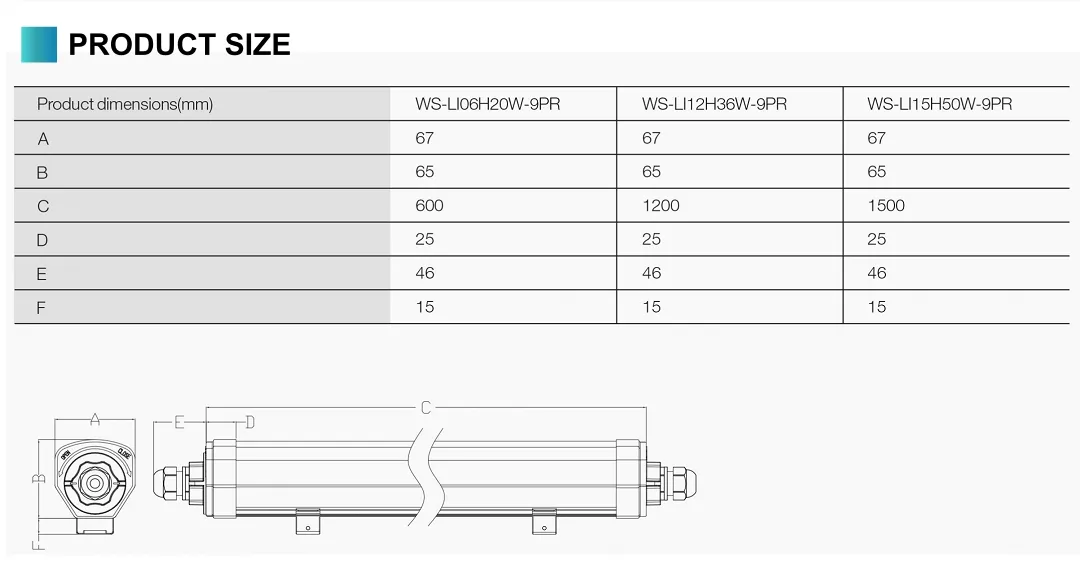

Specification
📋 Technical Specifications
(Custom configurations available upon request.)
| Item NO. |
Length(mm) |
Power |
LED |
CRI |
Luminous efficiency |
Lumen ref.(150lm/W) |
| WS-LI06H20W-9PR |
600 |
12/14/17/20W |
SMD2835 |
RA≥80 |
130/150/180lm/W |
1800-3000lm |
| WS-LI12H36W-9PR |
1200 |
24/30/36/40W |
3600-5800lm |
| WS-LI15H50W-9PR |
1500 |
32/42/50/58W |
4800-8550lm |
| Working Voltage: 220-240VAC, 50/60Hz |
| CRI: RA80 (customized based on your request, RA90/95) |
| Optional function: on-off (Standard)/ 0-10V/ DALI / Sensor / Emergency kit / CCT&Power switchable |
| Beam angle: 110° |
| 5 years warranty |

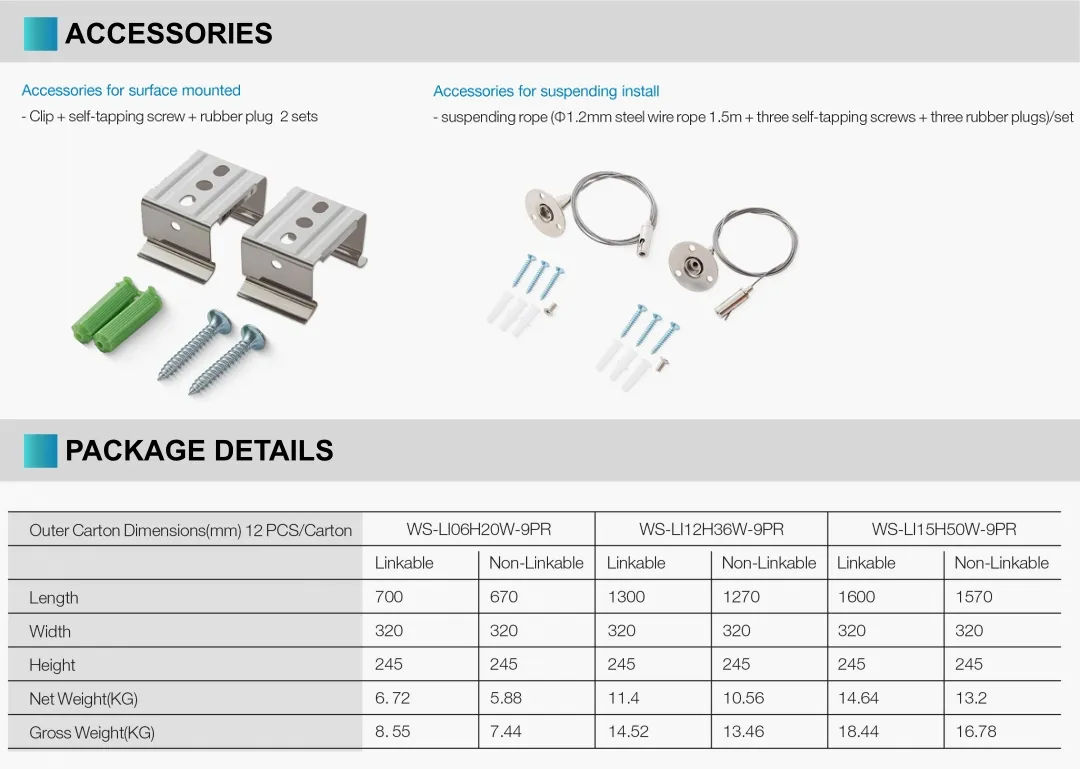

| * Accessories: ceiling mounting bracket(Free) |

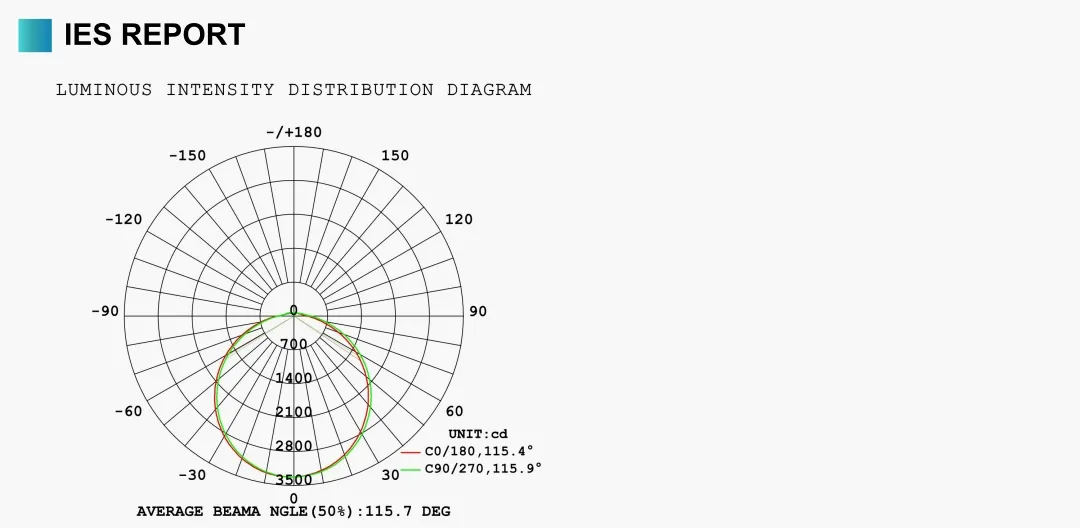

| * LM80,IES, DIALUX simulation available |
Packaging & Shipping
After Sales Service
Standard Warranty: 3 years warranty;
Global Support: online technical guidance;
IES file / DIALUX simulation: available, if needed
Company Profile

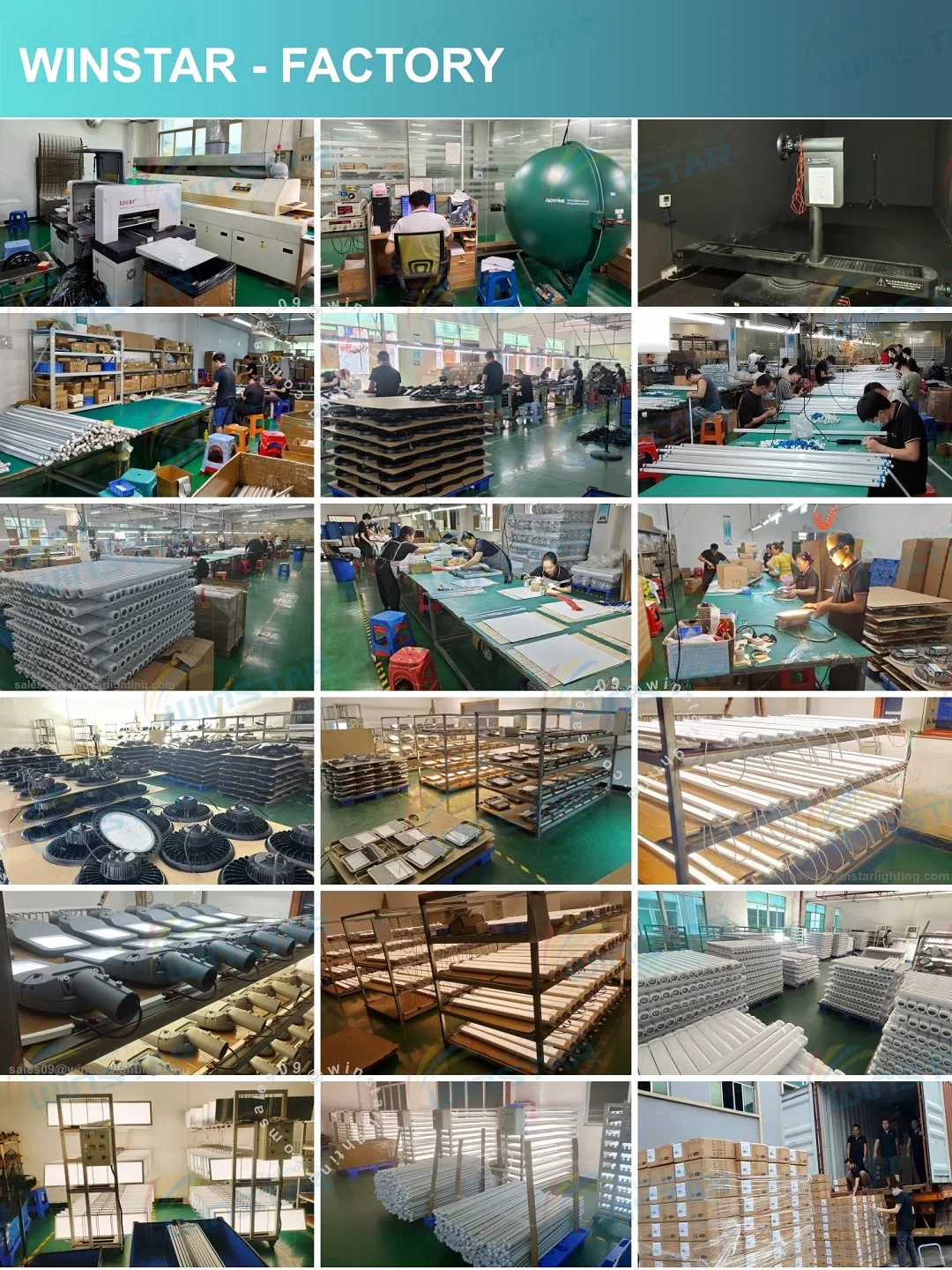

Established in 2009, Winstar excels as a LED lighting expert in R&D, production, global sales, moved to Dongguan in 2016. We own a 5,000 sqms factory, 100+ staff and an R&D team with 20+ years of expertise.
Specializing in high-lumen LED lighting (200lm/W tubes, 180lm/W panels, 180lm/W tri-proof lights, 210lm/W high bays, 180lm/W Linear Track light, commercial, industrial & agricultural lighting), we are ISO9001, TUV, CE, ROHS, SAA certified and a Made-in-China verified supplier.
Our products reach 60+ countries across Europe, North America, South America, Southeast Asia, and the Middle East.
We ensure premium quality, timely delivery, OEM service, expert support, and custom lighting solutions for all projects.

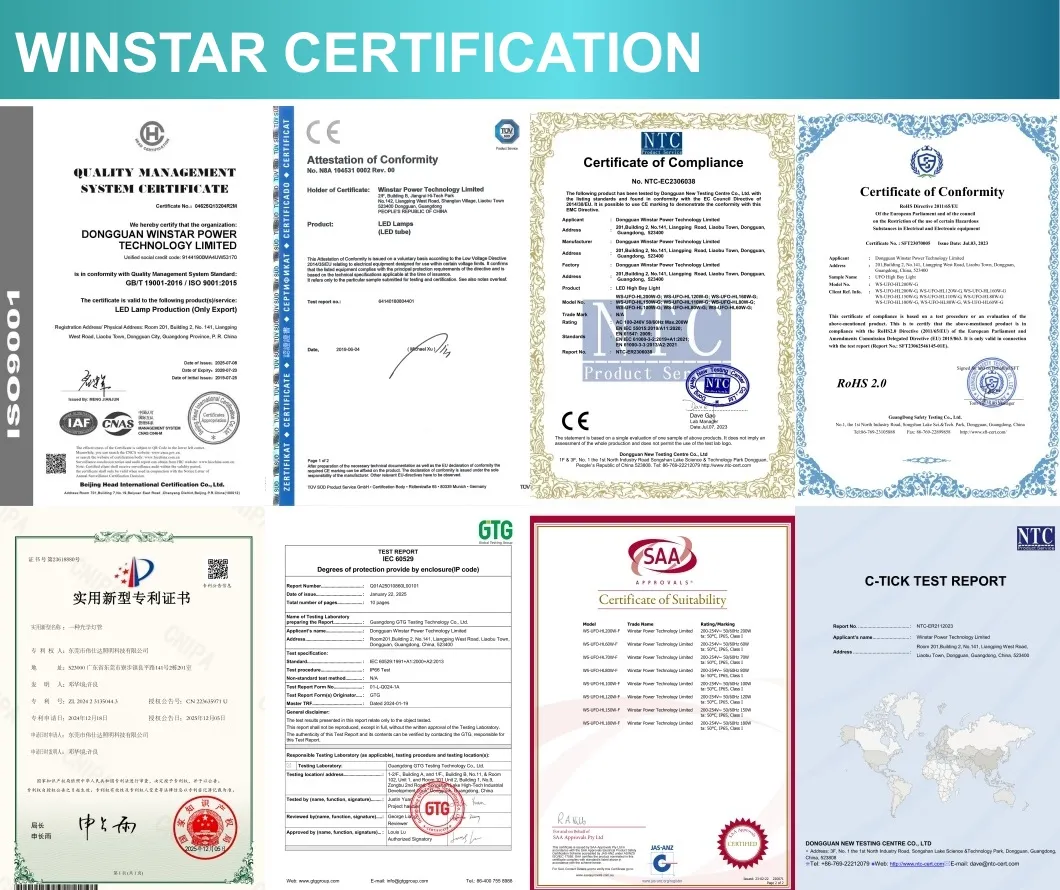

Certifications
⭐ Why Choose Us?
- OEM/ODM capabilities
- Competitive pricing & bulk discounts
- Fast shipping & customs clearance
- Project solutions
- 16+ years of LED lighting expertise.
- Strict quality control, 100% aging test before delivery.
- OEM/ODM service, custom logo and packaging support.
- Rapid response and expert after-sales service.
📦 Other Products
- LED TUBE(T5/T6, T8)
- LED Tri-proof Light / Batten
- LED Linear Track Light
- LED Flood light
- LED Panel light
- LED Agricultural Light
- LED Plane grow Light
Real 100-200lm/W, Energy-Efficient Product.
FAQ
Are you a factory or trading company?
We are a 100% factory, not a trading company. Our facilities are dedicated to high-quality LED production and R&D.
How do you ensure the product quality?
Our quality control is backed by four standard QC processes: 1. Strict incoming raw materials inspection; 2. Mid-production monitoring; 3. Final structural and performance QC after full aging test; 4. Outgoing QC inspection of ready packaged products.
How do you handle quality problems within the warranty period?
If any quality issues arise due to our manufacturing reasons during the warranty time, simply provide clear photos or videos as proof, and we will replace the defective items completely free of charge.
Do you accept or support OEM and ODM projects?
Yes, full OEM & ODM services are available. We support custom production structures, custom logos branded on products, and tailored packaging solutions.
What is your minimum order quantity (MOQ) policy?
We welcome new clients to place small trial orders initially. This flexible approach allows you to evaluate our product quality, build trust, and form a reliable long-term business relationship.
What shipping methods do you suggest and utilize?
We recommend options based on load size: small express packages are shipped via courier (DHL, FedEx, UPS); medium shipments are optimized by air transport; while heavy volumetric mass batches are handled by reliable shipping vessel cargo.
