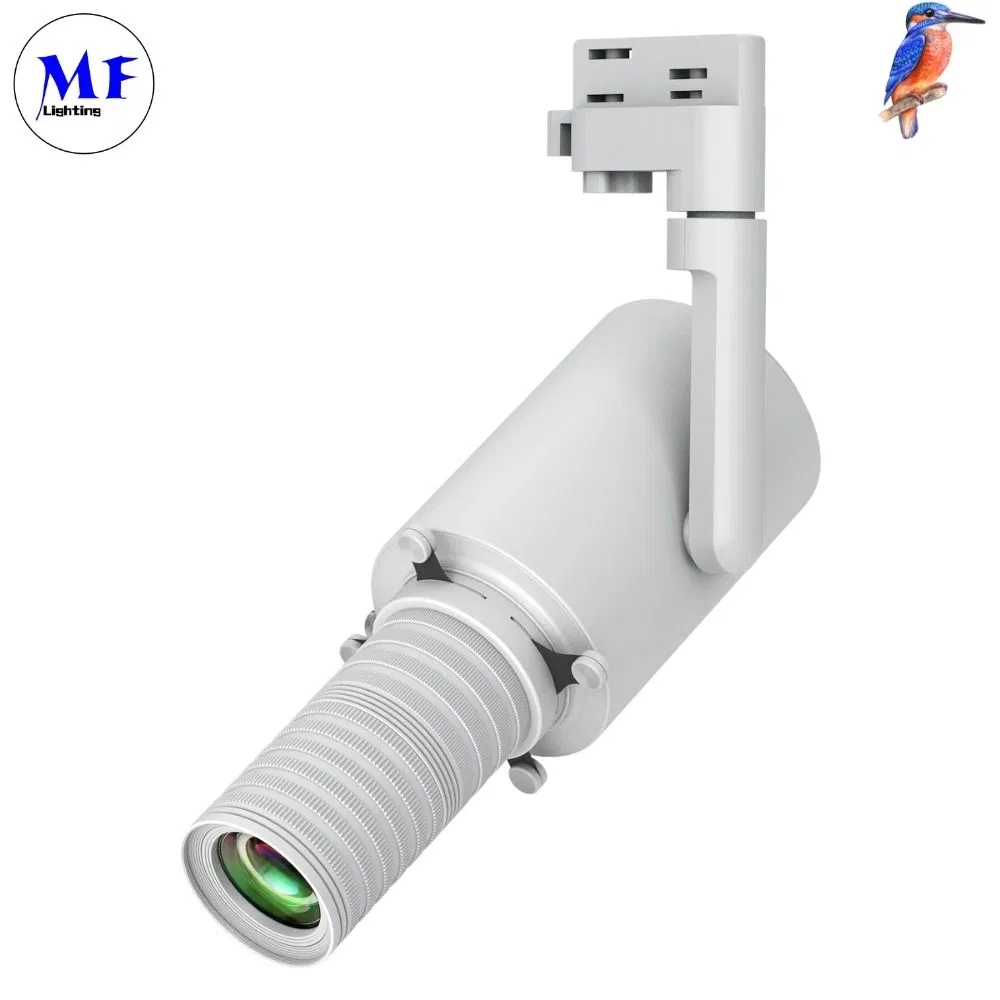

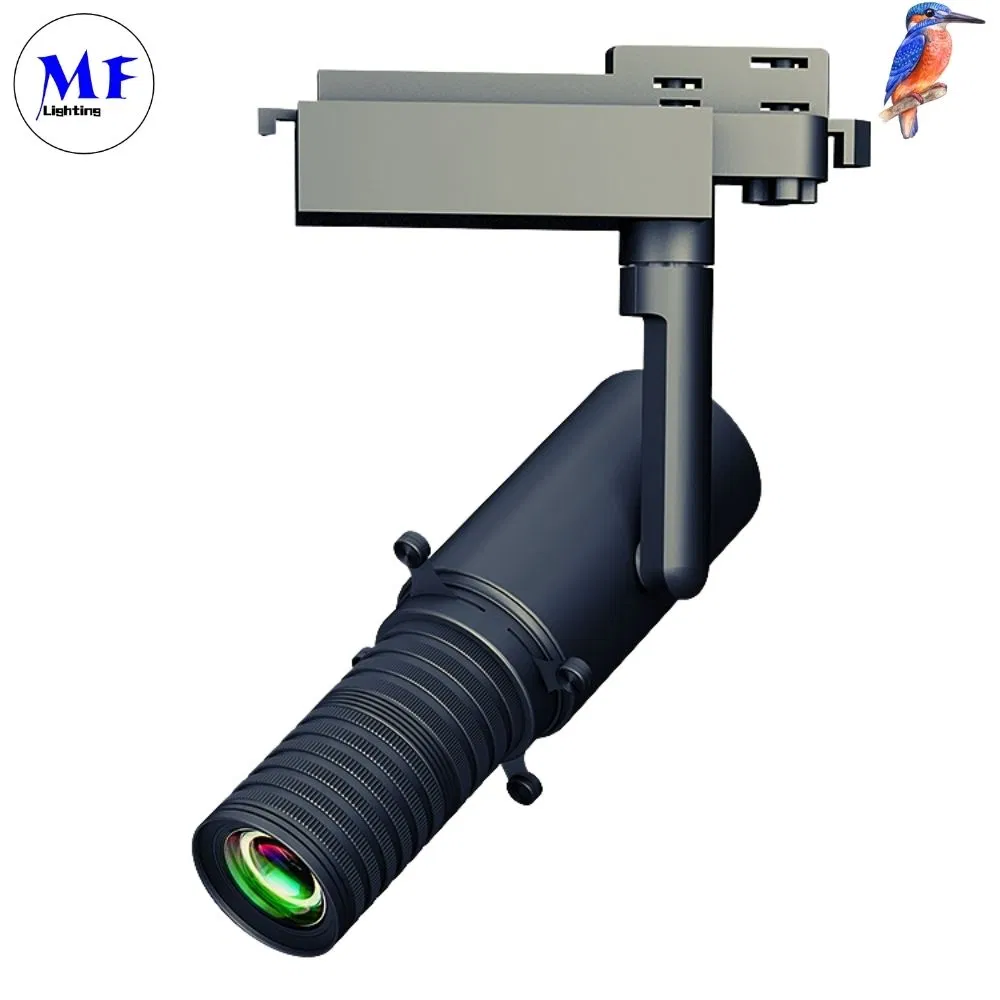

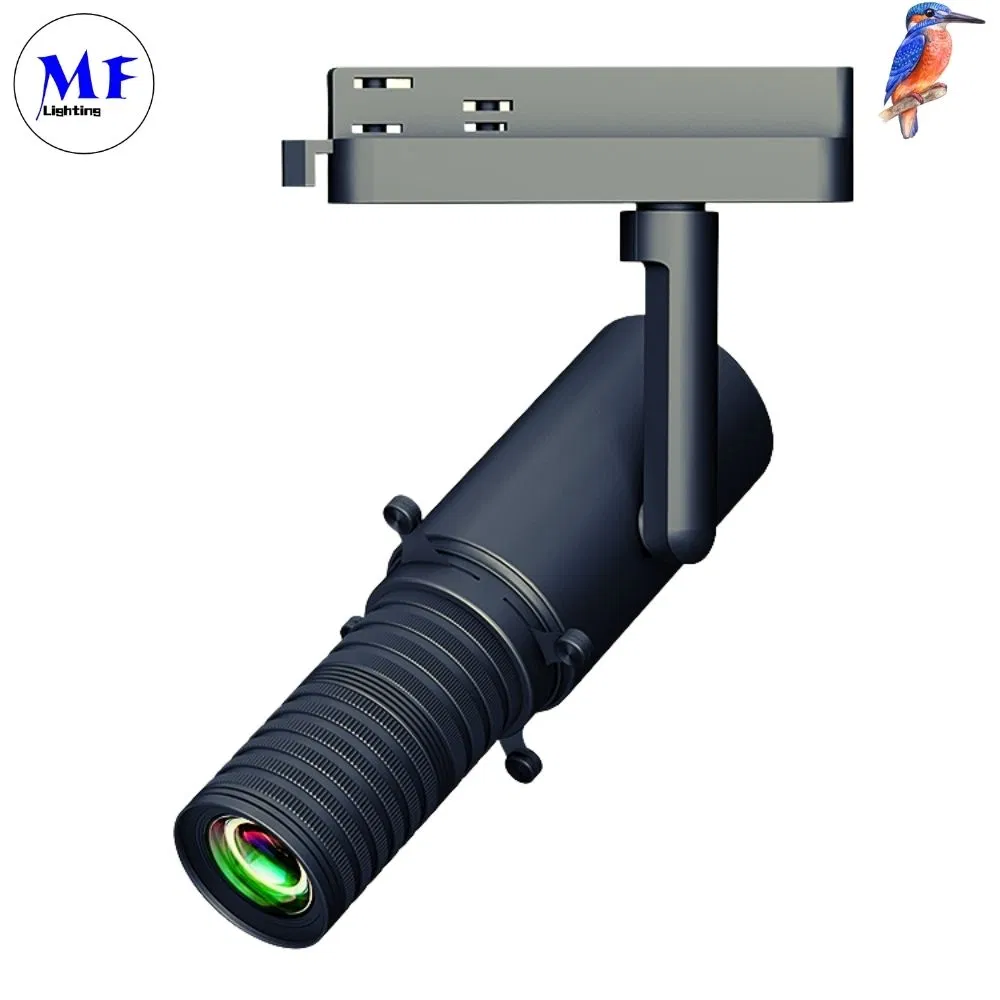

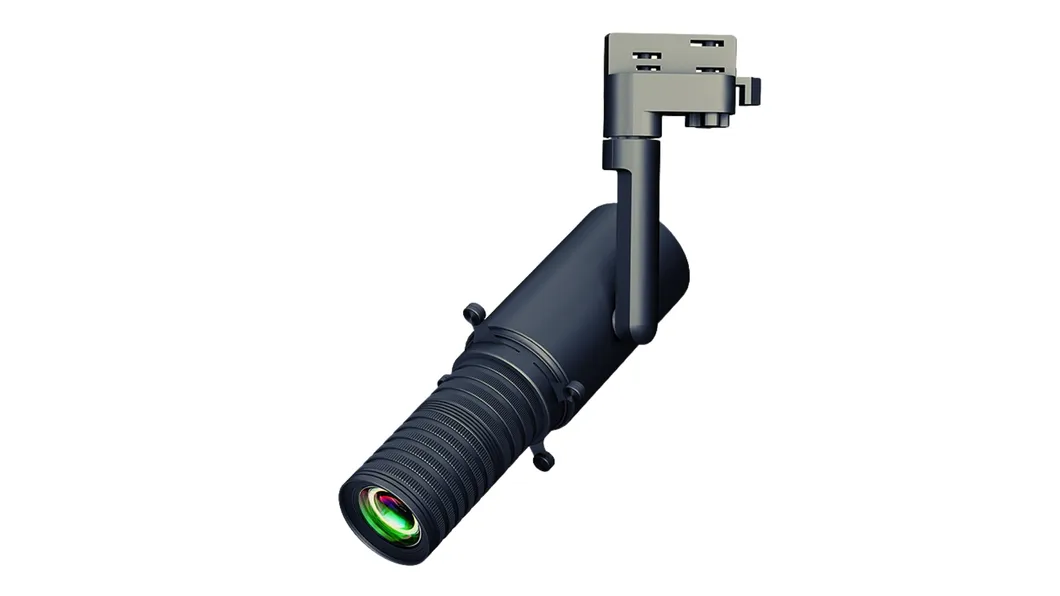

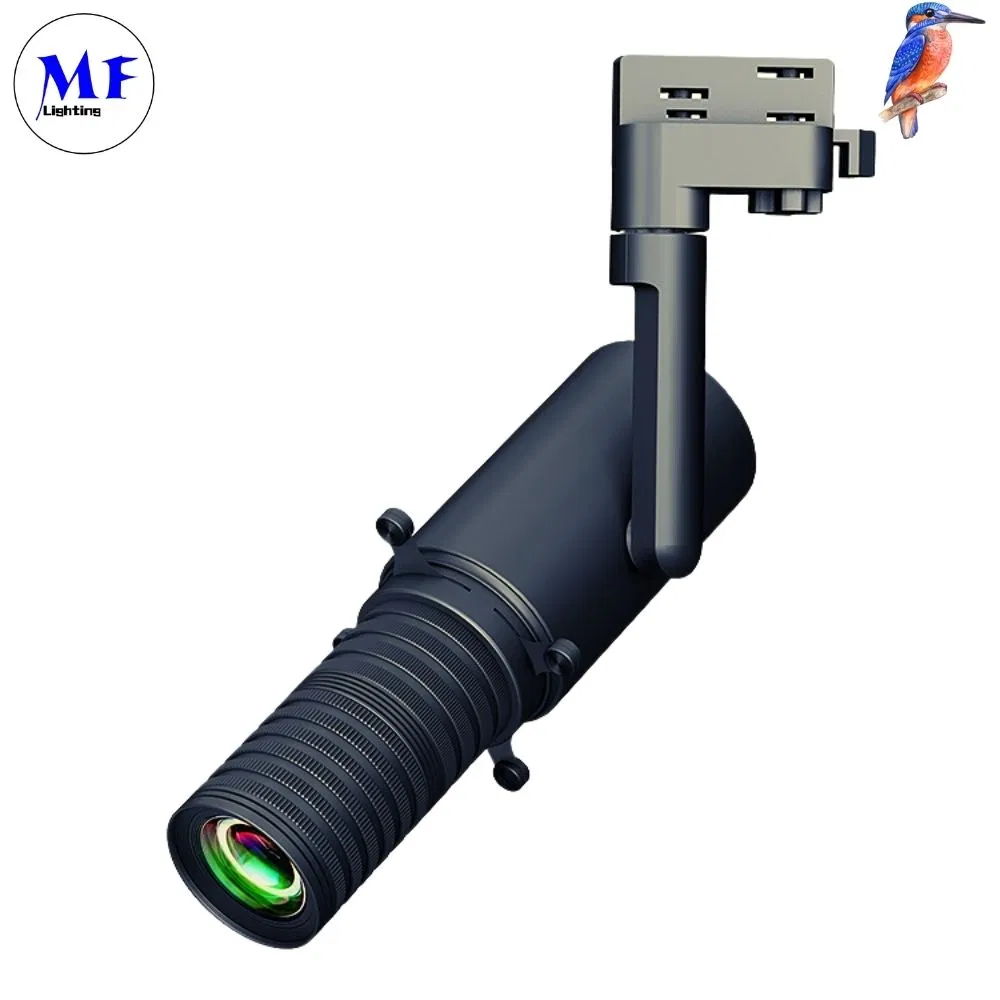

Factory Price 10W 1-10V Dimming Shapeable 360° Rotation High Brightness 2700K-6000K LED Spot Track Light For Art Gallery
Fully independent intellectual property rights, global patents, global certification!
Dry stepless linear zooming and spot shaping. Frame size 1:0.8
There can never be only one lighting design solution. The possibilities in the design are limitless. Moreover, the spirit of the times, cultural background, abstract concepts, and even the personal characteristics of the designer can be different and diverse. We look for the most suitable way of light expression in this infinite possibility.
Product Name:
T1005AL
Item Type:
Shapeable Track Light / Led Track Light / Led Spot Light
Wattage:
30W
Luminous Flu:
900-950LM
Support filters:
58
Input voltage:
220-240V
Light Source:
Os-ram
CRI (Ra>):
97
Housing colour:
white, black
Installation:
Track-Mounted, Wall-Mounted
Working Time:
50000 hours
Warranty:
5 years
Industrial Grade Optical Filter
It can match a variety of industrial-grade optical filters and support the customization of special narrowband and ultra narrowband optical filters. Some filter functions can be superimposed, such as HD UV+color filter, HD UV+soft filter, amongst others.
Color filterThe luminous color of the lamp can be adjusted according to your needs.
ND filterWith electronic dimming, the small-angle illumination can be reduced to less than 75LUX, which is generally used for authentic lighting.
UV filterIt can effectively filter UV rays in LED lamps and lanterns, thus protecting the illuminated object. It delivers superior performance in silk products lighting and cultural relics lighting.
CPL filterIt can eliminate the reflection of the object's surface so that the object in a high luminosity environment can also display its original appearance.
GND filterGND filter are used to alter the light ratio into the lens. For example, in illuminating the oblique side of the square position of the object, the use of gradient filters allows the even and constant illumination of the object.
360° manual rotation design
Loosen the manual screw and turn the lens to achieve the 360°spot rotation adjustment function. Device to solve the 360° rotation of the projection and light spot.
Optical-grade variable aperture design
An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the light cutting device can freely change the shape of the spot.
Multi-layer dry damping design
The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use.

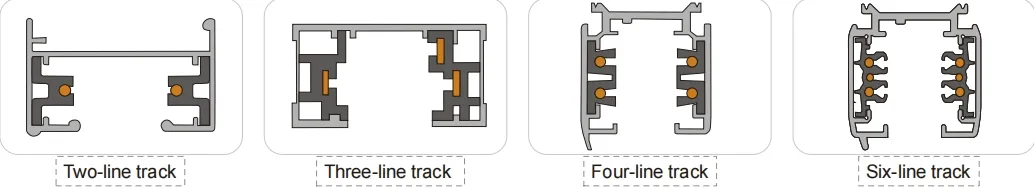

Track Support
DIP color temperature coupled with the single lamp knob dimming design can easily achieve single lamp dimming, spot shaping and color temperature adjustment. It can be used alone or can alternatively be equipped with other dimming devices.
2700K
4000K
6000K
Control Support
Support 1-10V, DMX, DALI, ZIGBEE, and other mainstream control. Can also be connected with mainstream smart AI control systems.
Instruction Manual
Adjust the aperture to the appropriate size, and facing the center of the irradiated object, adjust the sharpness to a reasonable degree, as shown in Figure 17.
Pull the four diaphragm sheets outward to the maximum, and then push one by one vertically inward, to ensure that the cut square spot is smaller than the object to be illuminated, and adjust the sharpness of the aperture again until satisfactory, as shown in Figure 18.
If the shape of the spot does not match the object to be illuminated, first loosen the hand screw at the red mark, rotate the lens part, adjust the edge of the spot to be parallel to the edge of the object to be illuminated, and finally tighten the hand screw. As shown in Figure 19.
Stretch the diaphragm sheet one by one outward until the spot size is substantially consistent with the object, as shown in Figure 20. If you are not satisfied with the effect, repeat the operation according to the above steps.
Important Notes:
1When replacing the projector, be sure to pull all four diaphragm sheets outward to the maximum extent and then load the projection device. Otherwise, it may damage the lens parts, affecting the spot shaping effect.
2Do not remove the rest of the lens except for replacing the projection unit and routine lens maintenance.
3Track-type shapeable track light is generally heavier than ordinary track lights. Please determine whether the installation conditions are allowed before installation.
4The lens does not contain any repair accessories. Please do not disassemble the lens without permission. Unauthorized disassembly will void warranty coverage.

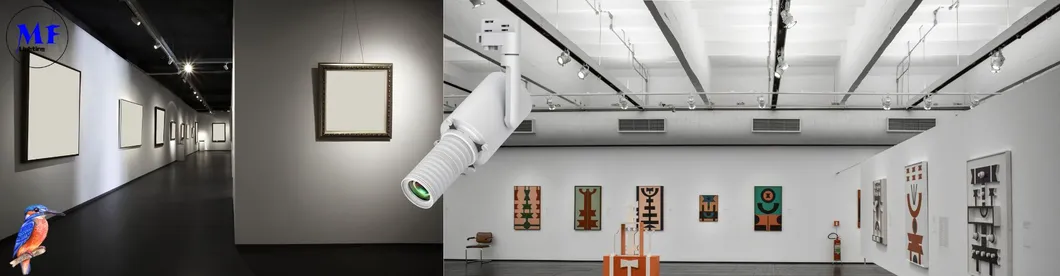

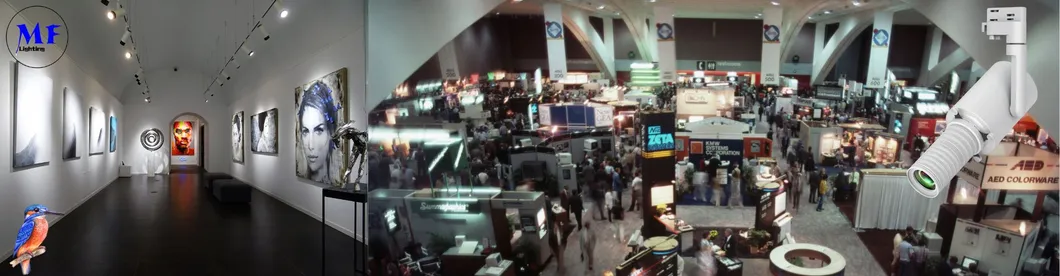

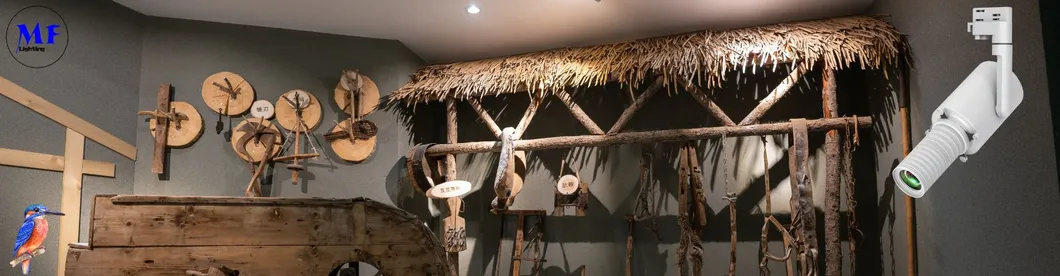

Application
Packaging & Shipping
Frequently Asked Questions
Q1: Are you a manufacturer?
A: Yes, we are a professional manufacturer with our own factory. We have over 14 years of research, development, and manufacturing experience, operating under strict ISO quality management protocols.
Q2: Can I order a sample of the LED Light?
A: Yes, we welcome sample orders to test and verify the quality of our products. Mixed samples are fully acceptable.
Q3: What is the lead time for the LED Light?
A: For sample orders, the lead time is 3-7 days. For mass production orders, it averages 15-25 days depending on the exact order specifications and volume.
Q4: How do you ship the finished products?
A: We offer flexible, optional shipping methods including Sea Freight, Air Cargo, or Express delivery services (DHL, UPS, FedEx, TNT, etc.).
Q5: Can I print my logo on the LED Light?
A: Yes, we provide full OEM service solutions. We can design and produce customized labels and packaging color boxes matching your precise specifications.
Q6: How do you handle defective products?
A: All products go through a highly strict quality control process, keeping our defect rate under 0.2%. We offer a 5-year warranty for this product. If any issue arises, simply provide pictures or videos of the fixture in operation, and we will ship replacement units immediately or with your next order.
