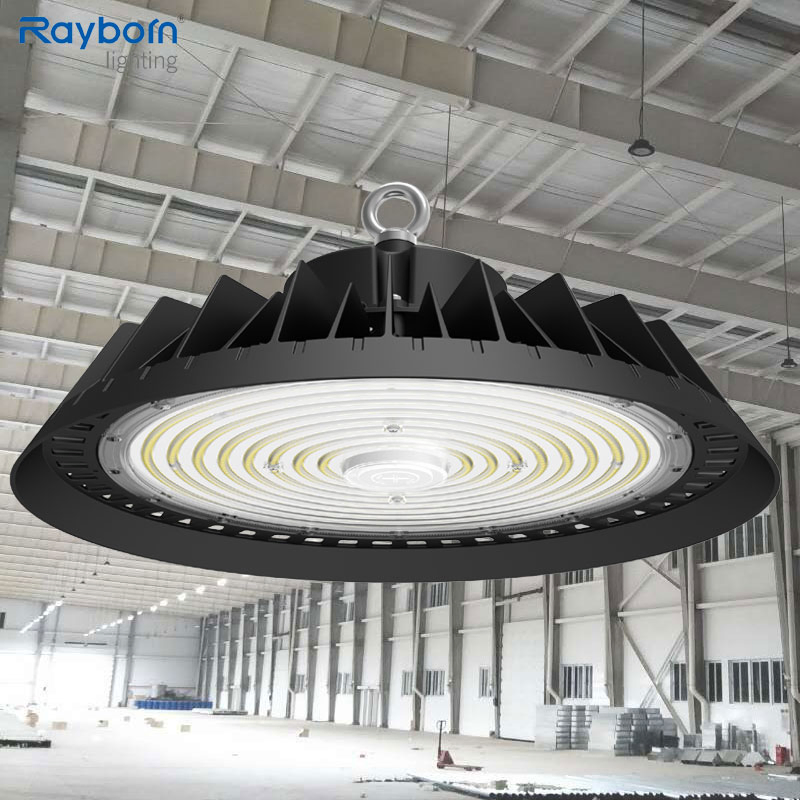

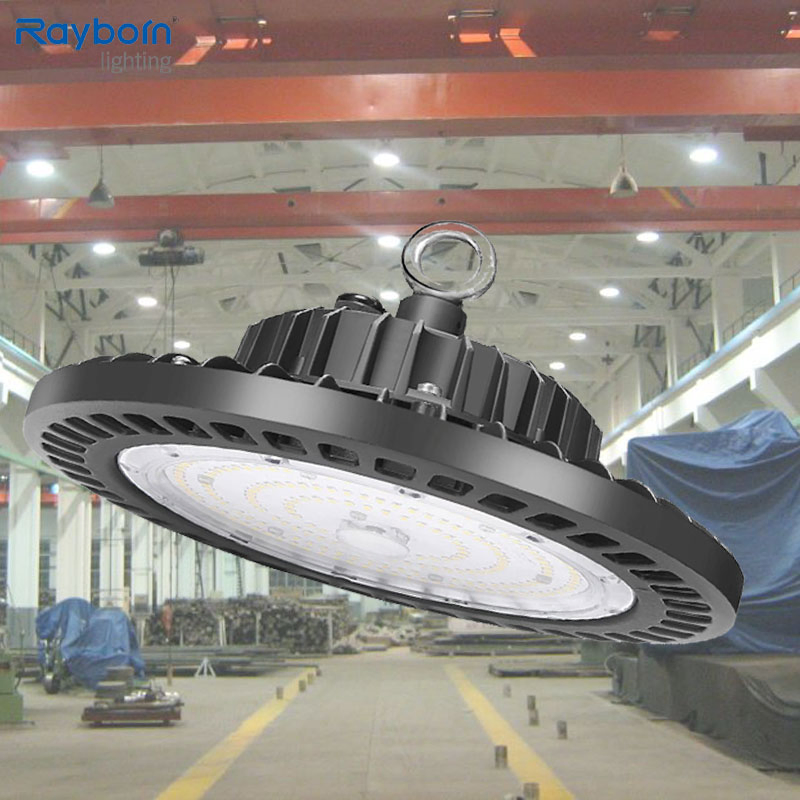

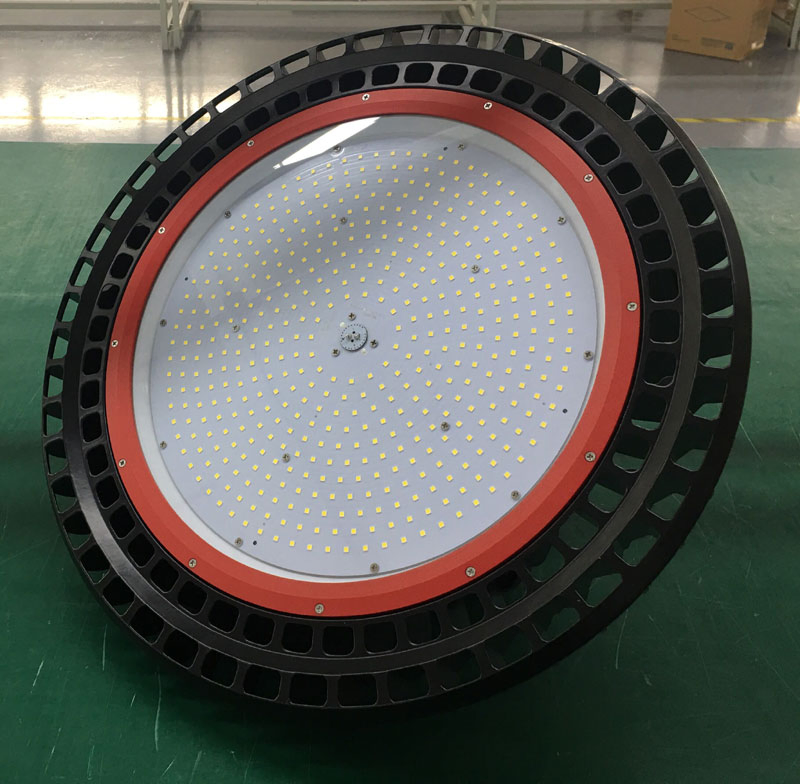

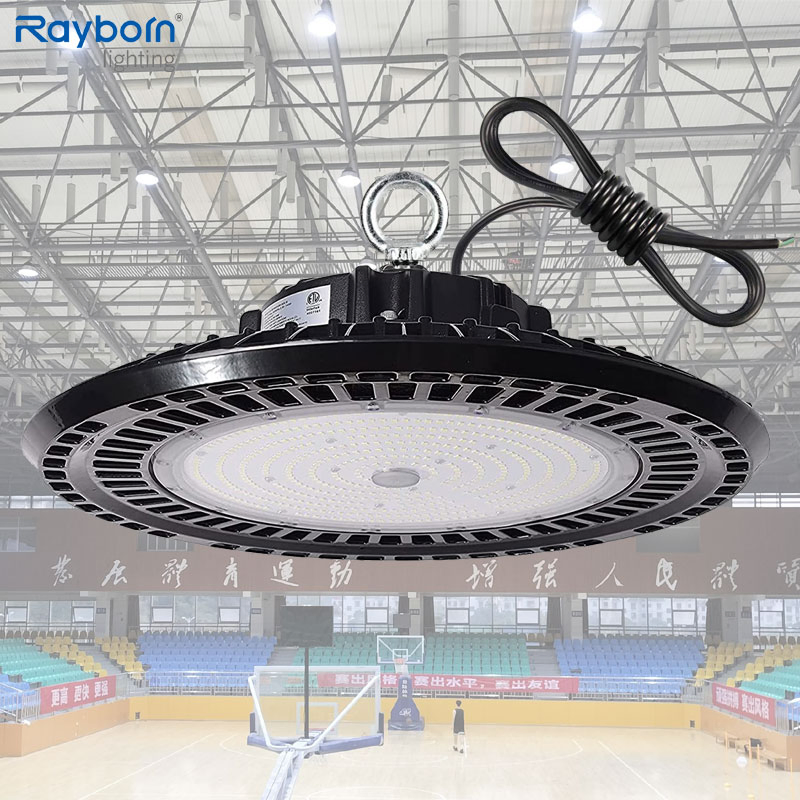

Wholesales price 100W 120W 150W 200W 250W 300W 500W UFO LED High Bay Light for Industrial Workshop Warehouse Factory Highbay Lighting Cold Storage High Bay Light ETL CE SAA 5 years Warranty
01 Basic Info & Packaging
Basic Specifications
Model NO.
RB-HB-150WU4
Power
150W
Usage
Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel
Lifespan
≥50000H
IP Rating
IP65
Certification
CCC, CE, C-tick, EMC, FCC, LVD, RoHS, SAA, VDE
Beam Angle
60/90/120deg
LED Chips
Osram
Warranty
5 Years Warehouse LED High Bay
Power Driver
Meanwell /Sosen/Lifud/Domestic
Power Factor
>0.98
Base Material
Aluminum
Performance & Logistics
CRI
80%
Power Efficiency
>0.9
LED Chip
2835 SMD
Packaging
1PCS Per Carton
Function
1-10V/CCT Selectable+Watt Selectable
OEM
Yes
Transport Package
Carton
Specification
CE/EMC/ETL/SAA
Trademark
OEM / ODM Available
Origin
China
HS Code
9405409000
Production Capacity
50000PCS/Month
Package Size
30.00cm * 30.00cm * 16.00cm
Package Gross Weight
2.600kg
02 Product Parameters
| Model |
RB-HB-100WU4 |
RB-HB-150WU4 |
RB-HB-200WU4 |
RB-HB-250WU4 |
| Power |
100W |
150W |
200W |
250W |
| Input Volt |
100-240V/100-277V/AC 50/60Hz |
| Led Type |
3030/2835 SMD Chip |
| Lumen(Lm/W) |
140LM/150LM/170LM/W |
| Power Factor |
>0.90 |
| Power Efficiency |
>89% |
| Refractor Optic |
PC |
| Housing Finish |
Powder spraying surface treatment |
| Housing Colour |
RAL9017 Black(Standard) |
| Light body material |
Die-casting aluminum lamp body + pc cover +304 stainless steel screws |
| RA |
Ra>80/Ra>90 |
| Beam angle |
60°,90°,120° |
| CCT |
3000K/4000K/5000K/5700K/6500K |
| IP Waterproof Grade |
IP65 |
| IK Grade |
IK09 |

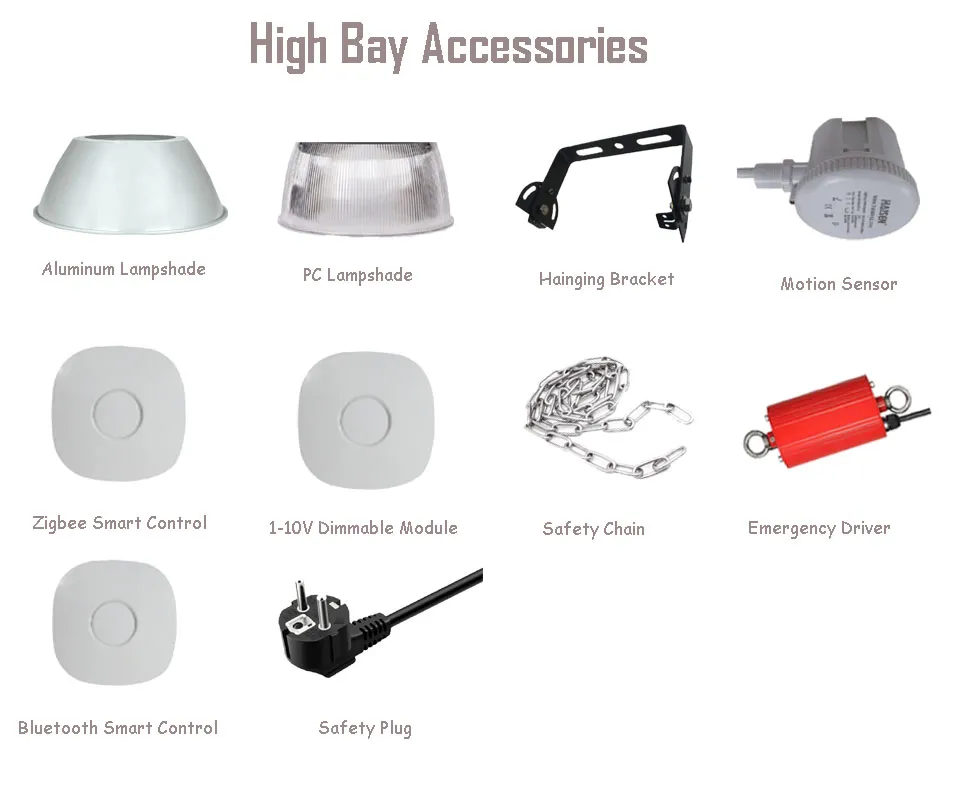

| Control method |
1-10V Dimmable/Microwave sensor Dimmable/Zigbe/Bluetooth Smart control |
| Surge protection options (KV) |
10KV according to the actual needs of customers |
| Photobiological safety class |
IEC 62471, EN 62778 EXEMPT GROUP |
| Testing standard |
LM 79-19, EN 13032-1 (all measurements in ISO17025 accredited laboratory) |
| Product Test |
IES photometric test / Ground resistance test / Insulation test / Withstand voltage test / The electromagnetic transmission test / Electromagnetic radiation test / IP Waterproof test / Temperature rise test / Work in low temperature test / Hot operation test / Power temperature cycle test / Lightning surge test |
| Installation |
Rings/Sling/Bracket |
| Operating Temperature |
-40ºC ~ 60ºC |
| Work humidity |
10% ~ 90% |
| Mains connection |
Outgoing cable H05RN-F 3 × 1.0mm2 / Length on request (optional) |
| Warranty/Life |
Tq =45°,>50000h - L70B50 |

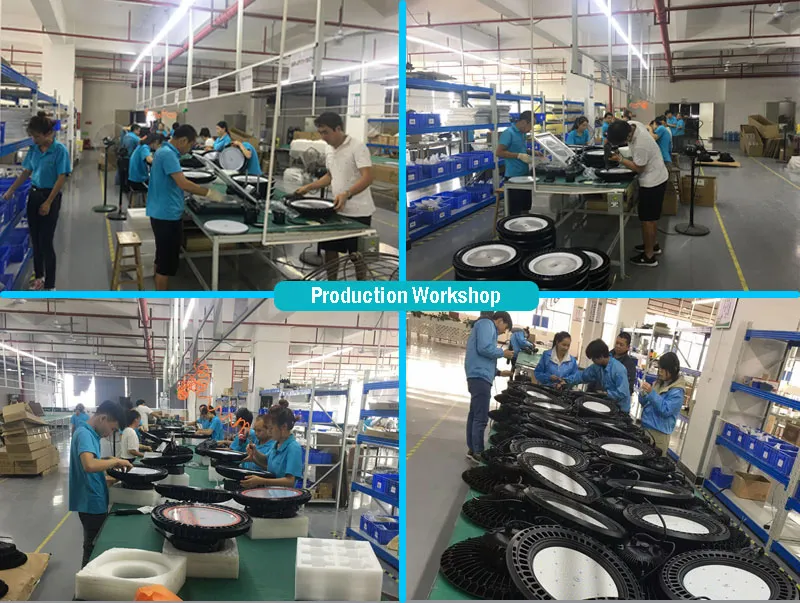

03 Product Production
UFO Lighting 100 150 200 250 300 400 500 Watt LED High Bay Production Line:
04 Product Description & Features
100W 150W 200W 250W 300W 500W Industrial LED High Bay Light Features:
- Using single powerful LED SMD 3030 as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.

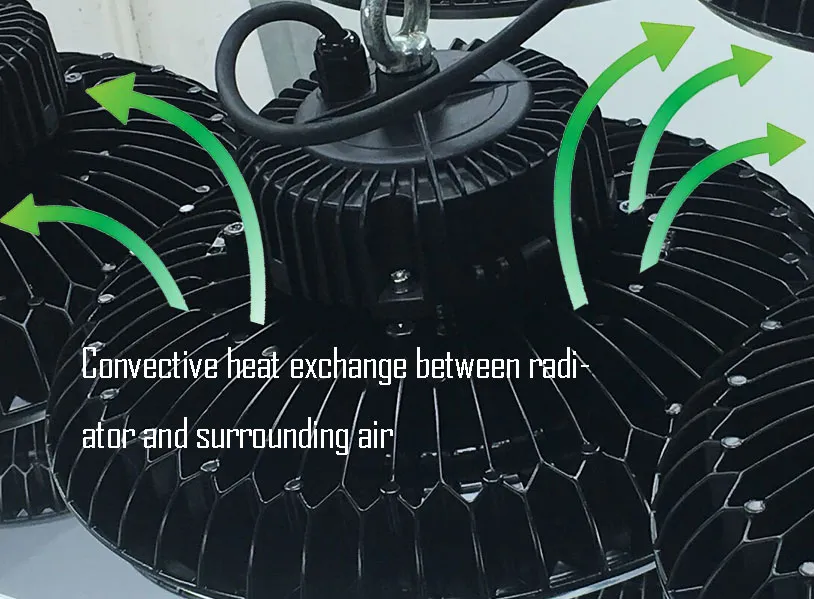

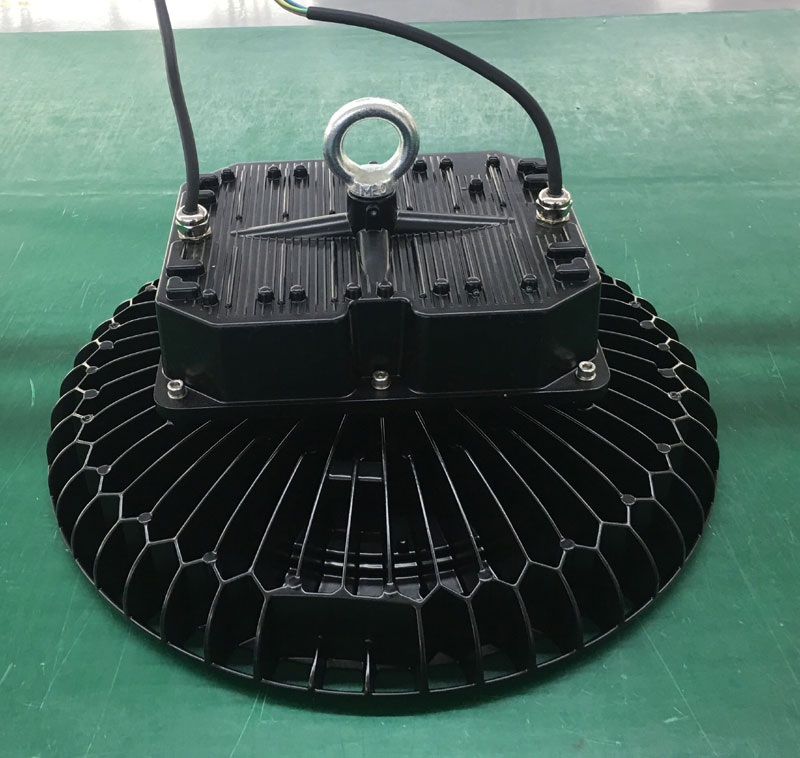

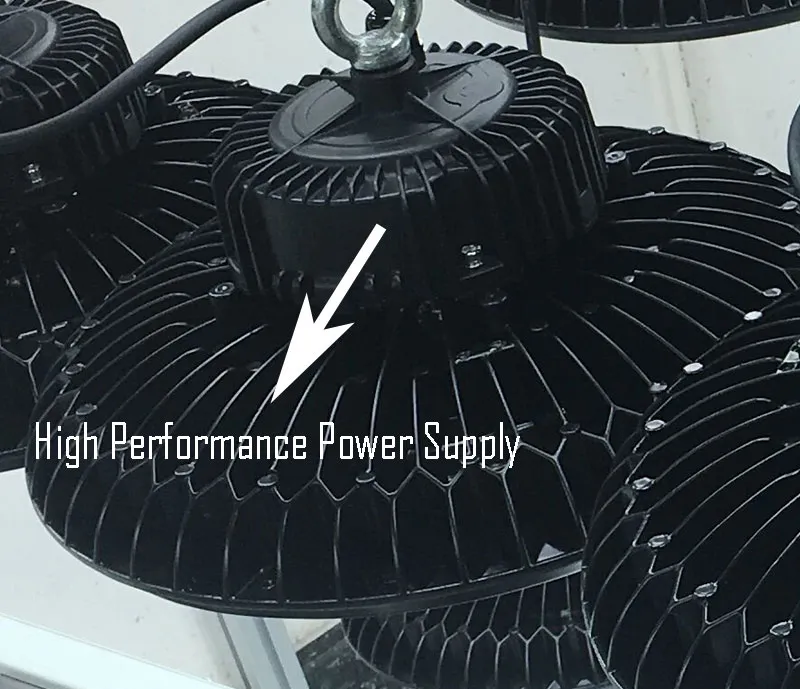

- Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
- The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.
- Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.
- High color rendering, meet the requirement of different environment, improve working efficiency.
- Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury.

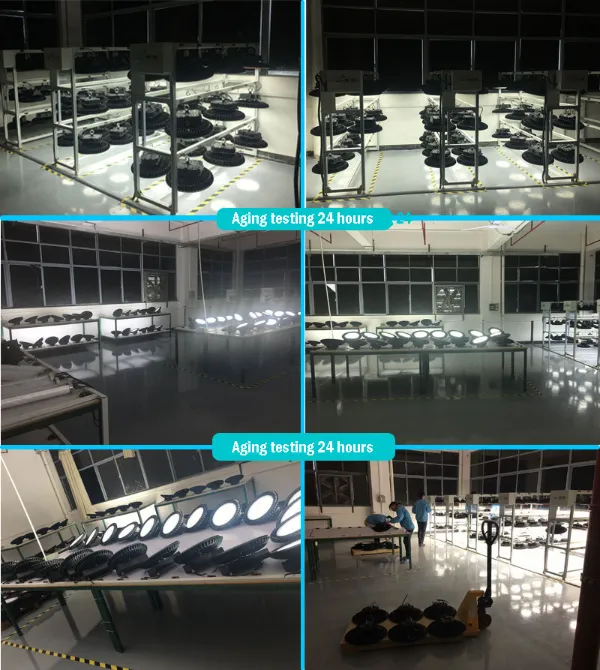

05 Quality Assurance & Aging Test
All our LED high bay lights will be tested before shipping, so that we can ensure the quality and light performance. Because we must be responsible to our customers.
06 Production Equipment & Simulation

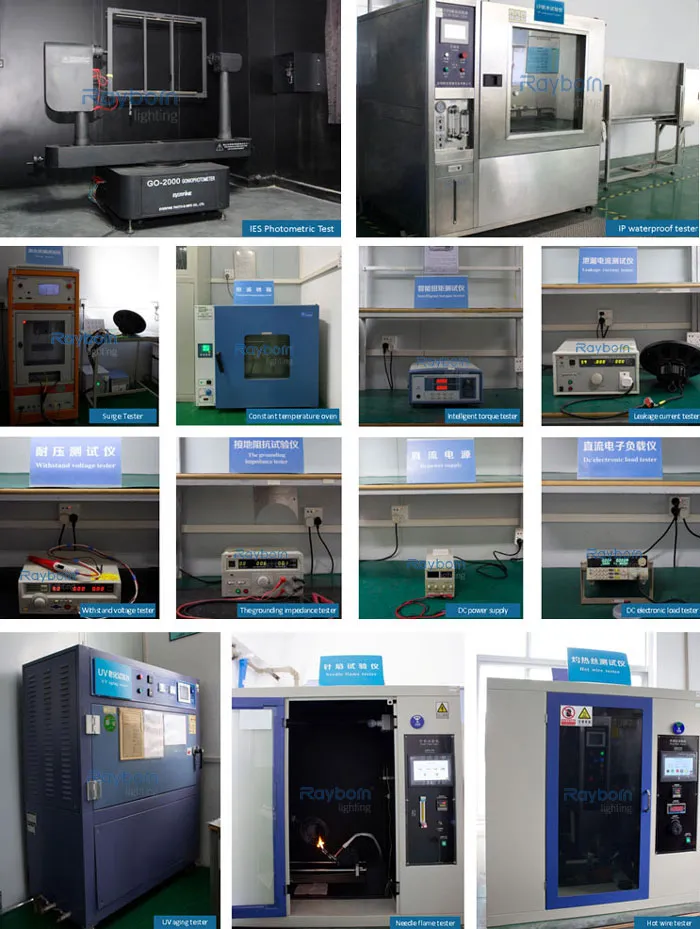

Production Equipment

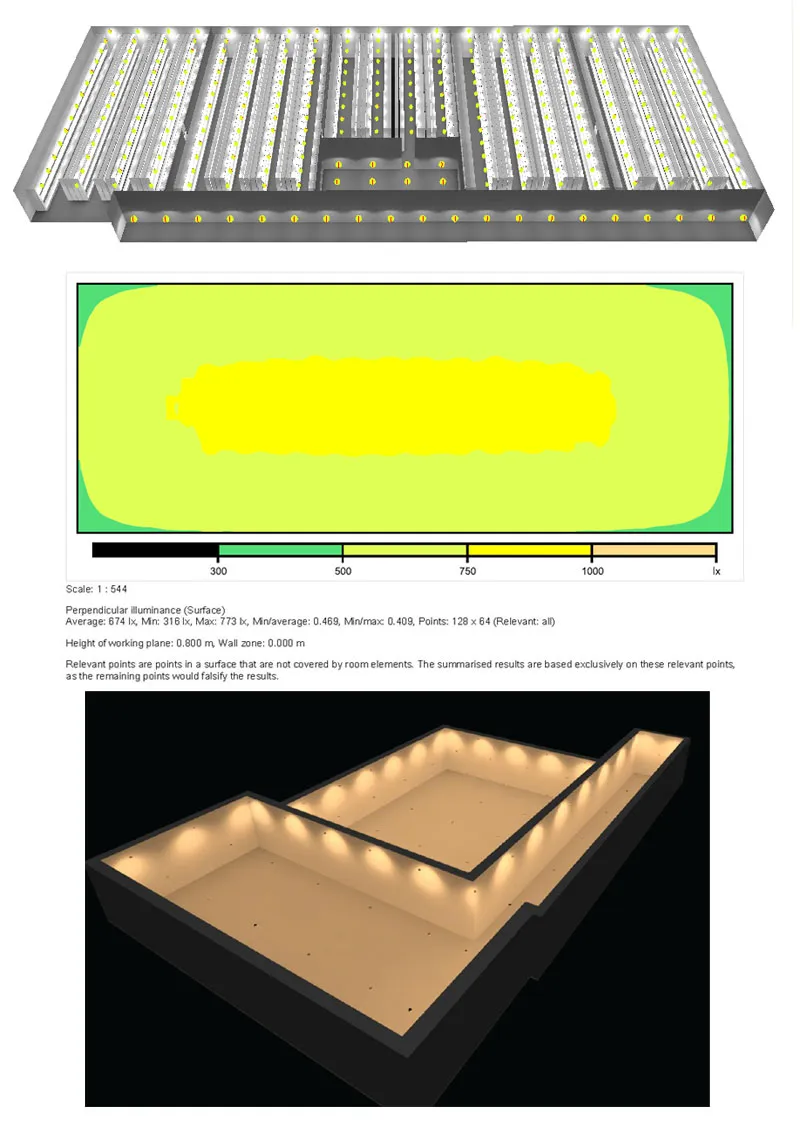

DIALux Simulation Analysis

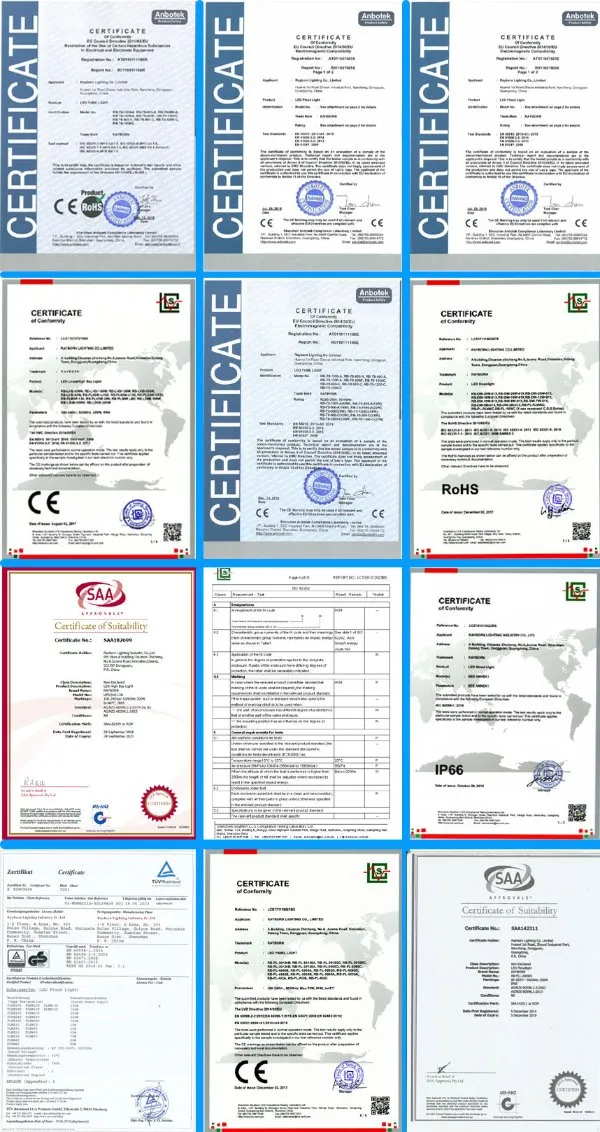

07 Certifications & Competitive Advantages
High Bay LED Lighting Competitive Advantage:
- CE & RoHS & ETL SAA approved, Quality Guaranteed
- Imported original Cree & Bridgelux & Samsung chip, superior light source
- OEM & ODM welcome, independent R&D ability, patent design.
- Fast delivery, 7-15 workdays depends on order quantity after payment confirmed
- Reliable quality & credit, 5 years warranty and 50,000 hours lifespan

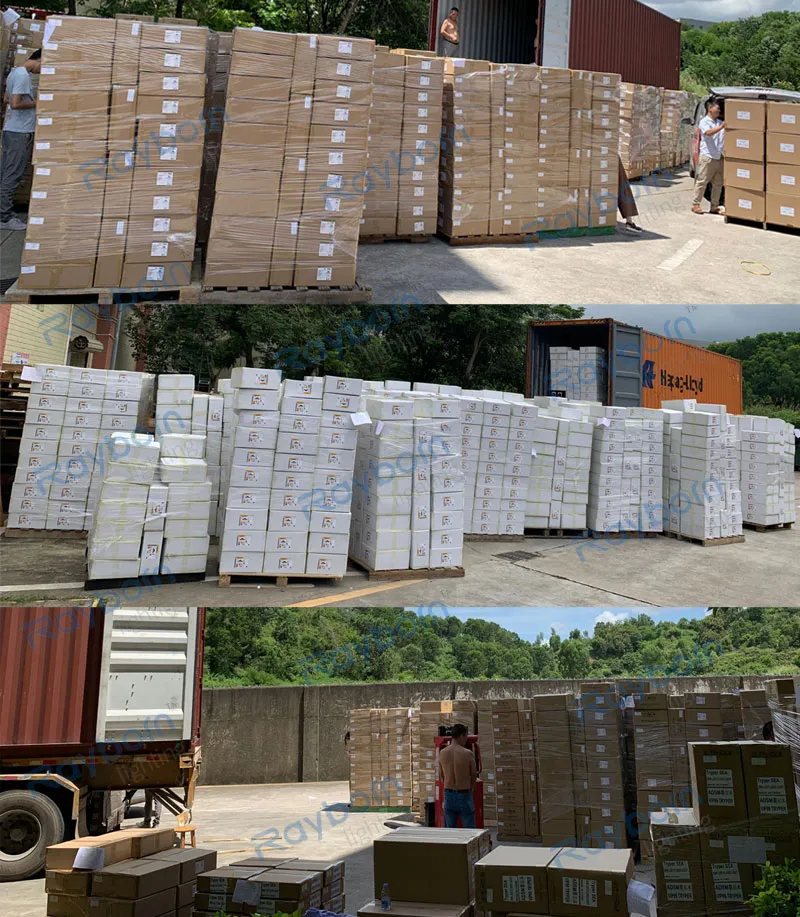

08 Packaging & Shipping
Packaging: Our individual package maximize protecting LED high bay lights from transfer damage in transit.
- Label on backside of each led high bay lights and your required label is available.
- One piece led high bay Light per carton.
- This is our regular packing. Custom color packaging and logo printing are available.
Shipping Options: By Sea, Air, or Express (DHL, FedEx, UPS, TNT, etc.)
- Big quantity advised to be shipped by sea.
- Samples advised to be shipped by express.
- Small quantity advised to be shipped by air.

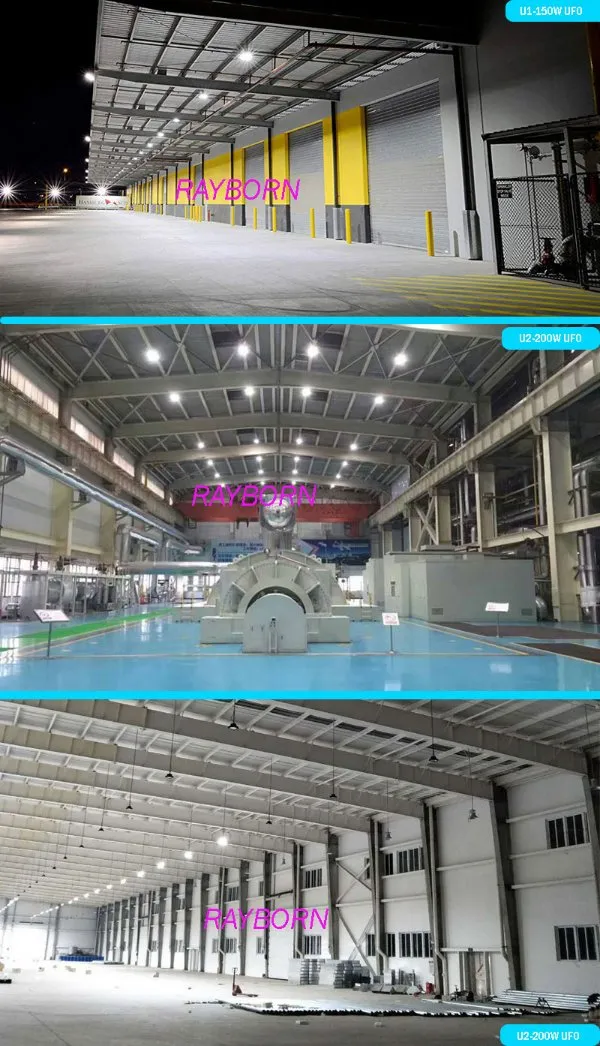

09 Installation & Application
Wide Range of Applications
- Instead of the fluorescent lights indoors
- School / Universities / Hospital
- Conference / Meeting room / Show Room
- Commercial establishments
- Factories / Offices
- Super-markets
- Residential / Institution buildings
- Government lighting engineering, airport, subway, elevated overpass, billboard stadium
- Building external walls landmarks such as landscape lighting
10 Services & Trade Terms
Professional Service for You:
- Your inquiry related to our products or prices will be replied in 24 hours.
- OEM or ODM service is welcome.
- Professional service from well-trained and experienced staffs is customers' best choice.
- Detailed and professional specifications and guidances of products.
- Lighting solutions and free light study designed by professional technicians.
Trade Terms & Payments:
- Payment: T/T, L/C and PayPal are available.
- Lead time: Sample Order: 5-7 working days; Bulk Order: 10-15 working days.
- Package: 1pcs/carton; 4 pcs/carton; 8 pcs/carton or custom packaging.
- Shipping port: Shenzhen port.
- Discounts: Offered based on order quantities.
Frequently Asked Questions
What is the warranty of your LED high bay / flood lights?
We offer 5 years guarantee for our LED lights, designed to meet your specific project requirements with premium quality and performance.
What color temperatures can we choose?
We offer LED lights in multiple CCT ranges: Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5000K-5700K), and Cool White (6000K-6500K). Other custom ranges can also be supplied upon request.
Can your LED lamps be used in our country?
Yes, our LED lights support a wide input voltage range of AC 100-277V (customizable to high voltage options like 277-480V) for safe global applications.
How do you help me to save freight cost?
We evaluate your order volume and offer the best optimized shipping solution. Detailed freight quotations can be supplied within 1 hour.
Do you have any MOQ limitations?
We do not have an MOQ limit. Even sample orders starting from only one piece of LED light are highly welcomed.
What is the standard production lead time?
Sample orders are typically processed in 3-7 days, while mass production takes 7-15 days depending on the final order quantity and custom requirements.
