ENGINEERED TO OPERATE IN HARSH AND HOT CONDITIONS

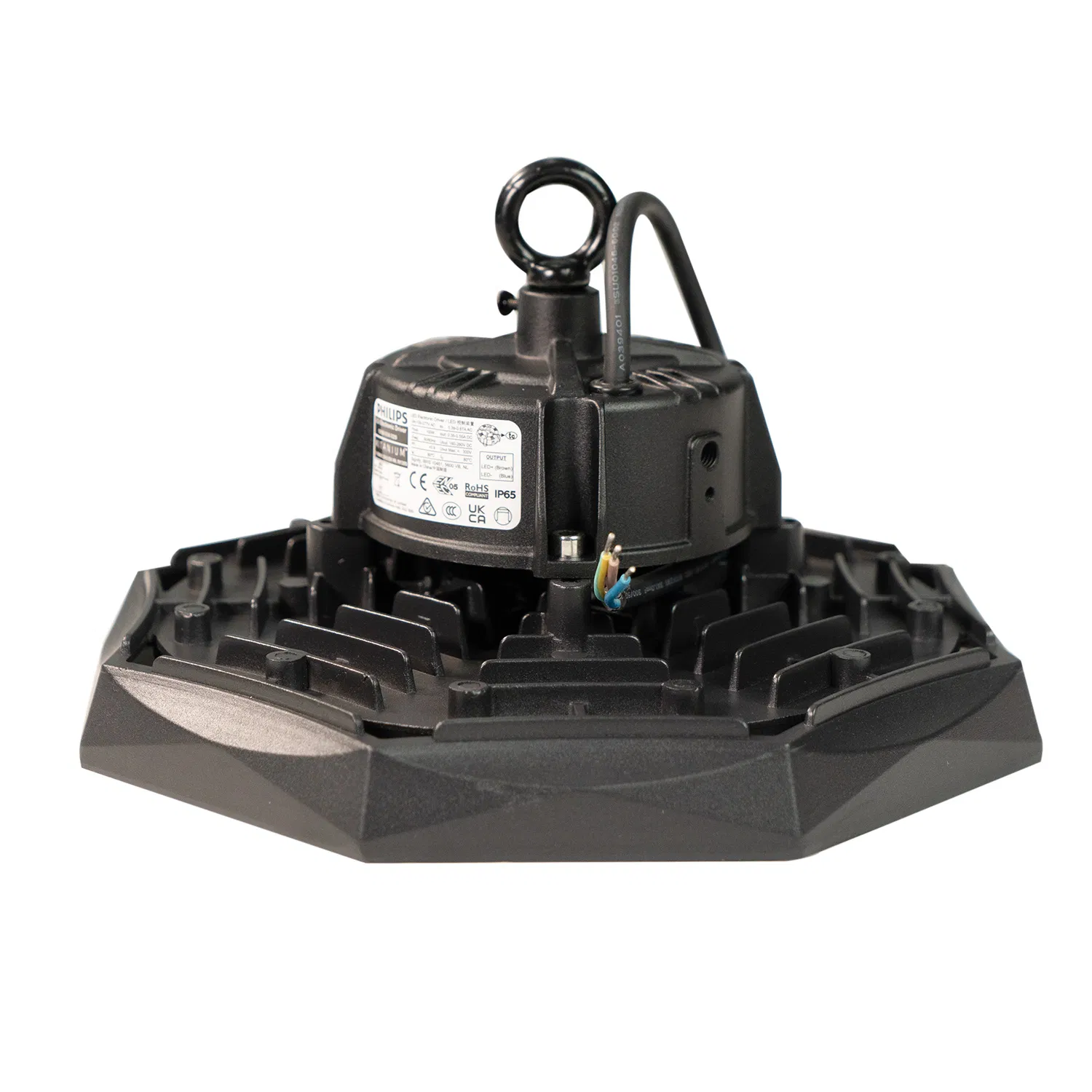

DIE CAST ALUMINUM MATERIAL

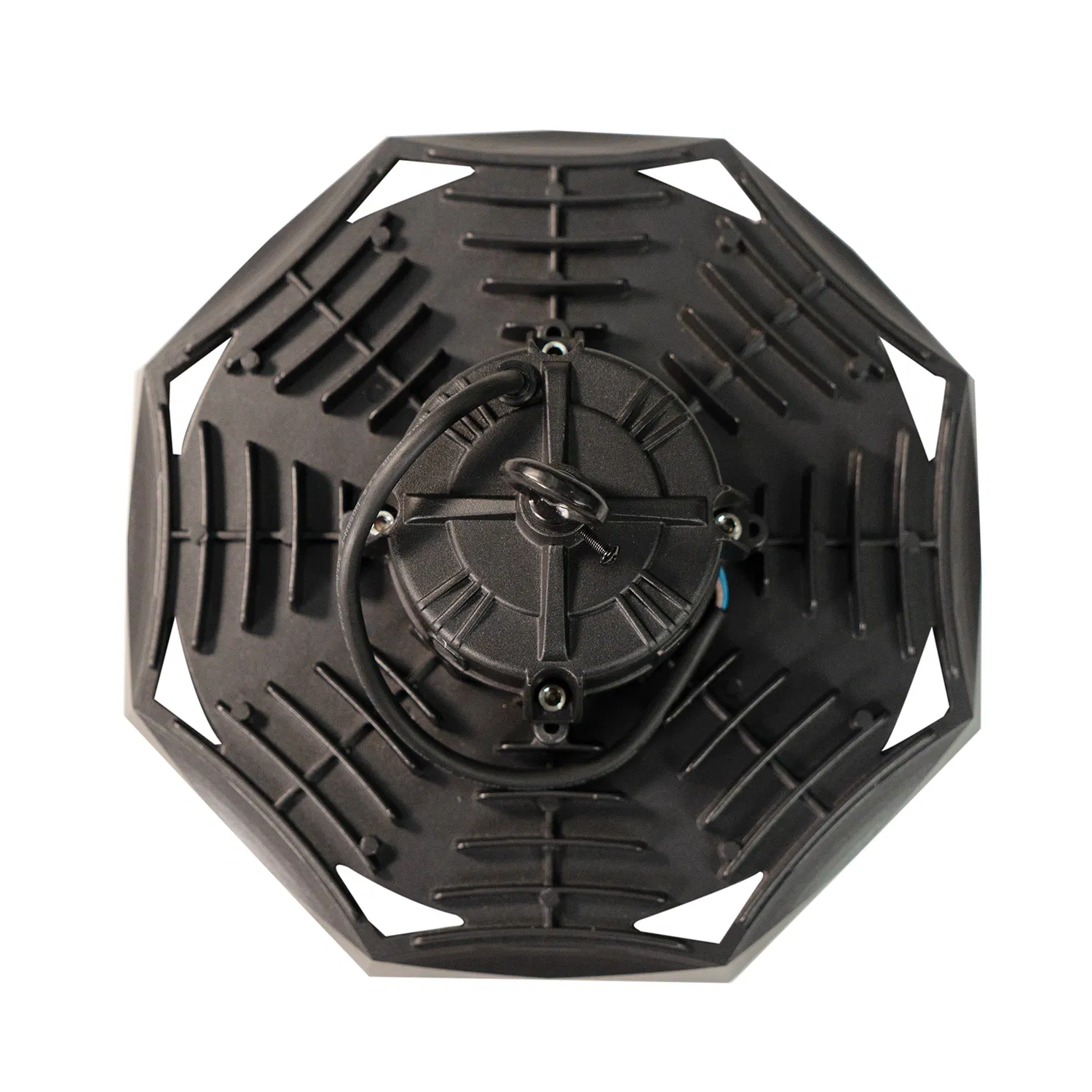

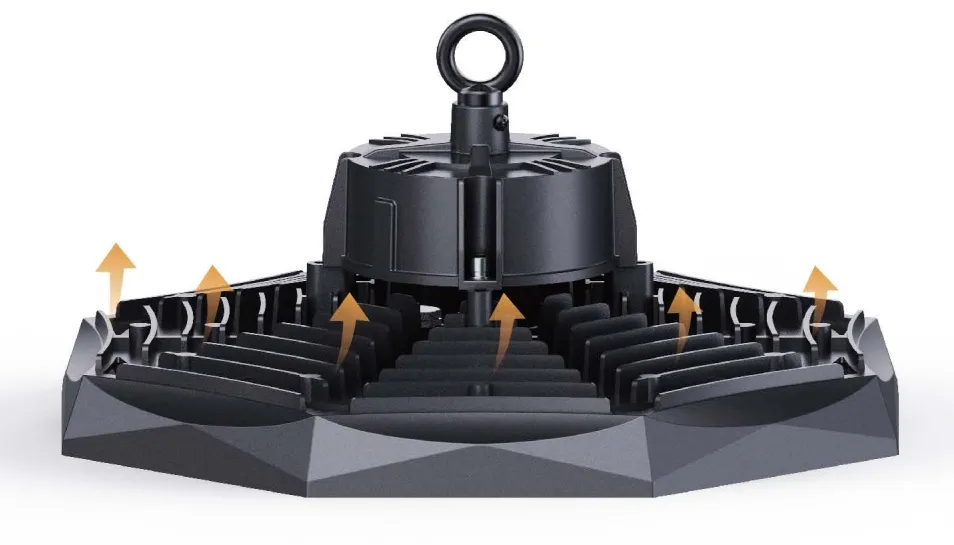

The hollow heat dissipation structure design effectively increases the cooling area. Optimized air ducts realize three-dimensional efficient heat dissipation, reducing light attenuation and extending the life of the light source, which significantly lowers maintenance costs.
Leakage Prevention: High insulation polymer thermal materials (Level 1) ensure no leakage or tripping under high voltage, protecting power grid safety.
Anti-corrosion: WF2 corrosion resistance level allows for stable operation in temperatures from -40°C to 50°C with up to 10 years of weather resistance.
Dust & Waterproof: Fully enclosed design prevents dust, water, and mosquitoes from entering the lamp body.

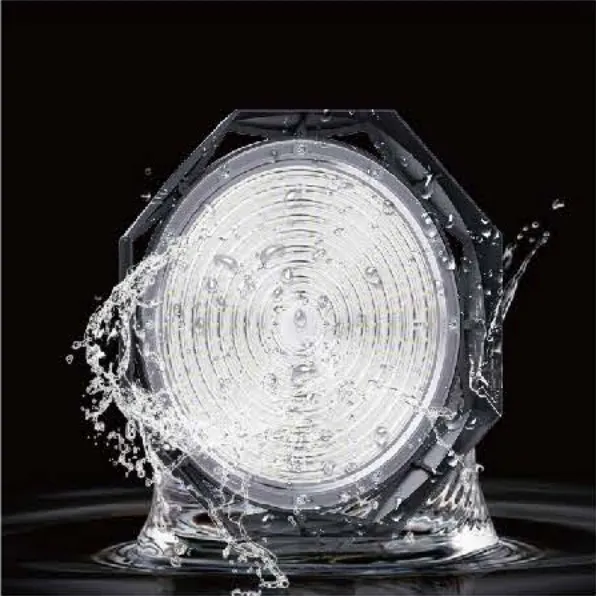

IP66 Waterproof
Protected against heavy water jets
IK08 Impact Resistance
High mechanical impact protection
| Model | JY-LZM100 | JY-LZM150 | JY-LZM200 |
|---|---|---|---|
| Power | 100W | 150W | 200W |
| Voltage | AC200-240V, 50/60Hz | ||
| LED Chip | SMD2835 | SMD3030 | ||
| Luminous Efficiency | 160 Lm/W | ||
| Lumen Output | 16000lm | 24000lm | 32000lm |
| CRI | CRI70 (CRI80 optional) | ||
| CCT | 6500K / 4000K | ||
| IP / IK Rating | IP66 / IK08 | ||
| Power Factor | >0.95 | ||
| Weight (N.W) | 1.85 kg | 2.15 kg | 2.75 kg |

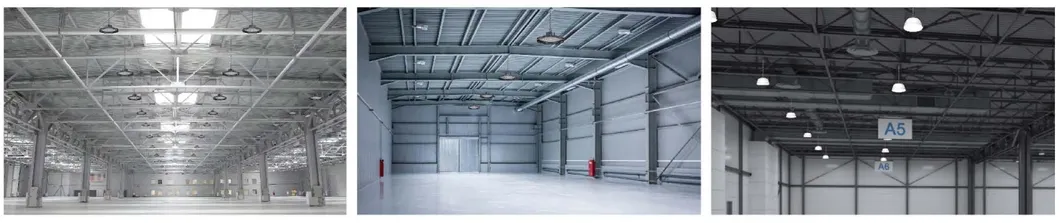

Perfect for complex industrial and commercial environments, including warehouses, workshops, commercial spaces, offices, and multi-purpose facilities. The series provides harmonious lighting and superior performance for large-scale spaces.

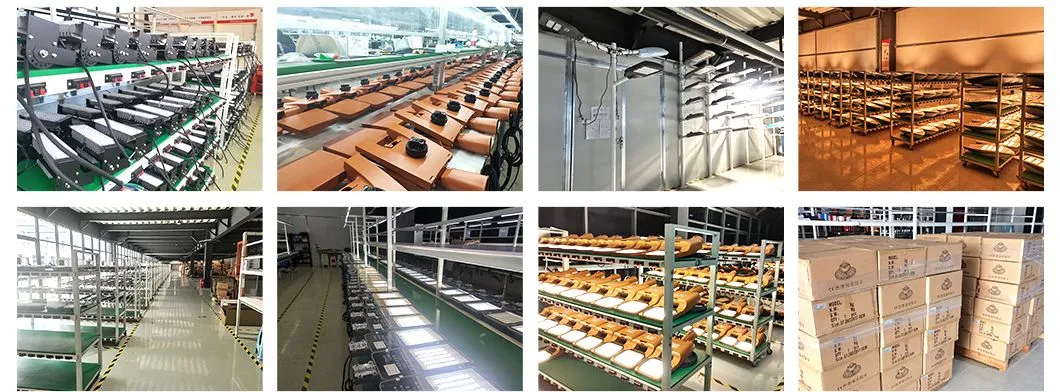

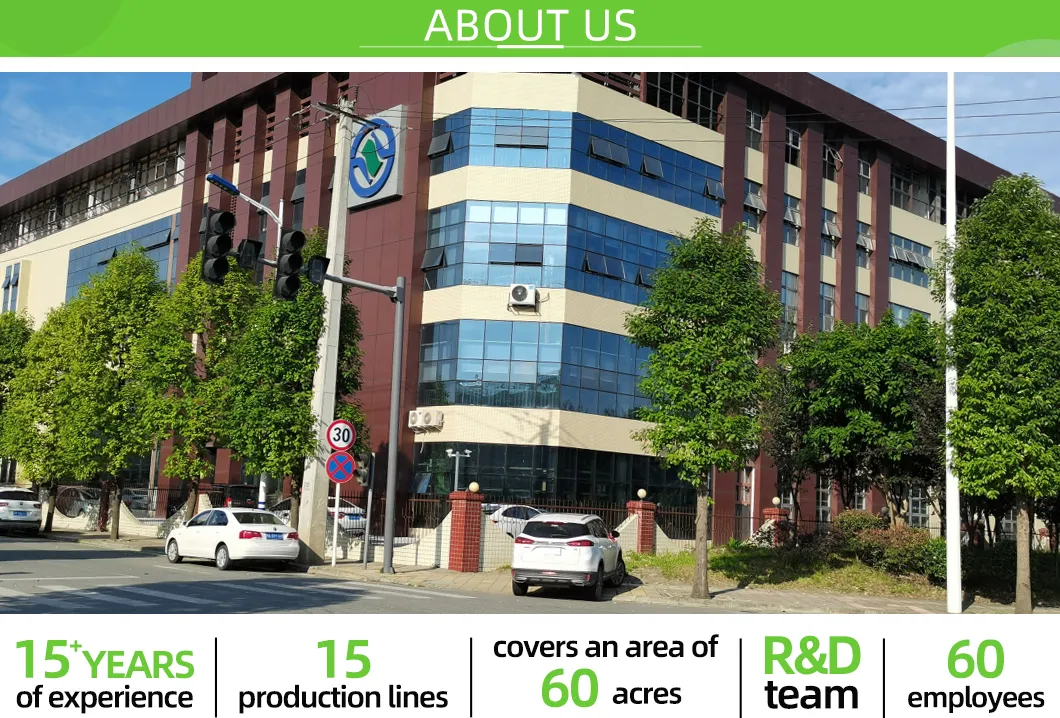

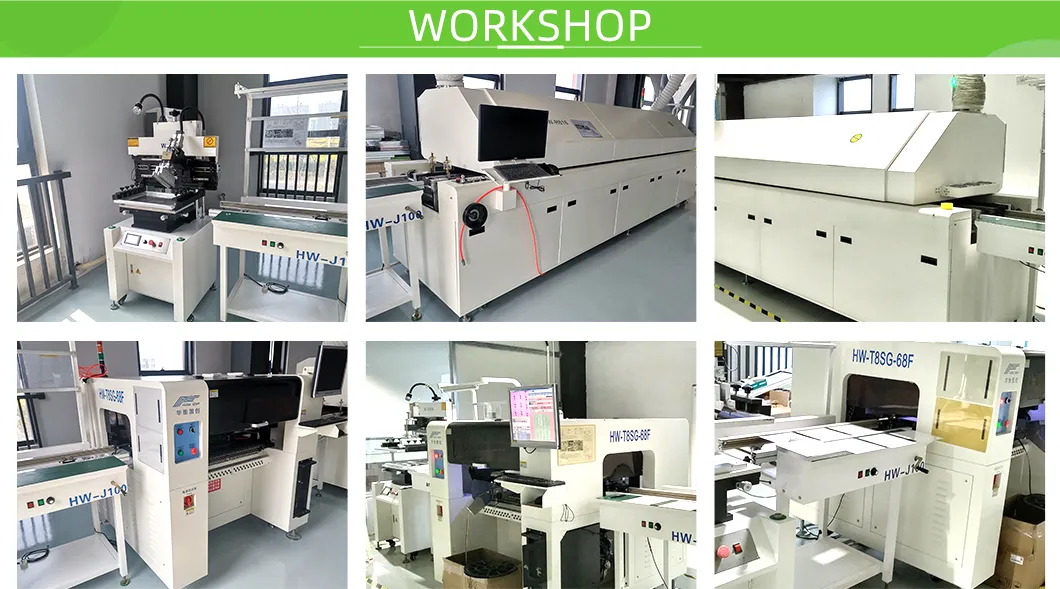

Our production base spans approximately 60 acres with a 15,000-square-meter workshop. We operate 15 lighting production lines with an annual capacity of 500,000 sets. Every fixture undergoes a strict quality inspection process, including charge/discharge testing, insulation testing, aging tests, and structural sampling.
