Basic Specifications
Model NO.
LC6060-F600/1000
Certification
CE, EMC, RoHS, SAA
LED Chips
Epistar SMD 2835 - 504PCS
Luminous Efficiency
100lm/W

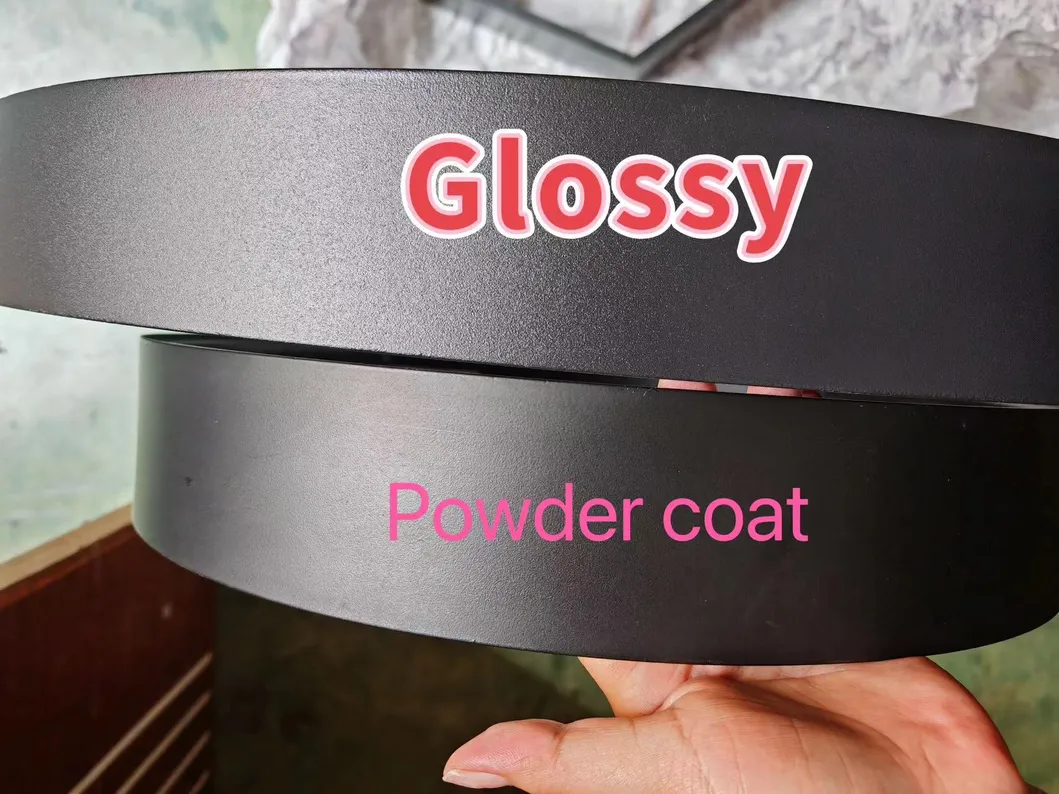

Shell Color
Black, White, Silver, Customized
Specification
L1000*W600*W60*H60mm
Production Capacity
50000 Pieces/Year
Product Overview
Key Product Features:
No dark area, uniform lighting distribution.
Excellent heat dissipation performance.
High Efficacy: 100lm/w ±5%.
1.5mm thick extrusion aluminum profile housing.
High CRI: Ra>80 (Standard) or Ra>90 (Upgrade).
Certified flicker-free driver, Power Factor >0.9.
Long lifespan: SMD2835 LEDs, >50,000 hours.

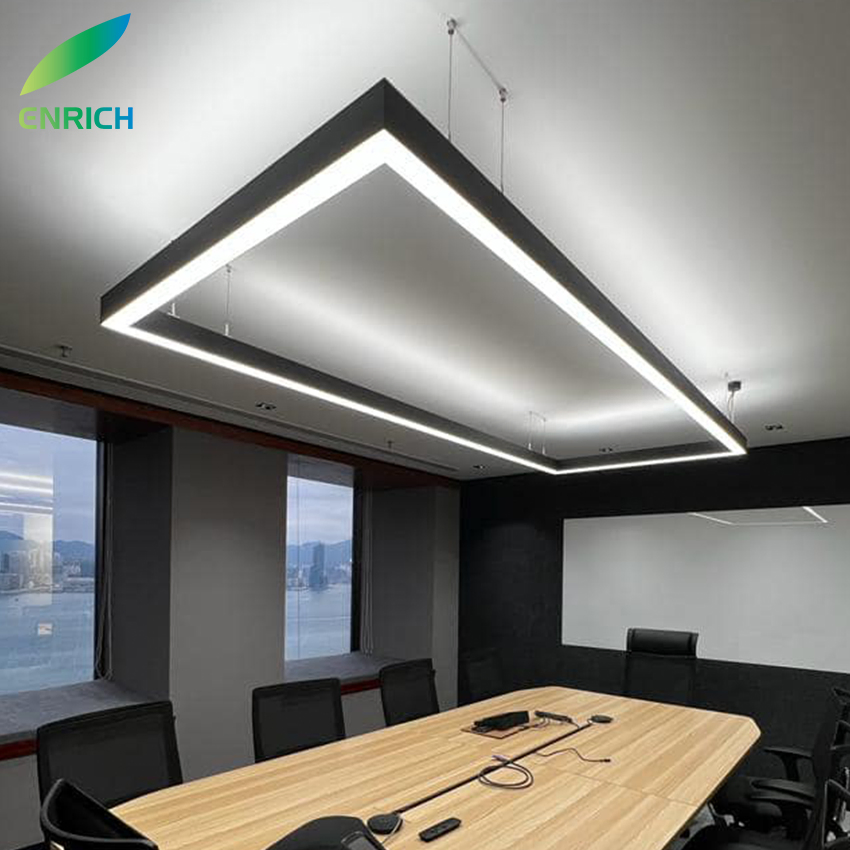

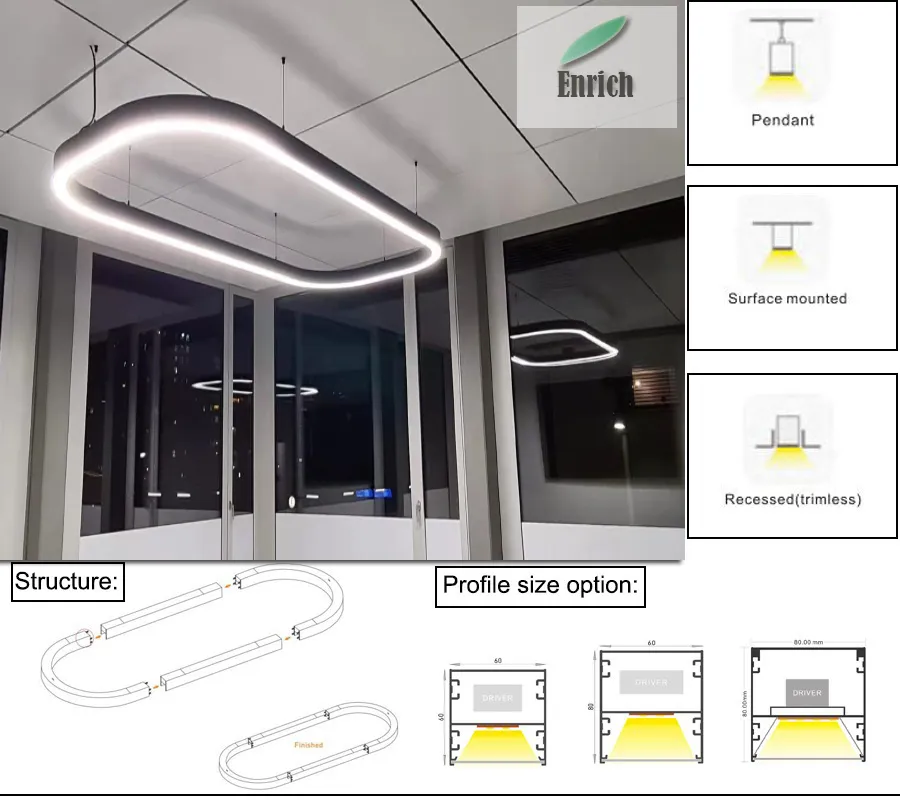

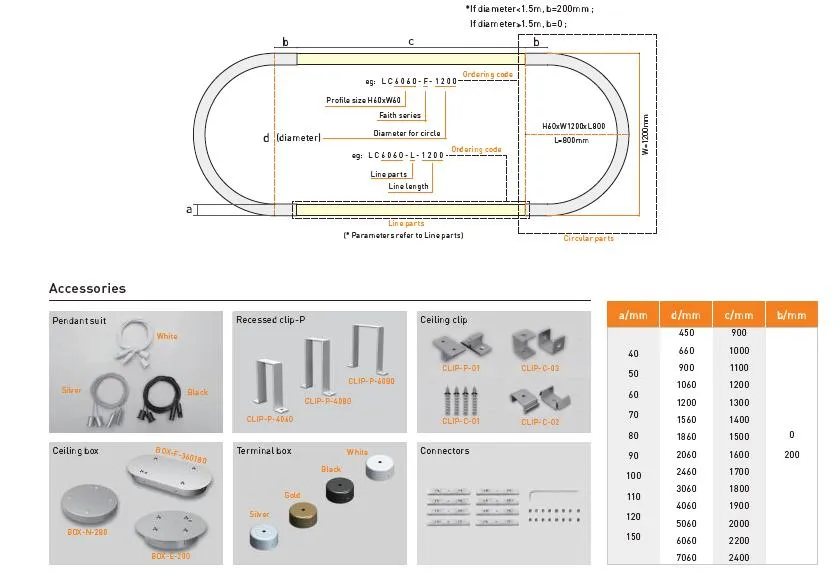

Flexible mounting: Suspended, Surface, or Rimless Recessed.
Detailed Specifications
| Model |
Voltage |
Size (mm) |
Power |
Luminous |
CRI |
| LC6060-B-900 |
AC220-240V |
L900*W900*(W60*H60) |
50W |
100lm/w |
>80 |
| LC6060-B-1032 |
AC220-240V |
L1032*W1032*(W60*H60) |
60W |
100lm/w |
>80 |
| LC6060-B-1200 |
AC220-240V |
L1200*W1200*(W60*H60) |
70W |
100lm/w |
>80 |
| LC6060-B-3000/600 |
AC220-240V |
L3000*W600*(W60*H60) |
136W |
100lm/w |
>80 |
| LC6060-B-3000/1200 |
AC220-240V |
L3000*W1200*(W60*H60) |
160W |
100lm/w |
>80 |
Technical Details
| Adjustable Height | 2(m) | Sun Visor Material | Acrylic Resin |
| Main Application | Office, Commercial Building, Residential | Style | Modern |
| Average Service Life | 50,000 Hours | Light Body Material | Aluminum |
| Switch Type | Button | Shell Colors | Black, White, Silver, Golden |
Packaging & Delivery
Package Size
120.00cm * 120.00cm * 25.00cm
Transport Package
Carton Outside

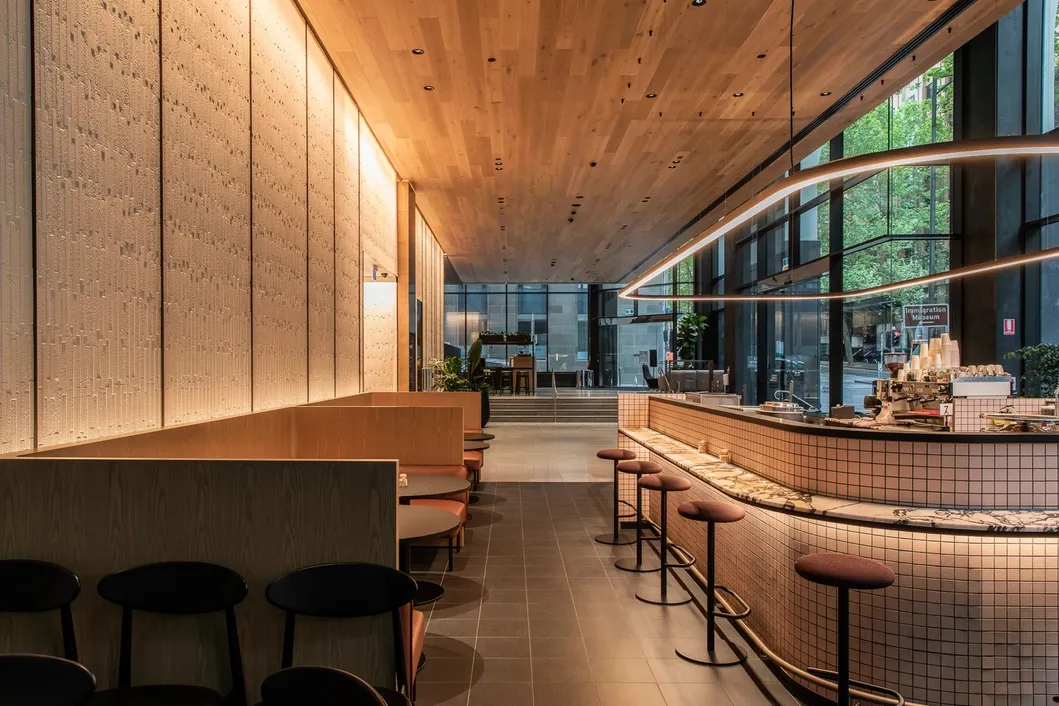

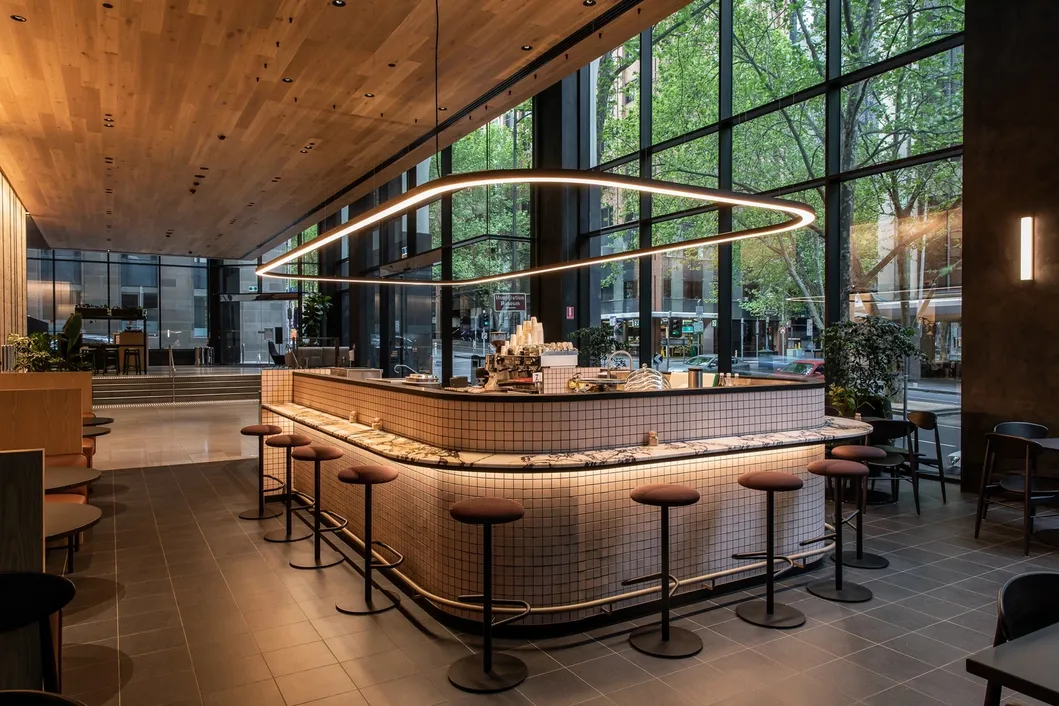

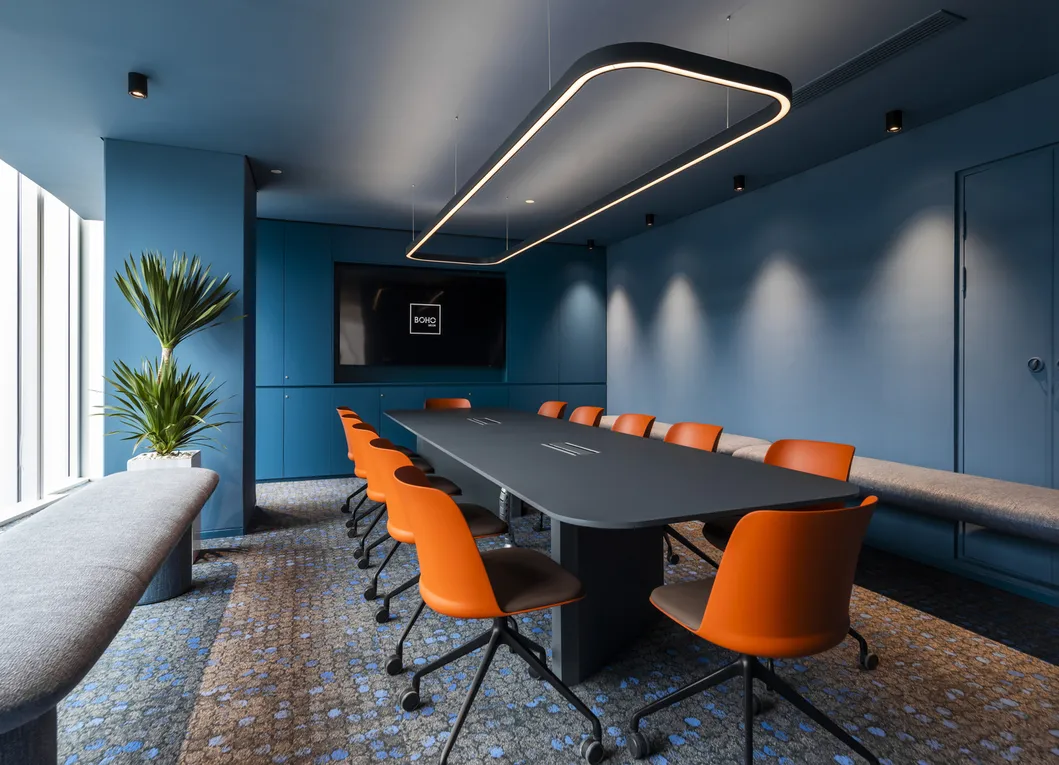

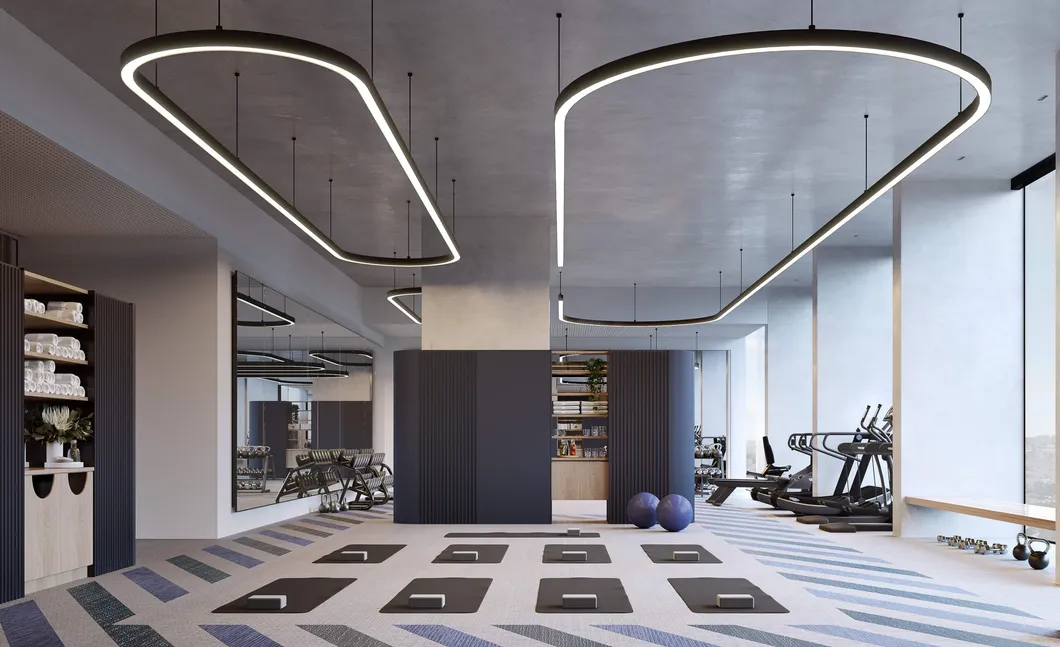

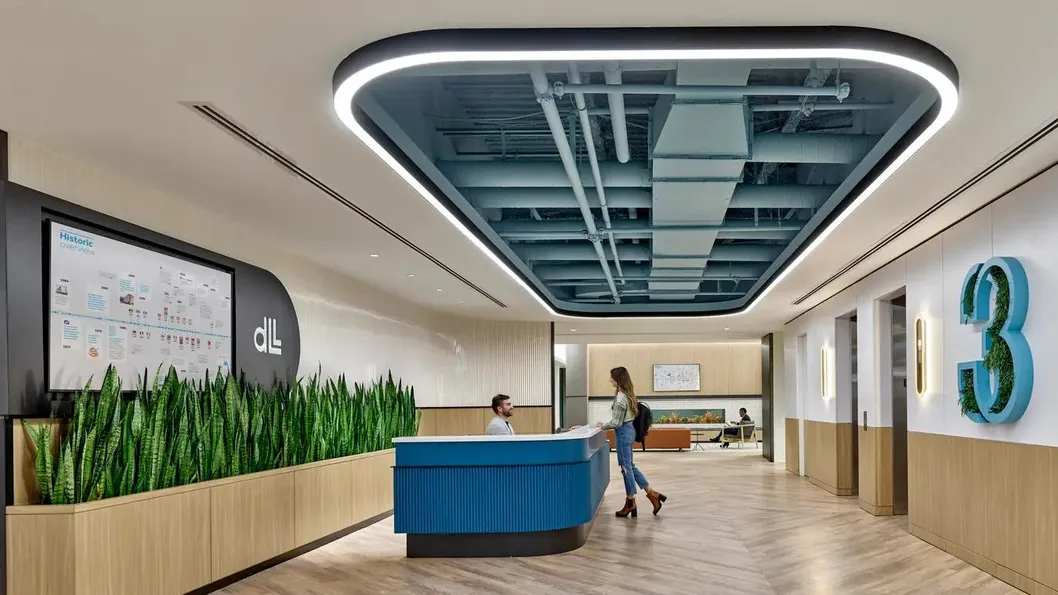

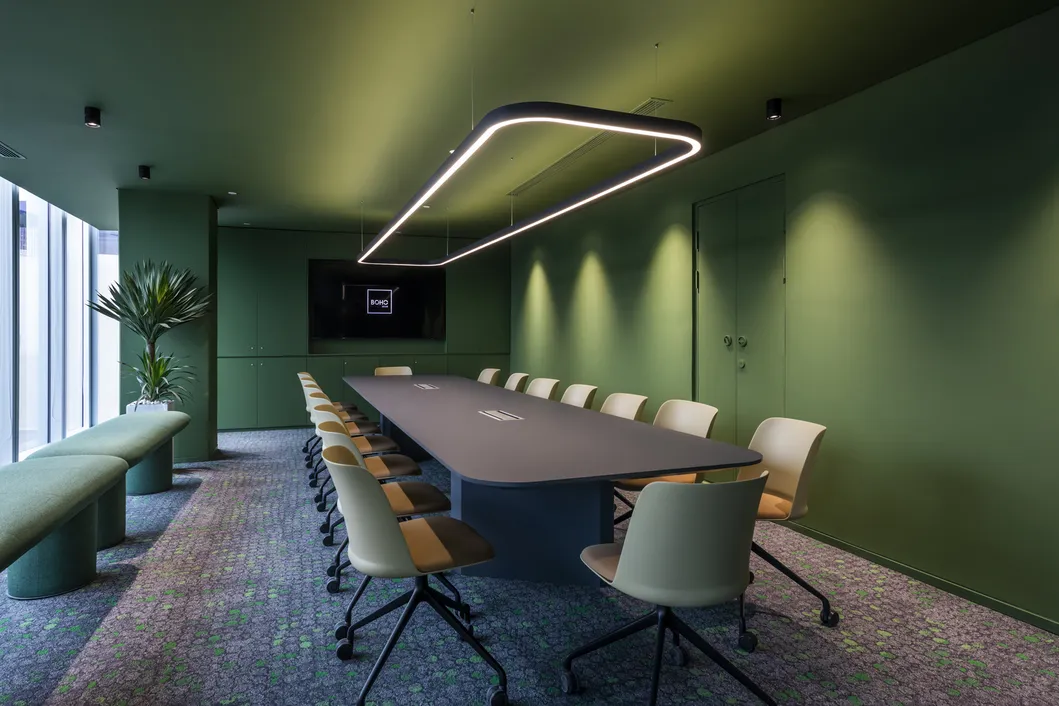

Wide Applications
Ideal for use in shopping malls, retail stores, modern offices, gyms, schools, hotels, residential bedrooms, and reception desks.

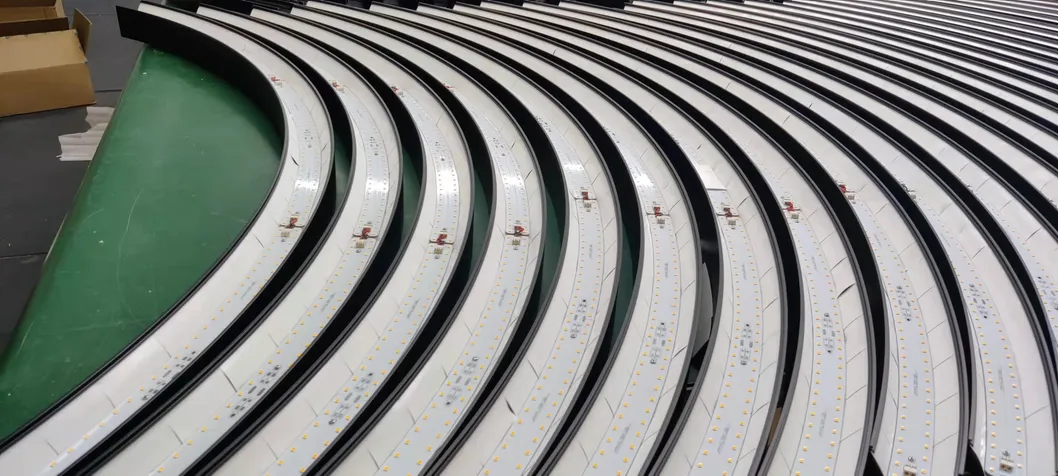

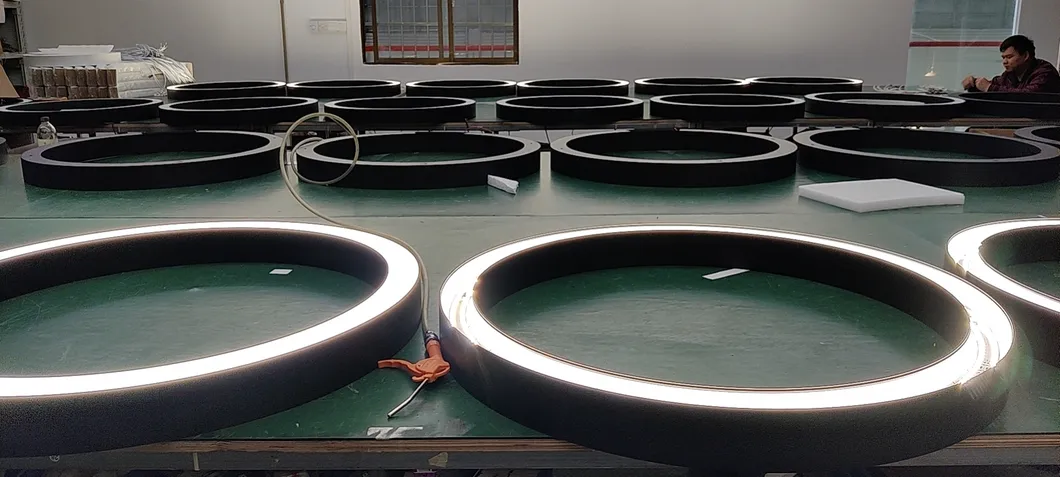

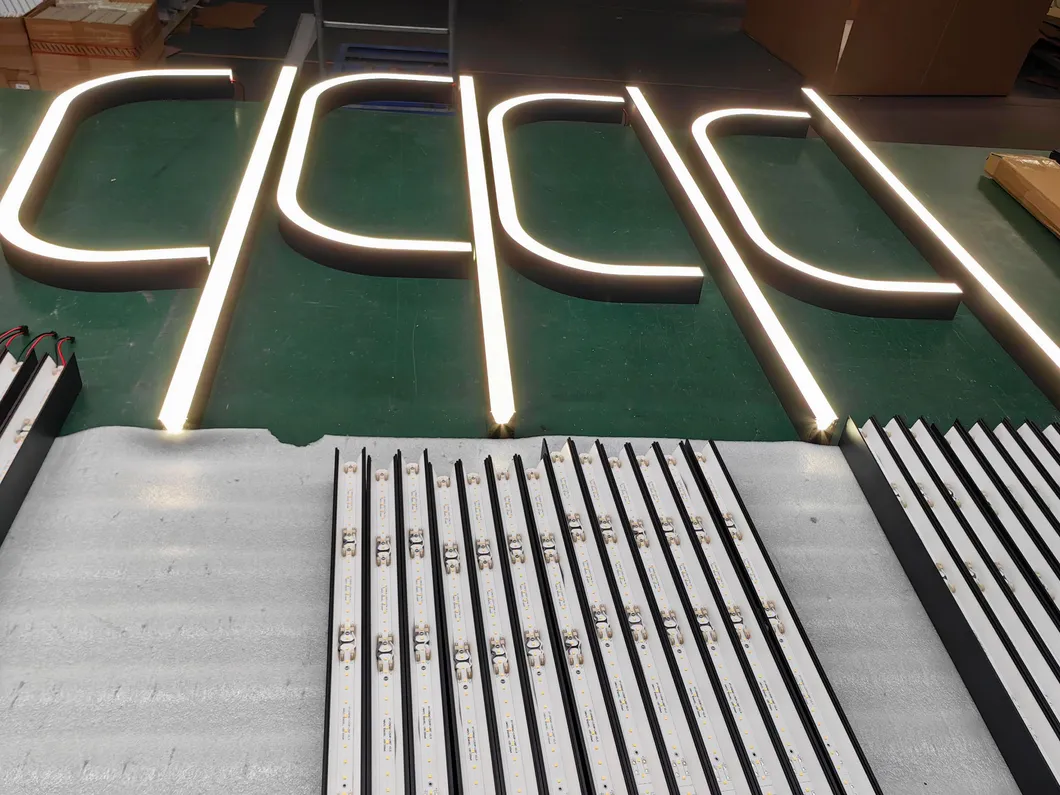

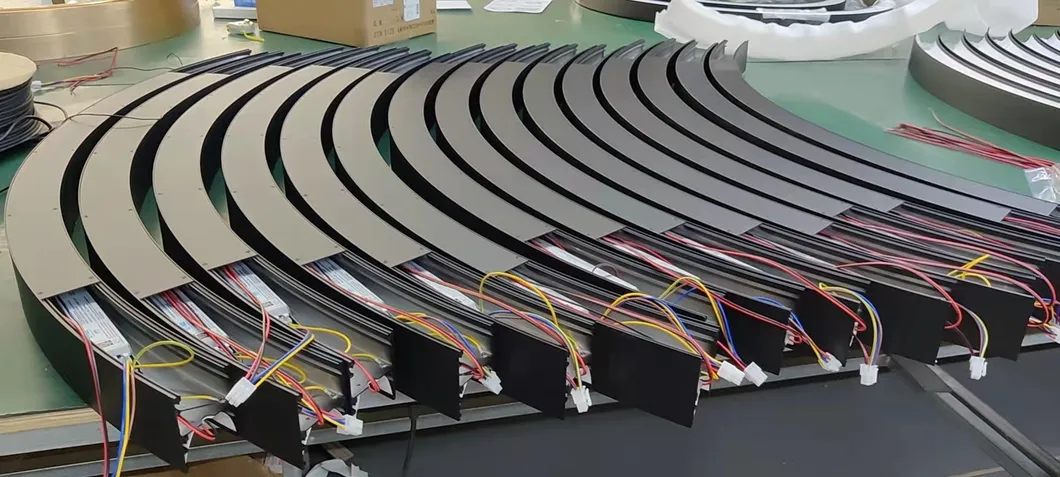

Production & Quality
We accept custom shapes and OEM designs. Our production line is equipped to handle various project requirements from drawing to final assembly.
Frequently Asked Questions
What mounting options are available for these linear lights?
These lights support multiple installation methods including suspended mounting, ceiling surface mounting, and rimless recessed mounting to fit different architectural needs.

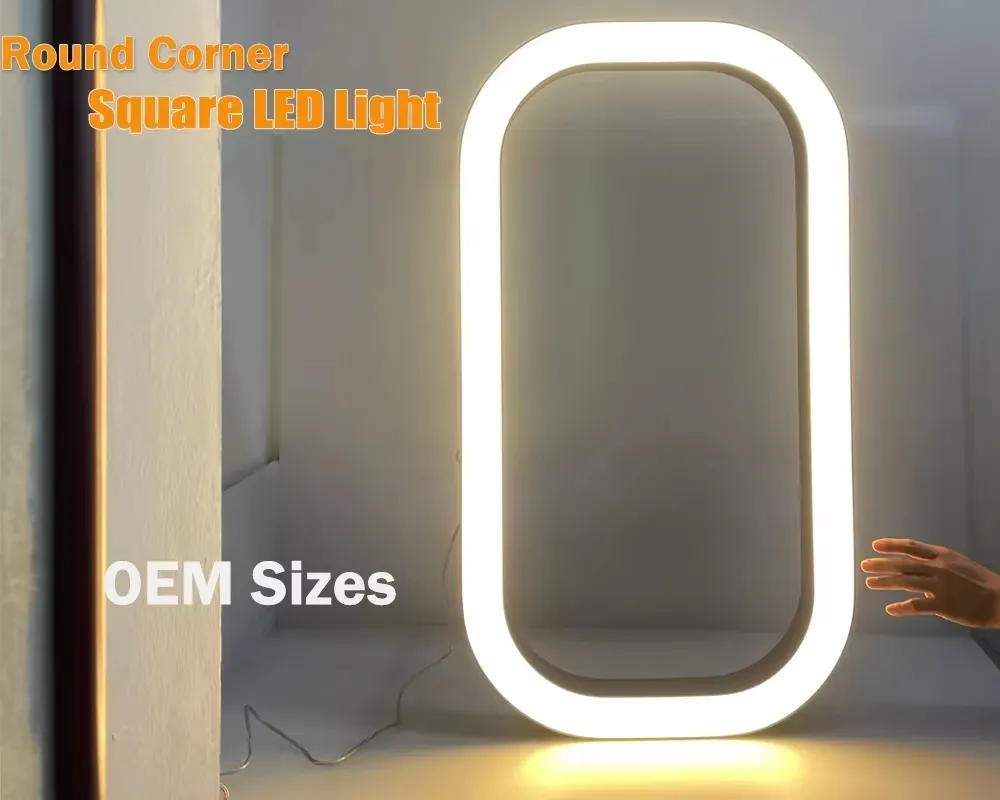

Can I customize the size and shape of the LED linear light?
Yes, we accept any shape and OEM design according to your specific project inquiry. You can provide drawings, and we can discuss the custom design together.
What is the standard warranty period for your lighting products?
All our professional LED linear lighting products come with a 5-year warranty, ensuring long-term reliability and performance.
Are the LED drivers flicker-free?
Yes, our lights use certified, flicker-free built-in drivers with a power factor greater than 0.9, providing a stable and comfortable lighting environment.
What color temperatures (CCT) are available?
Standard options include 3000K, 4000K, 5000K, and 6000K. We also offer RGB, RGBW, and RGB+CCT options for dynamic lighting projects.

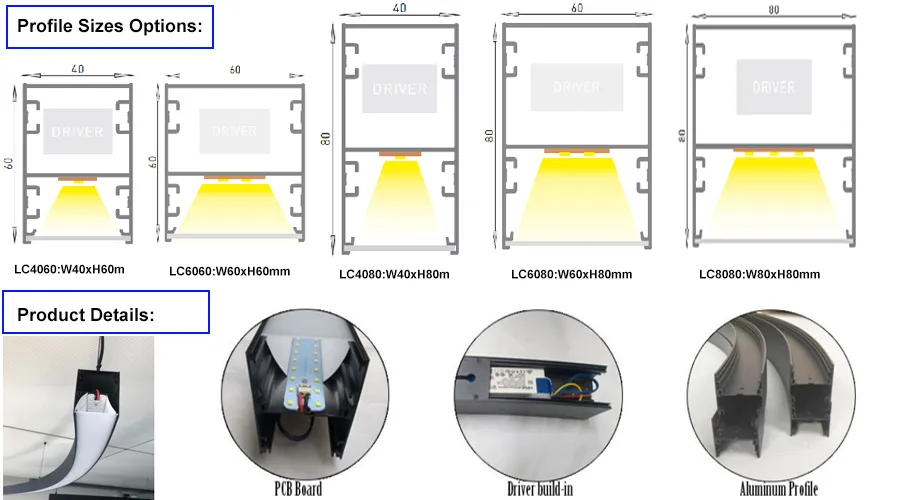

What materials are used for the housing?
The housing is made of 1.5mm thick 6063-T5 high-quality extrusion aluminum profile, combined with a frosted PC cover for optimal light diffusion and durability.
