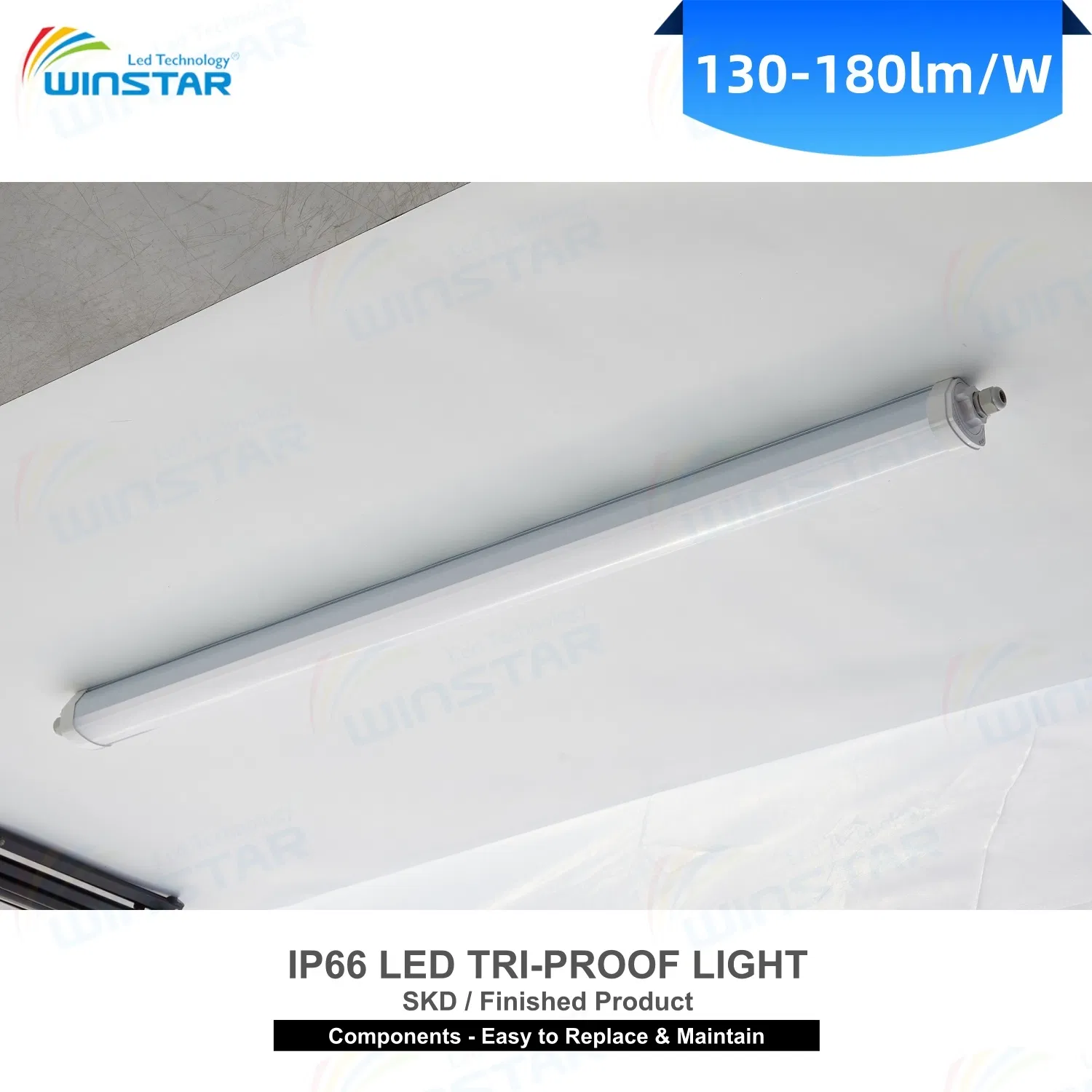

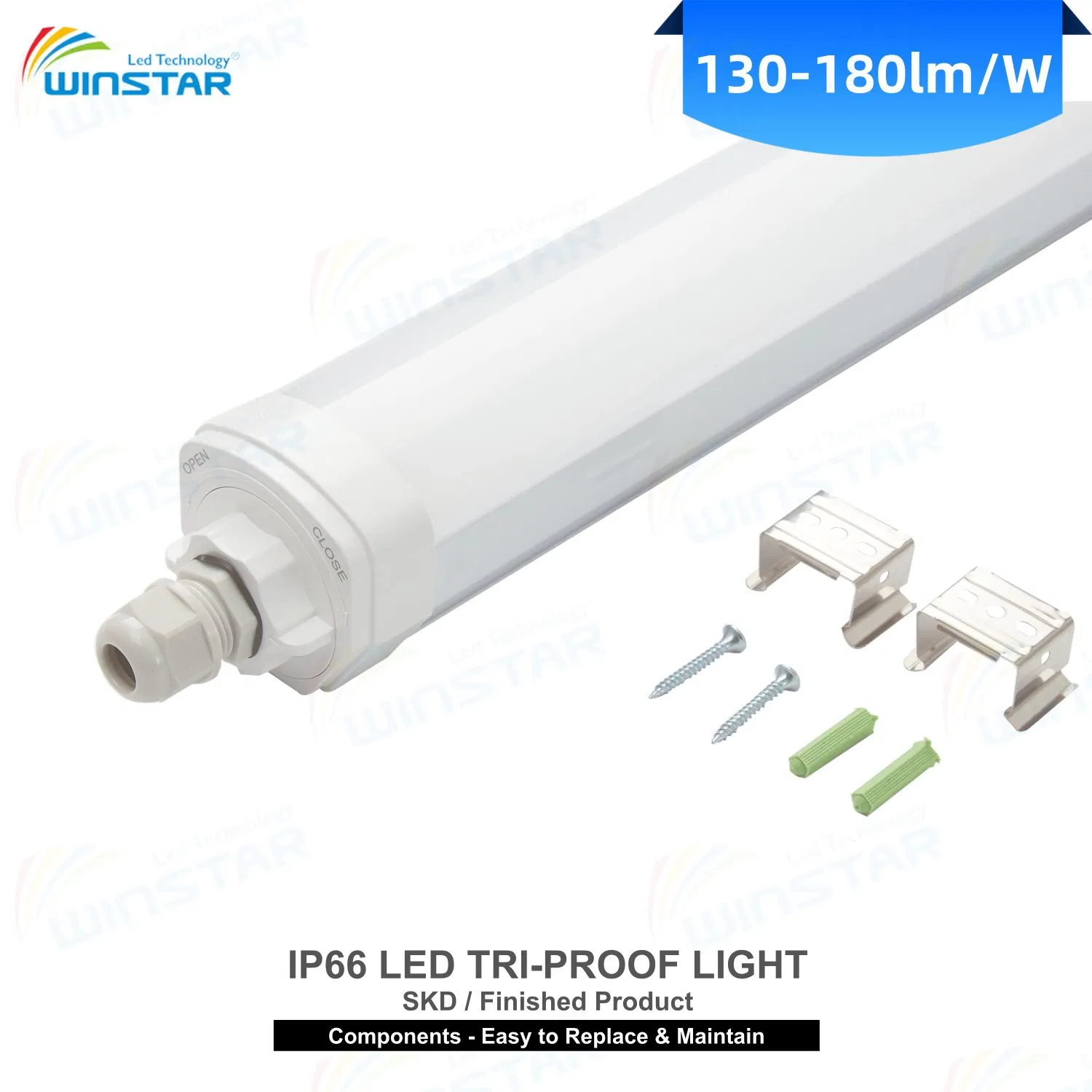

IP66 LED Tri-Proof Light Batten Linkable 60/120/150cm LED Linear Light for Supermarket Mall Exhibition Hall Commercial Display SKD Available

1 / 5

IP66 LED Tri-Proof Light Batten Linkable 60/120/150cm LED Linear Light for Supermarket Mall Exhibition Hall Commercial Display SKD Available

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

⭐ Basic Information

Model NO.

WS-LI12H36W-9PR

IP Rating

IP66

Lumen Options

130/150/180 Lm/W

Power

18/36/50W (or Custom)

Warranty

5 Years

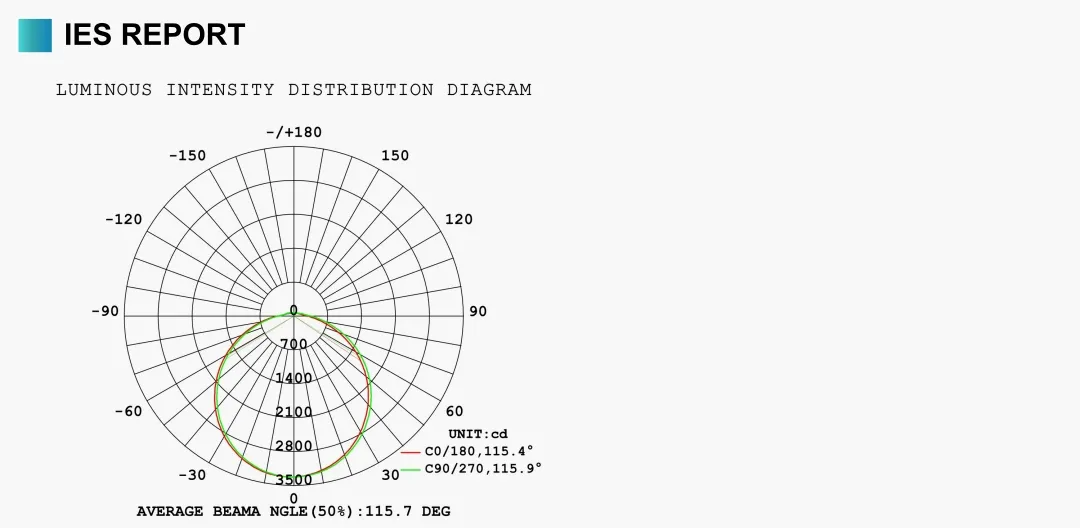

Beam Angle

110°

CRI

≥80

Input Voltage

200-240VAC 50/60Hz

💡 Product Description

CORE SELLING POINTS

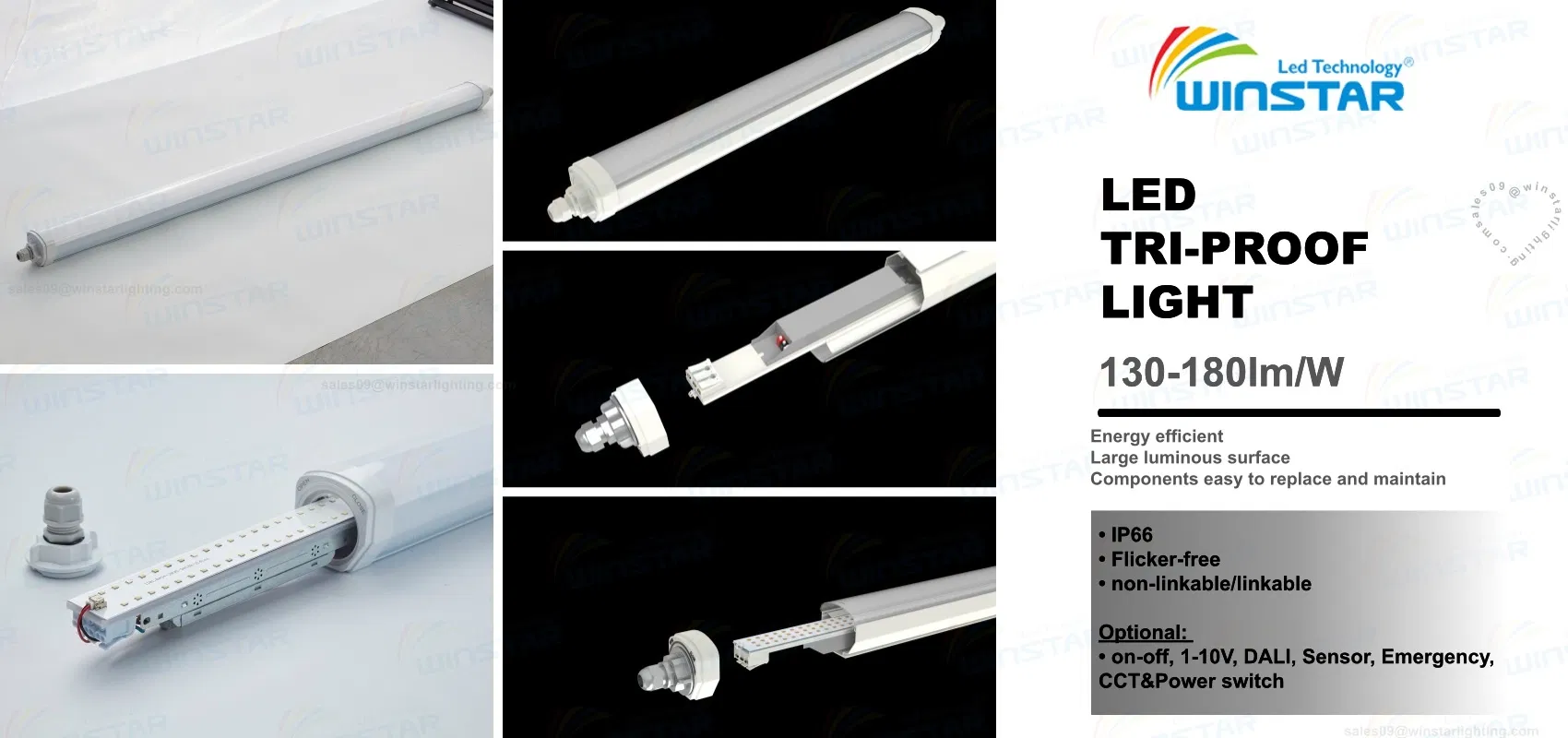

IP66 LED Tri-proof Light Batten - Linkable Linear Solution

High-performance lighting designed for Supermarket, Mall, Exhibition Hall, and Commercial Display. Available as finished products or SKD components.

Patented & Modular Design: Exclusive structure for easy maintenance.

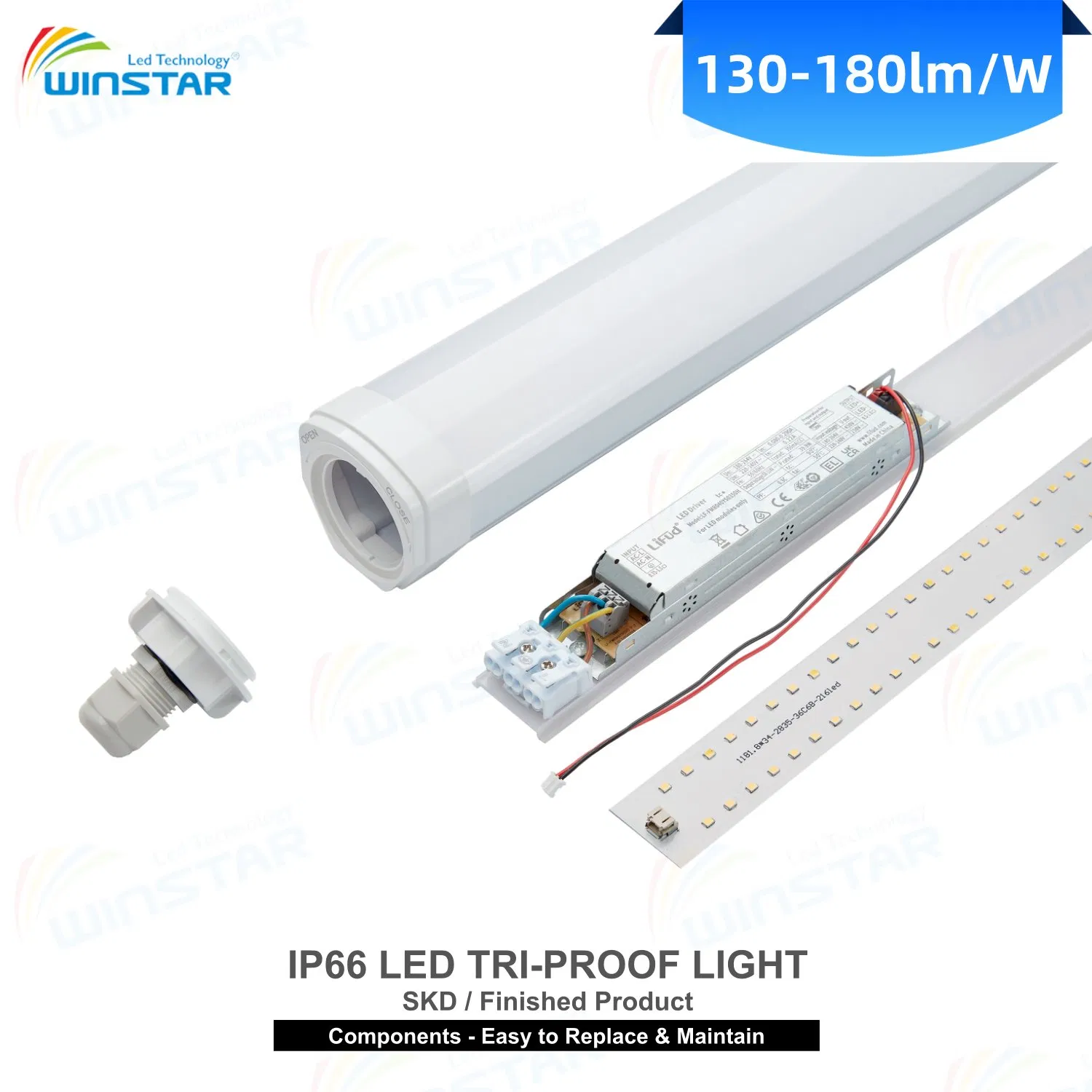

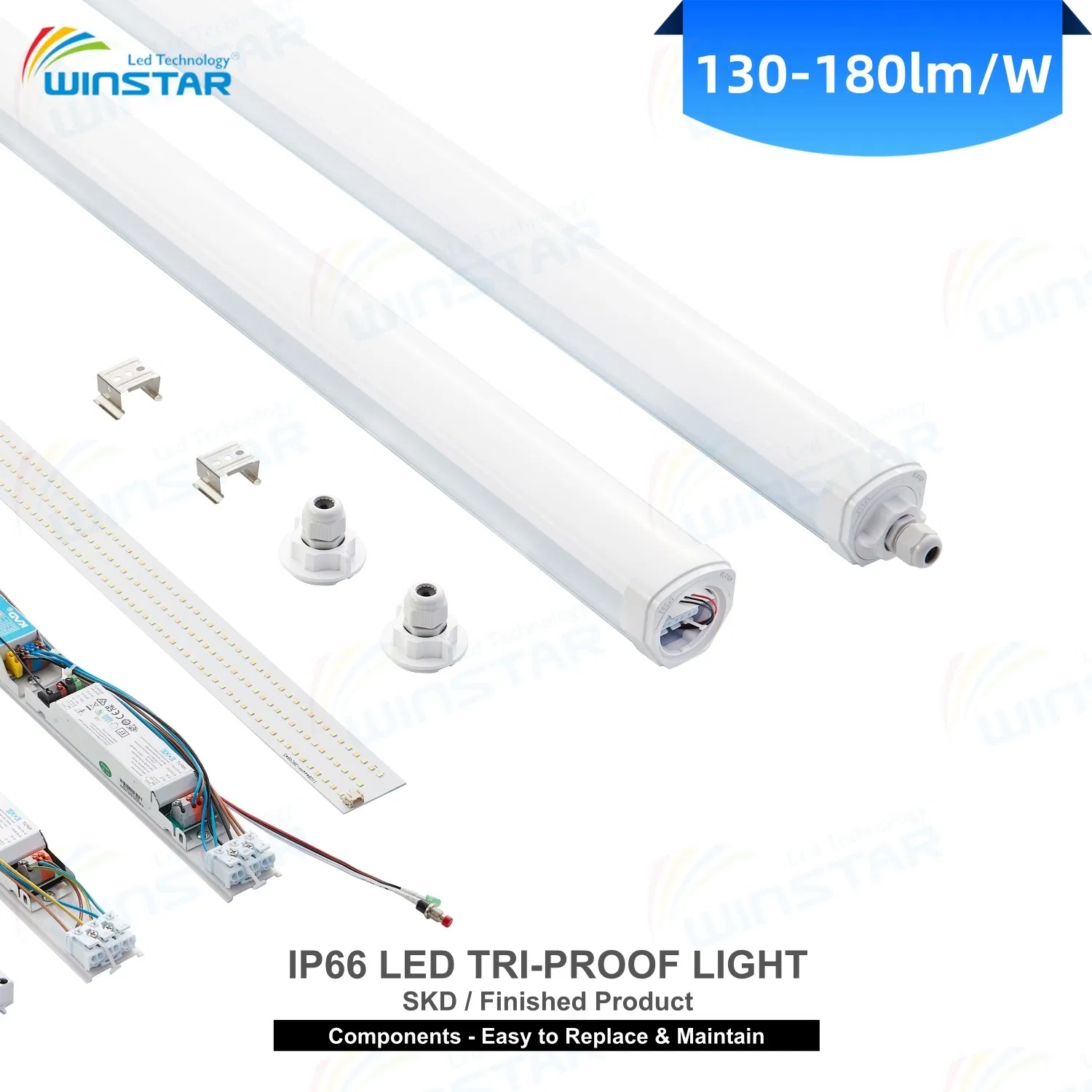

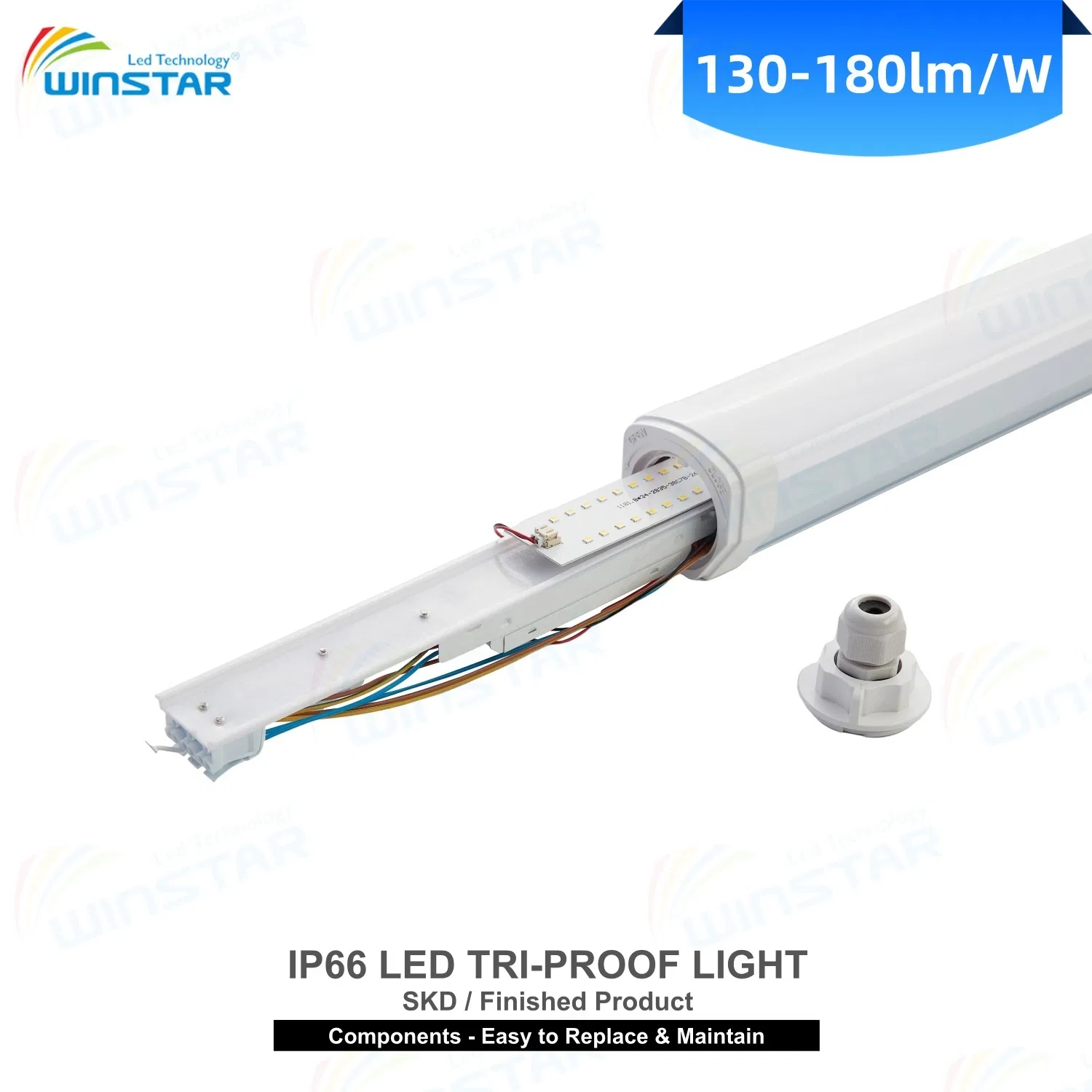

Replaceable Components: PCB and Driver are easily replaceable, extending product life and reducing waste.
Superior Build: 6063 aviation aluminum for excellent heat dissipation and fireproof PC housing for safety.
Flicker-Free Performance: High-quality brand drivers (LIFUD, BOKE, OS-RAM) with PF>0.9.
Versatile Functions: Optional on-off, 0-10V, DALI, Sensor, Emergency kit, or CCT & Power switchable options.

📊 Technical Specifications

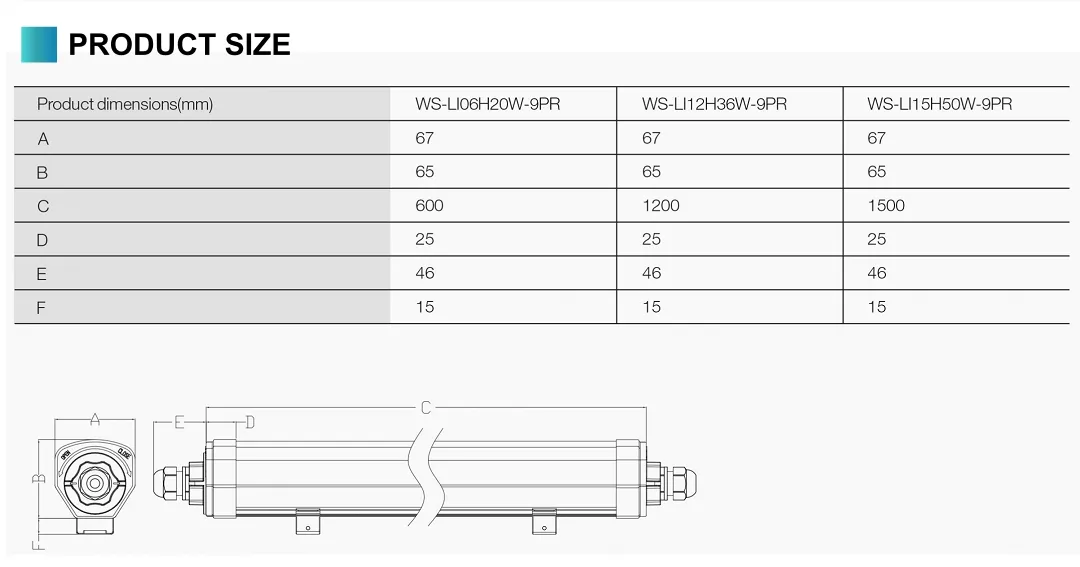

Item NO.	Length (mm)	Power	LED Type	Luminous Efficiency	Lumen Output
WS-LI06H20W-9PR	600	12/14/17/20W	SMD2835 RA≥80	130/150/180 lm/W	1800-3000lm
WS-LI12H36W-9PR	1200	24/30/36/40W			3600-5800lm
WS-LI15H50W-9PR	1500	32/42/50/58W			4800-8550lm

🖼️ Product Details & Applications

🛠️ Manufacturing Capabilities

Why Choose Our Solutions?

16+ years of LED lighting expertise.
Strict quality control (4-step QC process).
100% aging test before delivery.
OEM/ODM service with custom logo support.
High lumen efficiency (up to 200lm/W).

Other Product Ranges

LED T5/T6/T8 Tubes
LED Linear Track Lights
LED High Bay & Flood Lights
LED Agricultural & Grow Lights
LED Panel Lights

❓ Frequently Asked Questions

How do you ensure the quality of your LED products?

We implement four QC processes: 1. Inspection of raw materials; 2. Mid-production check; 3. Final QC after the aging test; 4. Pre-shipment inspection of packaged products.

What happens if there is a quality issue during the warranty period?

If a quality problem arises due to manufacturing within the warranty time, simply provide photos or videos as proof, and we will provide free replacements.

Do you support OEM or ODM customization?

Yes, we provide full OEM and ODM services, including custom logos on the products and personalized packaging solutions.

Is SKD (Semi-Knocked Down) supply available for this light?

Yes, we support both finished product supply and SKD import options to help you optimize import duties and local assembly.

What is the typical lead time for samples and mass production?

Samples generally take 5-7 days. Mass production time varies based on order quantity and specific project requirements.

Are your drivers flicker-free?

Absolutely. We use high-quality flicker-free brand drivers like LIFUD, BOKE, or OS-RAM with a Power Factor (PF) > 0.9 for stable and safe operation.
