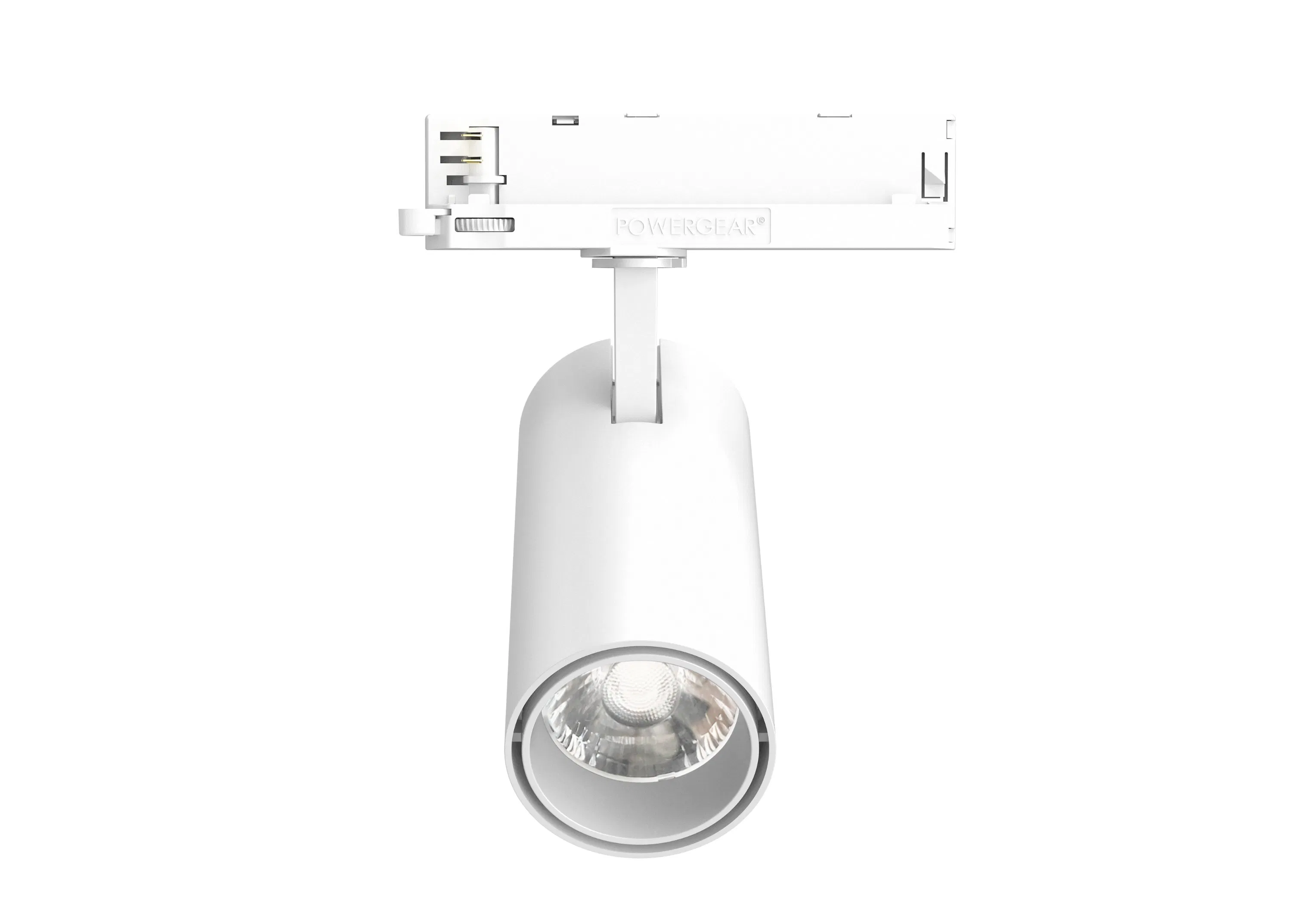

This series of track lights is the new favorite on the market, especially in indoor commercial lighting applications. Because the driver is integrated with track adapter (in-track driver), it not only ensures excellent heat dissipation performance but also makes it looks very compact. Though the drivers are in the track adapter, it can be also high PF and flicker-free.
The drivers are available with brands of O sram, P hilips, TCI, etc. Optional dimming on/off, Triac-dm, 0/1-10V dim, and DALI dim.
| ST-T1503 | ST-T2503 | ST-T3503 | |
|---|---|---|---|
| Power (W) | 15W | 25W | 35W |
| Lumen Output | 1400-1700lm | 3000-3200lm | 4000-4400lm |
| Beam Angle | 15° / 24° / 36° / 50° | 15° / 24° / 36° / 50° | 15° / 24° / 36° / 50° |
| Size | 65*150mm | 75*160mm | 85*170mm |
| LED Brand | Bridgelux / Luminus / CREE | ||
| Color Temperature (CCT) | 2700K / 3000K / 4000K / 5000K / 6000K | ||
| Rendering Index (CRI) | Ra>90 / Ra>95 / Ra>97 | ||
| Color Consistency (SDCM) | <3 | ||
| Lumen Maintenance Factor (LLMF) | >80% | ||
| Driver Brand | P hilips / O sram / TCI / Powergear | ||
| PF | ≥0.95 | ||
| Flicker-free | Yes | ||
| Dimmable | non-dim / Triac-dim / 0-10V dim / DALI dim | ||
| Track | 3 wires (single phase) / 4 wires 3 phase / 6 wires | ||
| Material (Heatsink) | cold forging #1070 aluminum | ||

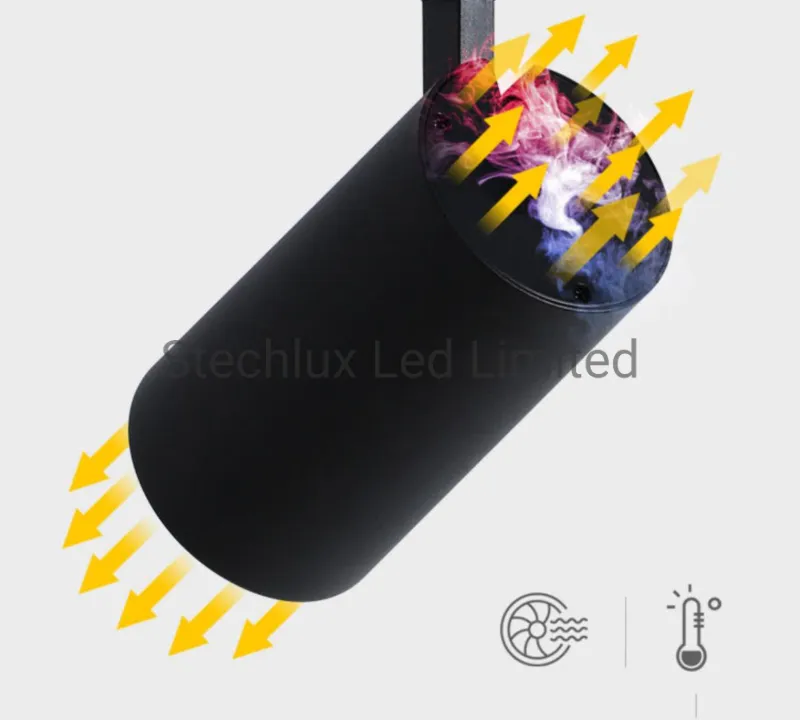

The lamp body (heatsink) of this track light uses purer aluminum #1070 by technology of cold forging. The cooling effect of cold forging aluminum is 30% higher than that is #6063 profile aluminum (extrusion aluminum) and 2 times better than that of die ADC12 aluminum by casting.

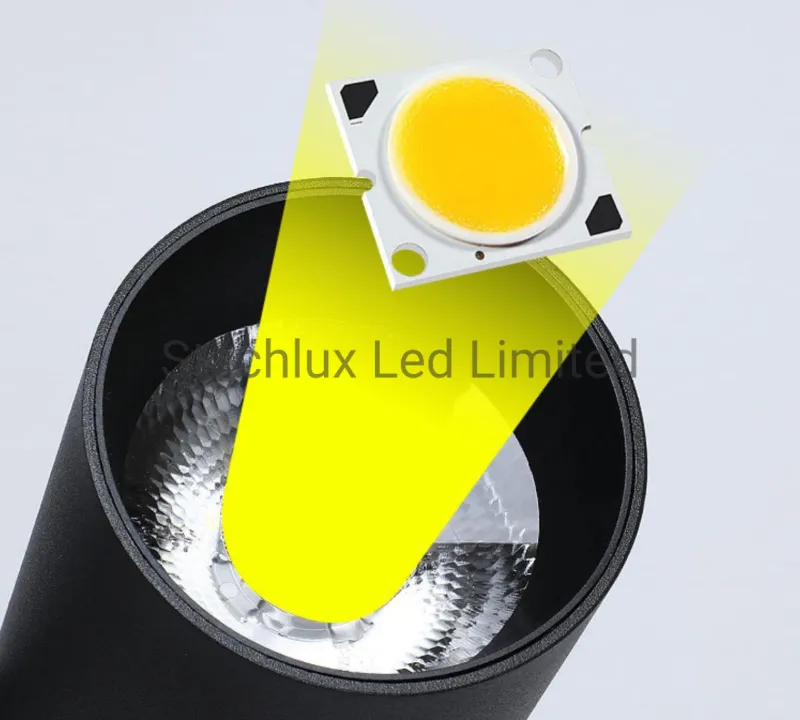

We use original LED chip Citizen or Luminus COB of this track light. They are not only high CRI90 or 95 but also high light efficiency. Higher CRI can better restore the original color of the irradiated object. And the higher the light efficiency, the more energy saving.

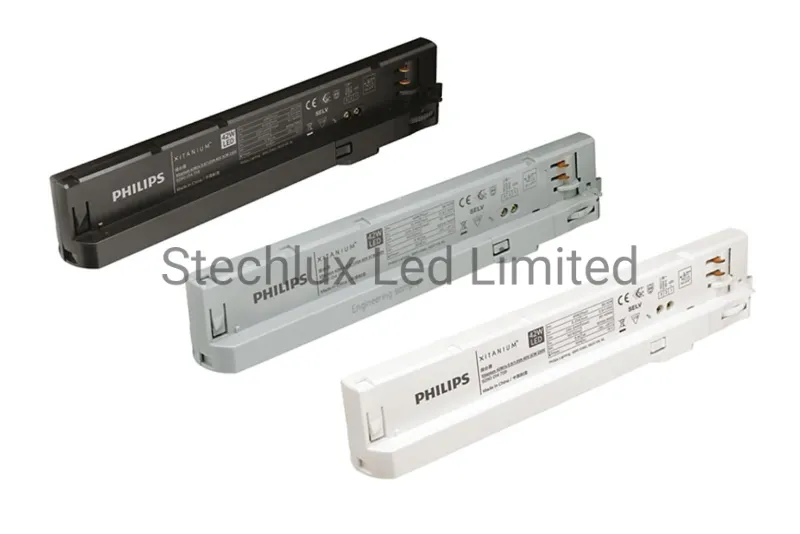

The driver of this track light is integrated with track adapter (in-track driver). It not only ensures excellent heat dissipation performance but also makes it looks very compact. Besides, the driver is very easy to be disassembled and replaced. Normally we use P hilips, O sram driver of this series of track light.

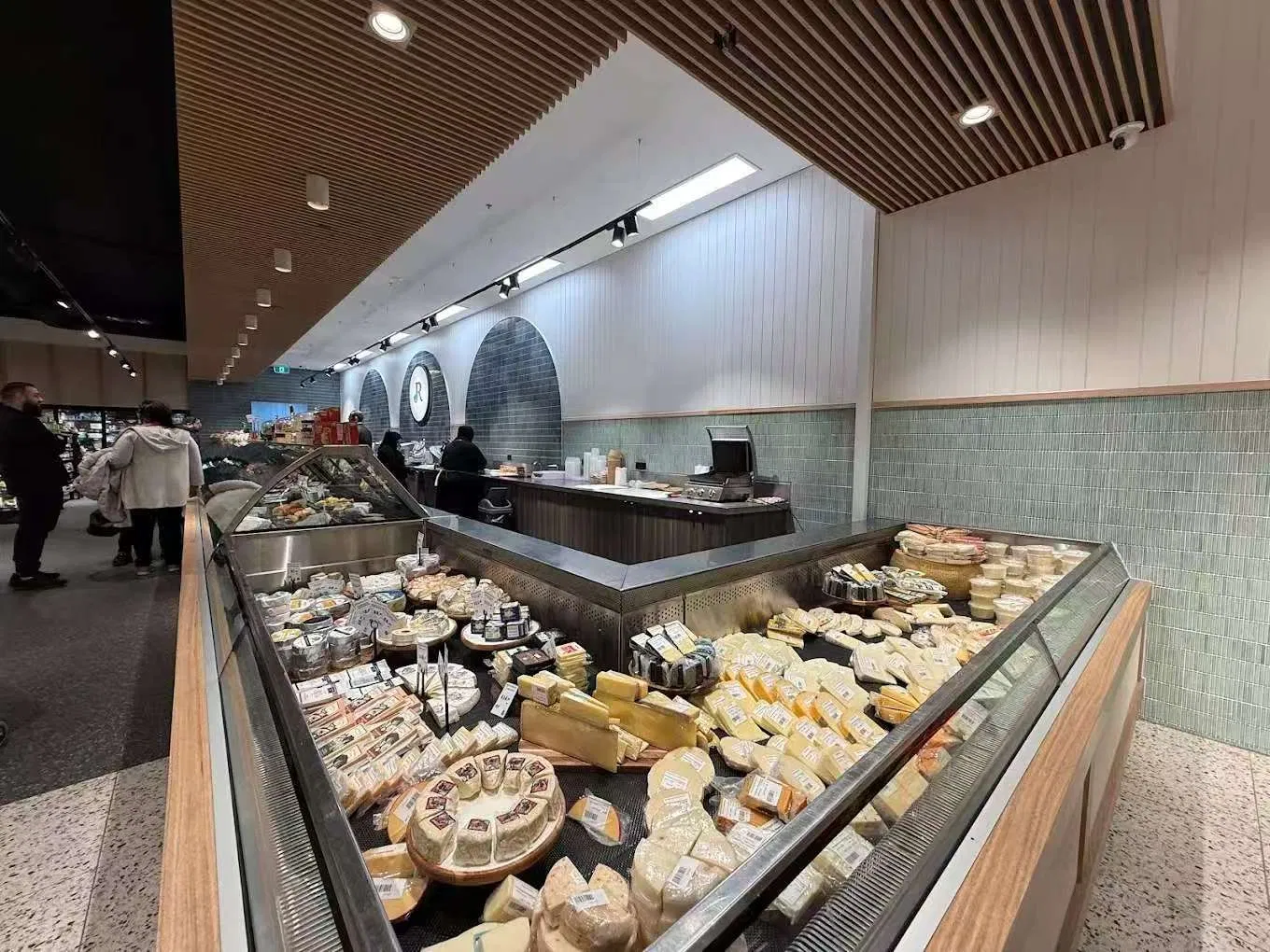

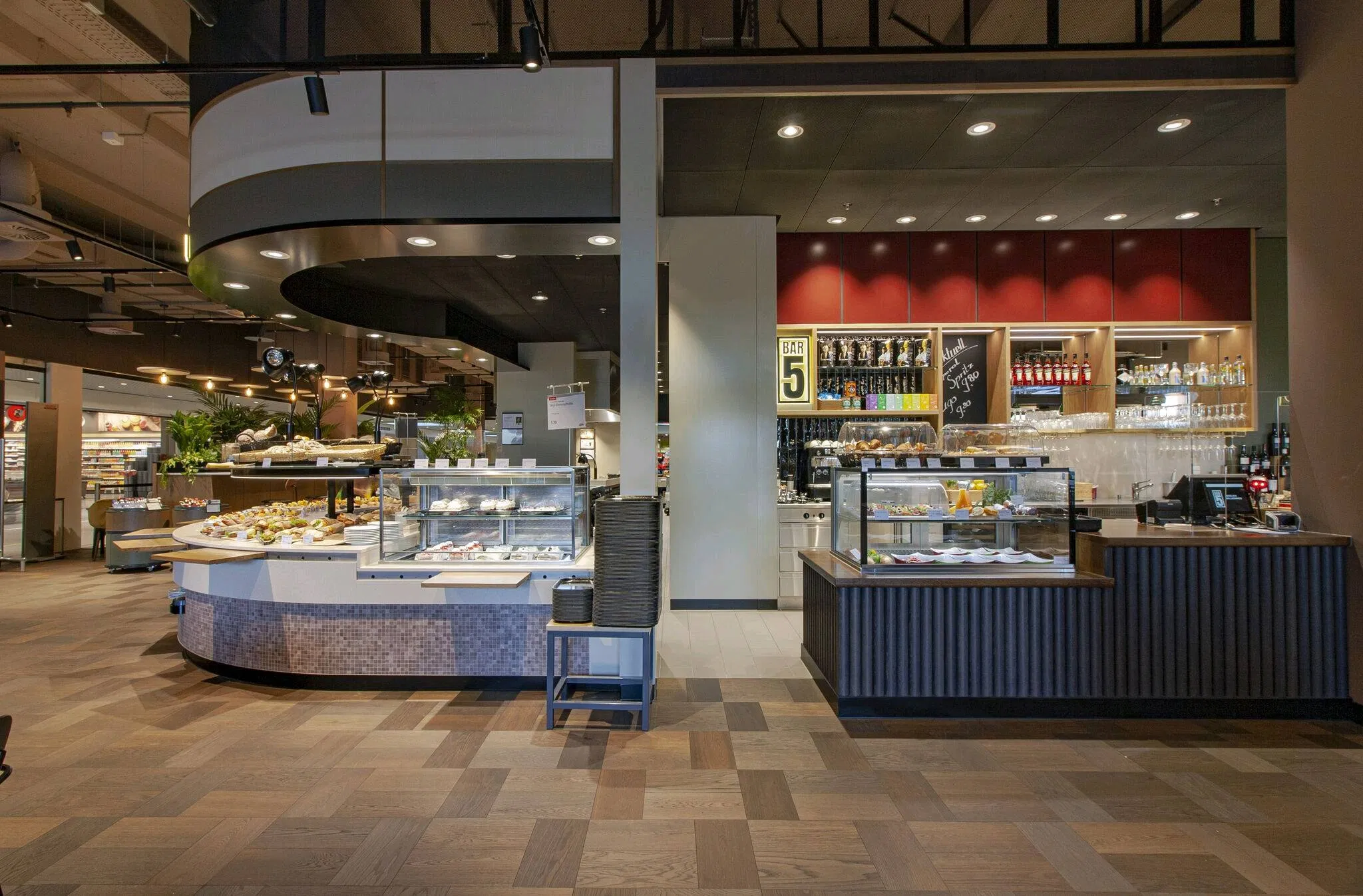

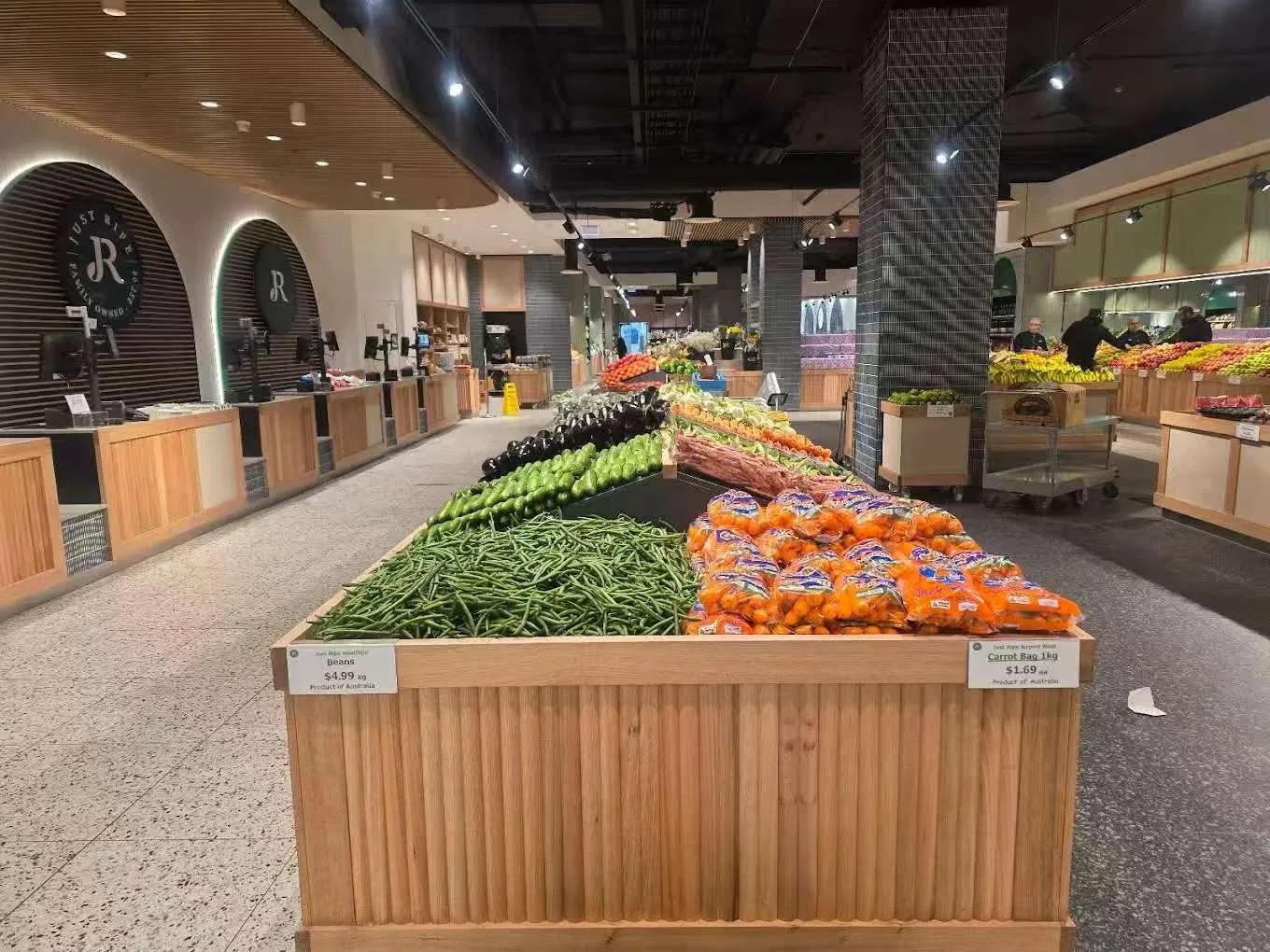

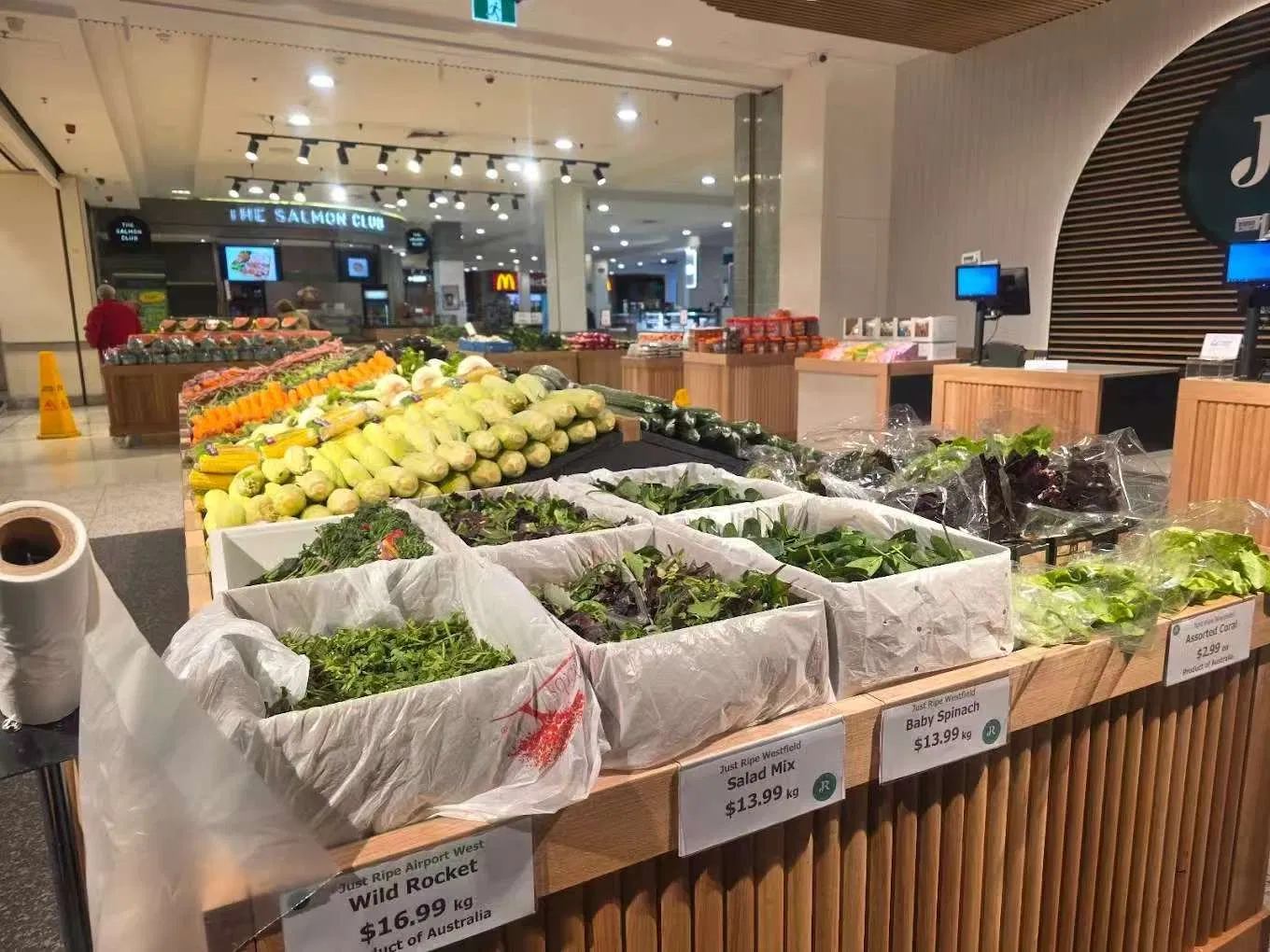

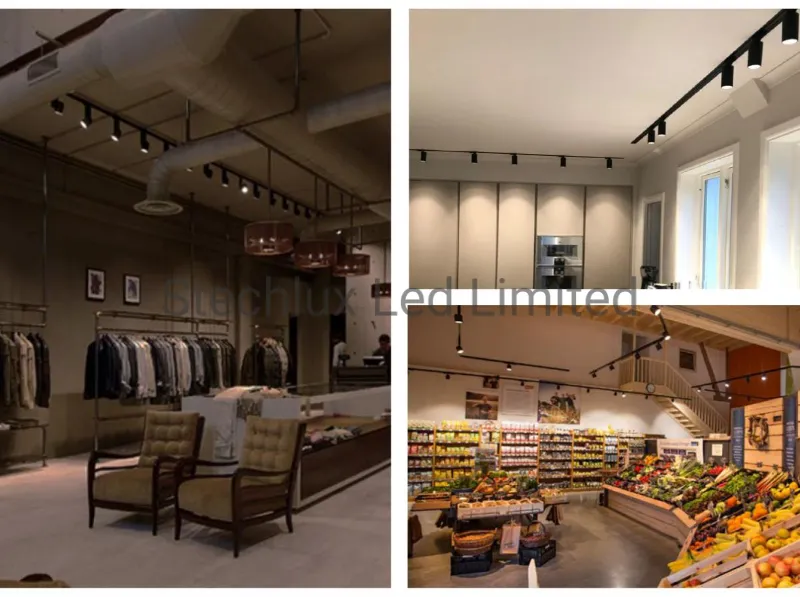

This series of track light are perfectly suitable for use in high-end hotels, villas, and mansions. It provides a comfortable and healthy lighting space.
