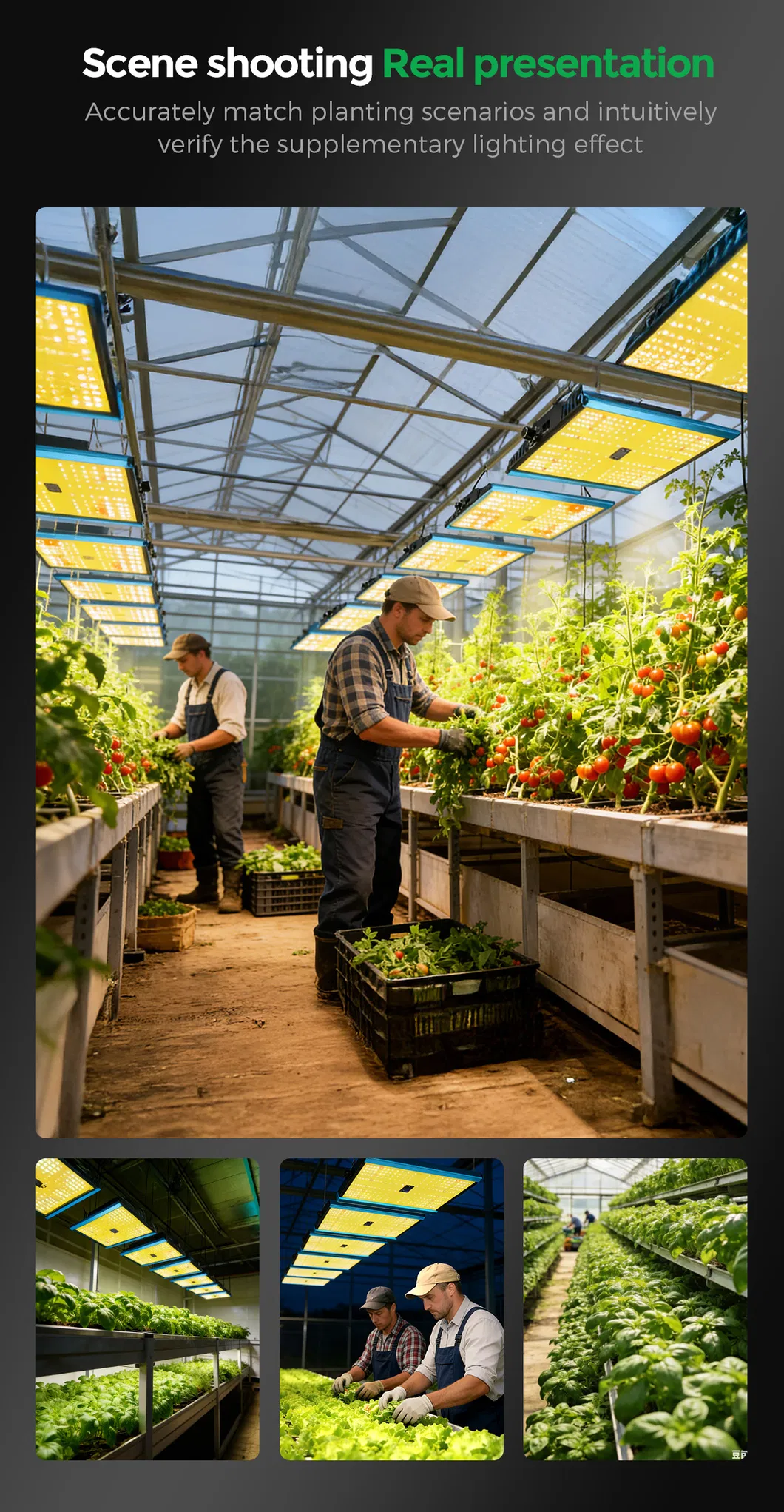

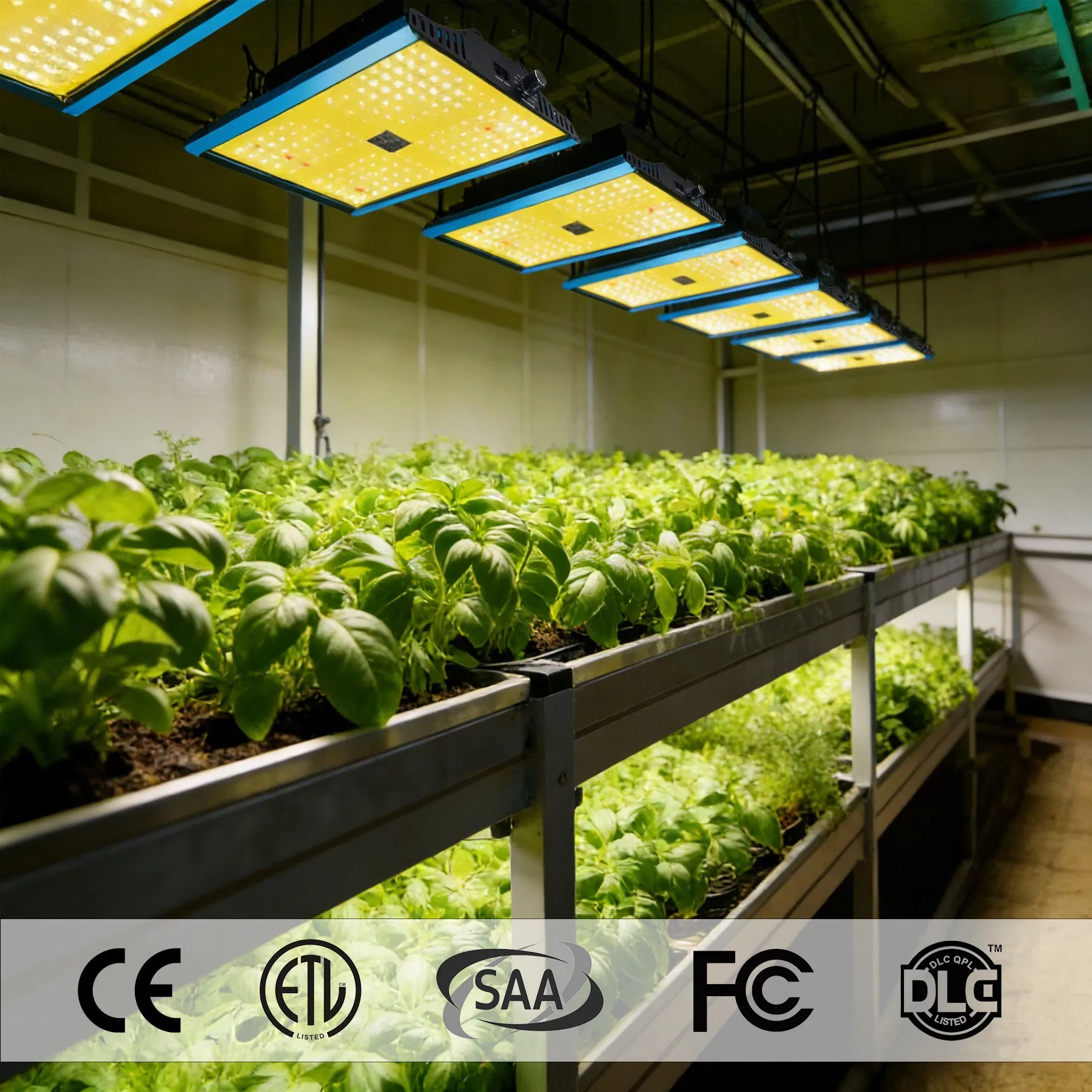

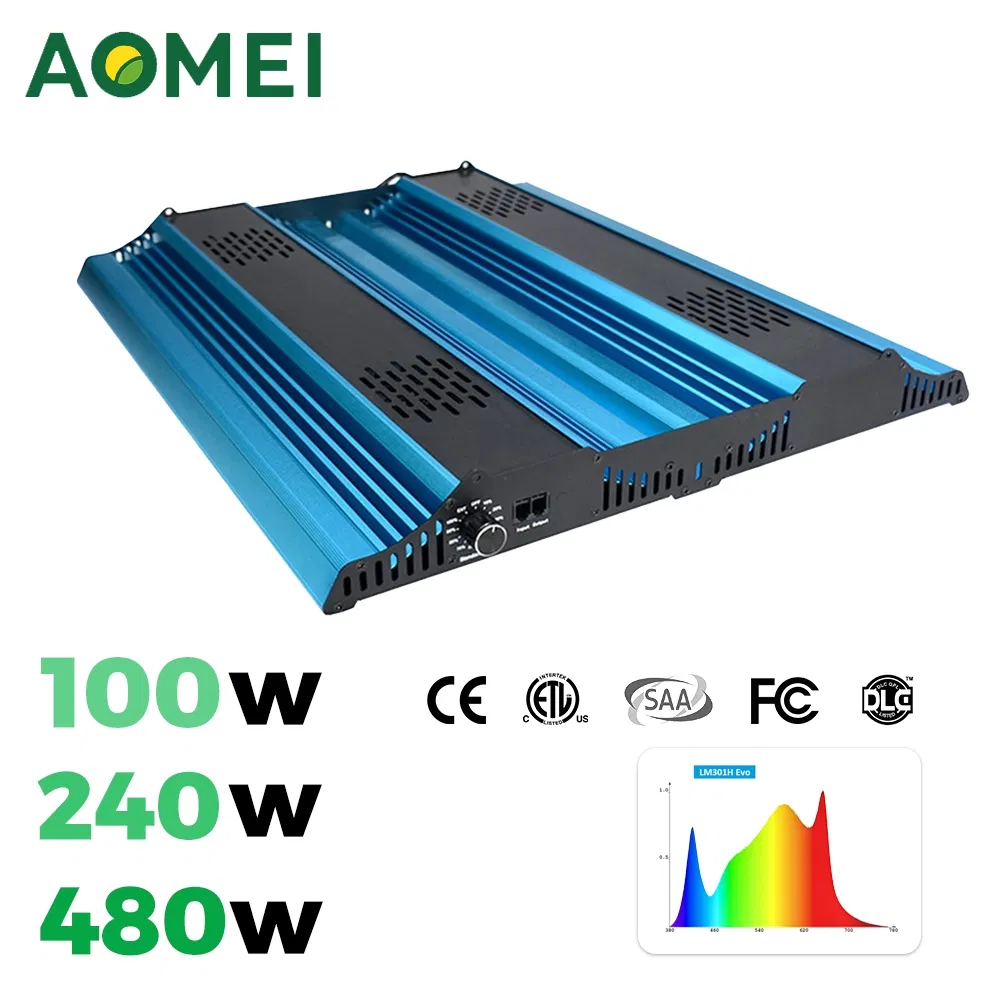

This CY Series Full Spectrum LED Grow Light is engineered for commercial horticulture, greenhouses, indoor farms, and hydroponic systems, delivering high efficiency, stable output, and full-cycle plant support. Available in 100W, 240W, and 480W, this series offers flexible solutions for different cultivation scales.

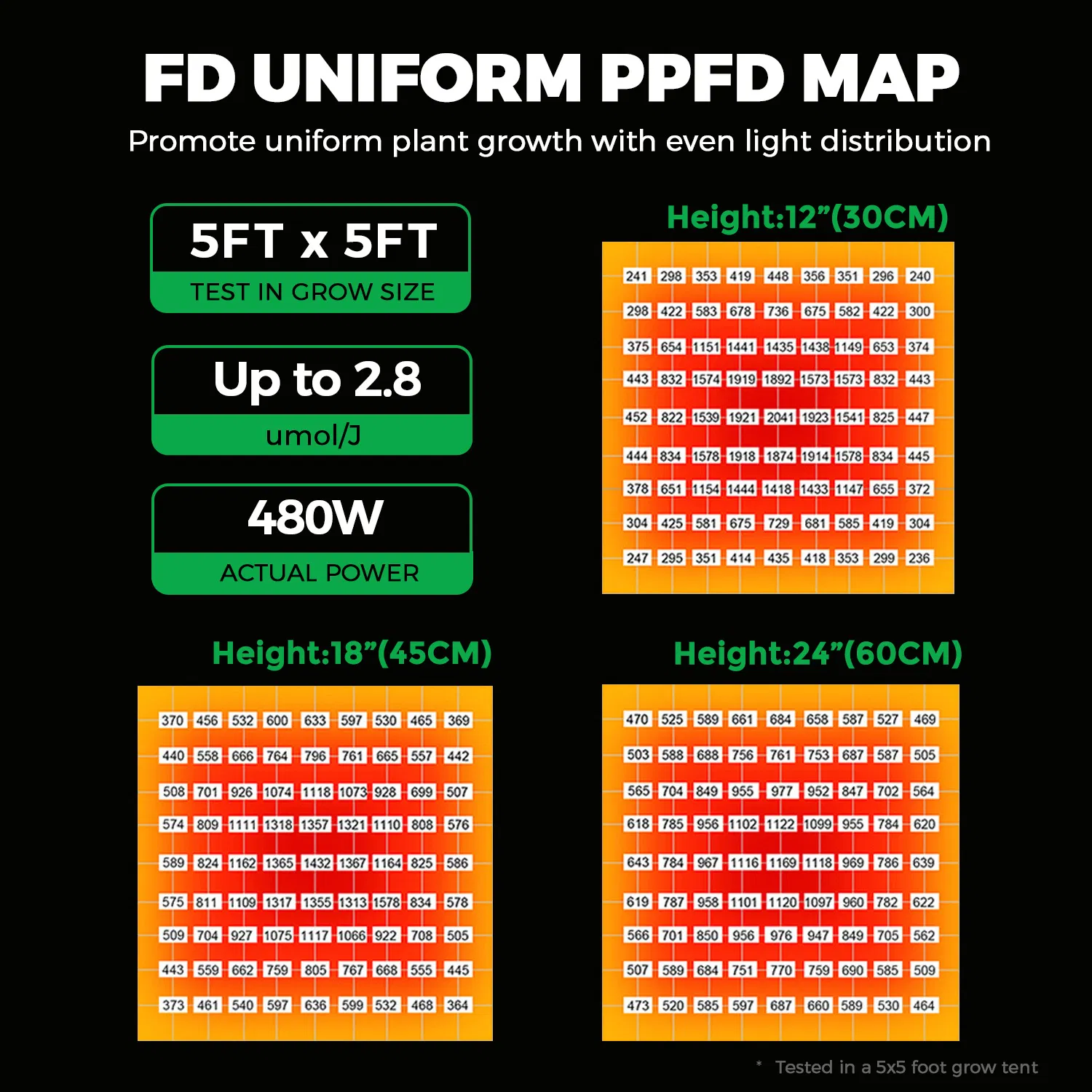

Powered by high-performance LED diodes, the fixture achieves up to 2.8 μmol/J system efficacy, providing strong PPF output with uniform PPFD distribution for improved canopy penetration and consistent plant growth. The optimized full spectrum (3000K + 5000K white, 660nm red, and 730nm far-red IR) supports all growth stages—from seedling and vegetative growth to flowering and yield enhancement.

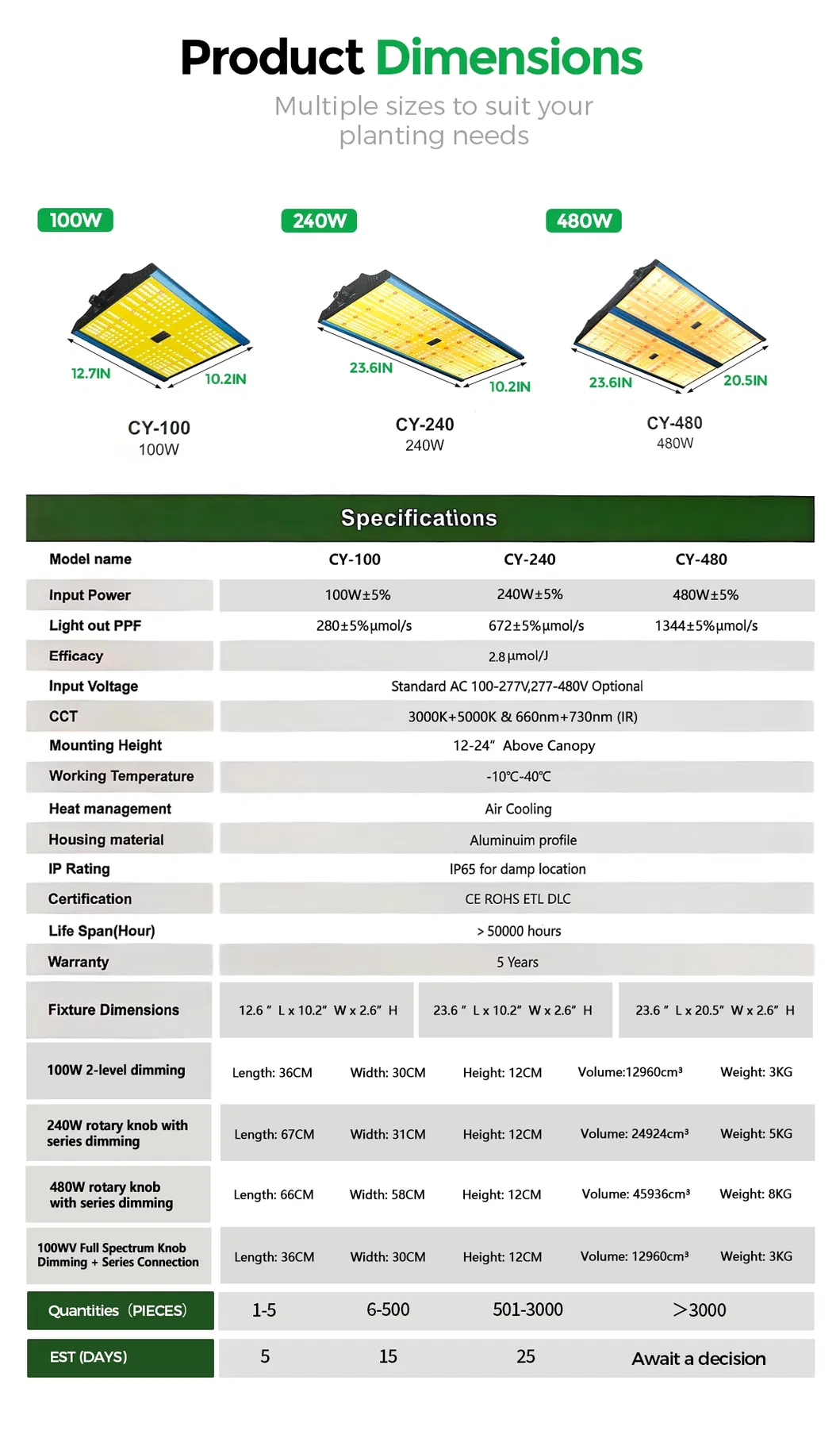

Technical Specifications
Model NO.BY-CY
Emitting ColorFull Spectrum
Input Voltage110V-277V, 277V-480V Optional
Power100W/240W/480W
ShapeSquare
Warranty5 Years
Housing MaterialAluminum
Life Span50000 Hours
LED ChipsSamsung
CertificationCE, RoHS, CCC, FCC, SAA, EMC, ETL
Working Temp.-10℃ - 40℃
Spectrum3000K+5000K & 660nm + 730nm IR
PPE2.8 μMol/J
Heat ManagementAir Cooling
Chips Option281b/301b/301h Option
Power SupplyUL Certification
Control PortRj14 Connection
Dimmer Range0 - 100%
Specification60cm L x 52cm W x 6.5cm H
TrademarkOEM ODM
OriginChina
HS Code94054290
Production Cap.50000/Year
Packaging & Delivery
Package Size70.00cm * 35.00cm * 10.00cm
Package Gross Weight7.000kg
Transport PackageCarton Box
Key Product Features
Synchronized Control System

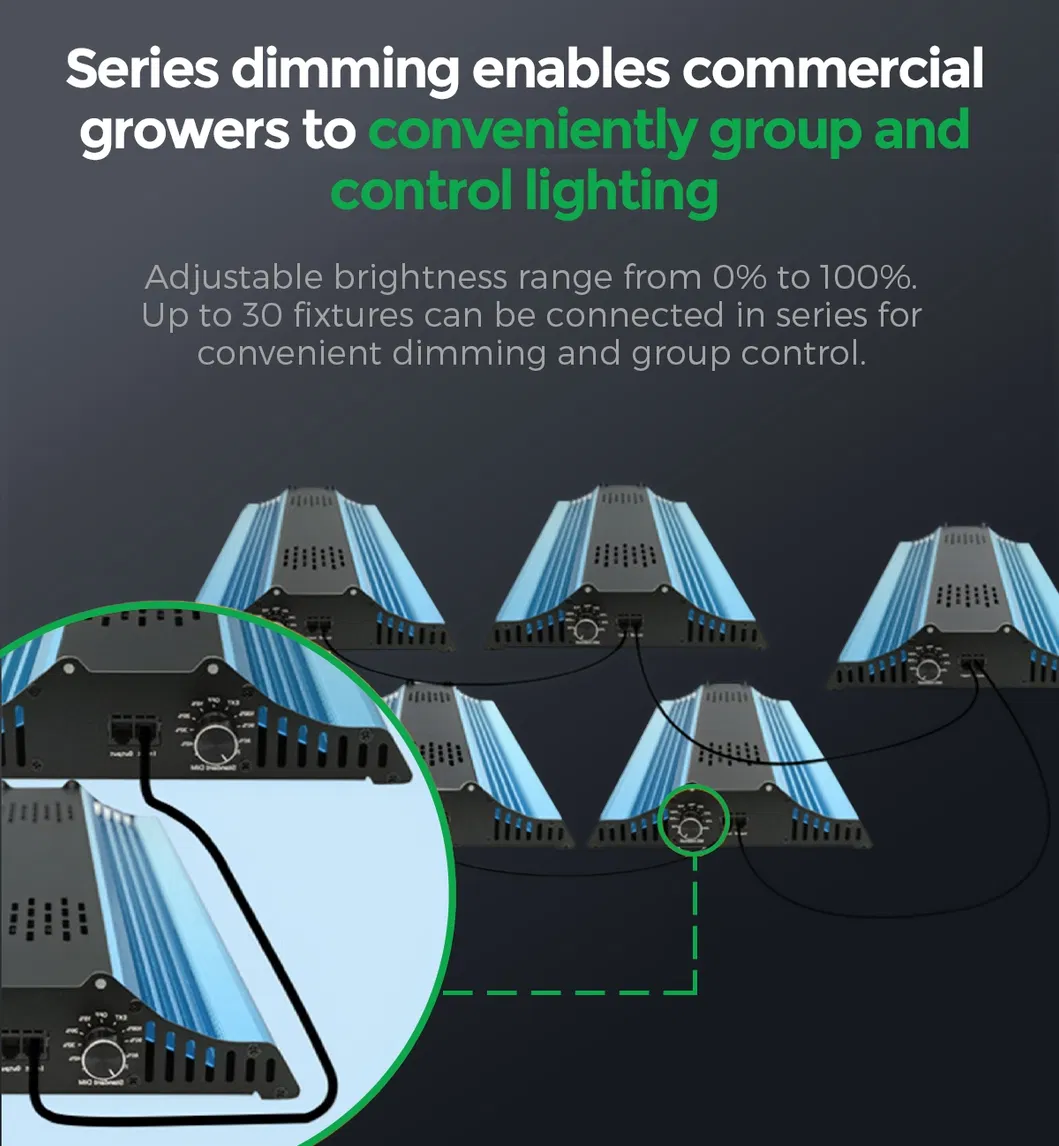

Features a 0-100% rotary knob dimmer equipped with an RJ14 port, enabling simple daisy-chaining and synchronized dimming control over multiple fixtures for massive grow configurations.
Optimal Light Spectrum

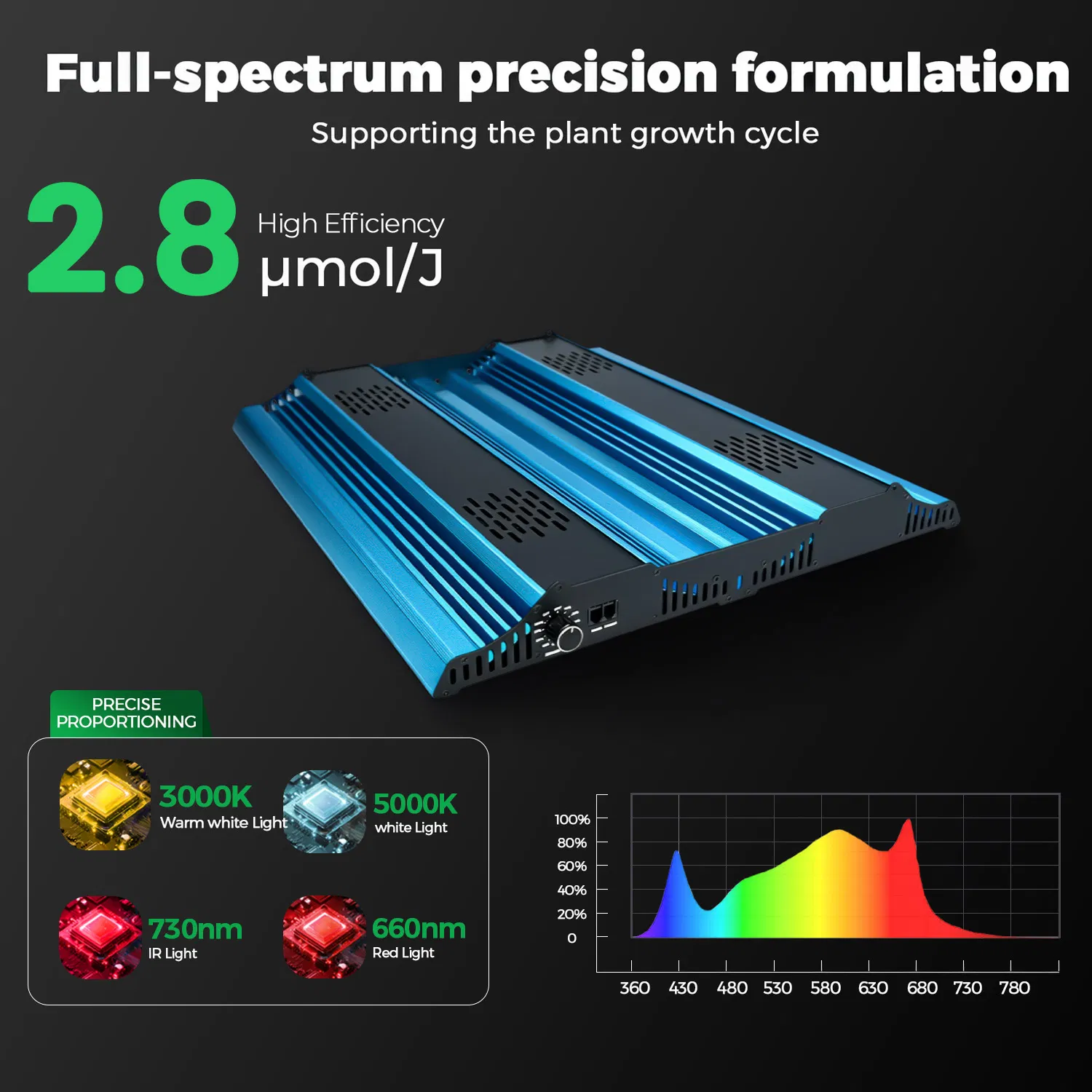

The tailored blend of 3000K & 5000K white, 660nm deep red, and 730nm far-red IR delivers broad coverage to optimize photosynthesis throughout the vegetative and flowering stages.
Premium Build Quality
Constructed with high-grade, heavy-duty aluminum profiles and engineered with an efficient passive air-cooling design for excellent thermal dissipation and consistent long-term performance.
Safety & Standards Certified
Equipped with a certified isolated driver and rated IP65 for wet/damp environments. Wide input voltage options satisfy global electrical standards seamlessly.
Product Visual Gallery
Frequently Asked Questions
What are the main applications of the CY Series LED Grow Light?

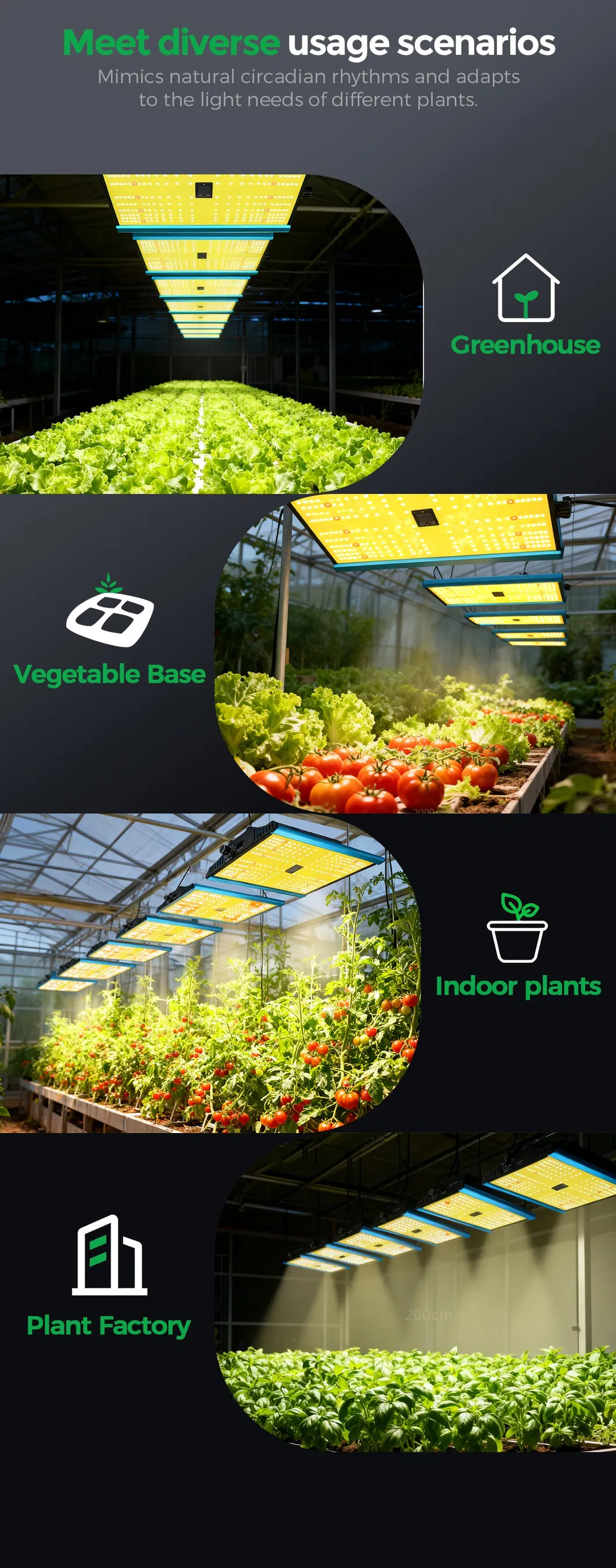

It is specifically engineered for professional commercial horticulture, indoor farms, greenhouses, and hydroponic systems, providing full-cycle cultivation support.
What is the system efficacy and spectrum details?
The CY Series delivers a high system efficacy of 2.8 μmol/J. It features a complete spectrum including 3000K and 5000K white light, 660nm deep red, and 730nm IR to optimize all stages from vegetative growth to final yields.
Does this grow light support daisy-chain control?
Yes, it features a built-in 0-100% rotary knob dimmer and an RJ14 network port, allowing growers to link and control multiple lights simultaneously.
What are the available power configurations and voltages?
The CY Series is available in 100W, 240W, and 480W variations. The default input voltage is AC 110V-277V, with an optional configuration supporting AC 277V-480V.
How is the heat managed and what is its expected life span?
The light is designed with a premium, heavy-duty aluminum casing that utilizes passive air cooling for silent, effective heat dissipation, maintaining a long life span of over 50,000 hours.
What safety certifications does this product hold?
The fixtures are CE, RoHS, CCC, FCC, SAA, EMC, and ETL certified, featuring a highly secure, UL-certified isolated power driver for ultimate safety during operation.
