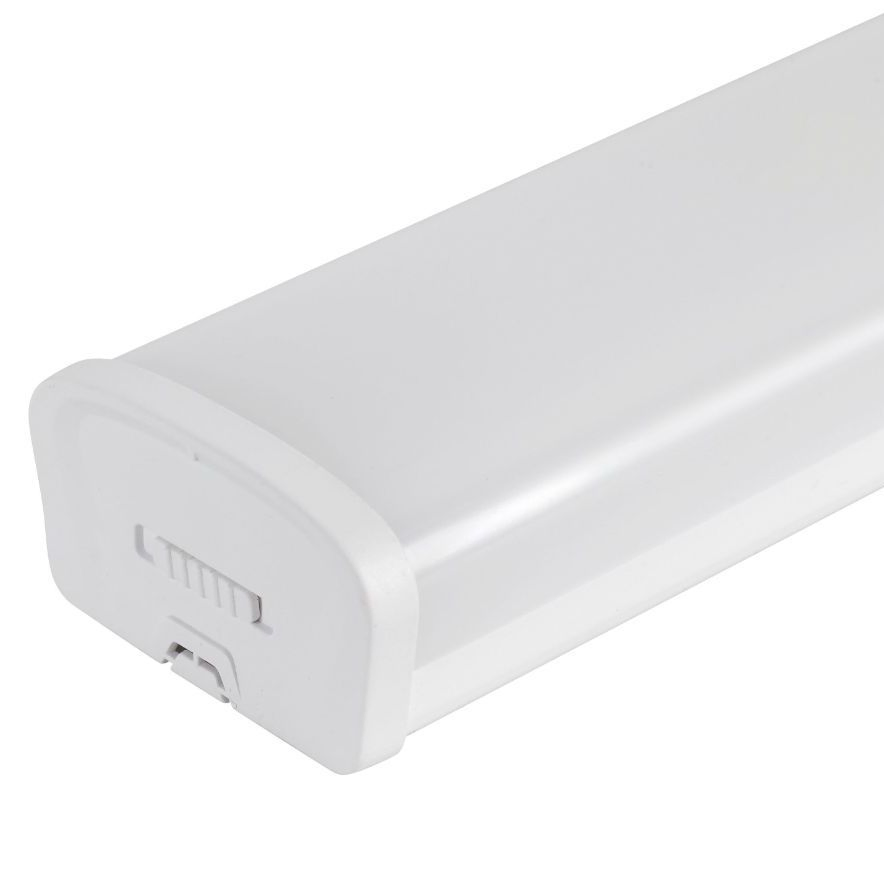

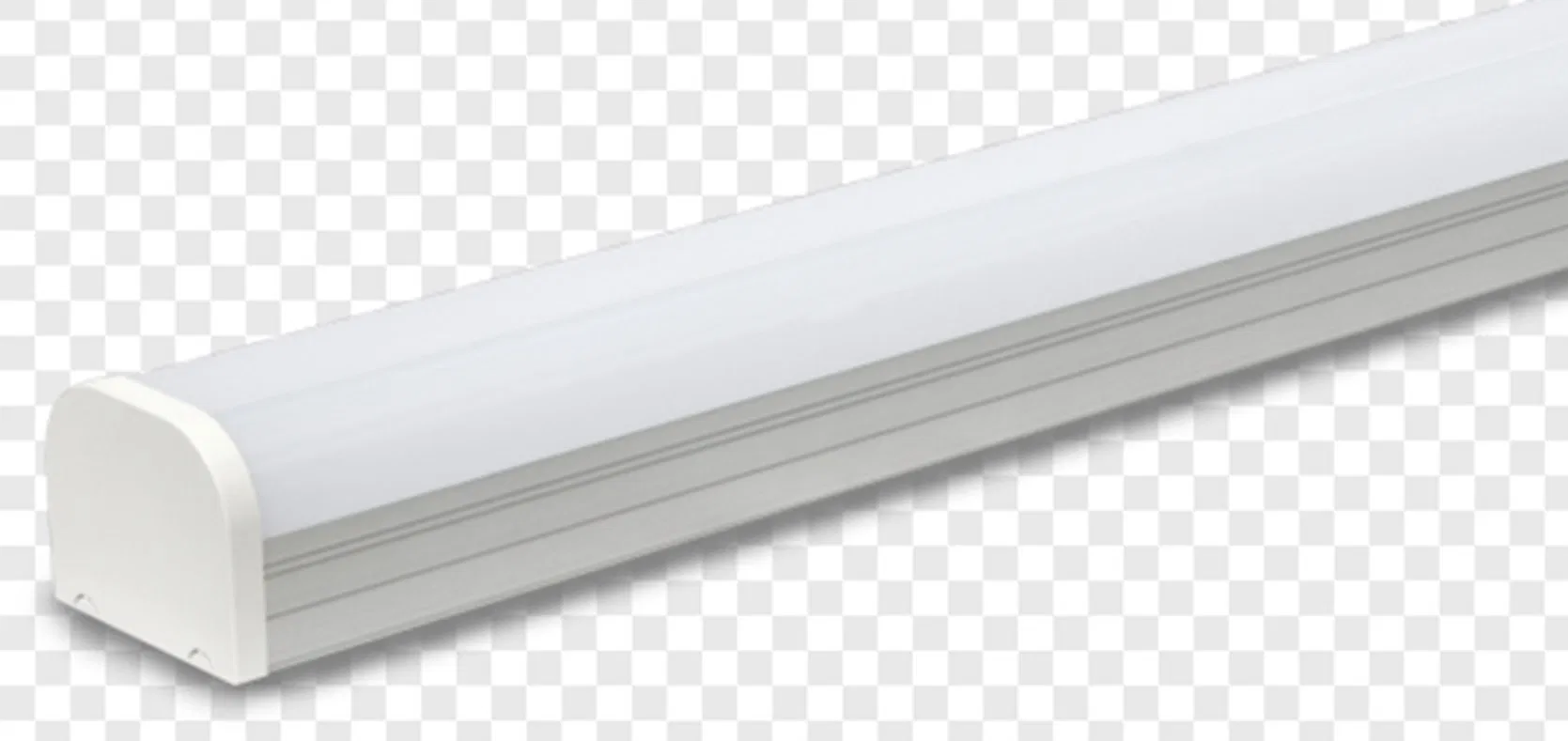

3CCT in One120cm 4FT Tube High Power LED Linear Batten Light

1 / 5

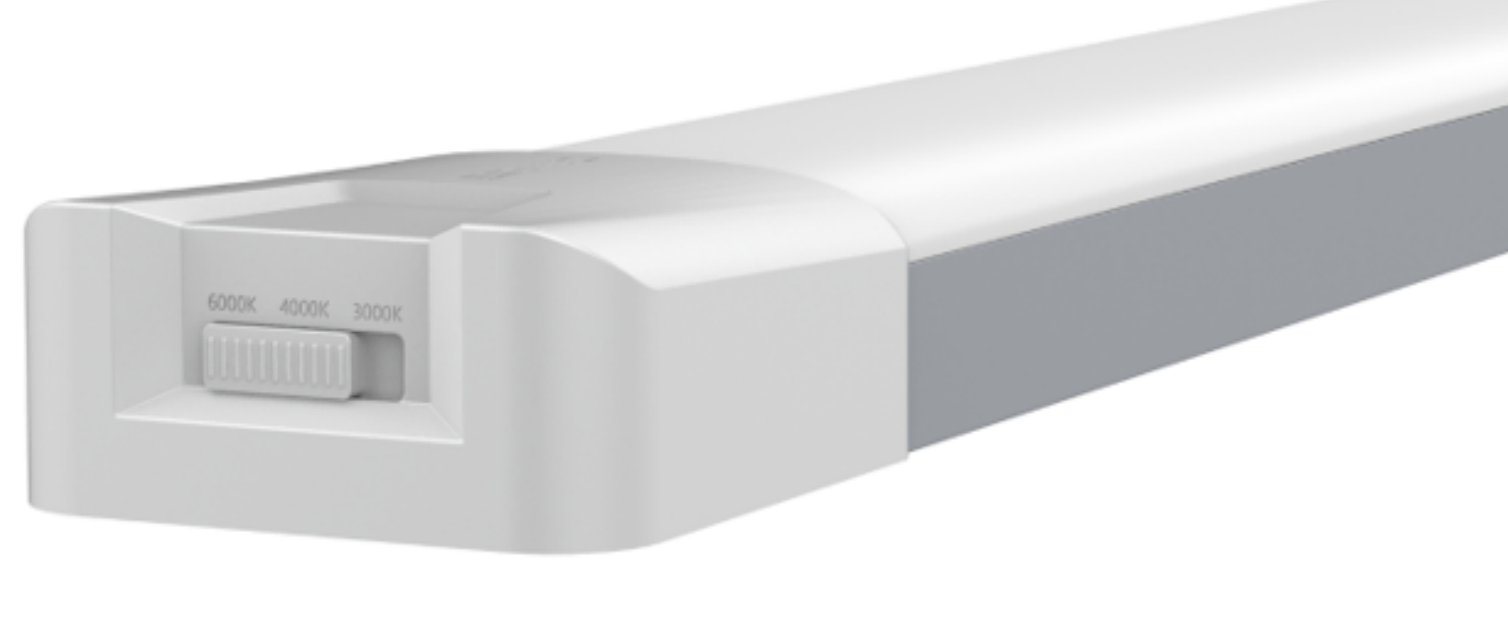

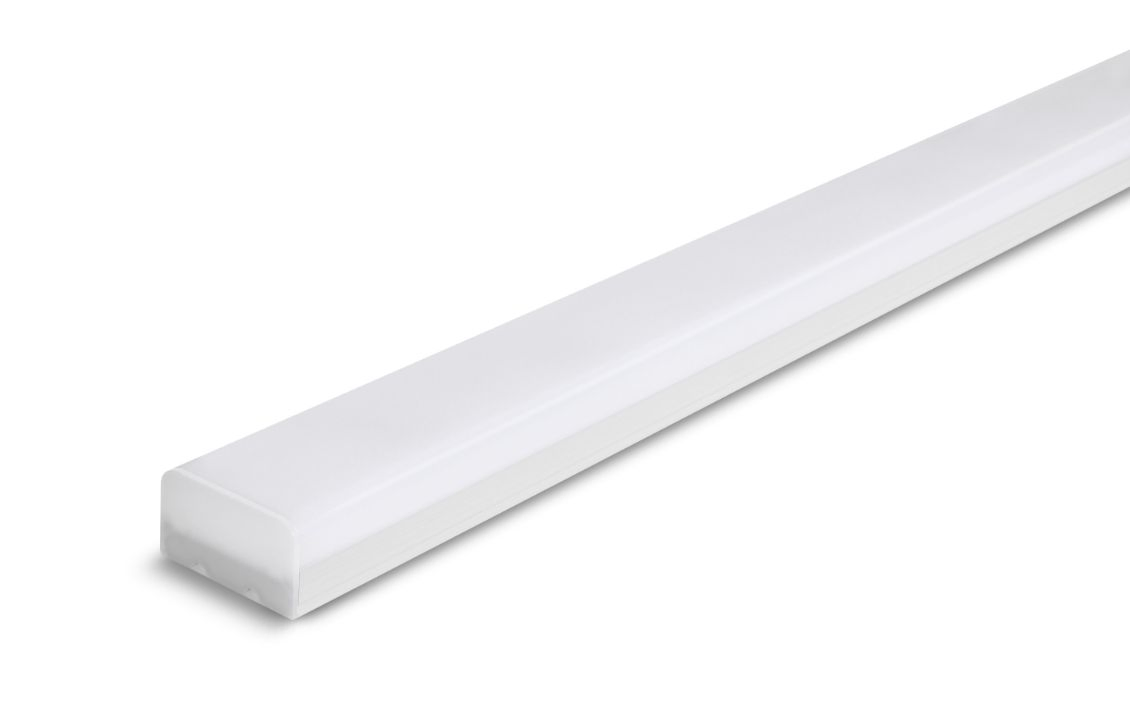

3CCT in One120cm 4FT Tube High Power LED Linear Batten Light

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

LL-7231-60W

IP Rating

IP20

CCT

3000K, 4000K, 6000K

Driver

No-Isolated Driver

Lumen

100lm/W

Certificates

CE-EMC, CE-LVD, RoHS, En62471

Wattage

80W

CRI

>80

Warranty

2~3 Years

Package Size

48.00cm * 48.00cm * 30.00cm

💡

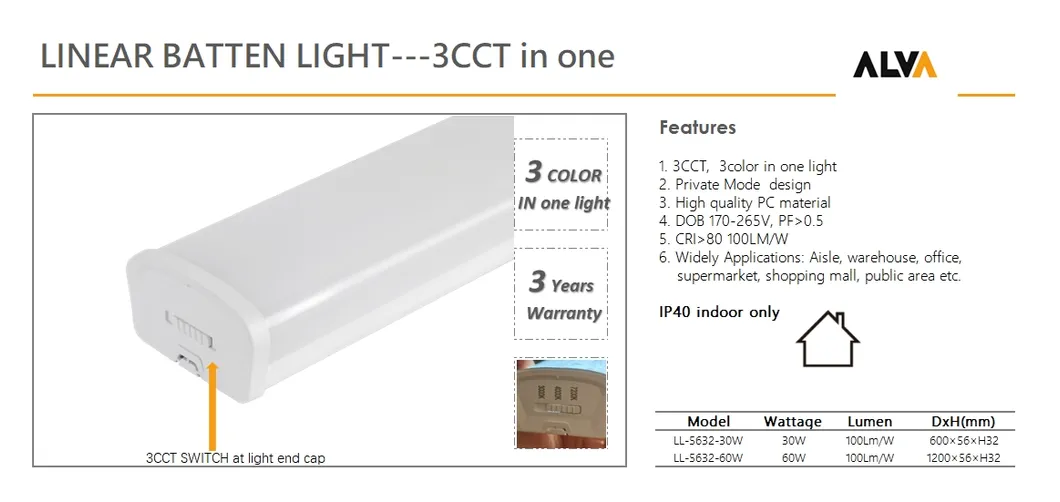

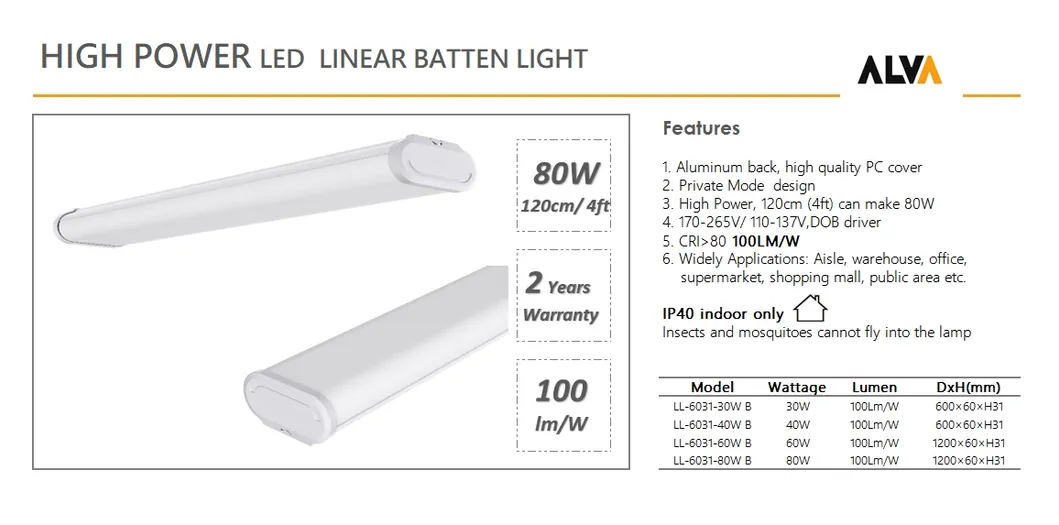

Product Highlights

1. Aluminum back combined with high-quality PC cover for durability.

2. Private Mode design ensuring unique aesthetic and structure.

3. High Power Output: 120cm (4ft) version reaches up to 80W.

4. Wide Voltage support: 170-265V / 110-137V via stable DOB driver.

5. Efficient Lighting: CRI>80 with 100LM/W - 135LM/W luminous efficacy.

6. IP40 Indoor Protection: Designed to prevent insects and mosquitoes from entering.

📊

Technical Parameters

Item No	Watts	Voltage (V)	PF	Surge	Color	Ra	Lm/W	IP	Dimension (mm)	Warranty
LL-7231-18W	18W	170-265V	0.5	2.5KV	3CCT	80	135	IP20	600×72×H31	3 years
LL-7231-36W	36W	170-265V	0.9	2.5KV	3CCT	80	135	IP20	1200×72×H31	3 years
LL-7231-60W	60W	170-265V	0.9	2.5KV	3CCT	80	135	IP20	1500×72×H31	3 years
LL-6031-80W	80W	170-265V	0.5	2.5KV	6500K	80	100	IP20	1200×60×H31	2 years
LL-5842-60W	60W	175-265V	0.9	2.5KV	6500K	80	100	IP20	120058H42	3 years
LL-7523-120W	120W	175-265V	0.5	2.5KV	6500K	80	100	IP20	120085H23	2 years

🏬

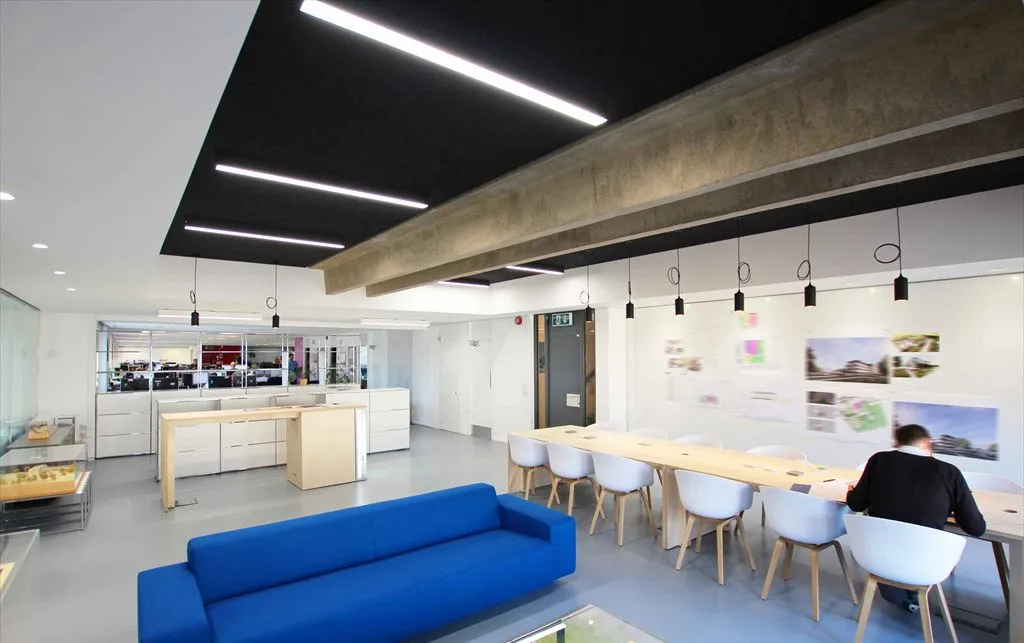

Applications

Perfect for Living Rooms, Offices, Supermarkets, Shopping Malls, Warehouses, Aisles, and public areas.

🛡️

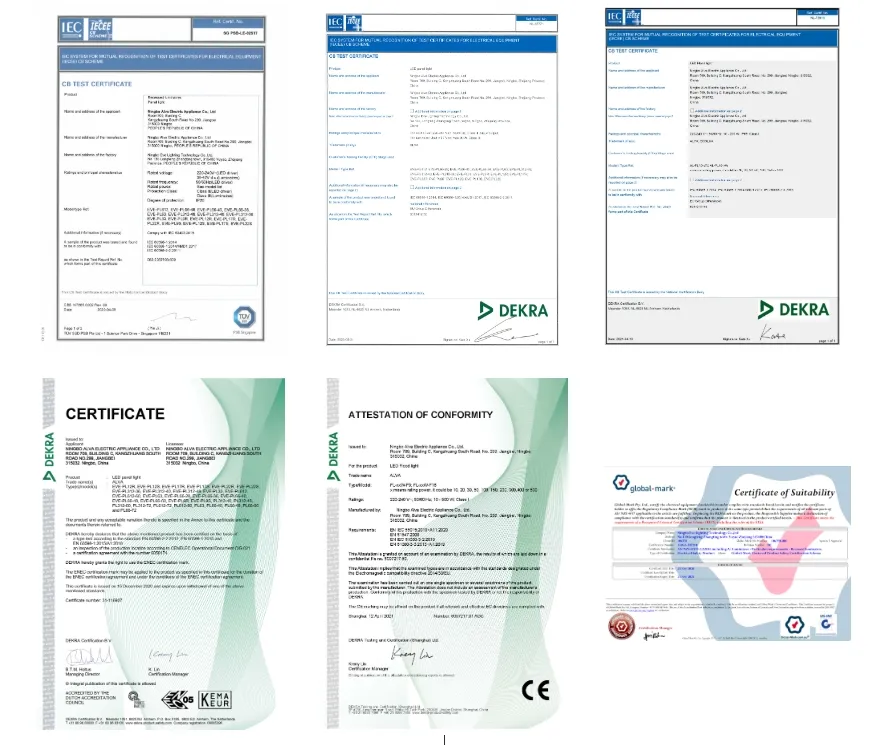

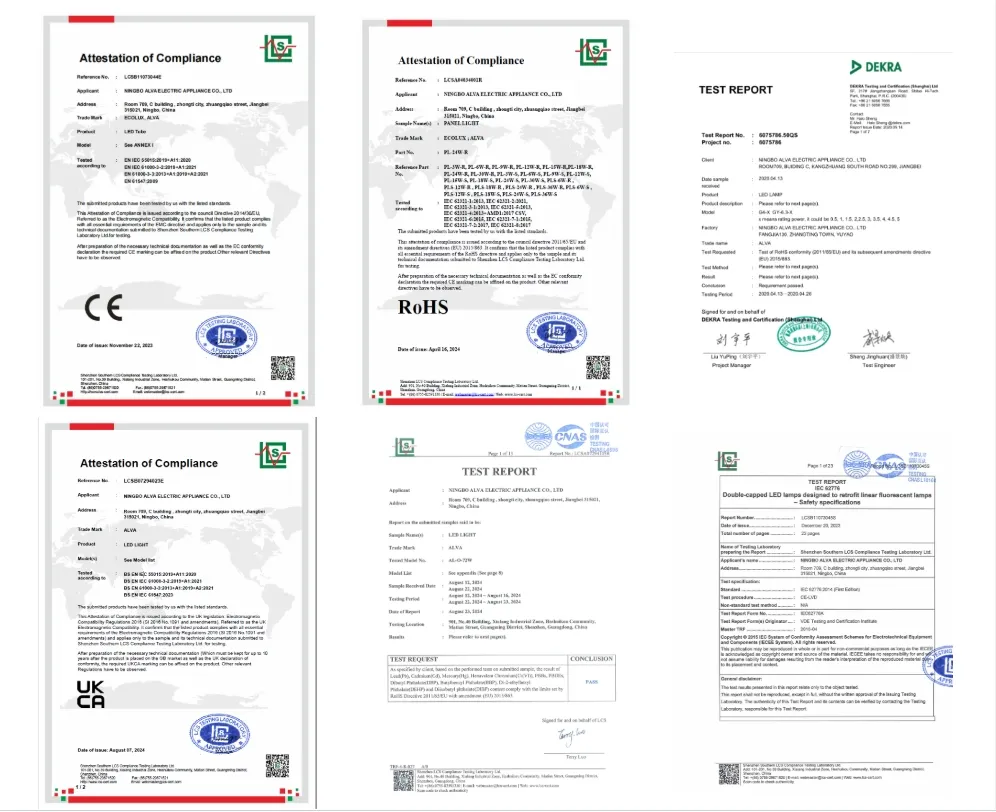

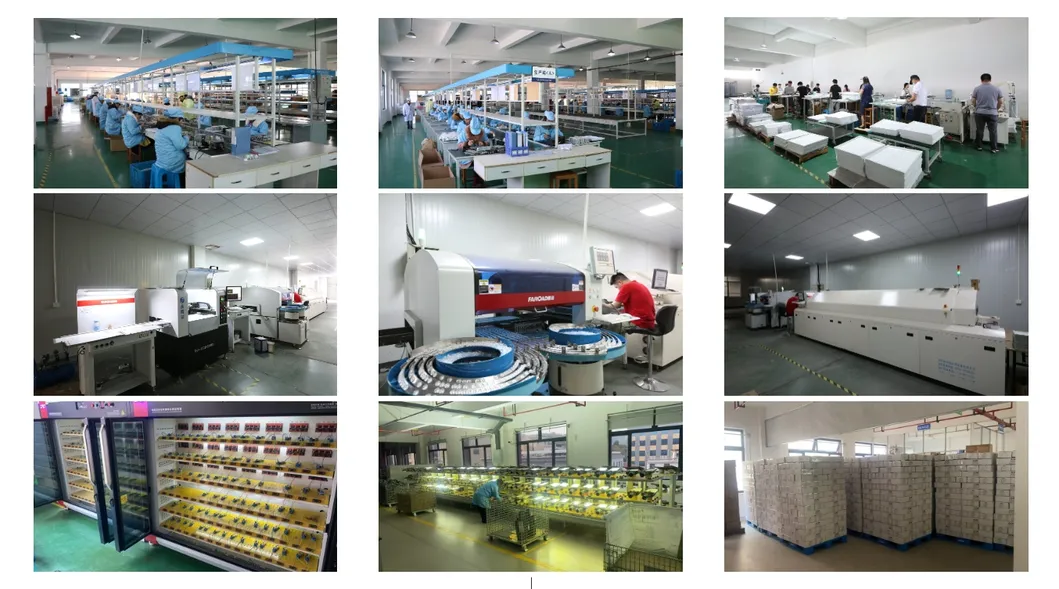

Certificates & Quality Control

Frequently Asked Questions

What are the available payment terms for orders?

For samples, 100% payment is required in advance via Bank TT. For bulk orders, we accept a 30% deposit with the 70% balance settled before shipment.

What is the estimated delivery time?

Sample orders typically take 3-7 working days, while bulk orders generally require 30-40 working days depending on the volume.

What shipping methods do you offer?

We offer Express (DHL, UPS, Fedex) for fast delivery (3-5 days), Air Cargo (5-7 days), or Sea Freight for economical shipping of large, non-urgent quantities.

How is the product quality guaranteed?

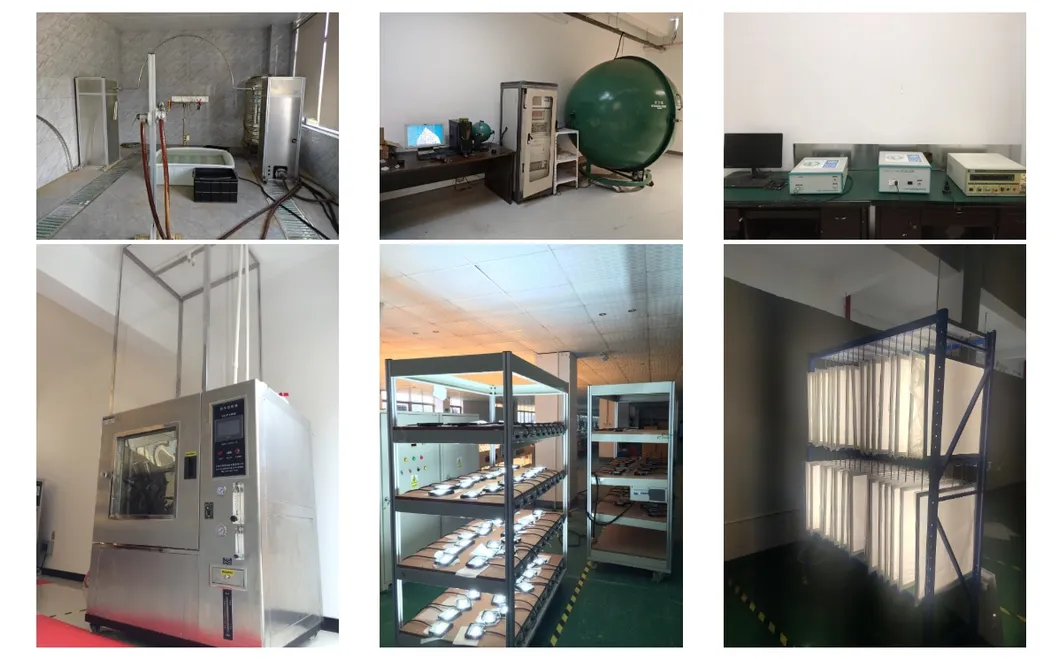

Every lamp undergoes 100% reliability testing, including a 24-hour lighting aging test and temperature check before final QC procedures and shipping.

Do you provide OEM or customization services?

Yes, we offer comprehensive OEM services, including logo printing on products and customization of retail packaging to meet your specific requirements.

What is your policy for after-sales service?

We provide quick responses to all inquiries within 24 hours. If any quality issues occur within the warranty period, we offer free replacements for the affected products.
