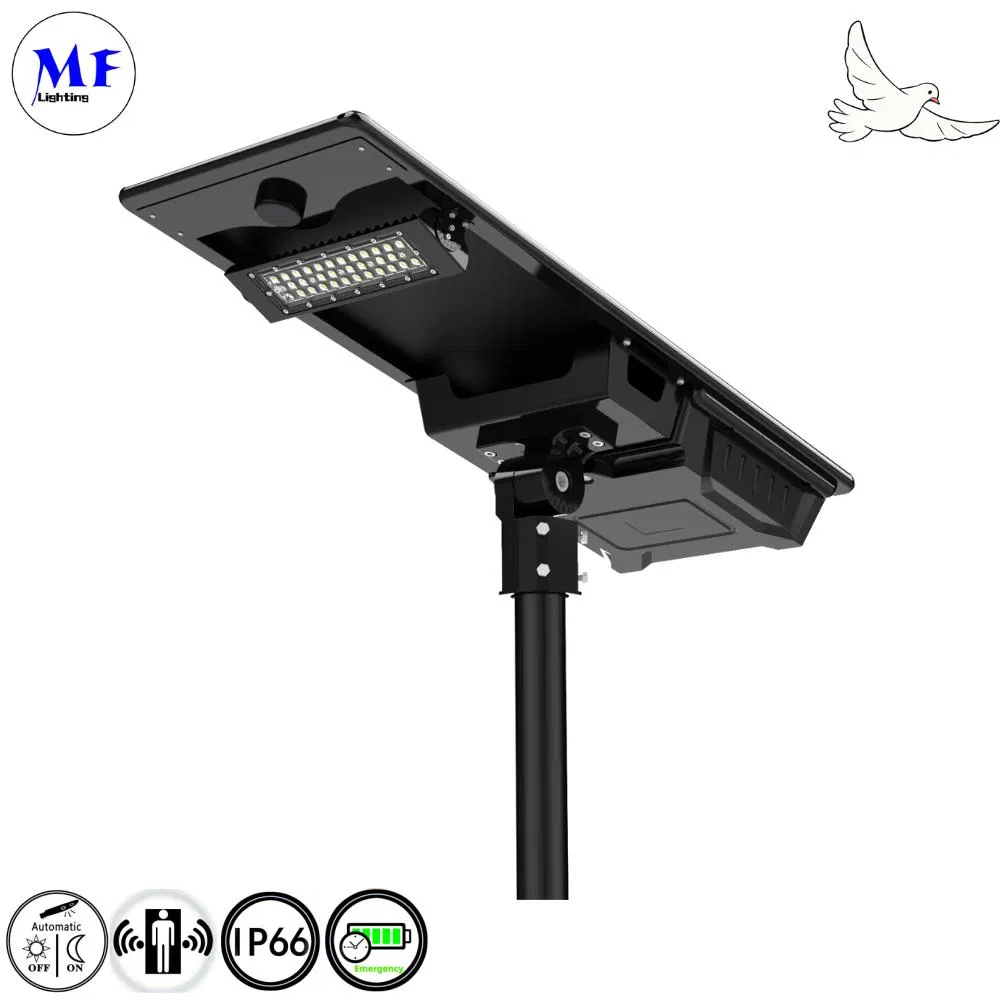

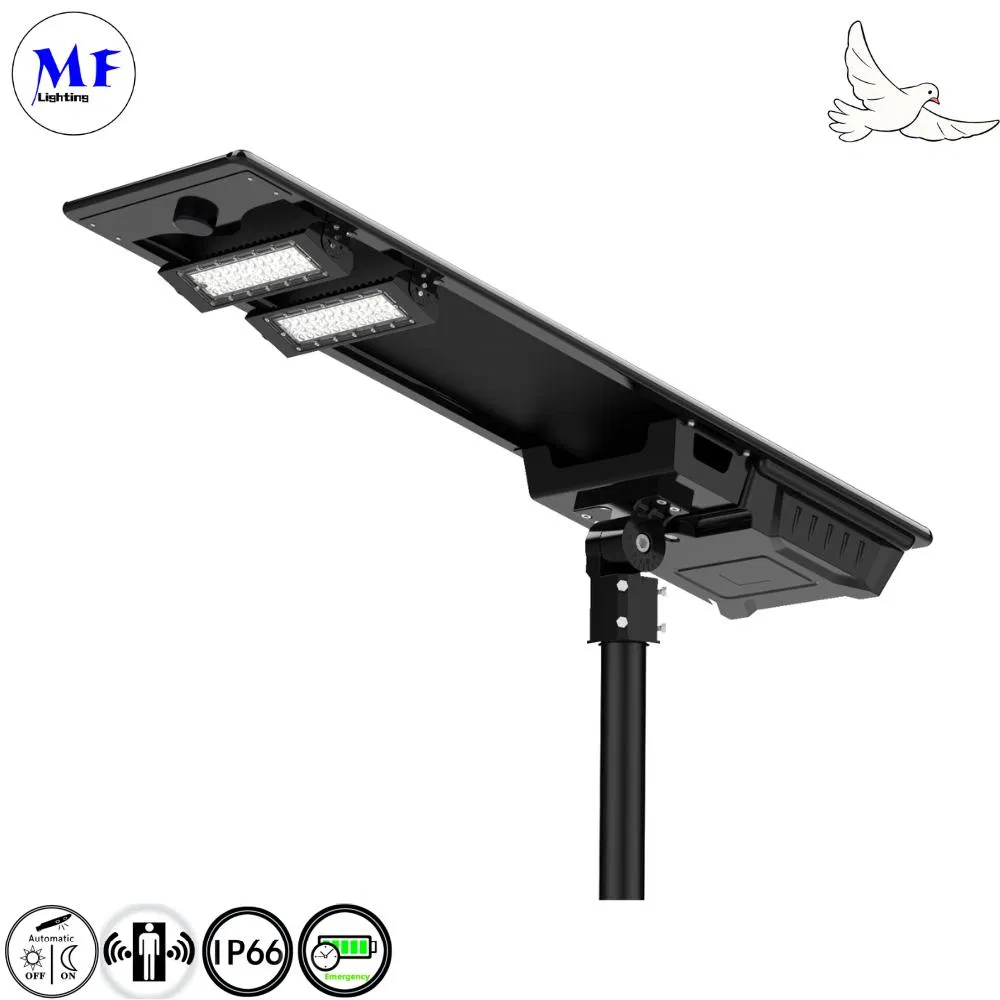

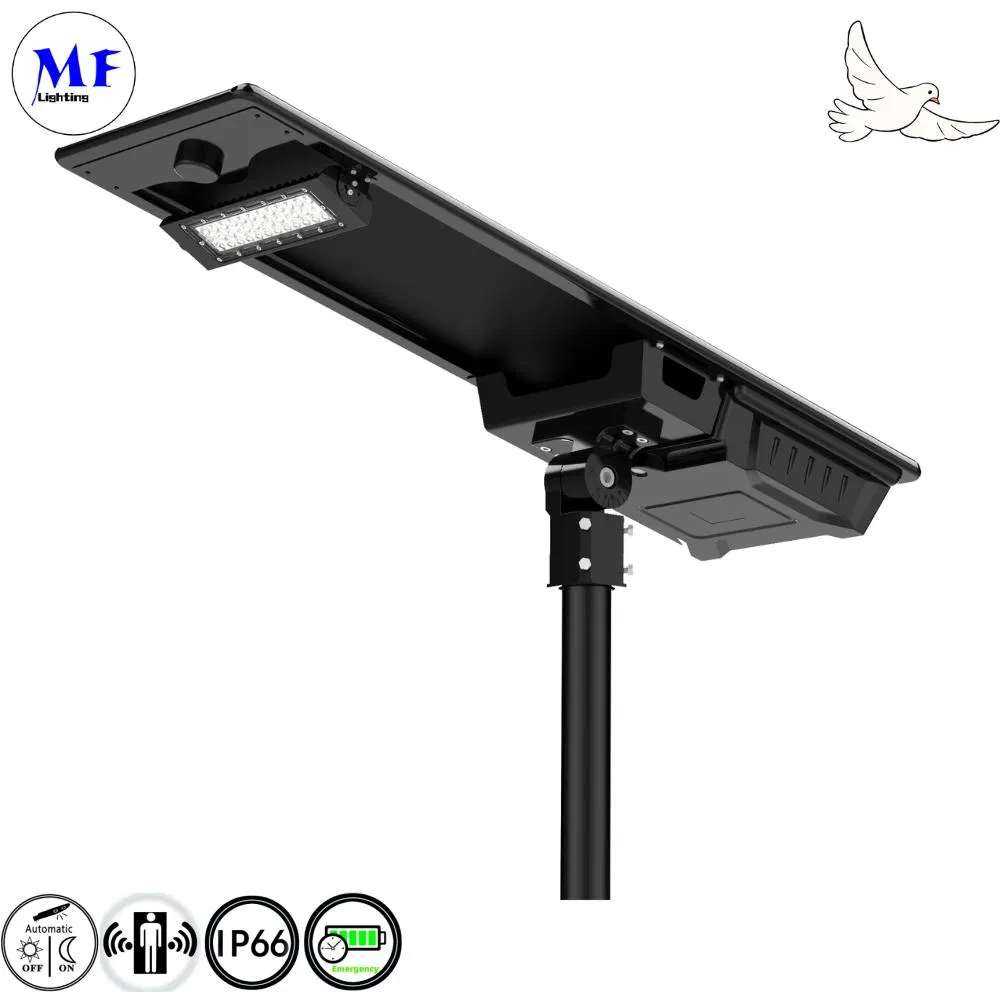

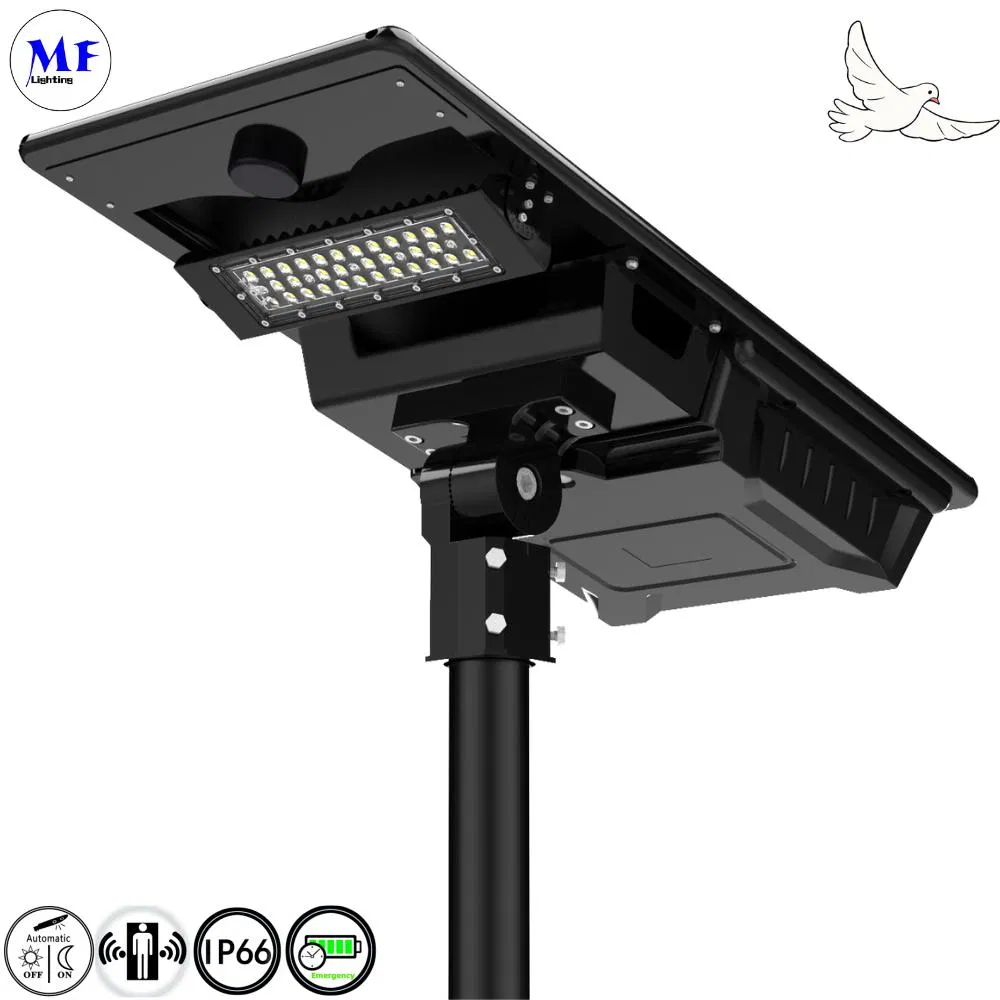

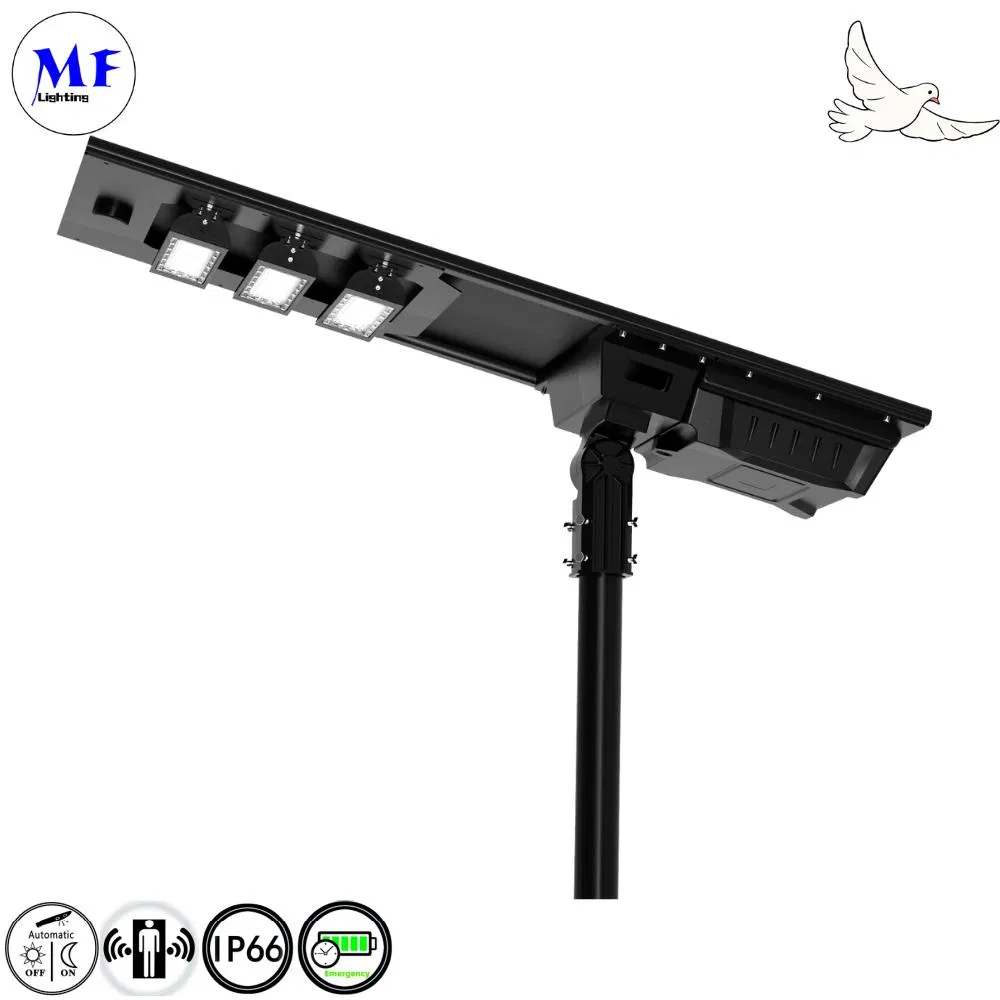

OEM ODM IP67 Outdoor 40W-120W LED Light Solar Street Lamp LED Street Garden Lighting Microwave Sensor LED Solar Street Light for Road Highway Plaza

Basic Information

Model NO.

MF-SP4-P40W

Lamp Material

Aluminum

Power

20W/30W/40W/50W/60W/80W/100W/120W

Application

Square, Highway, Garden, Parking Lot

IP Rating

IP66

LED Brand

OS-RAM

Battery

LiFePO4 Battery 32700

Lumen

210lm/W

Controller

MPPT / PIR Motion Sensor

Charging Time

6h

Product Description

Outdoor 40W-120W LED Solar Street Lamp with Microwave Sensor

Power range: from 20W to 120W
Monocrystalline solar panel, suitable for remote areas
LiFePO4 batteries with over 2000 charge/discharge cycles
Operates for 2-3 rainy days in intelligent mode
High efficiency 210lm/W option for lower energy consumption
Die-cast aluminum with anti-corrosion C5-grade coating

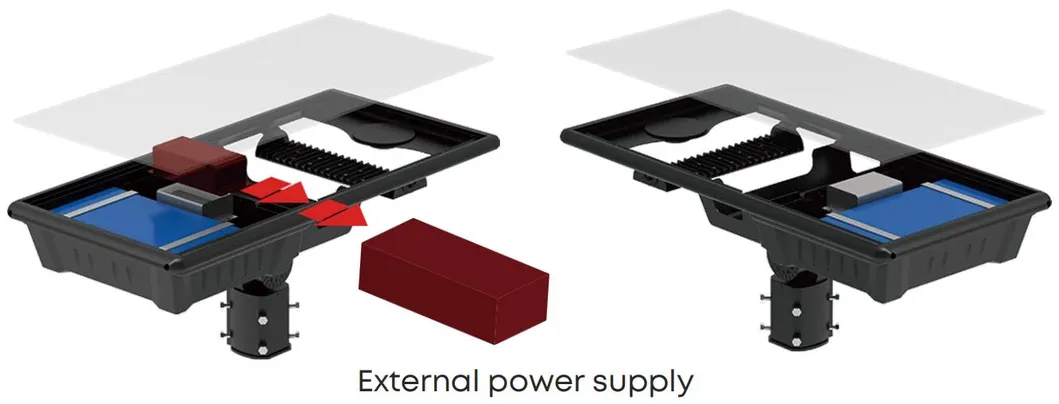

Hybrid Grid Power Solution

The Standard configuration for 20W to 120W provides a robust energy solution. The Hybrid Grid Power Solution offers a replaceable internal power supply, seamlessly switching between mains and battery power based on voltage thresholds.

Controller Advantages

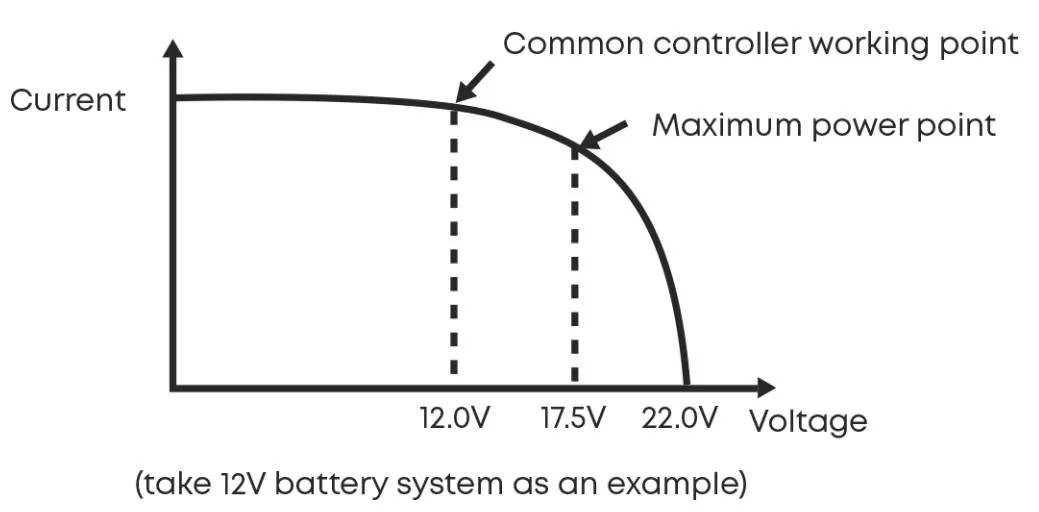

Moving Track MPPT maximum power tracking (20% efficiency increase)
UltraGreen power control for low sleep current
10 time-periods programmable load control
Battery/PV reverse connection & LED short circuit protection
IP67 waterproof rating for harsh environments

Specifications

Electrical & Photometric Data
Model	P20W	P30W	P40W	P50W	P60W	P80W	P100W	P120W
Luminous Flux	4200lm	6300lm	8000lm	10500lm	12600lm	16000lm	21000lm	24000lm
Solar Panel	16V 40W	18V 50W	18V 60W	18V 70W	18V 80W	36V 100W	36V 120W	36V 150W
Battery Cap.	153.6WH	230.4WH	370.2WH	384WH	460.8WH	614.4WH	768WH	921.6WH
Net Weight	10kg	12kg	13kg	15kg	16kg	25kg	28kg	31kg

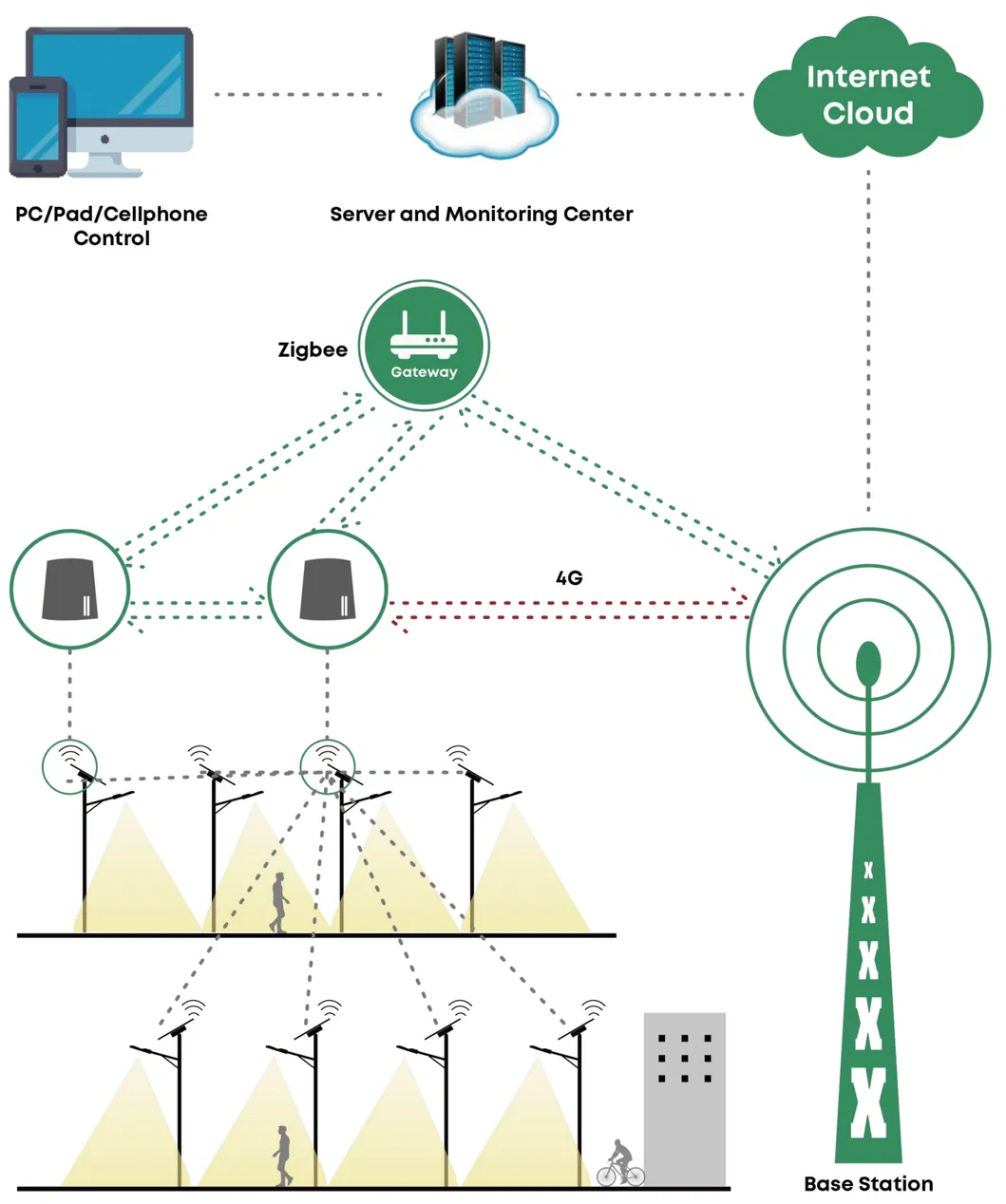

Intelligent Management

Wireless Network: Utilizes NB-IoT, GPRS, and LTE cellular networks without cabling.

Fault Management: Automatic fault reporting and historical query via the platform.

Energy Management: Online monitoring and configurable energy-saving policies.

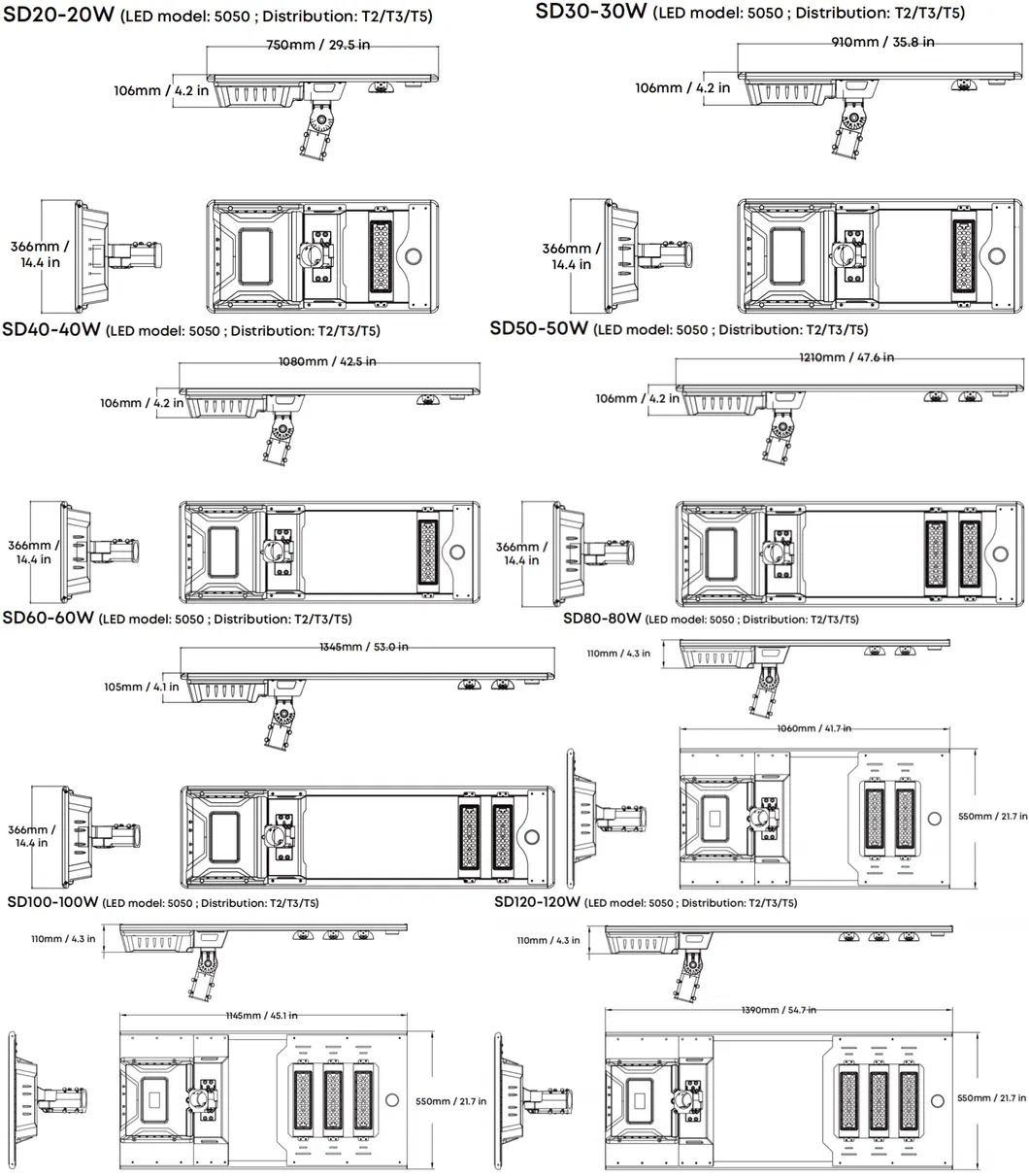

Dimensions & Applications

Wide Application Range:

Road & street lighting
Residential area & park lighting
Garden & perimeter lighting
Parking lot & industrial park lighting
Railway & station side lighting

Frequently Asked Questions

Q1: What types of lighting products do you provide?

A1: We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and various solar lighting solutions.

Q2: Can I customize products with my own logo?

A2: Yes, we provide full ODM and OEM services. We can print your logo on the LED products based on your confirmed design.

Q3: How do you handle faulty products during the warranty period?

A3: For small quantities, we send replacement lights with new orders. For batch defects, we offer repair services or discussed solutions based on the situation.

Q4: What is the typical lead time for an order?

A4: Usually, samples or small orders take 7 days, while bulk orders take approximately 15 working days, depending on the specific quantity.

Q5: How many rainy days can the solar light operate?

A5: Under intelligent mode, our solar street lights can operate for 2 to 3 rainy days continuously.

Q6: What maintenance is required for long-term battery storage?

A6: For long-term storage, it is recommended to fully charge the battery and then discharge it for 2-3 hours every 3 months to prevent damage.
