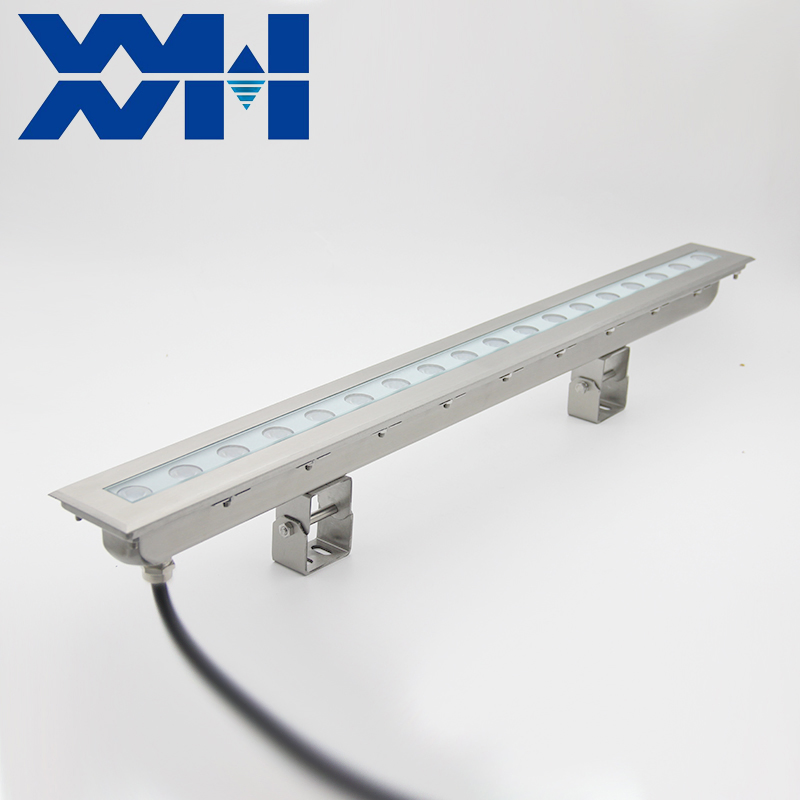

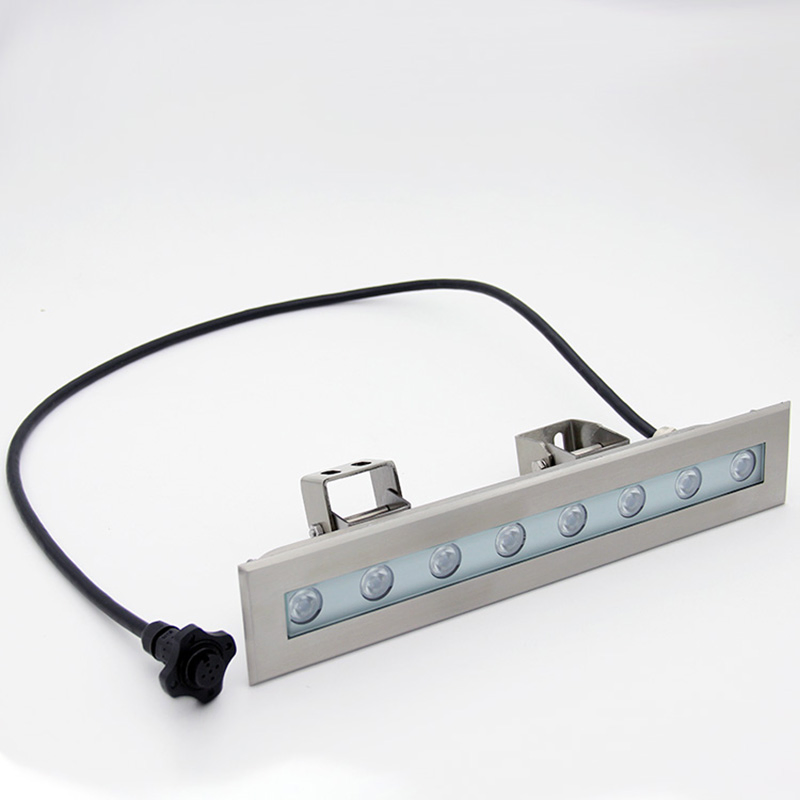

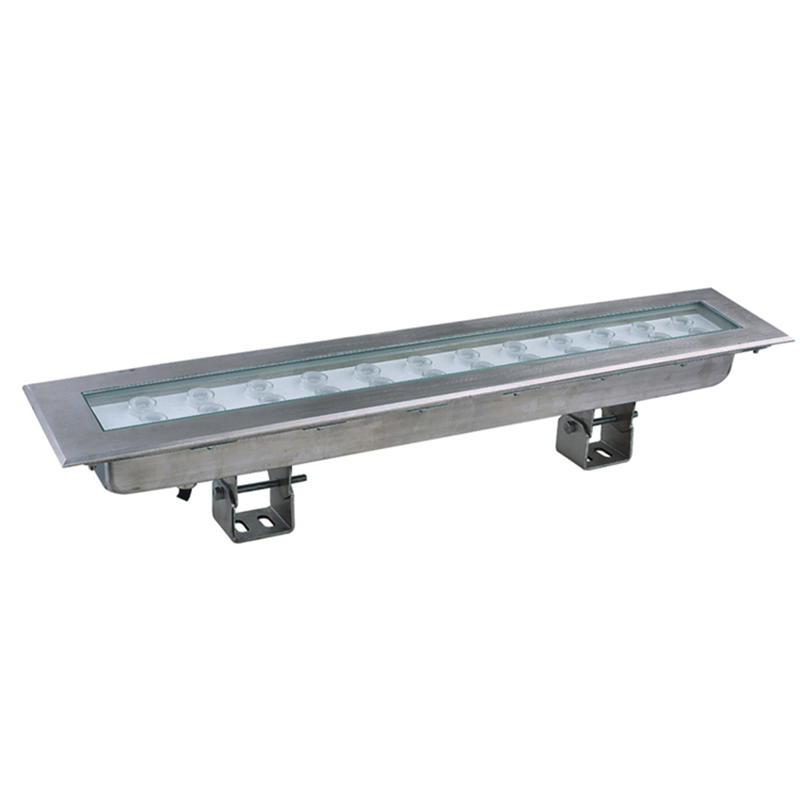

Individual control of each LED bead allows for personalized dynamic lighting effects, meeting the creative lighting needs of architectural landmarks and commercial complexes.
Built with 316L stainless steel and featuring an IP68 waterproof rating. Extremely resistant to salt spray, corrosion, and submersion, making it ideal for building facades, waterscapes, and wet embankments.

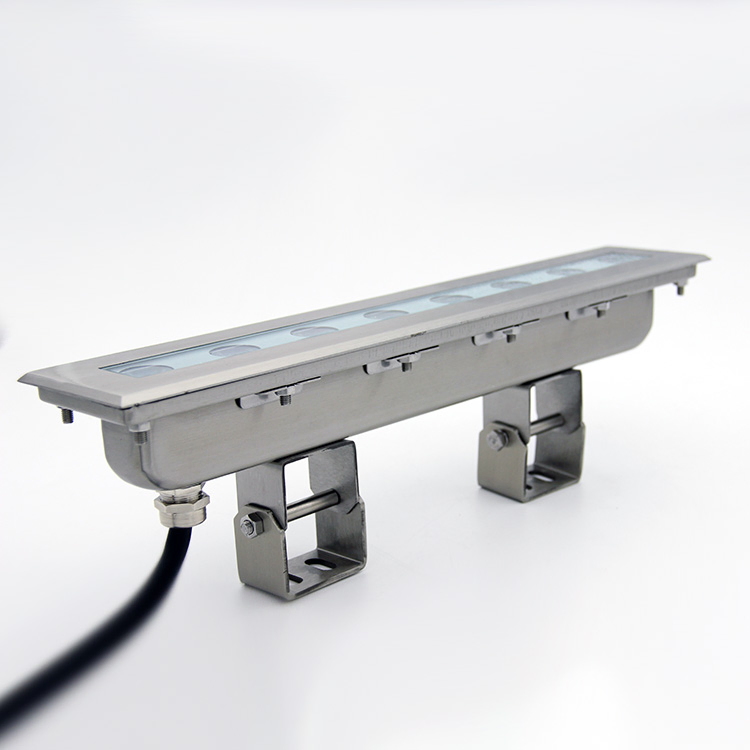

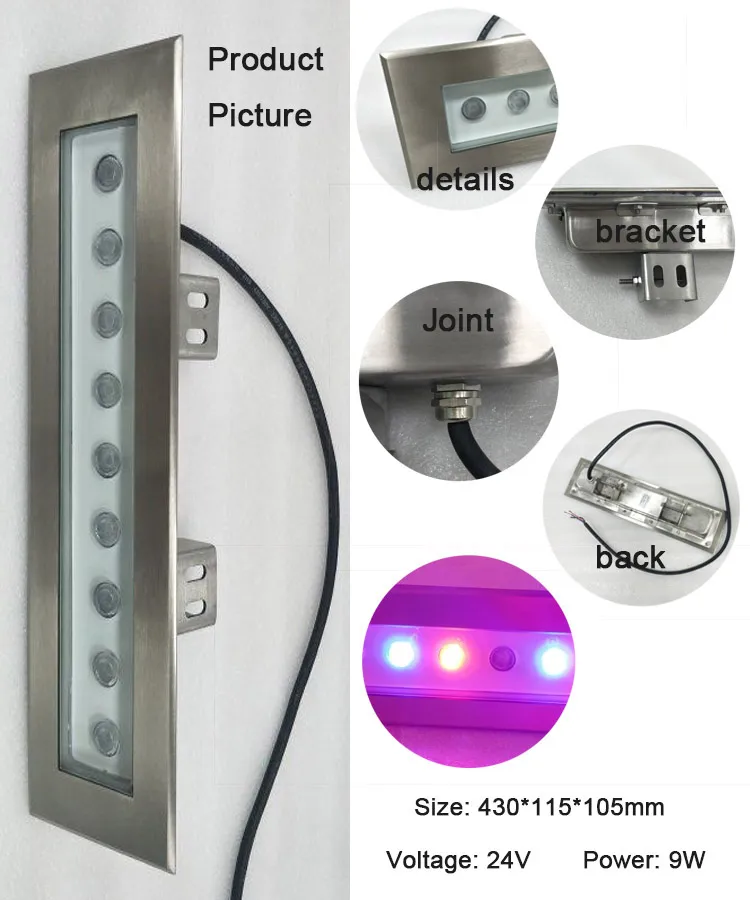

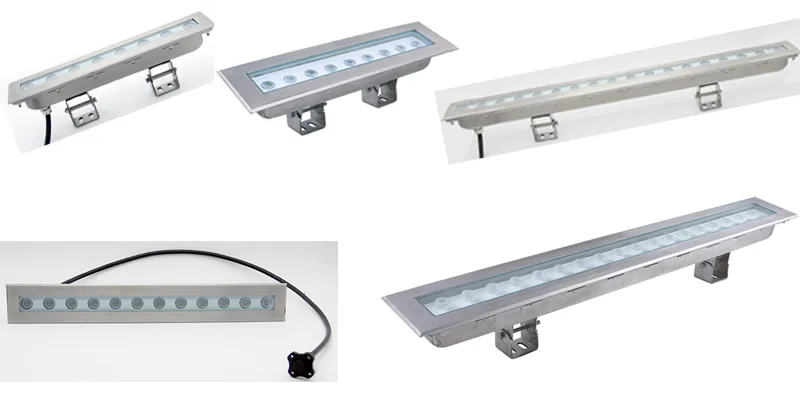

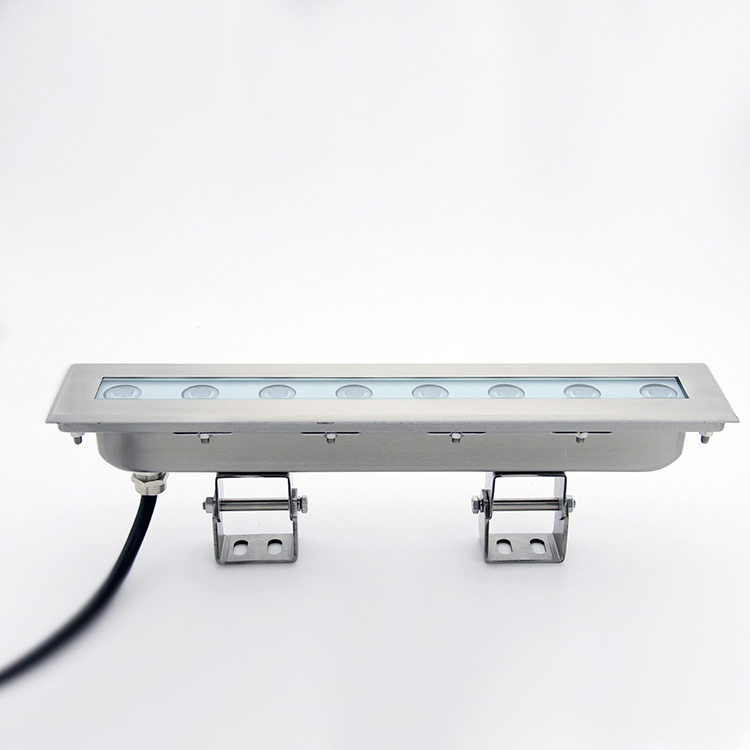

Offers multiple installation methods and adjustable angle brackets to integrate with various building designs, plus long-distance series networking designed to reduce wiring costs.
| Technical Specifications | |
|---|---|
| Beam Angle | 30° as Standard, 10°, 60°, 90°, 120° Optional |
| Colour | R, Y, G, B, W, WW, RGB |
| Lifespan | 50,000hrs, L70@ 25ºC |
| Control Method | Single color, Auto RGB color Change, RGB 4 wires color change (With remote), DMX512 control |
| Installation Method | Wall Mounted |
| Material | 304 stainless steel, High light transmission tempered glass, Anti-aging silicone sealing ring |
| Cable | Special underwater waterproof cable 1 meter |
| Temperature Parameters | Operating: -40ºC to +45ºC | Storage: -40ºC to +70ºC |
| Certification | CE, RoHs, ISO9001, IP68 |
| Waterproof Level | IP68 |
| Model Code | Rated Power | Voltage |
|---|---|---|
| XT001-18X1W | 18W | AC/DC24V, AC220V |
| XT001-24X1W | 24W | AC/DC24V, AC220V |
| XT001-24X2W | 48W | AC/DC24V, AC220V |
| Physical Dimensions & Weight | ||

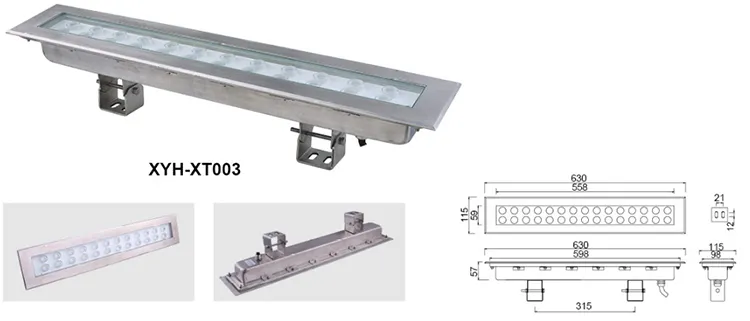

| Dimensions | φL630 * W115 * H123mm | |
| Reference Weight | 5.0 KG | |

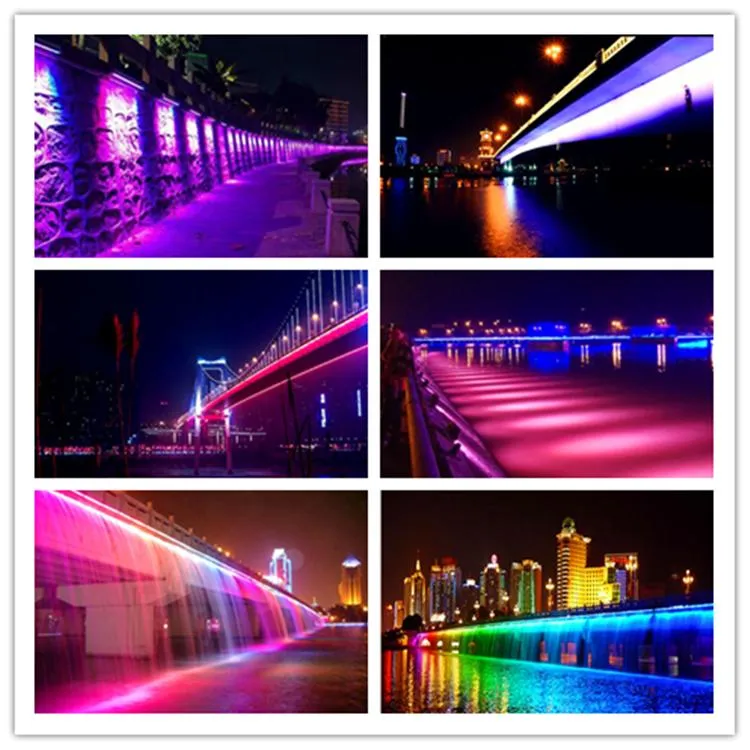

Enables dynamic light and shadow displays on the facades of high-rise buildings and historical structures, creating visual highlights in urban nightscapes.
Optimized linear lighting for bridges, tunnel entrances, and municipal riverbank railings, enhancing aesthetics and general safety.
Excellent waterproof performance allows underwater and near-water linear layouts around fountains, pools, and embankments.

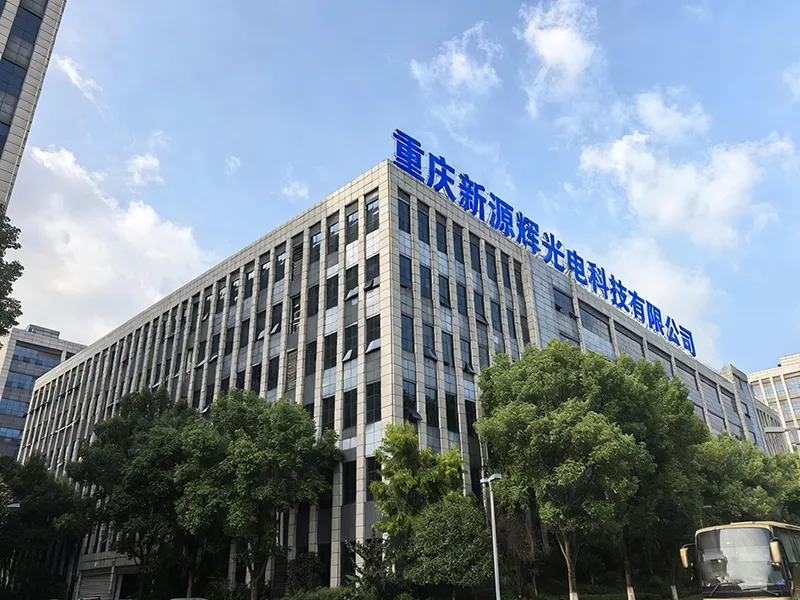

We are a professional outdoor landscape lights factory specialized in LED Underwater lights, LED Fountain Lights, LED Underground Lights, LED Pool Lights, LED Wall Washer Lights, and some other lights for outdoor landscape. Our products passed ISO9001-2015, CE, ROHS, IP68 protection level certifications.

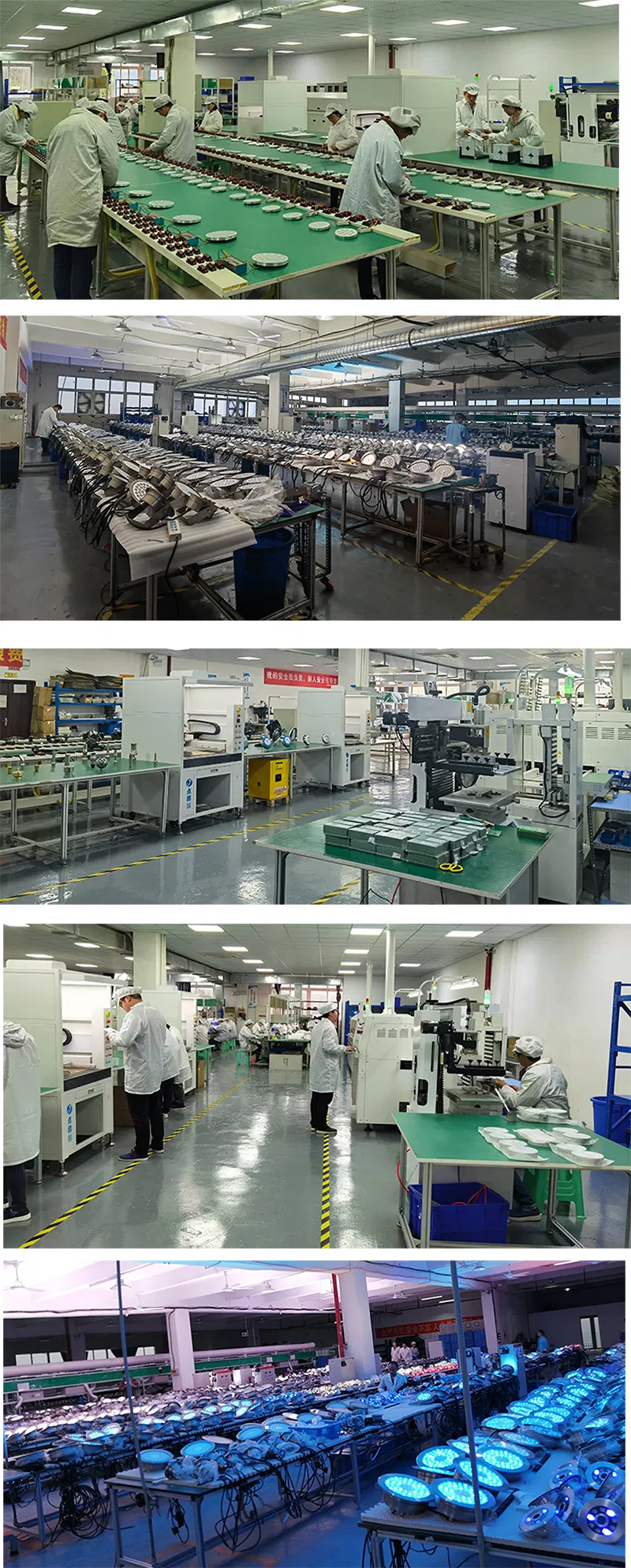

Our factory maintains strict quality control regulations. From design, raw material procurement, storage, production, quality control, product testing, and after-sales services, the entire operation strictly abides by standard industrial workflows. With over 20 professional testing technicians and 6 primary manufacturing assembly lines, the monthly production capacity exceeds 10,000 lighting units.
Our factory has won more than 120 national patents and carries verified certifications:
