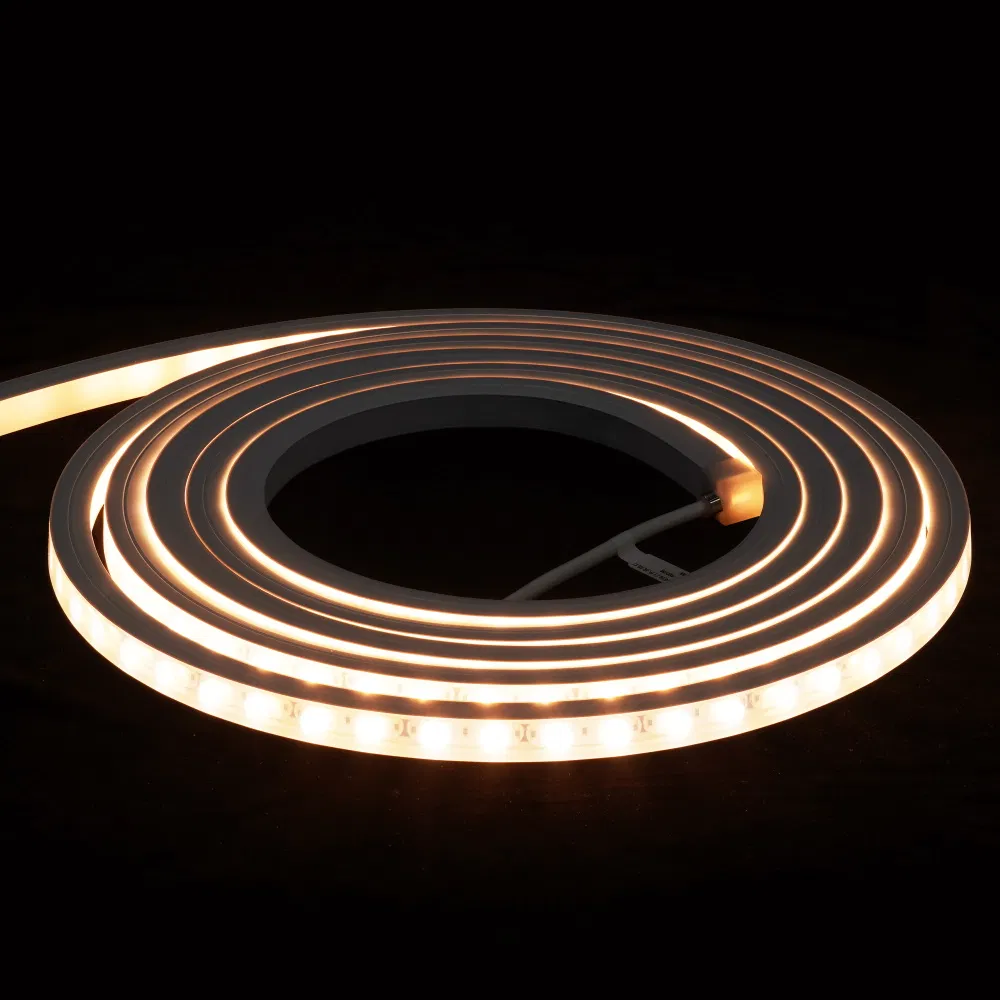

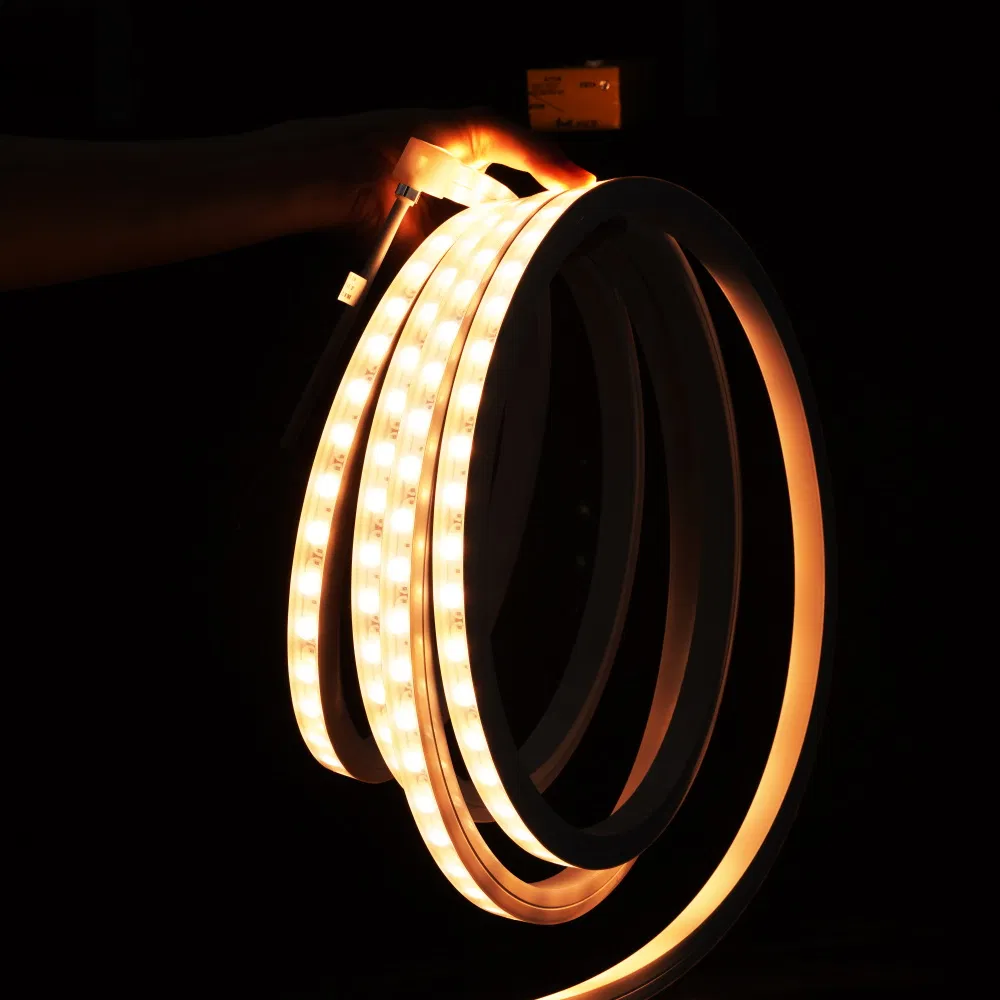

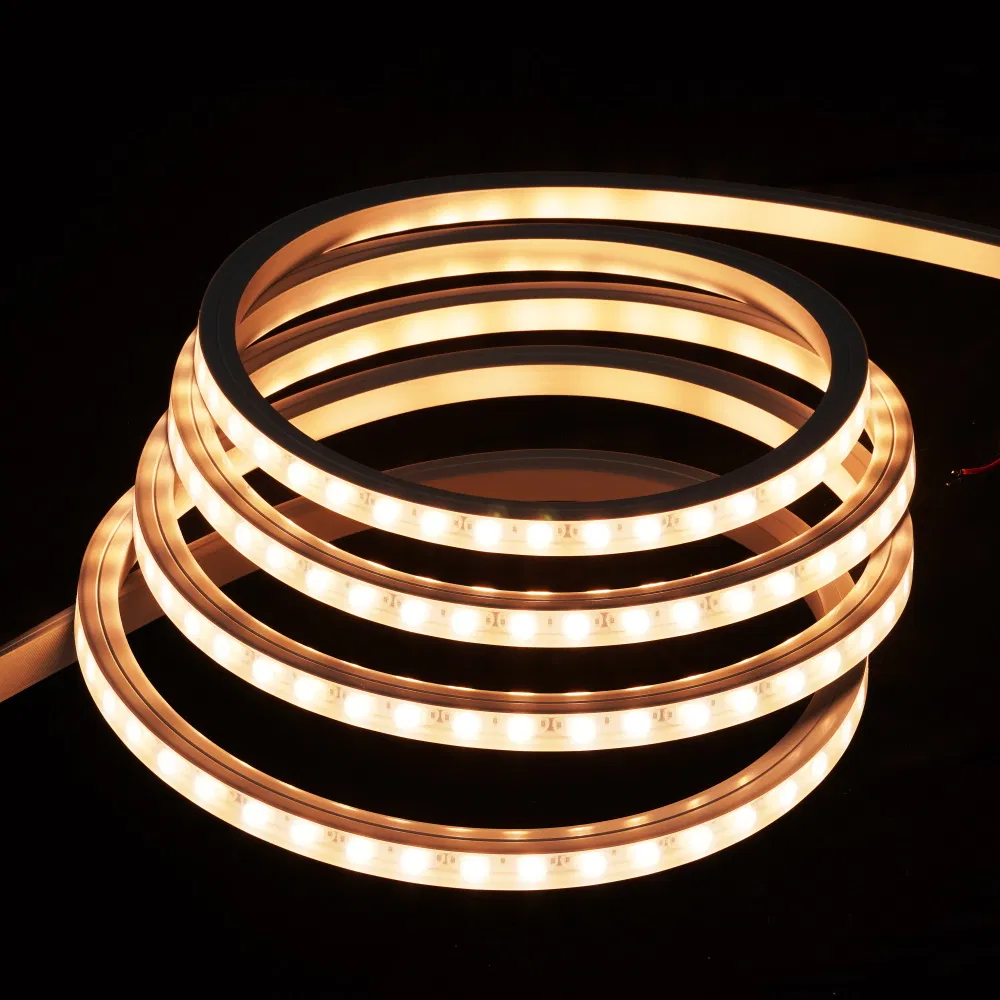

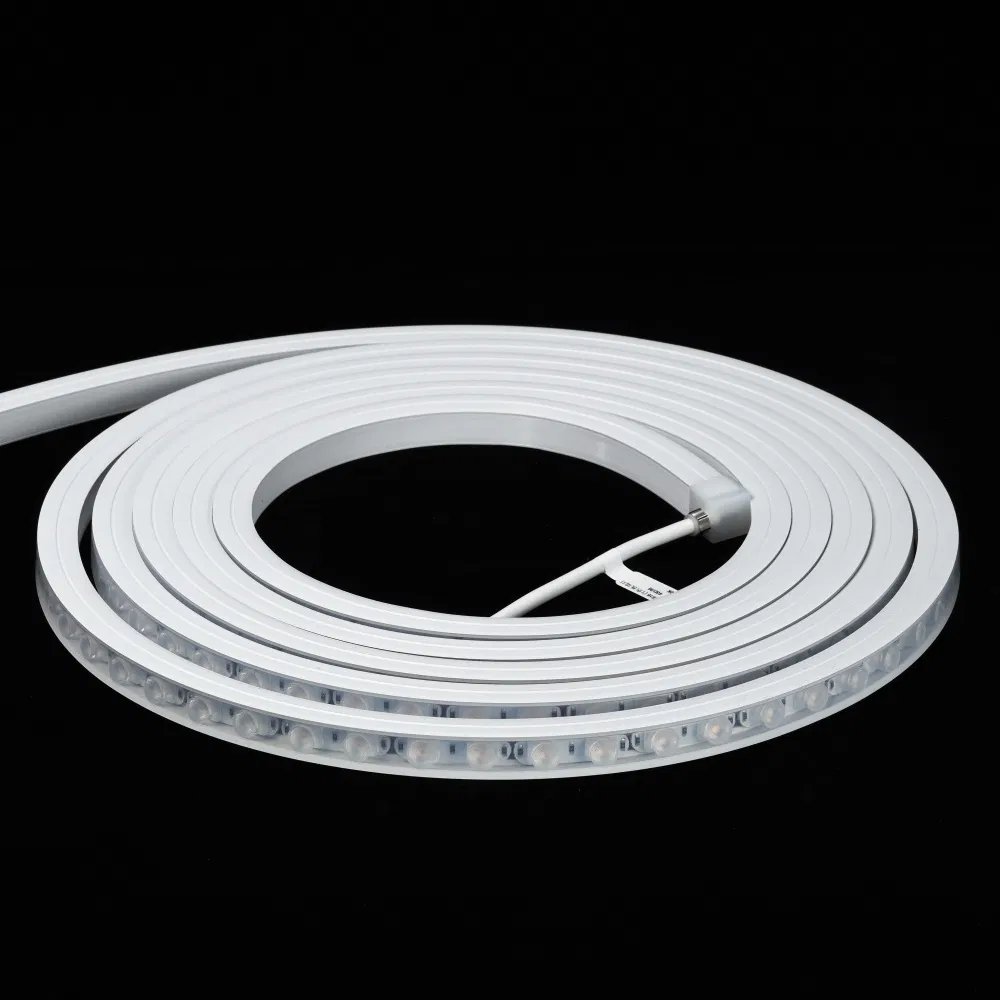

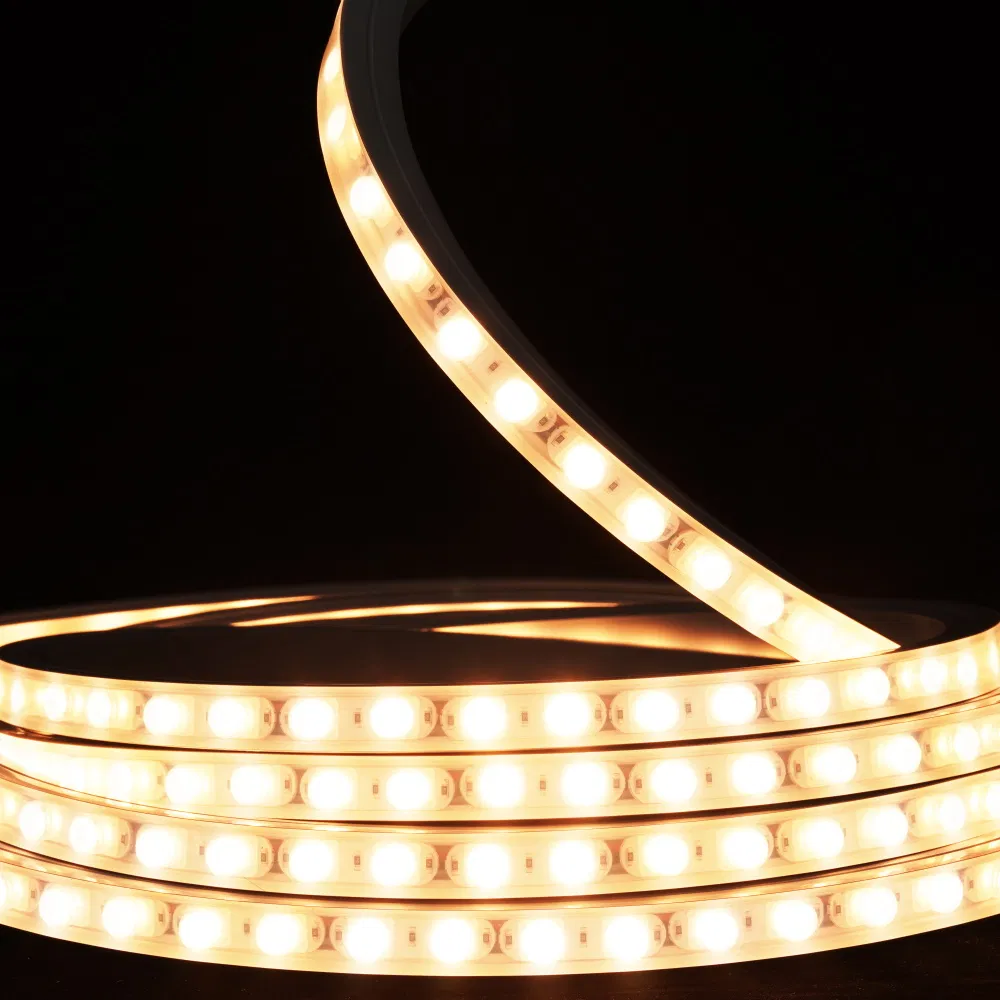

Flexible RGB Wall Washer 24V 24W/M 36W/M LED Light Strips Building Light Outdoor LED Flexible Wall Washer

Customization: Available
Emitting Color: Warm White
Power: 20W

Product Description

Basic Info
Model NO.WA24W22S42XX
IP RatingIP68
DiffuserPMMA Lens
Beam Angle60°
Lifespan50000 hours
Warranty3 Years
CertificationCCC, CE, EMC, FCC, FDA, GS, LVD, RoHS, SAA, VDE, TUV, PSE, KC
Electric Current TypeDC
Input Voltage24V
PCB Width5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 16mm, 20mm
LED Qty Per Meter24LED, 30LED, 36LED, 42LED, 48LED, 56LED, 112LED
LED Type3030 SMD, 3535 SMD
Luminous Efficiency130lm/W
Power/Meter12W, 14W, 16W, 18W, 24W
CRIRa>80, Ra>85, Ra>90, Ra>95, Ra>98
Viewing Angle15, 20, 25, 30, 35, 45, 60, 30*45, 20*45, 15*60 De
Meter Per Reel1meter, 3meters, 5meters
Product Width (mm)13mm, 16mm, 17mm, 22mm, 25mm, 28mm
Lighting DirectionTop Lighting
Bending Type360 Bending
Cuttable Unit6LED/125mm, 6LED/166.7mm, 3LED/50mm, 3LED/71.4mm
MaterialSilicone, FPCB, PMMA Lens
Waterproof MethodSilicone Pipe
IP GradeIP66, IP67, IP68
Transport PackageAntistatic Bag and K=K Carton
Specification3030, 3535, 3528, 2835, 5050, 5630, APA102, WS2811
OriginMade in China
HS Code9405429000
Production Capacity200,000/Meters/Day
Product Description
Flexible RGB Wall Washer 24V 24W/M 36W/M LED Light Strips Building Light Outdoor LED Flexible Wall Washer
This next-generation Flexible Wall Washer improves significantly upon traditional heavy aluminum lighting. Designed with an integrated extrusion injection molding process, it offers exceptional waterproof capabilities that allow it to perform flawlessly in rain, sleet, and snow. With its slim structure and 360° bendability, it provides the ultimate modern solution for indoor and outdoor facade washing, architectural lighting, and complex landscape installations.
  • LED Flexible Wall Washer improved from tradition aluminum heavy wall washer
  • Integrated extrusion injection molding process, good waterproof performance
  • RGB LED Wall Washer work perfectly in rain, sleet and snow weather
  • Perfect for narrow space wall washing with slim structure
  • Suitable for indoor and outdoor wall washing
  • High protection, suitable for outdoor application
  • 360° bendable led wall washer light
  • New innovation technology on architecture lighting, solution for facade lighting, landscape lighting, more economic and easier installation
  • Neon Silicone Flex Strip is widely used in indoor, outdoor decoration lighting, basic lighting, ambient lighting
  • Neon Flex Strip is a good lighting source for signage and advertising because of its flexible and bendable characters
  • Flexibility, safety, energy saving and easy installation and transportation over glass neon
  • Easy to shape a variety of curves, letters, signs, patterns, etc.
  • Different sizes for choice such as 13mm, 16mm, 17mm, 22mm, 25mm, 28mm etc
  • Various color available: white, warm white, cold white, red, blue, green, yellow, purple, pink, RGB, RGBW, CCT, DMX digital
  • Create customized lighting atmosphere and room decoration
  • Skin-friendly surface treatment, comfortable touch, good flexibility, and simple shape
  • Smooth surface, no cracks, no air bubble, no impurity, odorless and non-toxic
  • High and low temperature resistant, corrosion resistant, anti-static, anti UV radiation
  • Environmental friendly silicone material, available for extremely terrible outdoor environment
  • Provide customized length with full range of accessories for direct project application
  • Easy installation, can be cut and reconnected (DIY accessories available)
Product Advantages & Features
Superior Grazing Effects
Narrow beam angle for textured walls, architecture. Great wall washing and wall grazing effects.
Premium Silicone Body
High quality, ultraviolet resistance milky silicone that will not yellow over time. Durable and heat resistant.
Advanced PMMA Lens
Adopts PMMA lens and anti-UV silicone material with robust flame retardant performance.
360° Unlimited Bending
Super soft flexibility to arbitrarily create curves, letters, patterns, and complex installations at will.
Perfect Color Consistency
Uniform and soft luminance output with no light spots, dark shadows, or flickers, protecting eyesight.
Stable & Highly Efficient
Top-quality LED Chip with gold wire and copper pin. Low power consumption combined with high brightness.
Key Features Overview
  • Flexible Silicone Extrusion, 360° bendable
  • Cuttable in different length with marked signs
  • Up-down lighting designed specifically for facade lighting
  • Super bright, no dark area
  • Pure silicone material with fast heat dissipation
  • High temperature resistance (works well up to 50°C)
  • Cold-resistant (works normally at -20°C)
  • Waterproof and anti-fog, IP68 waterproof performance
  • Flame resistance and environmental protection
Technical Highlights
  • Product Width: 13mm to 28mm
  • Light Sources: 3030, 3535, 3528, 2835, 5050, 5630, Pixel LED, etc.
  • High Luminous Efficacy: 130 lm/W
  • Viewing Angles: 15, 20, 25, 30, 35, 45, 60, 30*45, 20*45, 15*60 degrees
  • Working Voltage: Low voltage DC5V to DC48V, or AC110V to AC240V
  • Silicone Color: Black, Red, Green, Blue, Translucent, Yellow, Pink, etc.
  • FPCB Width: 5mm up to 20mm
  • LED Quantity options: 24 to 300 LEDs per meter

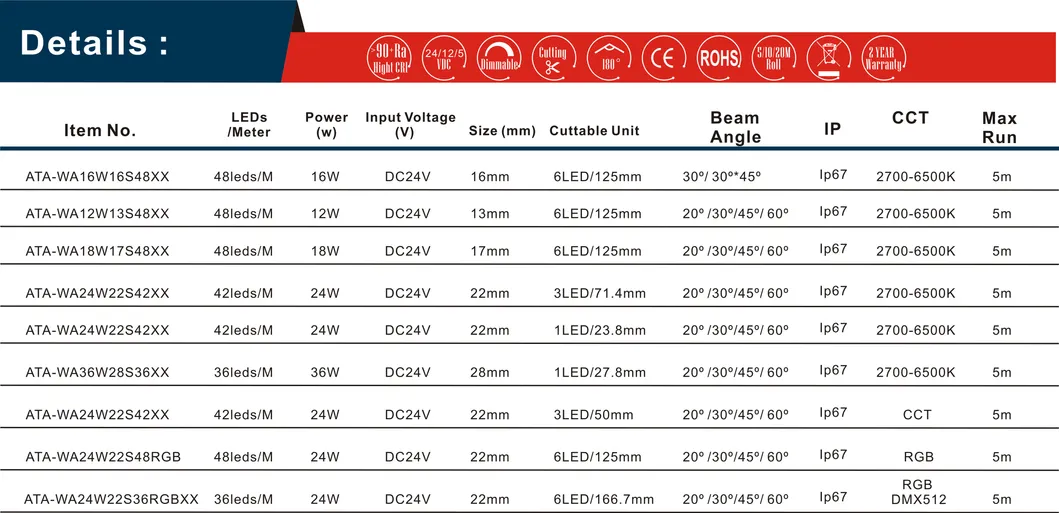

Technical Specifications
Product Name LED Flexible Wall Washer
Item Number WA16W16S48XX
Product Width (mm) 13mm, 16mm, 17mm, 22mm, 25mm, 28mm
LED Light Source 3030 SMD LED
CRI (Ra) CRI>80, CRI>85, CRI>90, CRI>95, CRI>98
Luminous Efficiency 130LM/W
Viewing Angle 15, 20, 25, 30, 35, 45, 60, 30*45, 20*45, 15*60 degrees
Lighting Direction Top Lighting
Bending Type 360 degrees bending
Power 16W
Working Voltage DC12V, DC24V, DC48V, DC5V, AC110V, AC127V, AC220V, AC230V, AC240V
Emitting Color White, Warm white, Natural white, Red, Green, Blue, Ice Blue, Sky Blue, Yellow, Orange, Lemon Yellow, Golden Yellow, Rose Red, Purple, Lavender, Pink, RGB, RGBW, RGBWW, WB, WWB, Amber, CCT, DMX Digital, Dream Color
Silicone Casing Color Black, Red, Green, Fluorescent Green, Blue, Ice Blue, Yellow, Orange, Lemon Yellow, Golden Yellow, Rose Red, Pink, Cyan, Lavender, Translucent, Lemon
FPCB Width 12mm (White)
LED Quantity per Meter 48leds
Cuttable Unit 6LED/125mm, 6LED/166.7mm, 3LED/50mm, 3LED/71.4mm, 1LED/27.8mm
IP Grade IP66, IP67, IP68 (Silicone Pipe Waterproof Method)
Material Silicone, FPCB, PMMA Lens
Installation Method Aluminum Profile, Stainless Steel Slot/Keel
Control Function Dimmable, APP, Bluetooth, Wifi, Mobile Phone, On/Off, DMX512, Triac, PWM, 1-10V
Temperature Range Working: -20~+60 celsius degree | Storage: -40~+80 celsius degree
Certification DLC, TUV, VDE, GS, CB, SAA, FCC, CE, RoHS, LVD, EMC, Reach, CCC, FDA, PSE, BIS, BSMI, KC, IEC/EN62471, TM21, LM79, LM80, IK06, ISO9001, ISO14001
Flexible RGB Wall Washer 24V 24W/M 36W/M LED Light Strips Building Light Outdoor LED Flexible Wall Washer
Product Details & Dimensions
  • High Luminous efficiency, up to 130LM/W
  • SANAN/EPISTAR CHIP with gold wire and copper pin
  • High-quality flexible silicone housing resistant to yellowing with robust UV resistance
  • Milky white diffusion transparent silicone for optimal light transmission
  • IP68 sealed structure optimized for outdoor application
  • Excellent color consistency with light source color tolerance ≤ 3
  • Offering various outlet wire designs, cut at will, cuttable unit starting at 5cm

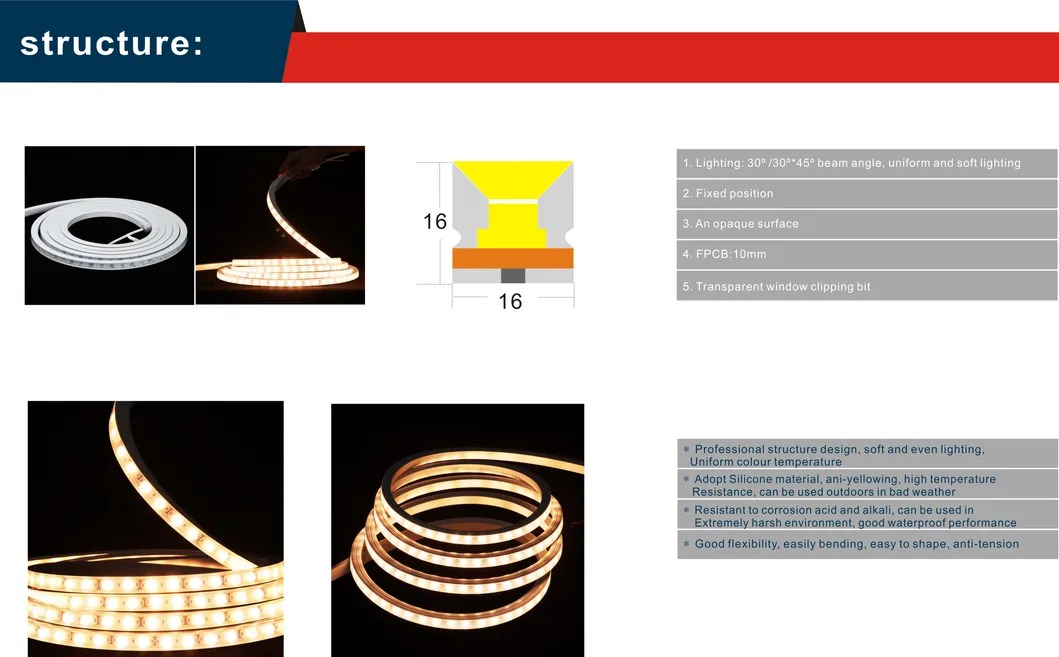

Flexible RGB Wall Washer Dimensions
Easy Installation Steps
  • Install LED Flexible Wall Washer
  • Clipped securely into LED Aluminum Profile / Bendable Channel / Stainless Steel Slot / Keel
  • Connect securely to matching LED Power Adapter

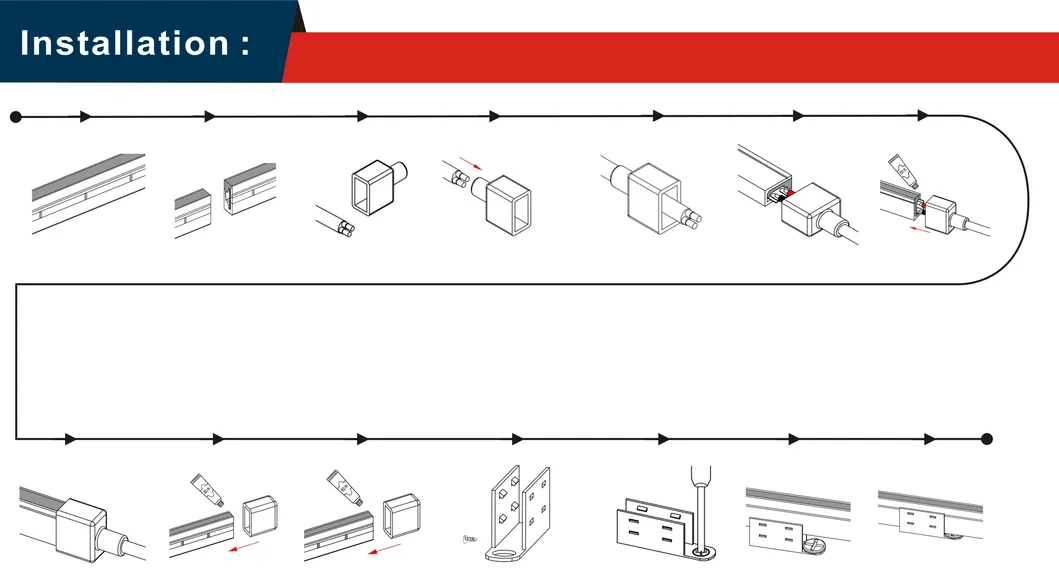

Flexible RGB Wall Washer Installation
Applications for All Scenarios
Widely used in indoor and outdoor decoration lighting, wall profiles, ambient structures, cabaret and architectural contouring, bridge edge lights, pathway contour marking, and green public illumination designs. Excellent for replacements of traditional aluminum profiles and heavy LED wall washers.
Common Environments & Architectural Locations:
Bars, Clubs & KTVs
Hotels & Restaurants
Showrooms & Exhibition Halls
Bridges & Walkways
Historical Buildings & Mosques
Villas & Gardens
Billboard & Signage Backlights
Office Ceilings & Cove Lighting
Fish Tanks, Aquariums & Fountains
Car Interiors & Chassis Outlines

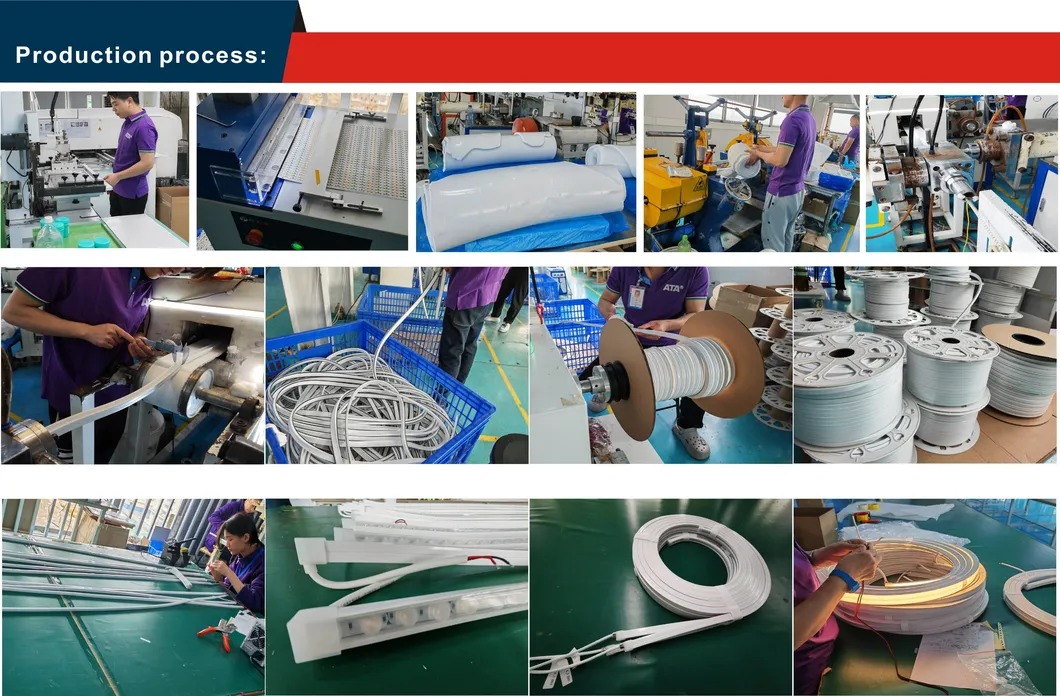

Production Facility
Project Lighting Applications
Package, Quality Control & Operation Guidance
Packaging & Logistical Security
Standard Packing: 5m/roll, 1 roll per antistatic bag, packed in heavy-duty K=K cartons with additional protective options such as wooden boxes or pallets for ultimate safety during transport.
Important User Manual Directions
  • Always switch off mains power supply prior to beginning any installation works.
  • Ensure complete installation is carried out by a certified electrical expert familiar with valid safety standards.
Rigorous Quality Testing Protocols
  • Stability Aging Test: 100% of LED Strip Lights undergo 48 hours continuous aging test.
  • Waterproof Integrity: Certified 72 hours waterproof test.
  • Functional Lighting Test: 100% illuminated inspection before final protective packaging.
  • Drop Verification Test: Solid physical drop tests ensure sturdy protection in transit boxes.
Standard Lead Times
• Sample Orders: 2-3 Days
• Regular/Bulk Orders: 7-15 Days
Why Choose Our Products & Services:
  • Automatic Production Line, Daily Production up to 200,000 meters
  • Self-manufactured component design from basic accessories to complete LED strip structure
  • Experienced R&D team, professional pre-sales technical support for layout planning
  • OEM & ODM lighting and circuitry customization, including layout design capabilities (DIALux, LitePro DLX, Agi32, Auto CAD)
  • Over 35 patents in LED Neon Flex products
Frequently Asked Questions
What are the primary benefits of using a flexible LED wall washer over traditional aluminum models?
Unlike heavy and rigid traditional aluminum options, this flexible silicone extrusion wall washer offers unlimited 360° bendability, a highly compact and lightweight structure for tight spaces, and improved waterproof integrity via an integrated extrusion molding process. It is also more cost-effective to transport and offers simpler installation options.
Can these flexible LED wall washers be cut and customized to specific lengths?
Yes. The strip is designed with clear cut marks along the body for safe cutting. Cuttable units range from 2.78cm to 16.67cm (such as 3LED/50mm, 6LED/125mm etc., depending on the chosen specification). A comprehensive set of DIY connectors and mounting accessories is available to secure clean reconnection.
What are the waterproof capabilities of this product, and can it be used outdoors?
Yes, this product is highly optimized for outdoor architectural structures. It offers IP66, IP67, and IP68 waterproof ratings using a heavy-duty silicone pipe protection method, working normally in rain, sleet, snow, and even fully submerged conditions (when following specific waterproofing installation rules).
What voltage and control options are available for the flexible wall washer strips?
We support a massive range of options. Operating voltages include low voltage DC5V, DC12V, DC24V, and DC48V, as well as safe mains AC options (AC110V to AC240V). For control, they are fully compatible with regular On/Off, Dimmable methods, Triac, PWM, 1-10V, App control, Bluetooth, Wi-Fi, and professional DMX512 digital protocols.
How does the quality of the silicone casing and optical lens affect performance?
Our flexible wall washers use high-grade food-grade silicone that is strictly resistant to UV radiation and yellowing, meaning it retains its original transmittance over years of operation. The built-in PMMA lens ensures tight, high-precision viewing angles (ranging from 15° to 60°) for clean, focused light distribution without spotty shadows.
What international safety standards and certifications do these products conform to?
Our products are manufactured in factories running strict ISO9001 and ISO14001 management lines. The products conform to a vast array of global standards including DLC, TUV, VDE, GS, SAA, CE, FCC, RoHS, LVD, EMC, Reach, CCC, FDA, KC, PSE, and IEC/EN62471 testing, ensuring safe commercial and residential applications.
