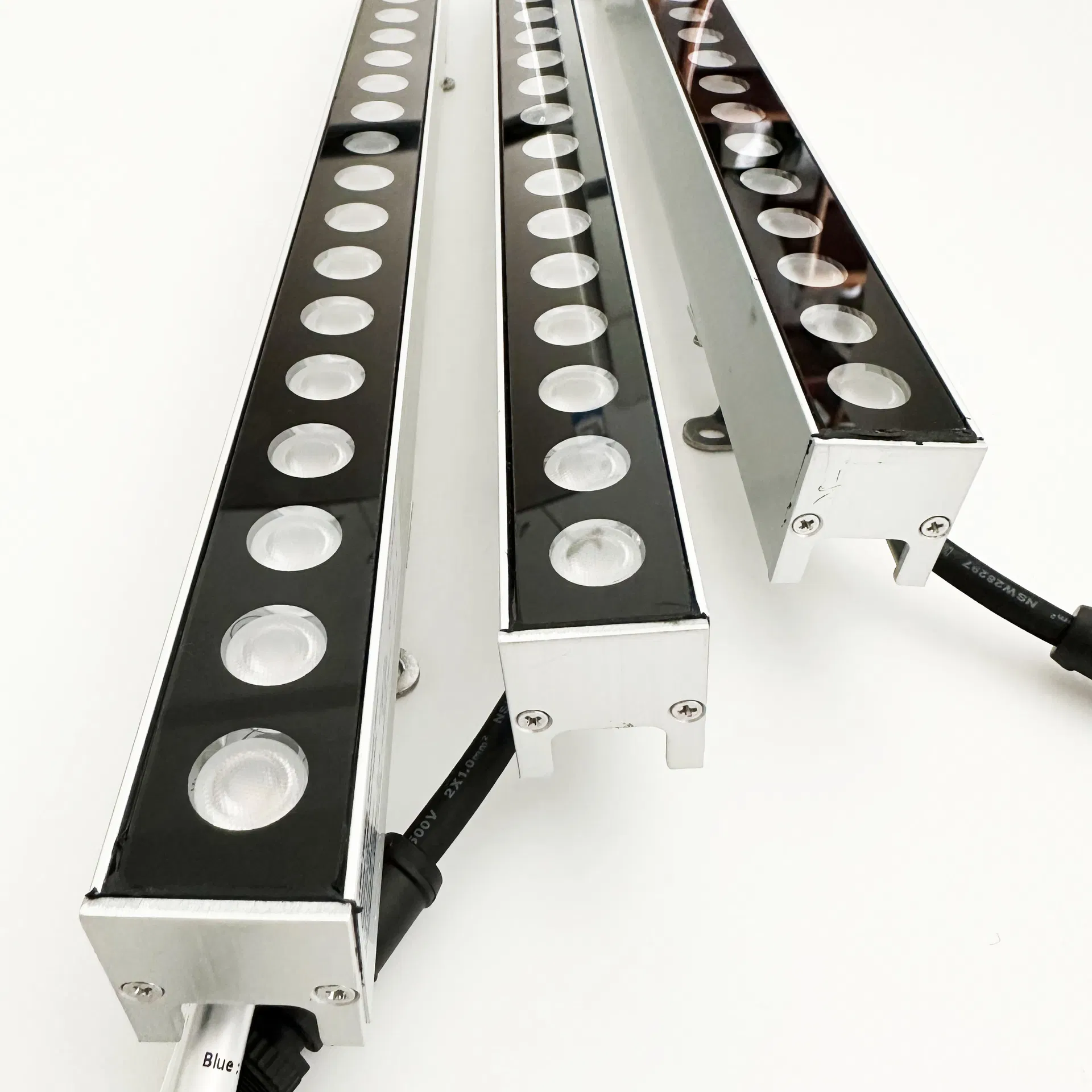

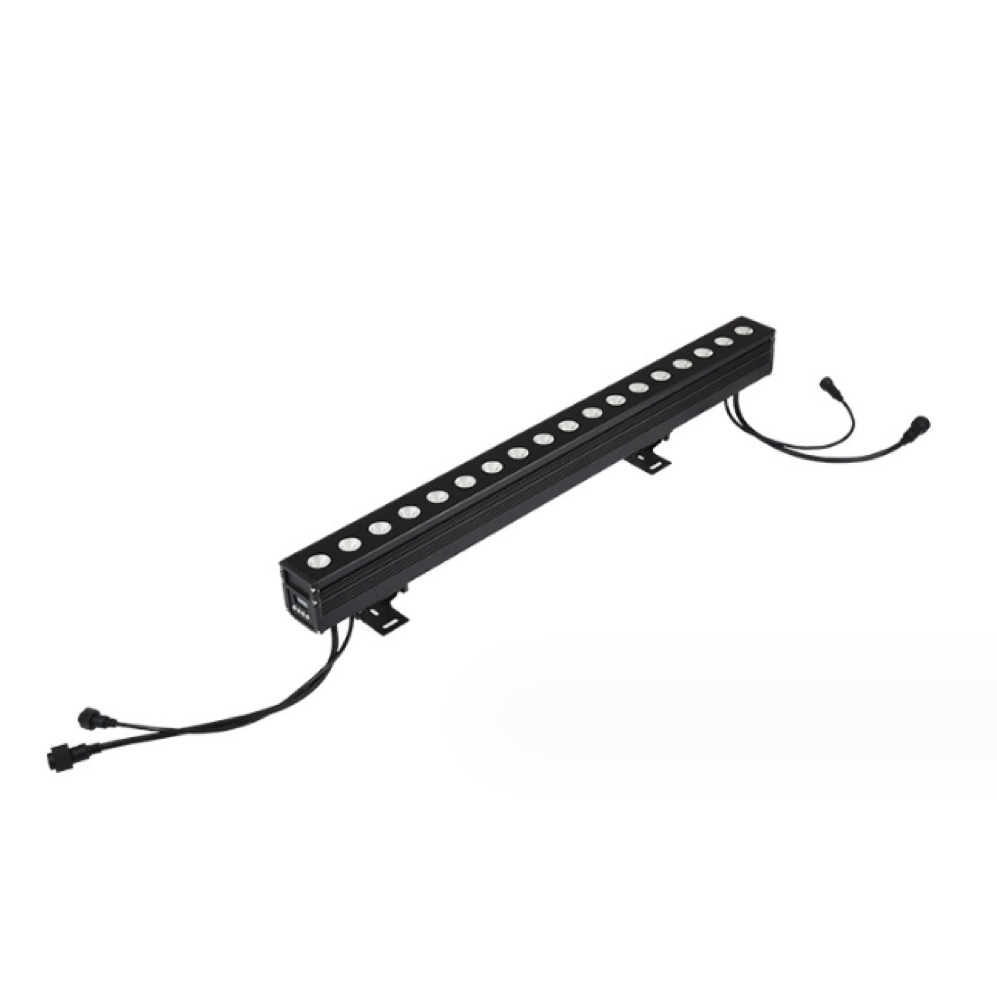

The rigid wall washer light is a high-performance linear lighting fixture specially designed for building facades, landscape lighting, commercial spaces, and other outdoor architectural scenarios. Crafted from robust structural materials and equipped with professional optical systems, it achieves a powerful and uniform "wall-washing" visual impact.

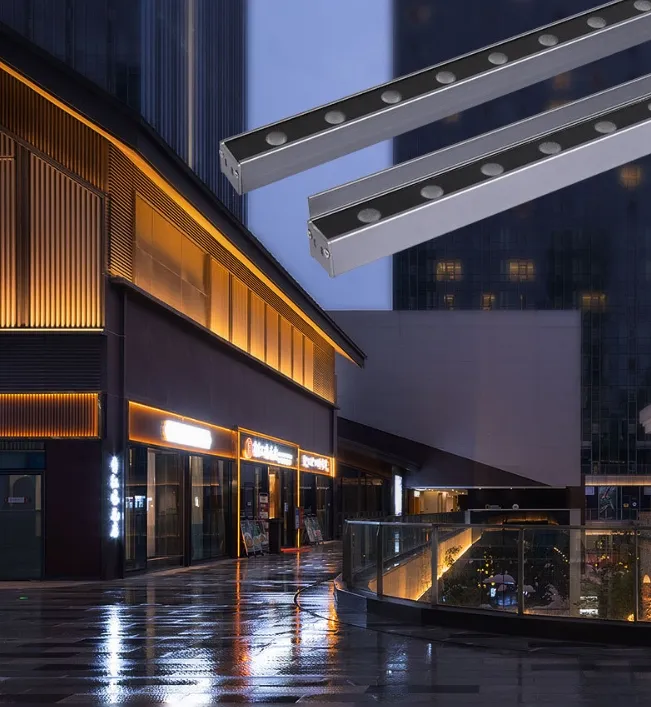

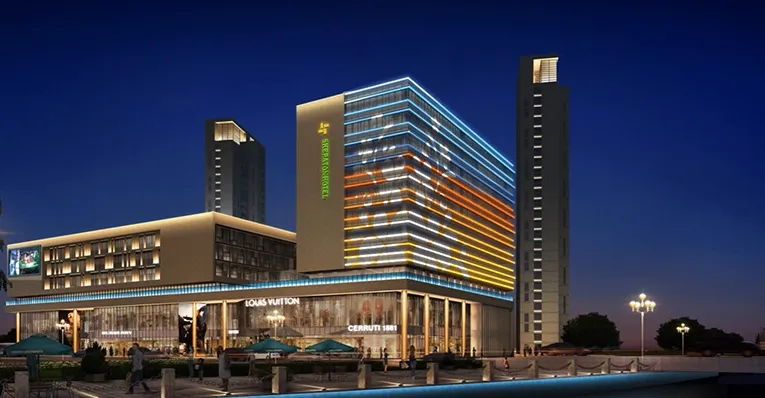

For commercial centers, hotels, and high-end properties. Highlights architectural lines and material textures, transforming building profiles dramatically at night without compromising structural integrity.

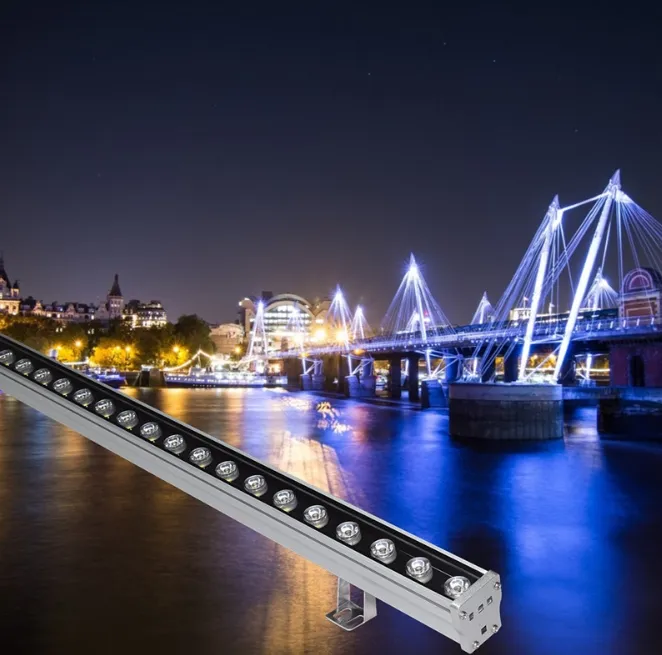

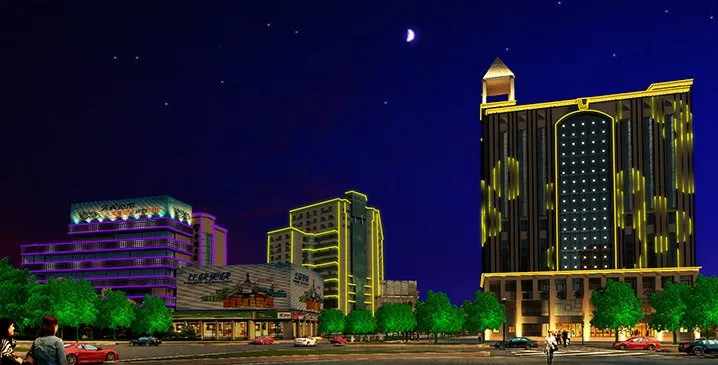

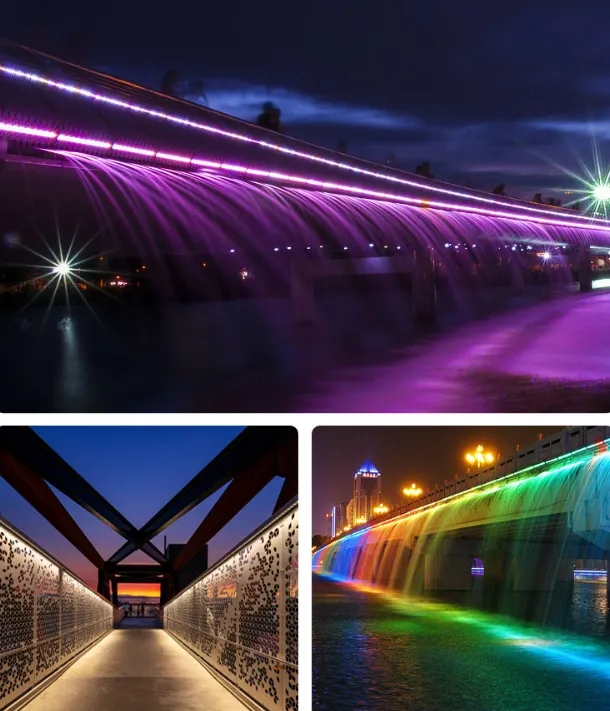

Designed to dynamically outline bridges, towers, parks, and city walls. Features strong projection distances and dust/water-proof ratings ideal for continuous exposure to harsh elements.

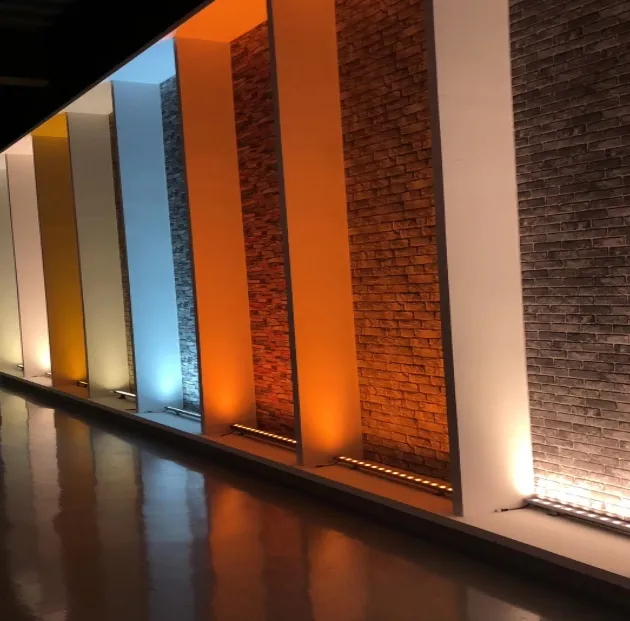

Excellent color consistency (CRI ≥ 90) and integrated dimming options. Ideal for museums, stores, and luxury lobbies to accent wall textures while maintaining extreme visual comfort.

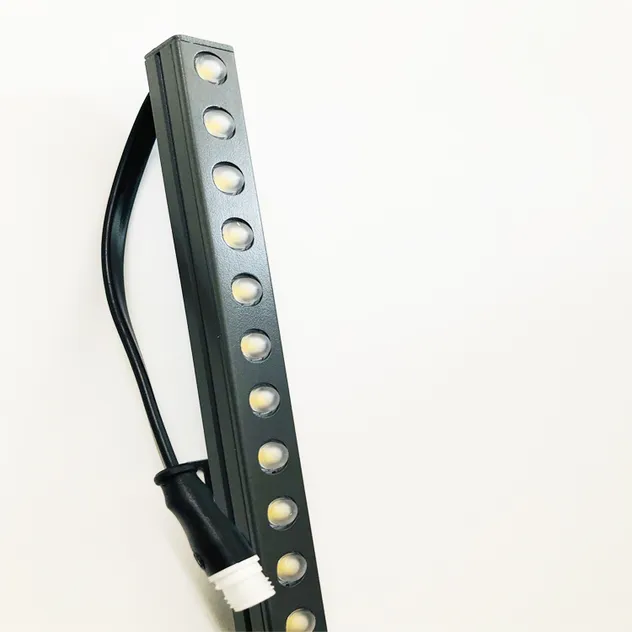

Embedded guardrail or step illumination. Reduces glare, increases nocturnal guidance safety, and utilizes high energy efficiency to guarantee minimal power drain for public budgets.
Review standard baseline technical properties of the linear configurations. Custom parameter integrations are supported under special request.
| Technical Factor | Standard Parameters & Values |
|---|---|
| Product Name | Waterproof Rigid Linear LED Wall Washer Light |
| Available Optics | 25° / 30° / 40° / 60° / 10°*65° |
| Operating Voltage | DC 12V, DC 24V, DC 48V |
| Wattage Output | 18W / 24W / 36W / 48W (Tailored options available) |

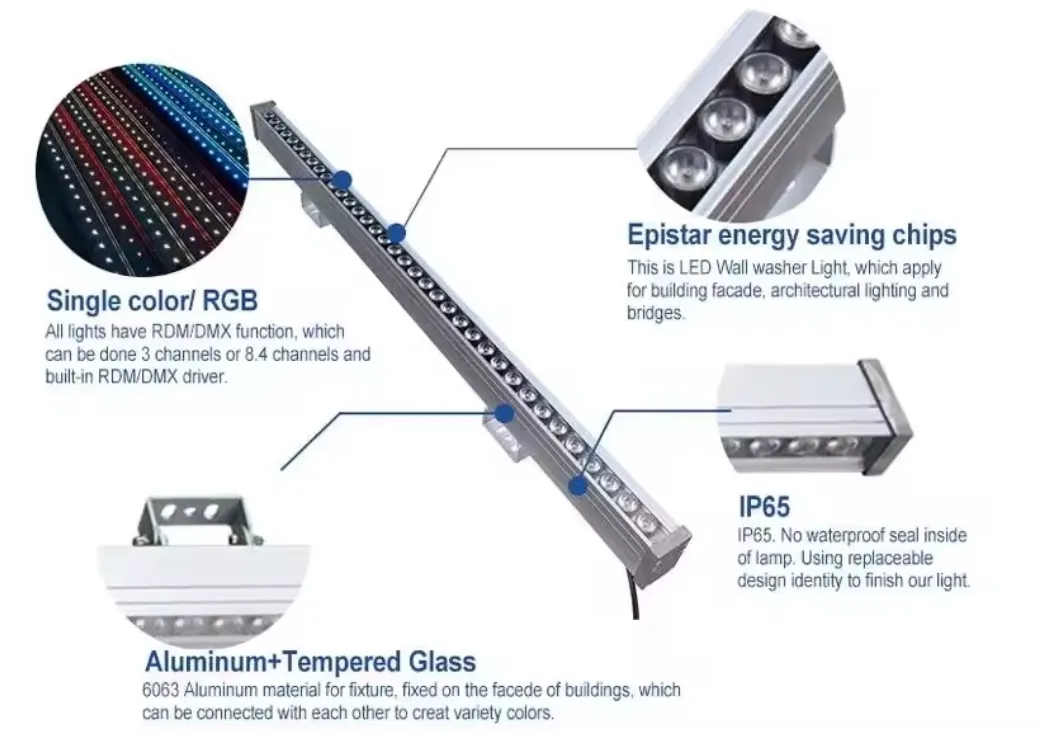

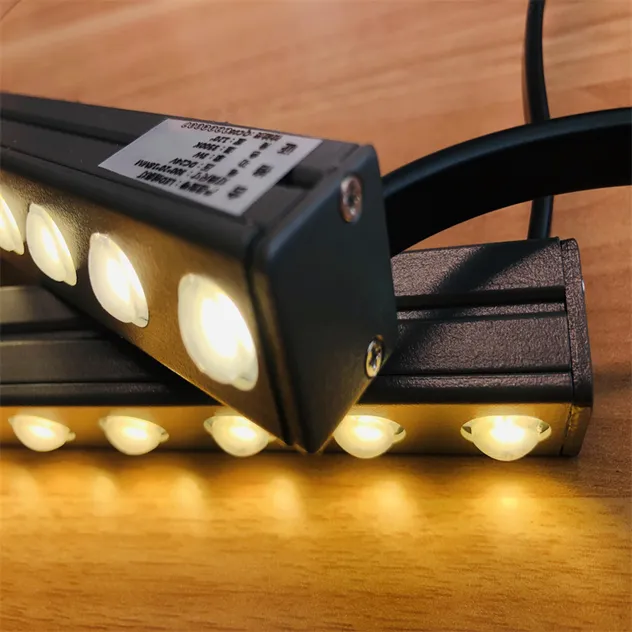

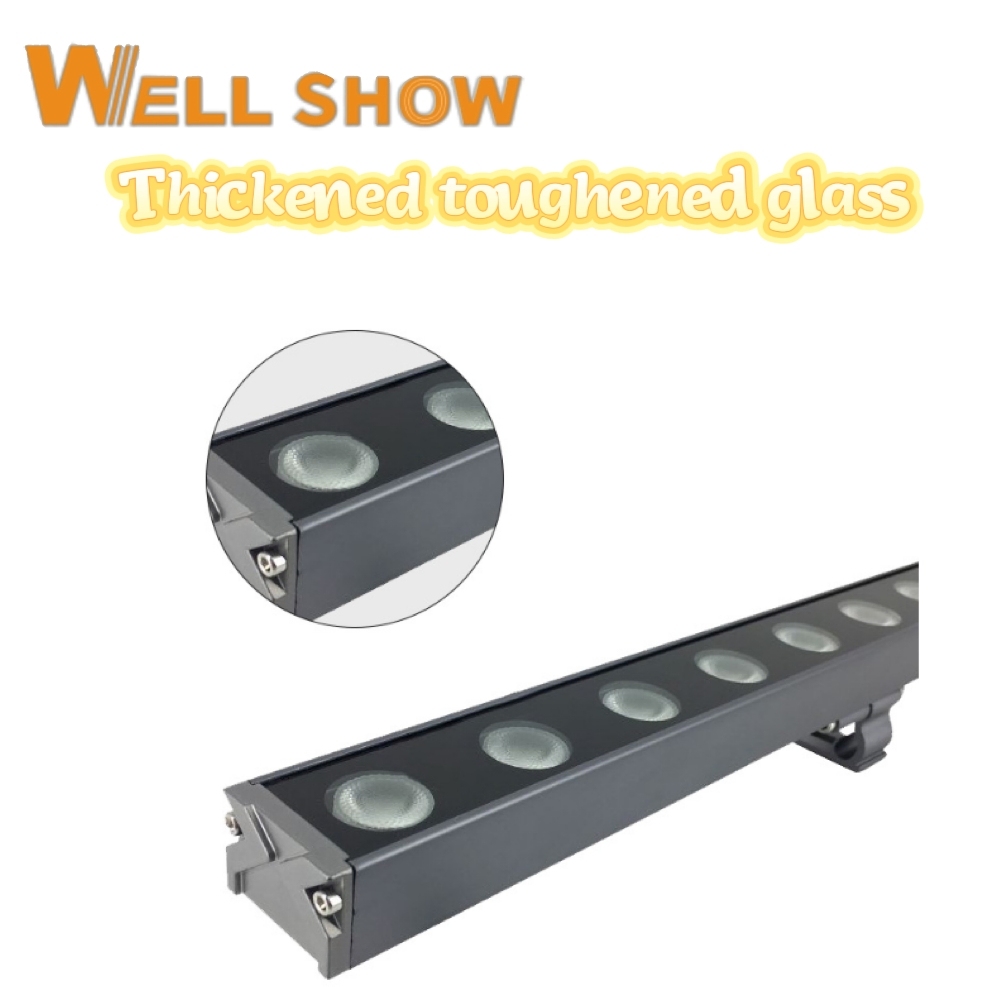

| Material Build | Aviation Aluminum Housing + Tempered Protection Glass |
| Protection Level | IP65 / IP67 / IP68 dust-proof and waterproof ratings |
| Color Index | Ra ≥ 90 |
| CCT Schemes | 2700K-3500K (Warm), 4000K-4500K (Neutral), 5000K-6500K (Cool), RGB, RGBW, RGBWW, DMX512 System |
| Operating Range | -25°C to +50°C wide temperature tolerance |
| Service Lifespan | 50,000 Hours lifetime operation |
| Warranty Scope | 3 Years comprehensive coverage |

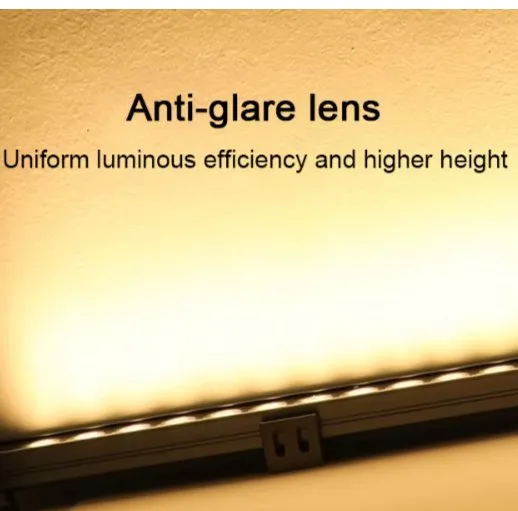

Equipped with proprietary internal louvers or anti-glare shielding layers, this fixture effectively limits peripheral glare, keeping light directed exactly on target. This achieves the sophisticated structural visual of "seeing light without seeing the light source," resulting in elegant facades.

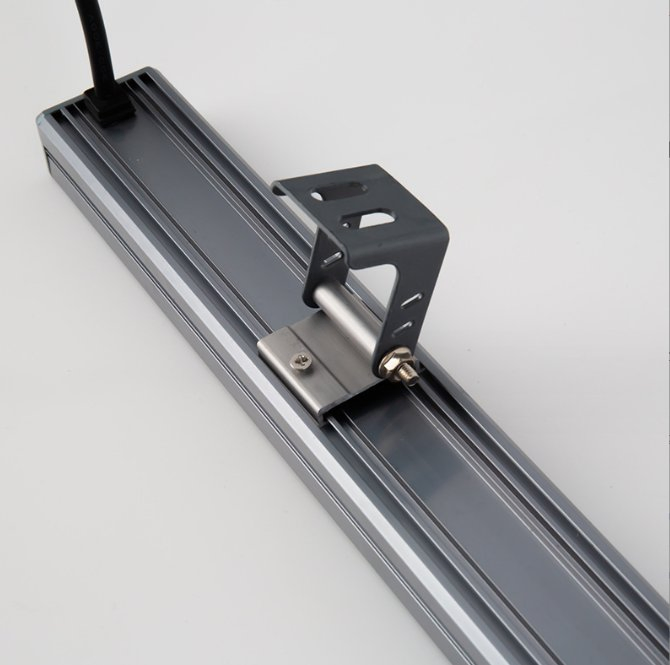

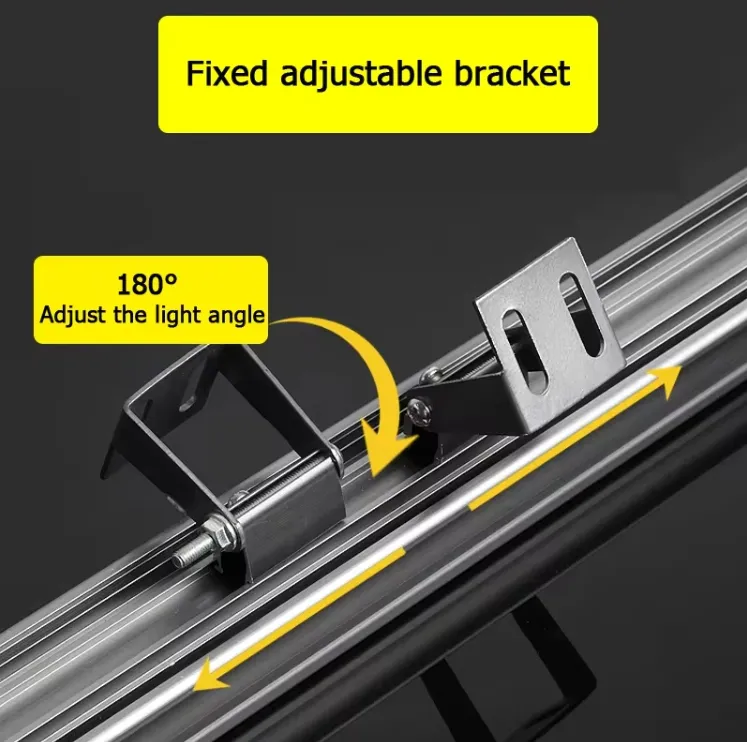

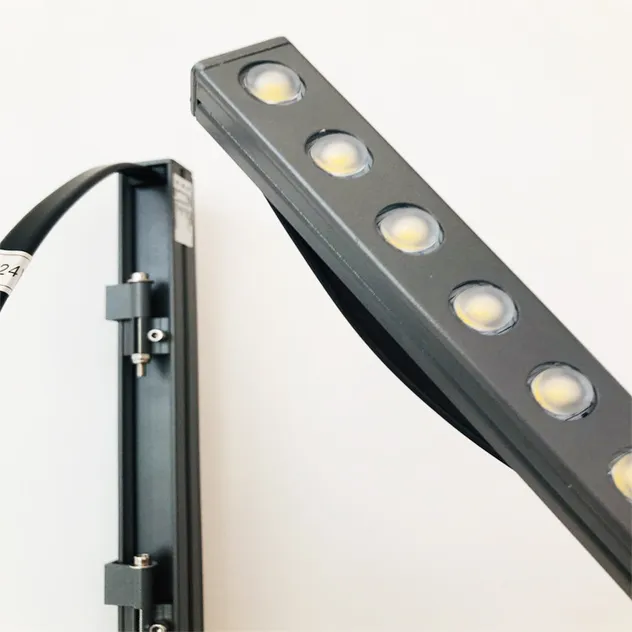

The integrated high-grade brackets allow for micro-precise angle adjustments post-mounting. Whether dealing with irregular curved structures, steps, or recessed alcoves, calibration takes minutes, providing exceptional design execution freedom.

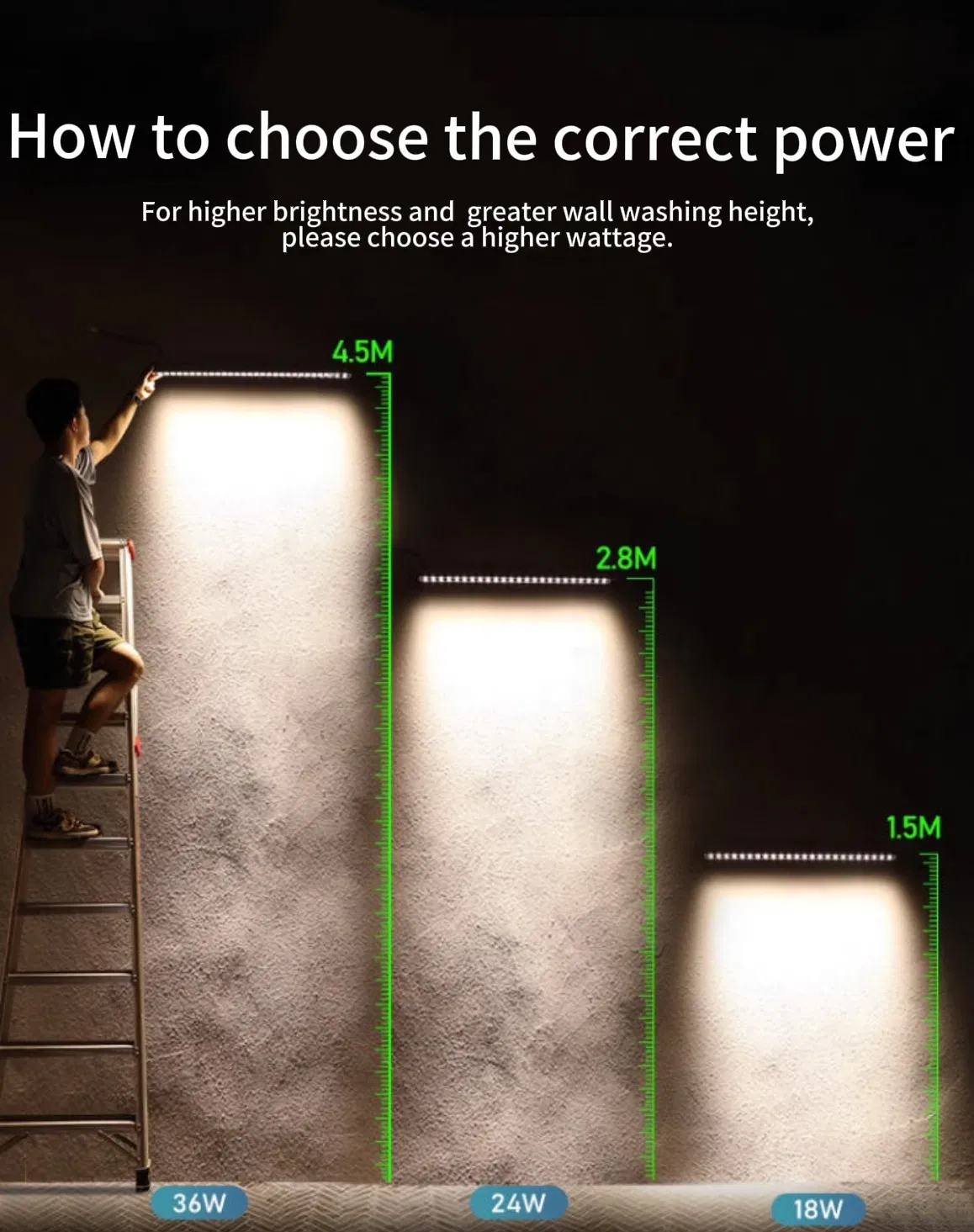

Match the output wattage with the building height easily. High-power systems deliver clean beams across multiple stories, while micro-wattage fixtures ensure glare-free landscape details at close range.

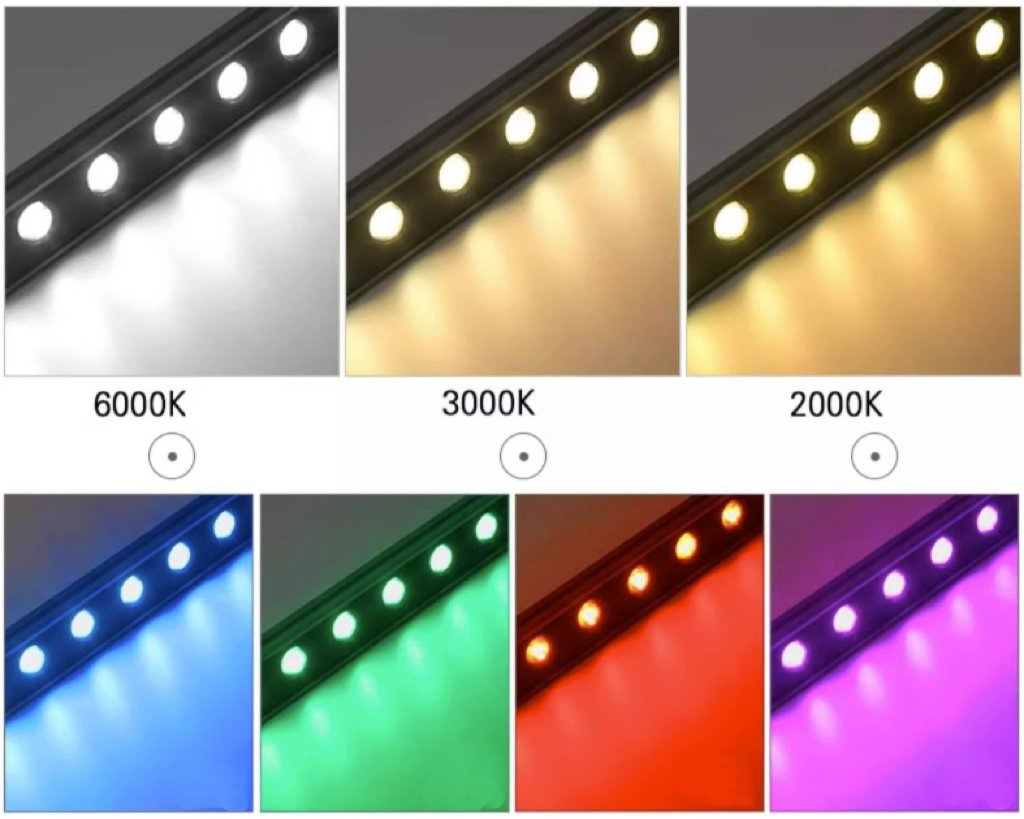

From 3000K warm hues for historic venues to 6000K daylight streams for sleek offices, plus full DMX control options. Creates complex scenes to represent the signature values of building projects.

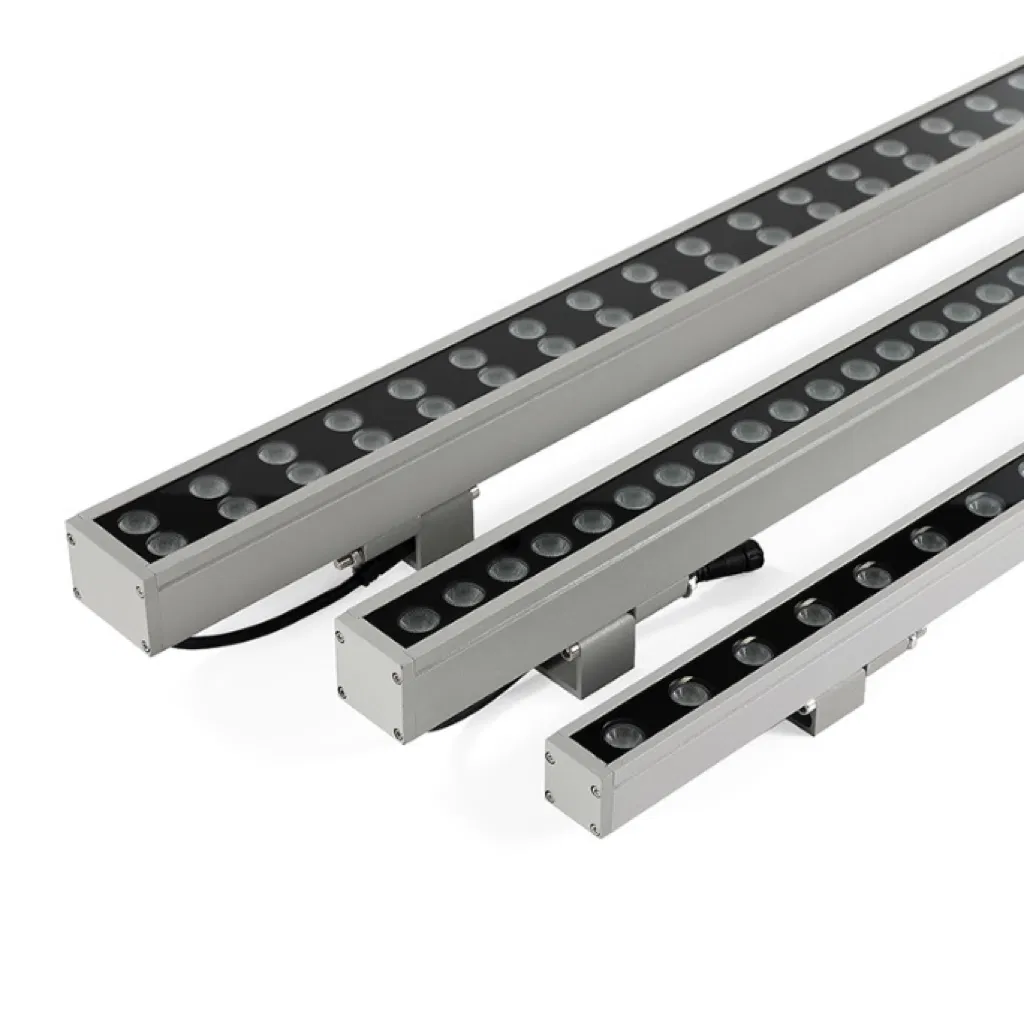

Avoid installation issues with fixed sizes. Custom housing lengths are designed to match building recesses flawlessly, delivering clean "light visible, housing invisible" integration.

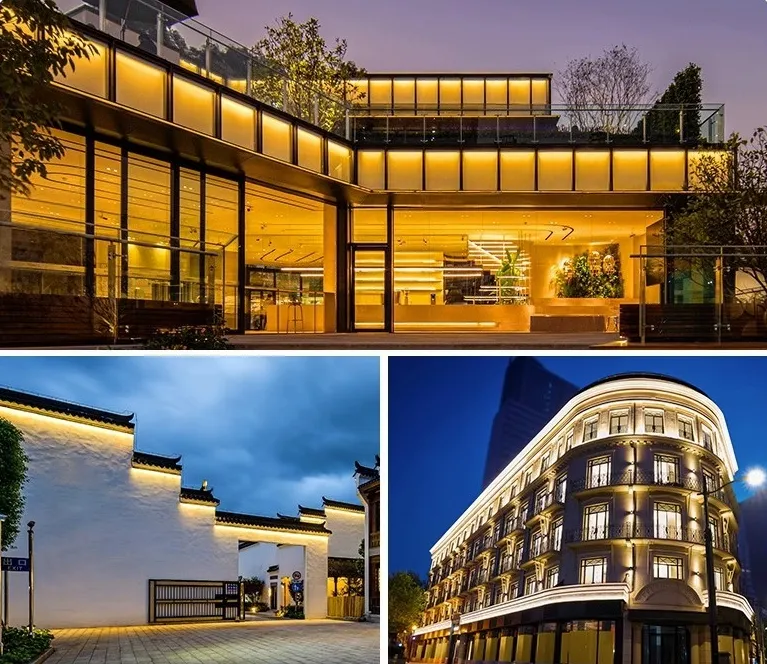

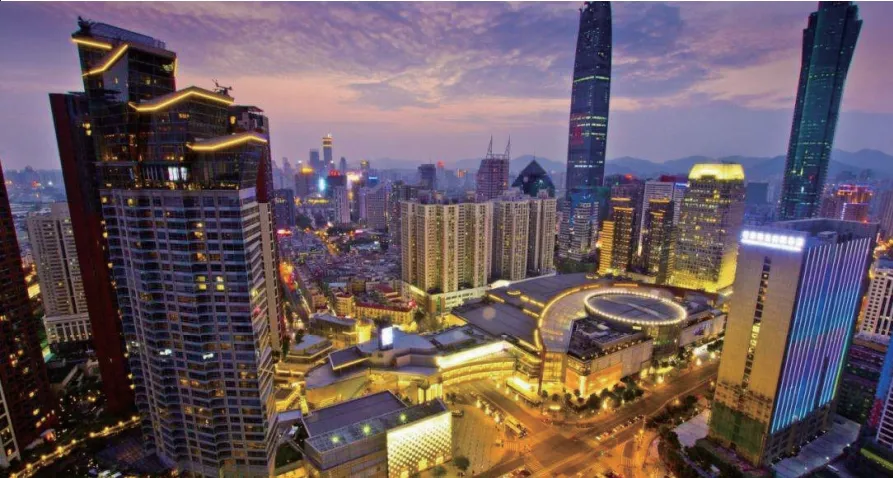

Explore representative lighting applications highlighting our linear luminaires' ability to enhance complex outdoor nightscapes.

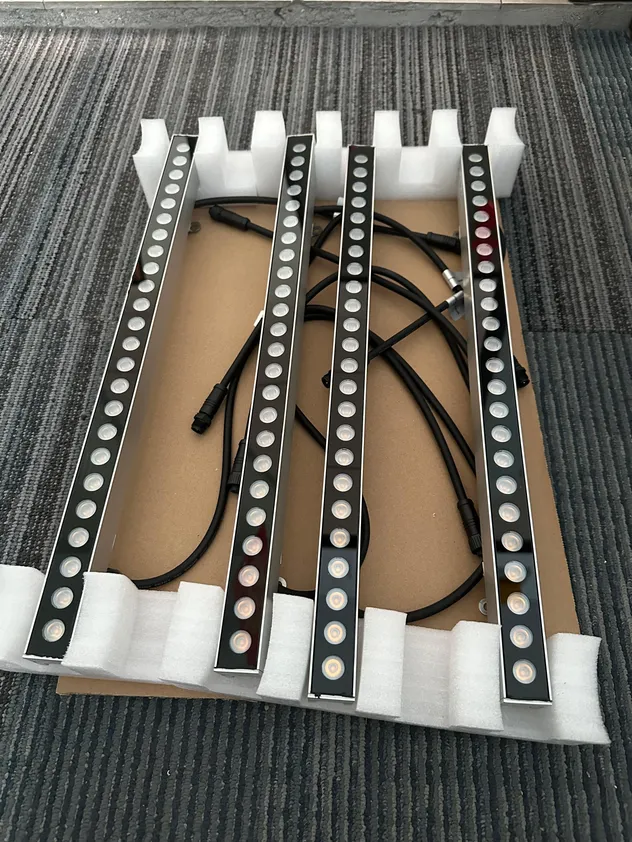

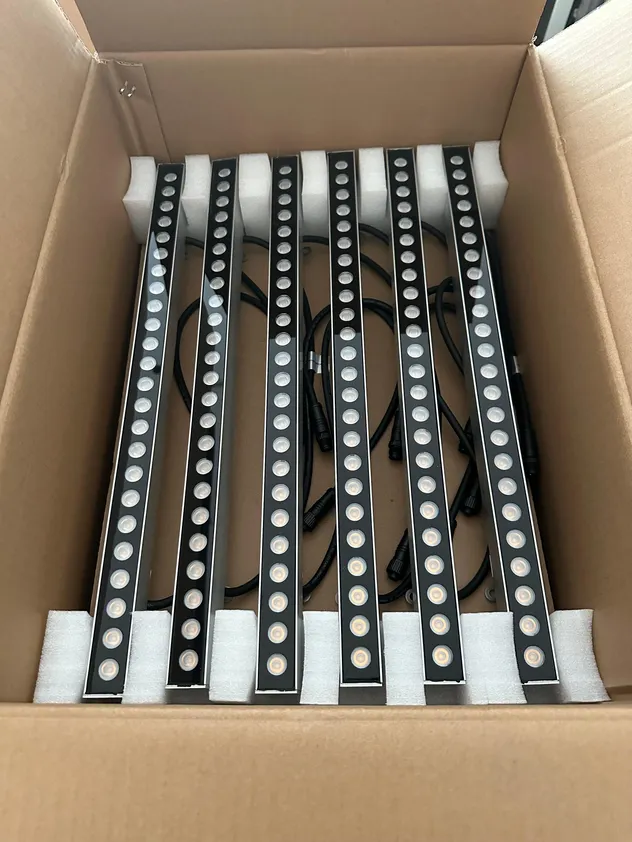

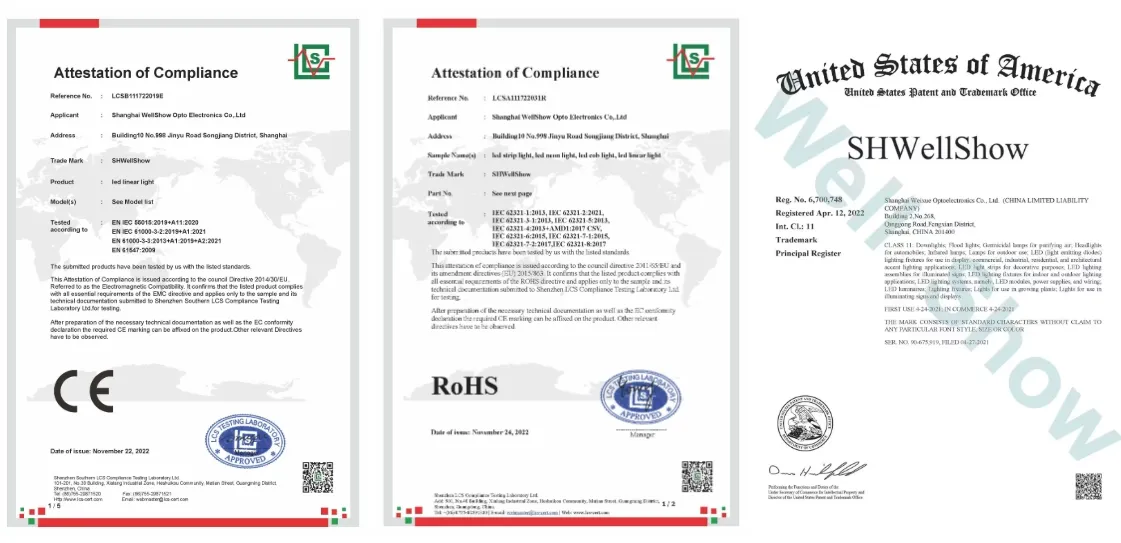

Every linear model goes through extensive vibration testing, custom wood/cardboard packing, and safety certification routines prior to container loading.
