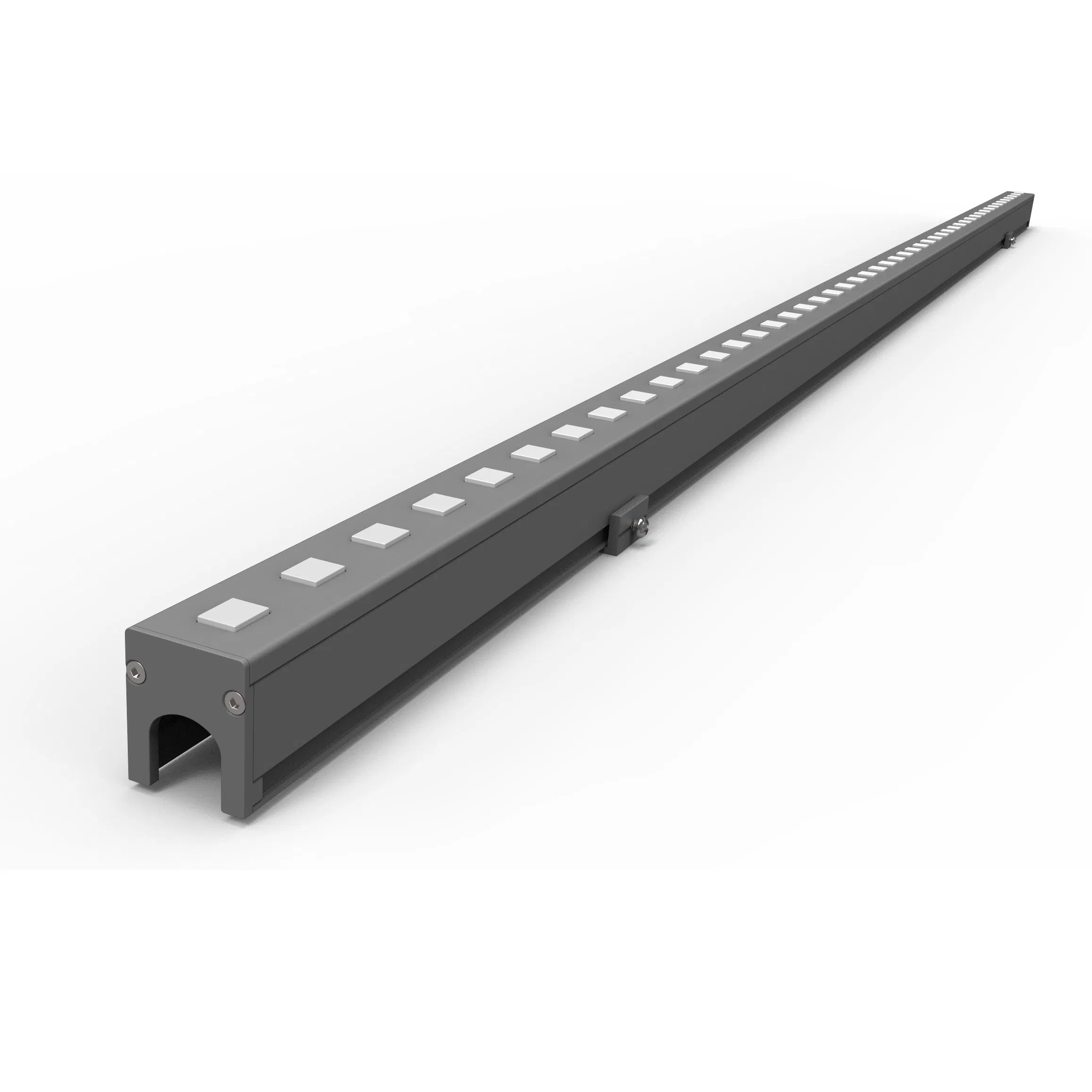

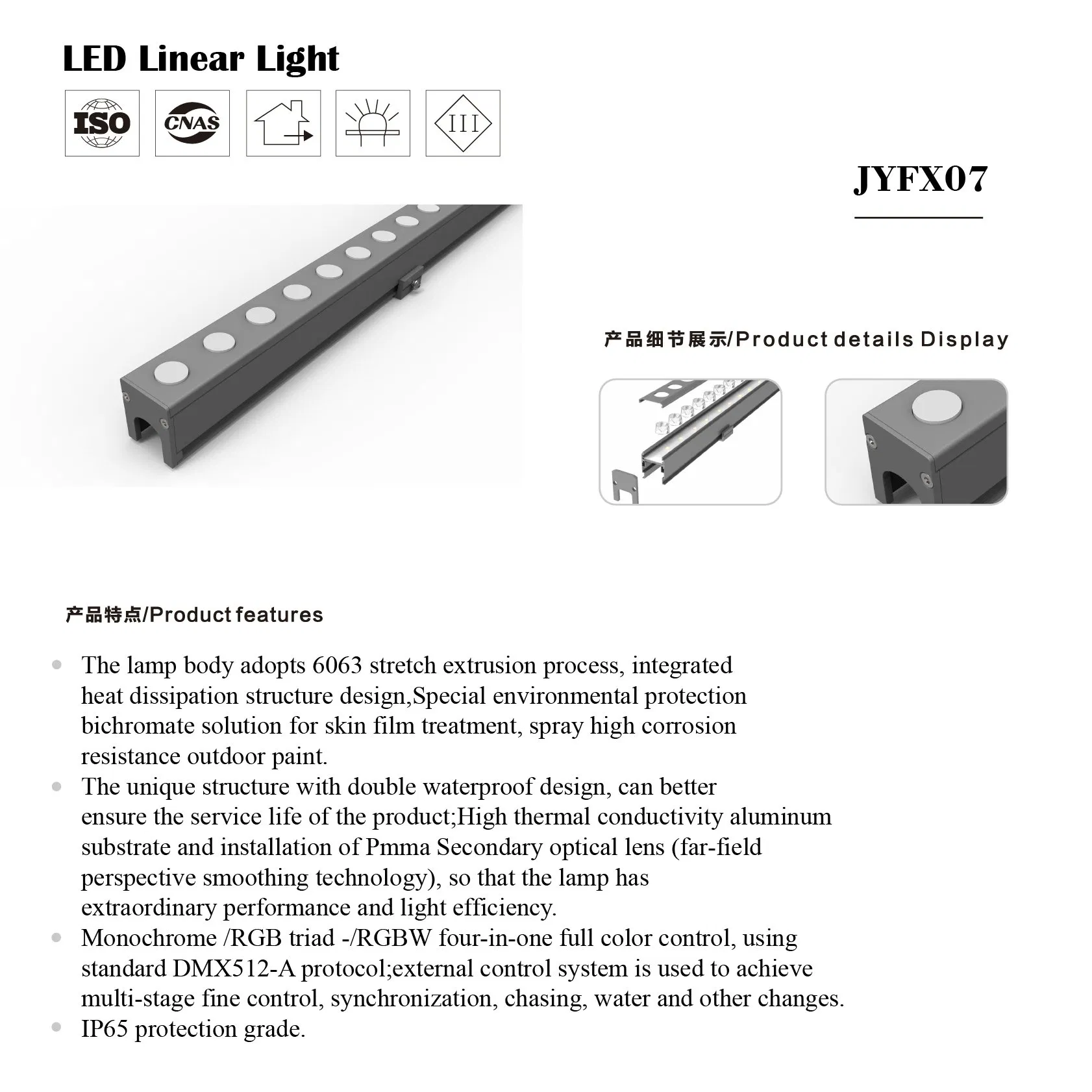

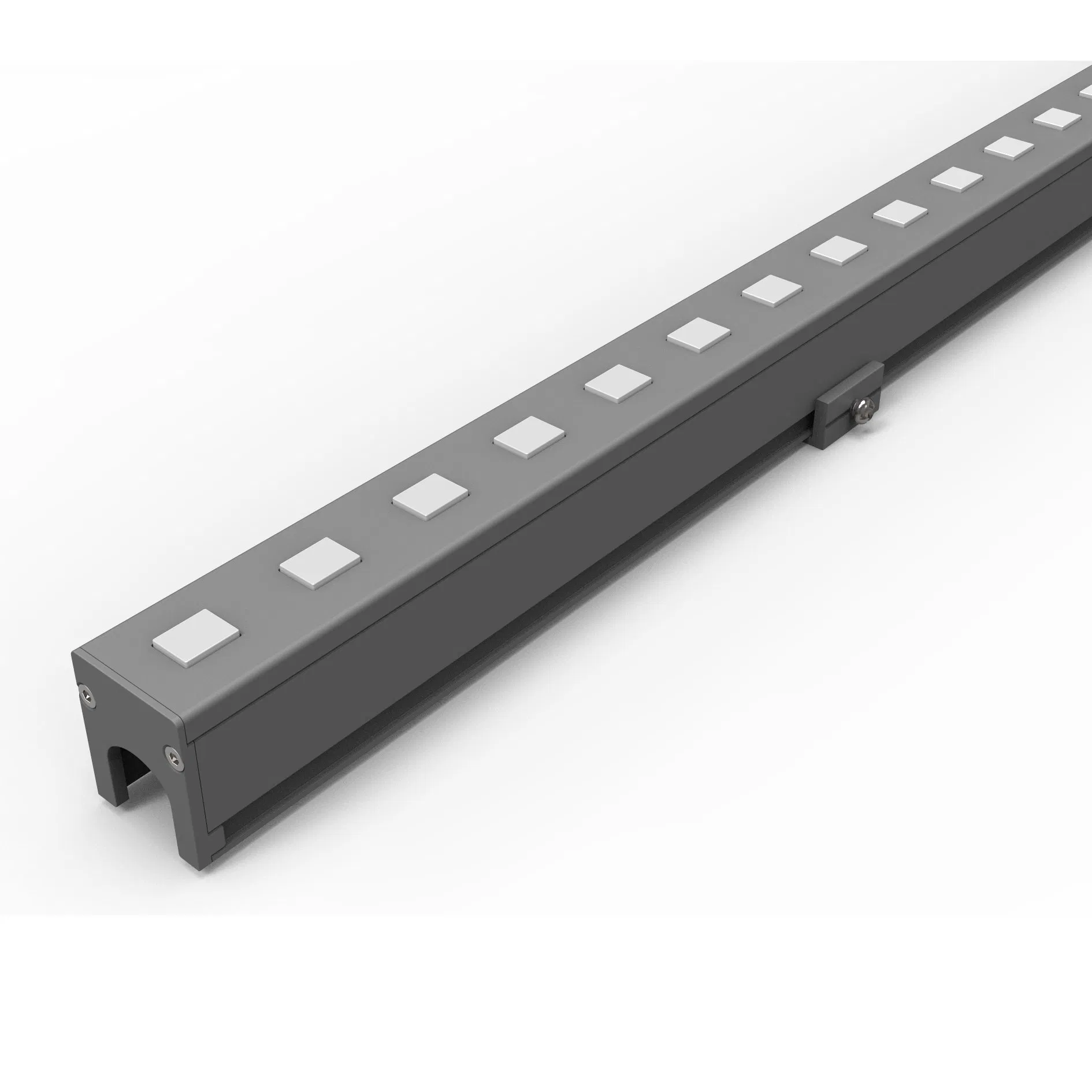

High-performance lighting solution available in multiple power and color options:
● 12W RGBW Option
● 15W 1800K-10000K Optional
● 15W RGB / 15W RGBW
| Technical Specifications | |
|---|---|
| Working Voltage | DC24V |

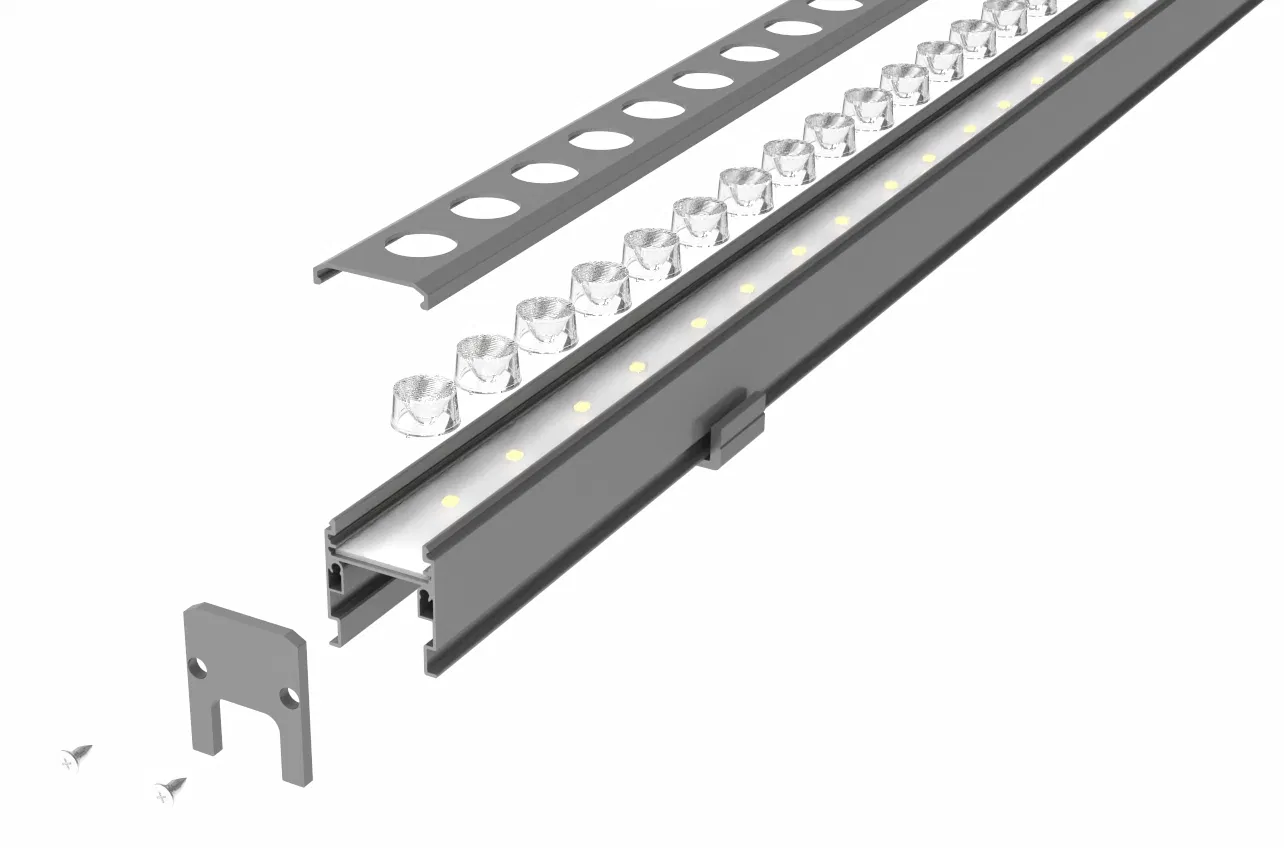

| Shell Material | Stretch Aluminum |
| LED Chips | SMD2835 or 5050 |
| Shell Color | Customizable according to curtain wall |
| Protection Level | IP65 |
| LED Lifetime | 50,000 Hours |
| Control Mode | Monochrome constant brightness or DMX512 |

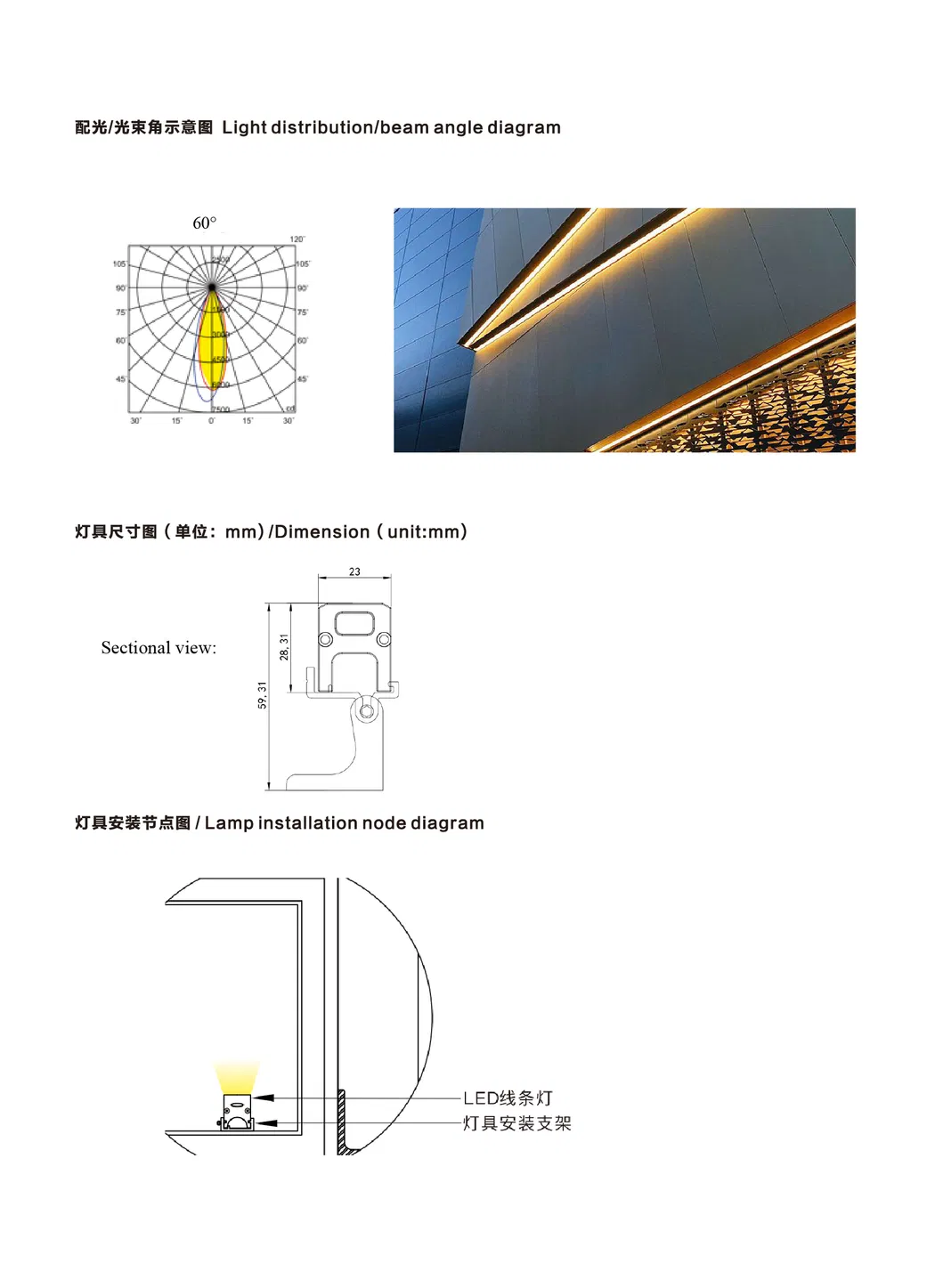

| Beam Angle | 15°, 30°, 60°, 120°, 25*45°, 10*60° and more |
| Ambient Temperature | -35ºC ± 50ºC |
| Outgoing Method | Center outgoing line |
| Line Length | Docking 106cm |

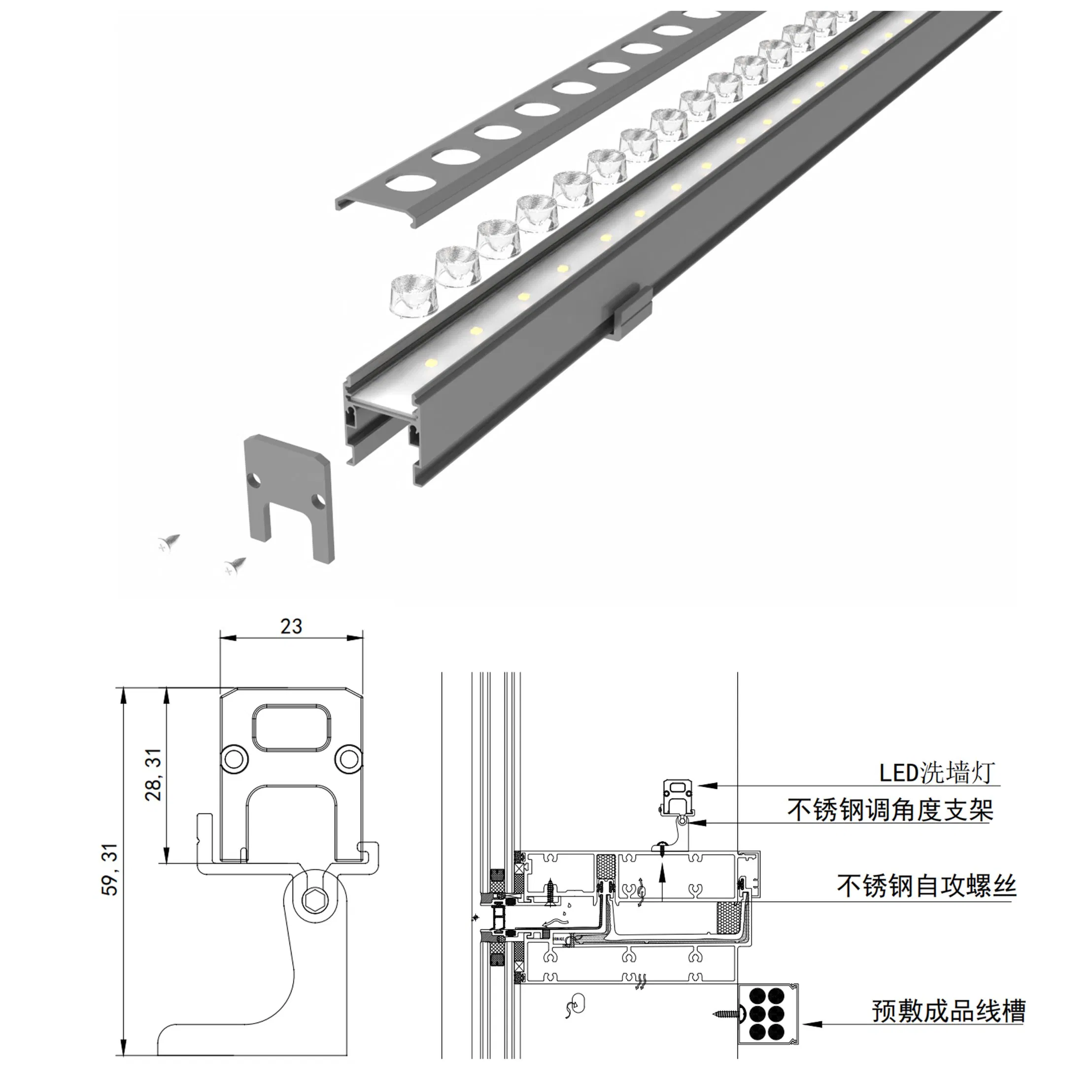

| Product Size | 23*28.3*1000mm |

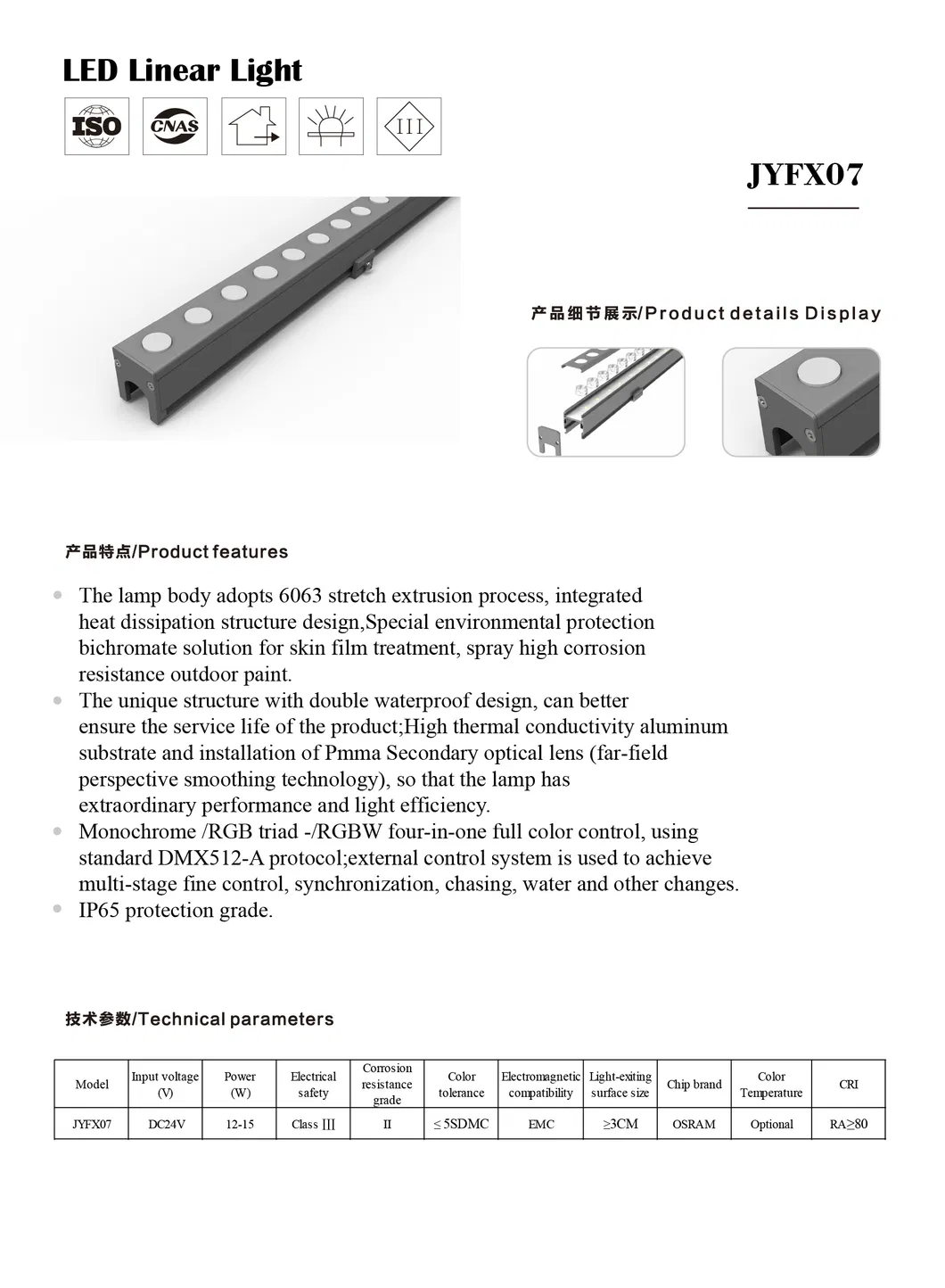

| Model | Input (V) | Power (W) | Safety | Corrosion | EMC | CRI |
|---|---|---|---|---|---|---|
| JYFT07 | DC48V | 12-15 | Class III | Grade II | Compliant | RA≥80 |
